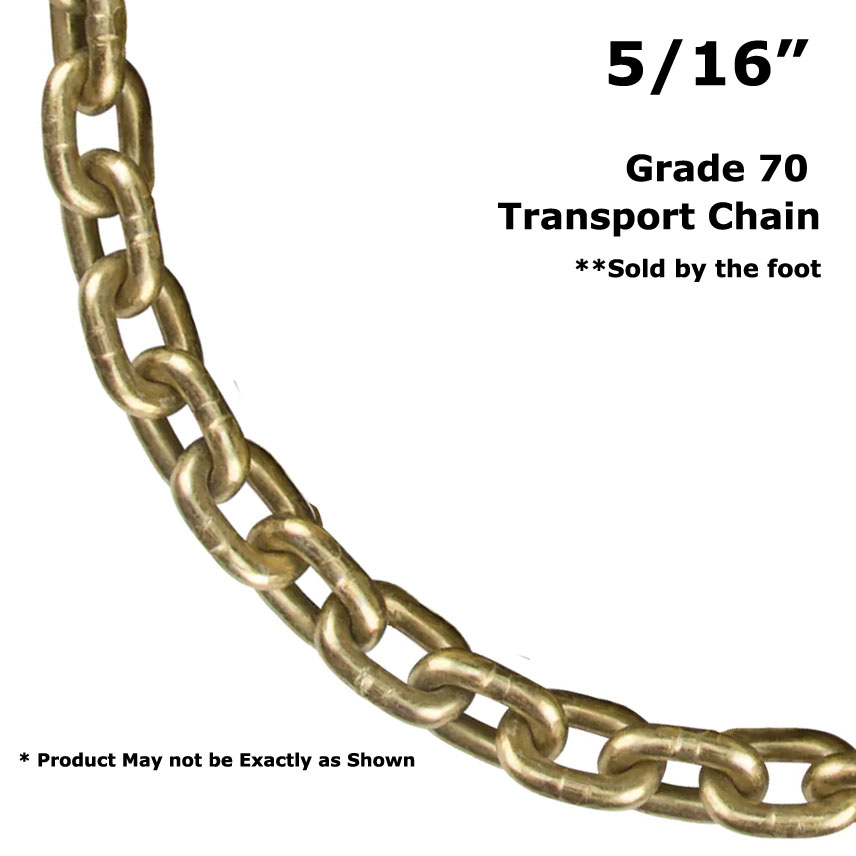

Vanguard Steel 3807 0020 5/16″ Grade 70 chain is also known as transport chain, tie down chain, binder chain, and trucker’s chain. The Vanguard Steel 3807 0020 5/16″ Grade 70 Transport Chain is a high quality chain manufactured in a high-strength, low-alloy carbon steel. The Vanguard Steel 3807 0020 5/16″ Grade 70 Transport Chain It is most commonly used as tie down on trailers, but is also used for towing, logging, oil rigging, and safety operations. Vanguard Steel Grade 70 chain uses a standard link and is easily identified by its gold or yellow chromate finish, which is widely recognized throughout the industry as the color for Grade 70. Each chain is embossed for easy identification.
Vanguard Steel 3807 0020 5/16″ Grade 70 Transport Chain Warnings
- Grade 70 chain should never be used for overhead lifting.
- Never exceed the Working Load Limit (WLL) as dangerous situations can occur causing serious injuries
Vanguard Steel 3807 0020 5/16″ Grade 70 Transport Chain Features
- High quality stamped grade 70 chain links
- Manufactured in accordance with the Department of Transportation regulations
- Meets NSC Standard 10 requirements
- Yellow chromate finish
- Grade 70 chains must not be used for overhead lifting
- Design factor 4:1
- Sold by the Foot
Vanguard Steel 3807 0020 5/16″ Grade 70 Transport Chain Specifications
- Part Number: 3807 0020
- Chain Size: 5/16″ (8.7mm)
- Grade: Grade 70 Transport Chain
- Material diameter: 0.343″ 8.7mm
- Working Load Limit / WLL (Maximum): 4,700Lb 2,130 Kg
- Proof Test: (Minimum): 9,400lb 41.8kN
- Breaking Force (Minimum): 18,800lb 83.6kN
- Inside Length (Maximum): 1.29″ 32.80mm
- Inside Width (Minimum): 0.44″ 11.20mm
