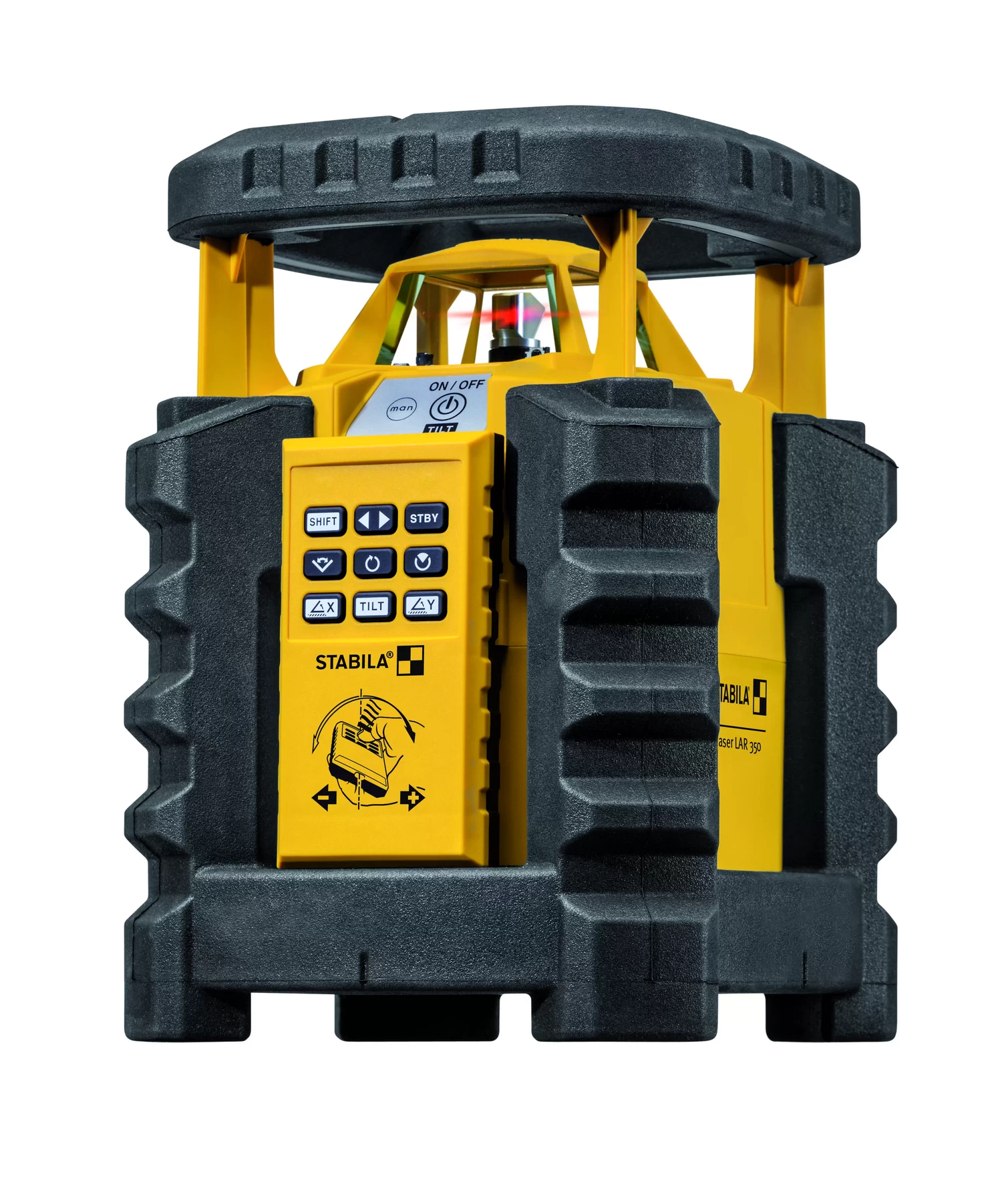

Stabila LAR 350 9pc Rotation Laser Kit 05700TR with Dual Slope

The Stabila LAR 350 9pc Rotation Laser Kit 05700 with Dual Slope is another world’s first! The new LAR 350 rotation laser incorporates many groundbreaking technologies. The LAR 350’s revolutionary MOTION CONTROL remote makes every measuring task easier, quicker, more effective and even more reliable. You can control the LAR 350 in no time at all with the remote control’s motion sensing capability. The built-in sensor detects your hand movements and transmits them to the laser. Discover a multitude of ground-breaking technologies and functions. Thanks to the integrated protection systems, nothing gets in the way of this laser – not even falls, rain or dust. A strong measurement package for professionals with responsibility. Typically STABILA – because precision is the crucial factor.

Why Purchase the Stabila LAR 350 9pc Rotation Laser Kit 05700?

1. MOTION CONTROL: An intuitive remote control with in-built movement sensor. By turning the remote control to the right or left, the movement sensor accelerates or decelerates the chosen laser function. This enables you to intuitively control numerous functions and settings at a measuring range of up to 60 ft.
2. LED ASSIST system: The LEDs integrated into the laser housing light up to indicate various functions. The system helps you to monitor the LAR 350 from a distance. This prevents you from having to constantly carry out checks at the site of the laser, saving you time in your day-to-day work.
3. MASKING MODE: The rotating laser beam can be limited to a particular area. This prevents the beam from interfering with other lasers causing them to malfunction, or visually disturb other professionals working on site. Multiple lasers can now work on different tasks simultaneously and without hindrance.

Stabila LAR 350 9pc Rotation Laser Kit 05700 has LED ASSIST system: For visually monitoring the laser from a distance

• New LED ASSIST system for easy operation and safety in the workplace. When positioning the laser, integrated LEDs emit a warning when the laser is outside of the leveling range. When using the slope function, the LEDs indicate which axis is currently tilted or is being tilted. When tilt mode is active, flashing LEDs indicate inadvertent shocks and vibrations. Additional indicator lights provide information on the battery and temperature status

Stabila LAR 350 9pc Rotation Laser Kit 05700 includes the STABILA PROTECTOR system

• Extremely tough thanks to the STABILA PROTECTOR system that is patented in many countries – perfect protection, even when the laser is dropped from a height of up to 6 ft*. Set it up again, switch it on and continue measuring with the same precision.

Stabila LAR 350 9pc Rotation Laser Kit 05700 has the STABILA rain and dust protection

• Waterproof and dustproof in accordance with protection class IP 65. Optimum protection for use on construction sites, even in poor weather conditions. The laser can be hosed down and cleaned.

Stabila LAR 350 9pc Rotation Laser Kit 05700 with Dual Slope Features

• Fully automatic servo controlled rotary laser for horizontal and vertical applications, with remote controlled dual axes slope.
• Horizontal position The laser beam rotates horizontally through 360° around its vertical axis.
• Vertical position The laser beam rotates vertically through 360° around its horizontal axis.
• Innovative MOTION CONTROL – quick, reliable and user friendly laser operation by rotating the remote control.
• DUAL SLOPE inclination function – controlled inclination setting of up to 5° on two axes’.
• MASKING MODE – working area which can be limited in rotation mode. The laser beam is only emitted in a defined area.
• LED ASSIST system – for easy operation and safety in the workplace. Integrated LEDs indicate, for example, which axis is currently tilted or is being tilted.
• MANUAL ALIGNMENT function – pivoting an axis in vertical operation.
• Patented STABILA PROTECTOR system – perfect protection, even when the laser is dropped from a tripod at a height of up to 6ft.
• Waterproof and dustproof in accordance with protection class IP 65.
• Impact protection from a max. height of 1.80 m.
• Large working area with REC 300 Digital set receiver, up to 2600 ft in diameter.

Stabila LAR 350 9pc Rotation Laser Kit 05700 with Dual Slope Applications Functions

• Tilt function
• MASKING MODE
• Standby mode
• Horizontal and vertical rotation function
• X and Y-axis inclination function (DUAL SLOPE)
• Manual operation
• Line function in scan mode
• Plumb line
• 90° angle

Stabila LAR 350 9pc Rotation Laser Kit 05700 with Dual Slope Applications

• In bricklaying – creating the levelling course.
• In concrete construction –walls, flat work, patios and driveways.
• In paving – parking lots and drainage.
• In commercial construction – layout and framing.
• In residential construction – Squaring, layout and framing.
• In excavation and sewer work – site and underground work.
• In landscaping work – retaining walls, ponds and pavers.
• In carpentry and wood construction – framing, siding and trim work.
• In civil engineering and pipeline construction – installing pipelines.

• Grading / Leveling / Drainage site preparation
• Excavation / sewer work
• Concrete / Foundations / Flat work / Ramp work
• Landscaping / Pavers / Fences / Retaining walls

• Layout and squaring
• Leveling floors
• Ceilings / Soffits
• Vertical framing of walls
• Exterior siding / Brick and stone work

1. Acoustic signal emitter
2. Graded distance symbols
3. Accuracy level selector
4. Number display for reference deviation
5. Accuracy level display
6. 3˝ high laser reception window
7. Volume selector
8. Unit selector

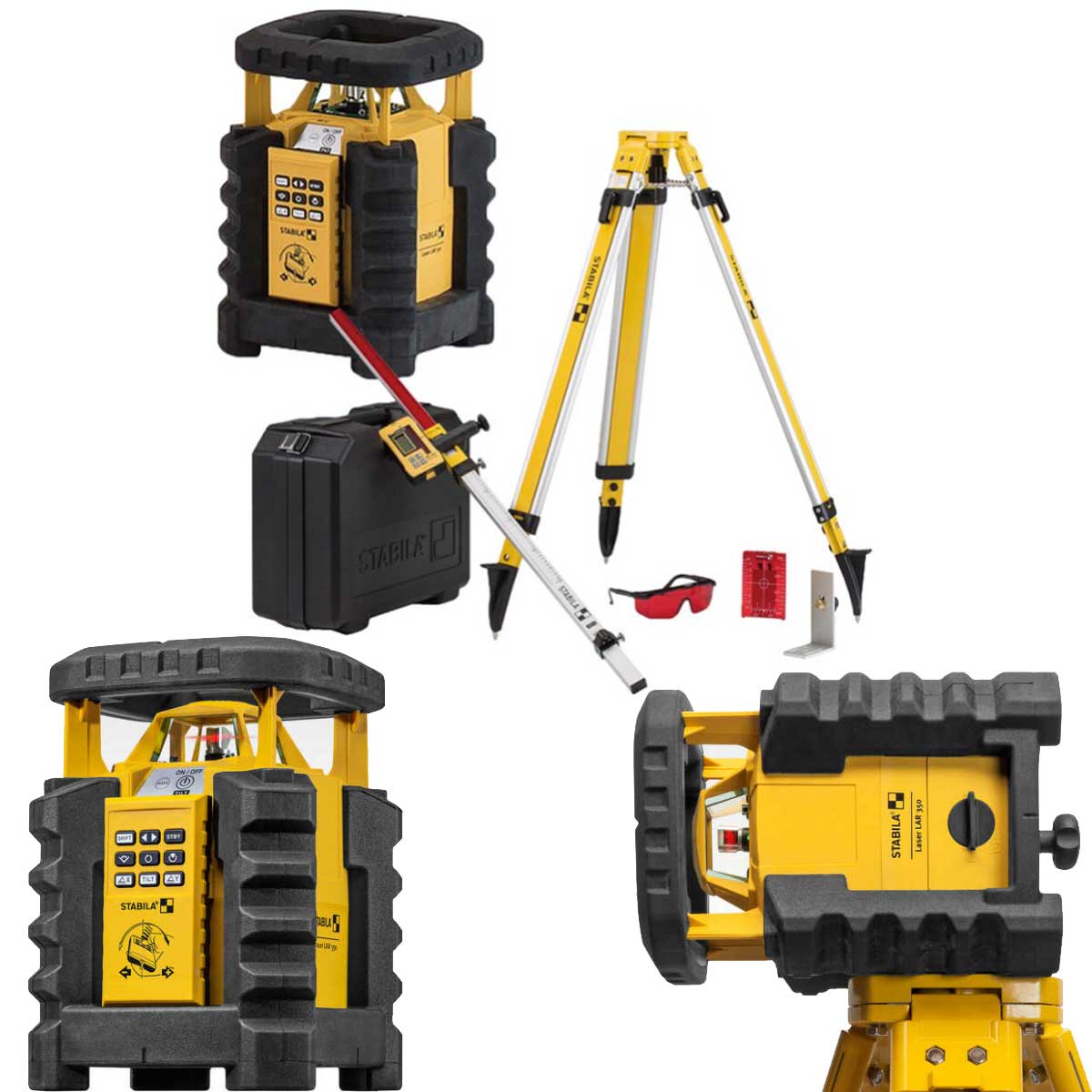

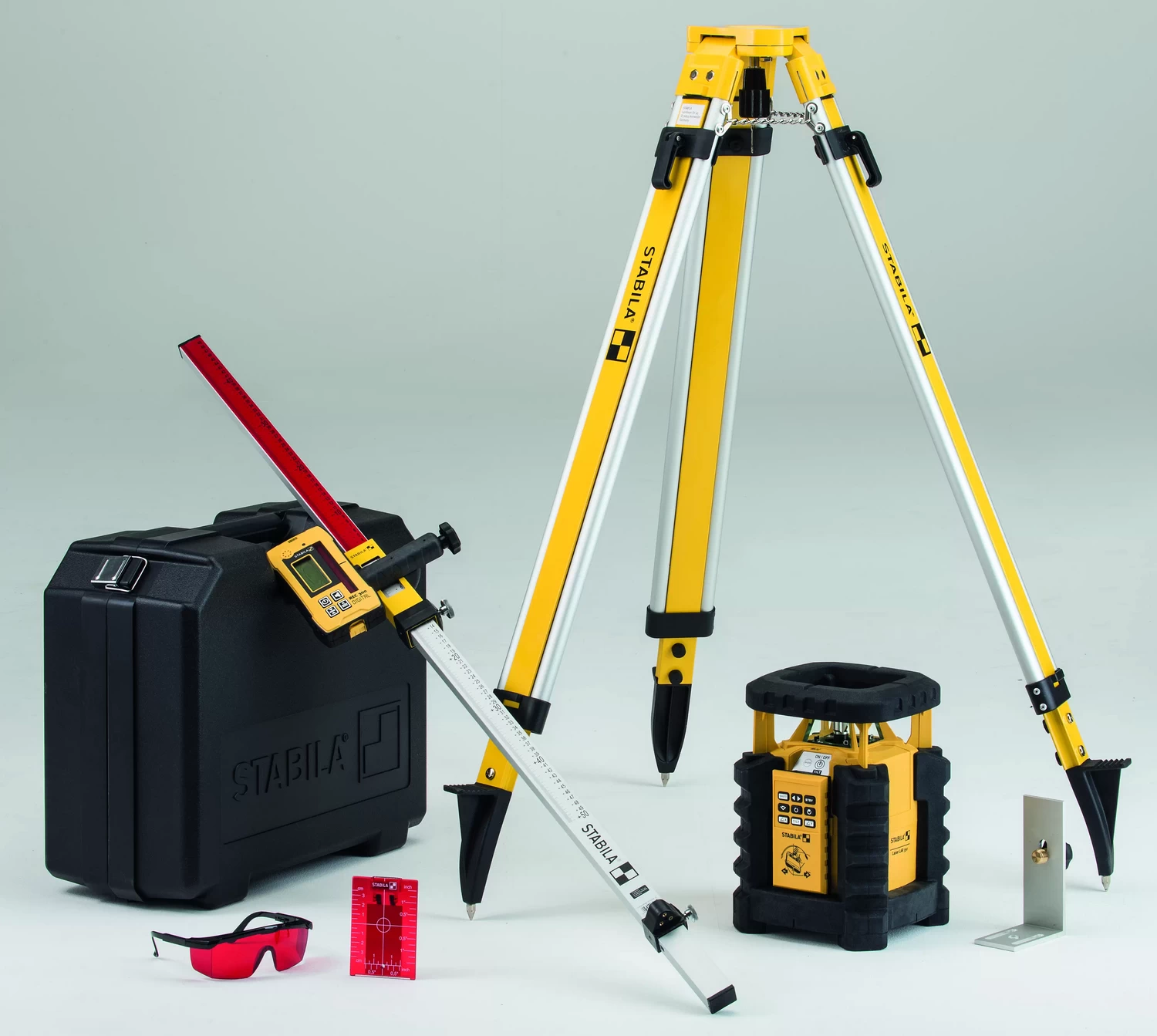

• LAR 350 rotation laser
• REC 300 Digital receiver
• RC-LAR350 remote control
• Heavy duty tripod
• Elevation rod
• 90° angle mount
• Laser goggles
• Target plate
• Carrying case
• 2ae D 1.5 V batteries
• 4ea AA 1.5 V batteries

Stabila LAR 350 9pc Rotation Laser Kit Warranty

• Stabilia’s 2 Year Limited Warranty
