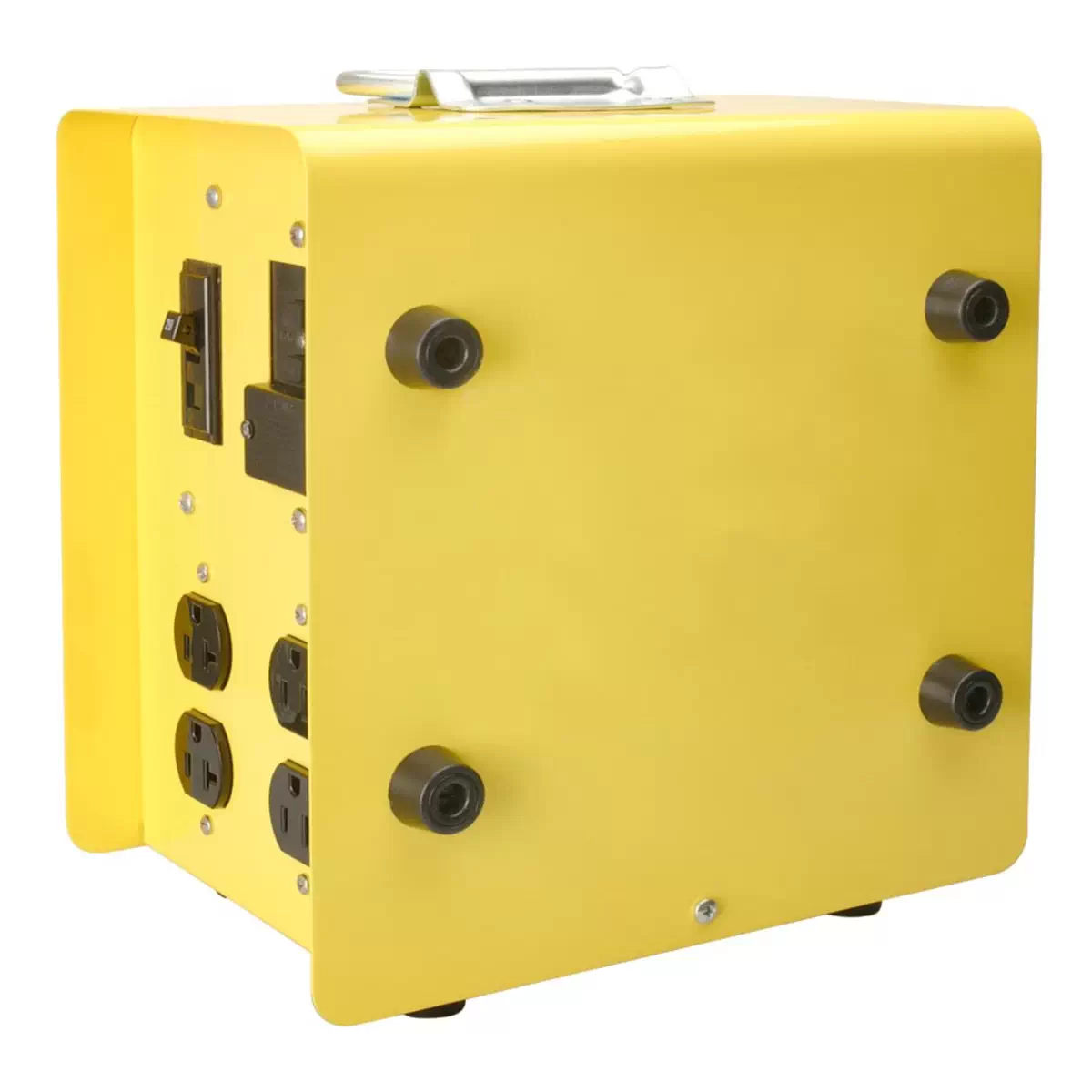

Southwire 6532UGMX Mini X-Treme 30A Portable Temporary Power Distribution Box

The Southwire 6532UGMX 8 Outlet Mini X-Treme Box 30A UG Temporary Power Distribution Box is a robust and compact solution designed to enhance power distribution safety and efficiency on any job site. Engineered with advanced GFCI technology, this unit offers comprehensive protection including ground fault, open neutral, and reverse phasing safeguards. Its sturdy construction and compliance with current safety standards make it an indispensable tool for construction sites, outdoor events, and industrial settings.

Southwire 6532UGMX Mini X-Treme 30A Portable Temporary Power Distribution Box Features

• Advanced GFCI Protection: Ensures user safety with features like open neutral detection, reverse phasing, and a 240V shut-off with an indicator light.
• Durable Construction: Crafted from 14-gauge steel, this box is built to withstand harsh environments, boasting a heavy-duty, impact, and flame-resistant enclosure.
• Versatile Application: Suitable for both indoor and outdoor use, providing flexibility without additional costs.
• Compliance with Safety Standards: Meets UL 943 requirements and is listed to U.L. 1640 for Portable Power Distribution. Complies with NEC 2017 Rule for Portable Generators.
• Easy Connectivity: Features an input connector and multiple output receptacles to maximize generator usage efficiently.

Market

• Construction Sites: Provides a reliable power distribution point that handles multiple power tools simultaneously.
• Outdoor Events: Ideal for setting up temporary power for lighting, sound systems, and catering equipment.
• Industrial Applications: Can be used in workshops and factories where temporary power is needed for equipment or maintenance tasks.

Southwire 6532UGMX Mini X-Treme 30A Portable Temporary Power Distribution Box Specifications

• UPC: 029892054557
• Model #: 19800102
• Dimensions: 10.0 inches (Height) x 10.0 inches (Width) x 6.75 inches (Depth)
• Weight: 10.8 lbs;
• Amperage: 30A
• Voltage: 125/250V
• Construction: Powder Coated Steel
• Receptacles: NEMA 5-20 GFCI Protected Duplex, Split Across 2 Circuits
• Power Inlet: 30A 125/250V L14-30P Male Plug
• Rating: 30A Type 1 Indoor
• Certifications: Meets UL 943, Listed to U.L. 1640
• Power Specifications: 125/250V 30-Amp 3P4W
• Input Connectors: 30-Amp 125/250V 3P4W NEMA L14-30P
• Feed-Thru Connector: 4 x NEMA 125V 20-Amp 5-20 duplex receptacles with dedicated GFCI Protection on 2 circuit breakers
• Outputs: 4 x NEMA 125V 20-Amp 5-20 duplex receptacles with dedicated GFCI Protection on 2 circuit breakers
