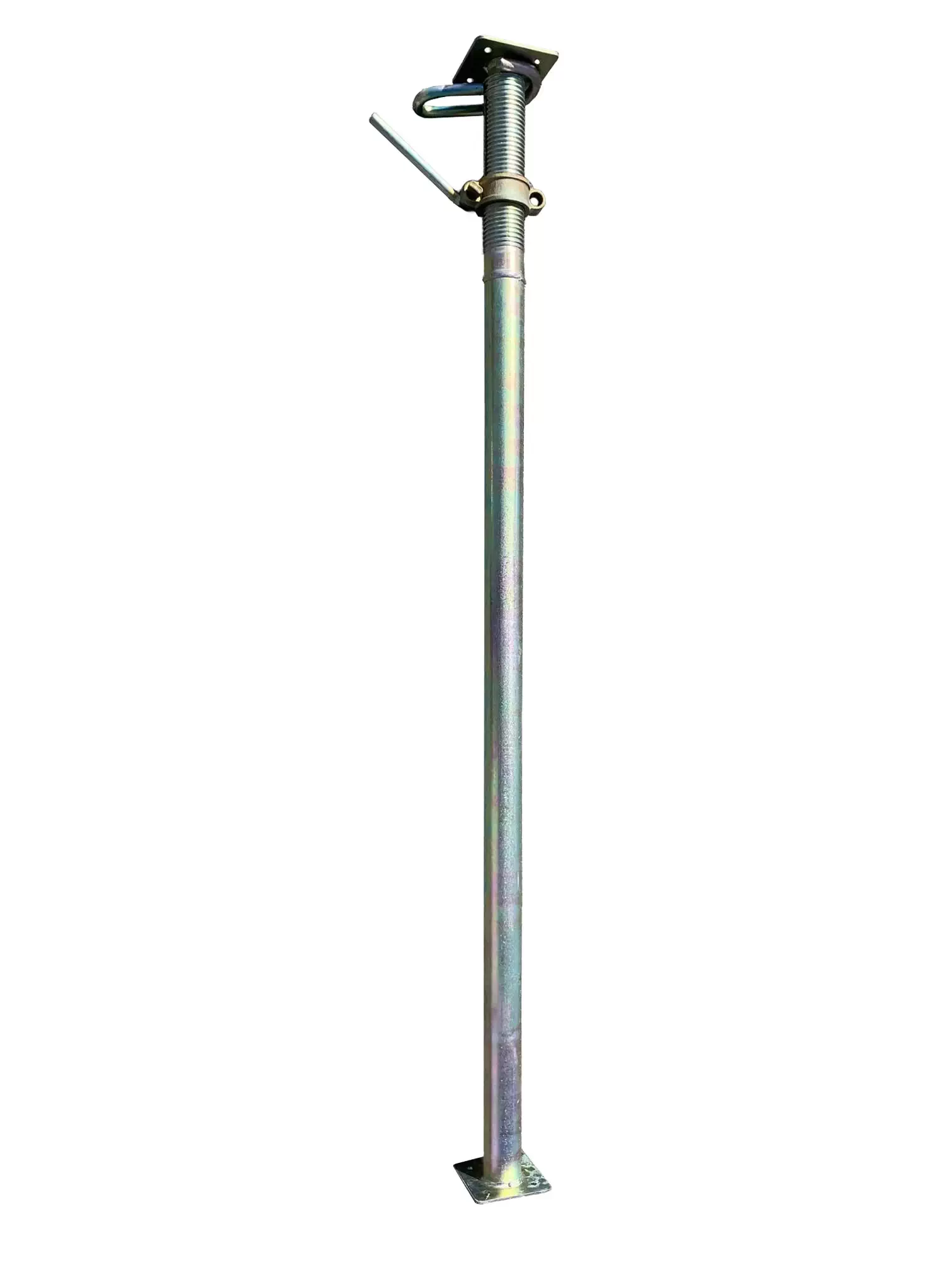

Sky-Hi Industries PS01 3’6″ – 6′ Post Shore, 6,600 Capacity

The Sky-Hi PS01 3’6″ – 6′ Post Shores are heavy-duty and made from galvanized steel. The PS03 post shores are adjustable from three foot six inches and extends to six feet. The Sky-Hi PS03 3’6″ – 6′ Post Shores were specifically designed for structural support of framing or concrete during construction or renovation process.

** Product may not be exactly as shown

Sky-Hi Industries PS01 At a Glance

• Heavy-Duty Galvanized Steel Construction: Ensures longevity and resistance to corrosion, making it ideal for use in challenging environmental conditions.
• Versatile Adjustability: The PS01 post shore’s range of 3’6″ to 6′ caters to a broad spectrum of structural support needs, enhancing its utility across different stages of construction.
• High Load Capacity: With a robust design that supports up to 6,600 lbs when collapsed and 4,430 lbs when extended, it guarantees reliable support for framing and concrete work.
• Engineered for Safety: Adhering to rigorous standards, including a 3:1 safety factor, the PS01 prioritizes user safety and structural integrity.
• Ease of Use: Its straightforward adjustment mechanism ensures quick and efficient setup, optimizing productivity on the job site.

Sky-Hi Industries PS01 3’6″ – 6′ Post Shore, 6,600 Capacity Uses

The Sky-Hi PS01 Post Shore is the ideal tool for professionals in construction, renovation, and structural support projects. Its robust design and adjustable nature make it perfectly suited for:

• General contractors and builders requiring reliable support for framing or concrete.
• Construction projects that demand high-strength, flexible support solutions.
• Renovation teams working on structures that require temporary yet sturdy support.

Sky-Hi Industries PS03 6’6″ – 11″ Post Shore, 5,050 Capacity Specifications

• Part Number: PS01
• Adjustable Height: From 3’6″ (Low/Collapsed) to 6′ (High/Extended)
• Weight: 27.00 lbs (12.26 kg)
• Load Capacity: 6,600 lbs (Collapsed) / 4,430 lbs (Extended)
• Safety Load KN: 29.39 KN (Collapsed) / 24.04 KN (Extended)
• External Tube Dimensions: ∅60×3.0 mm (∅2.38″x0.118″)
• Internal Tube Dimensions: ∅48.3×3.5 mm (∅1.91″x0.14″)
• Steel Grade: Q345B, offering a minimum yield strength of 345 Mpa (50,000 Psi) and a tensile strength of 470 Mpa (68,000 Psi)
• Elongation: Minimum 20%
• Safety Factor: 3:1
• Standards Compliance: ASTM A 1011/A. 1011M-05a, ANSI/SSFI SC100-5/05, OSHA compliant
• View Engineering Manual
