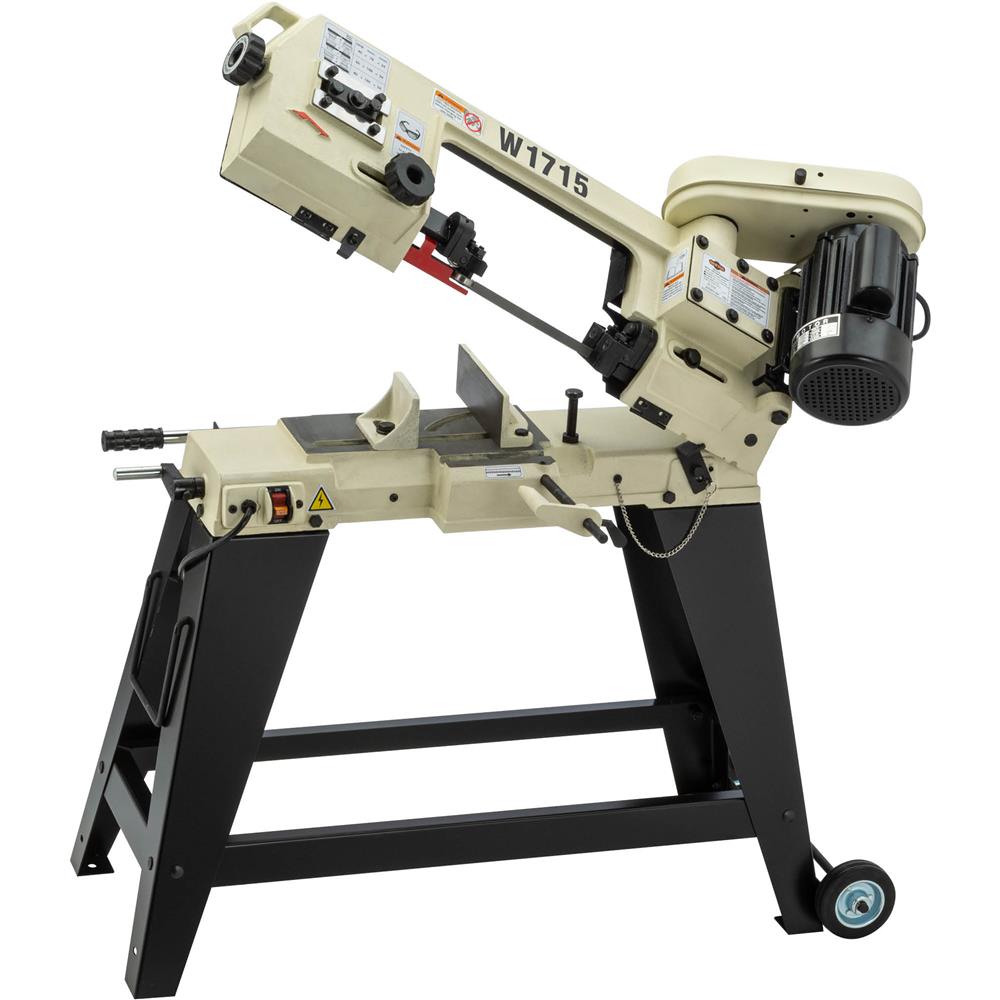

Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw

The Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw is a quality and economical, portable, horizontal / vertical metal-cutting bandsaw by Woodstock International. The Shop Fox W1715 is an excellent choice for small or large projects where you must cut a variety of metals, plastics, or wood. When the vertical cutting attachment is installed, the saw is able to cut in the same manner as a vertical bandsaw, giving you plenty of options for your unique cutting requirements.

Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw Features

• Horizontal and Vertical Operation
• Automatic Shut‐Off
• 3/4 HP Motor
• Economical
• Portable Design
• Cuts a variety of metals, plastics, or wood
• Uses a common 64-1/2″ x 1/2″ Blade

Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw Specifications

• Motor: 3/4 HP, 110V, single-phase, 1725 RPM
• Max. cut (round stock) diameter: 4-1/2″
• Max. cut (rectangular stock): 4-1/2″ x 6″
• Blade speeds: 78, 108, 180 FPM
• Blade size: 64-1/2″ x 1/2″
• Automatic shut-off
• Three cutting speeds
• Ball bearing construction
• Vertical cutting attachment
• Handles and wheels for portability
• Blade included
• Approximate shipping weight: 139 lbs.

Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw Operation Info

• Blade Speeds: 78, 108, 180 FPM
• Std. Blade Length: 64‐1/2 in.
• Blade Size Range: 1/2 in.

Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw Cutting Capacities

• Cutting Height: 6 in.
• Cutting Capacity Left of Blade: 6 in.
• Angle Cuts: 0 ‐ 60 deg
• Vise Jaw Depth: 6‐1/2 in.
• Vise Jaw Height: 3‐1/4 in.
• Max. Capacity Rectangular Height at 90 Deg: 4‐1/2 in.
• Max. Capacity Rectangular Width at 90 Deg: 6 in.
• Max. Capacity Round at 90 Deg: 4‐1/2 in.
• Max. Capacity Rectangular Height at 45 Deg: 4‐1/2 in.
• Max. Capacity Rectangular Width at 45 Deg: 3‐1/2 in.
• Max. Capacity Round at 45 Deg: 3‐1/2 in.
• Max. Capacity Rectangular Height at 60 Deg: 4‐1/2 in.
• Max. Capacity Rectangular Width at 60 Deg: 5 in.
• Max. Capacity Round at 60 Deg: 4‐1/2 in.

Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw Motor Specifications

• Horsepower: 3/4 HP
• Phase: Single‐Phase
• Amps: 5A
• Speed: 1725 RPM
• Type: TEFC Capacitor‐Start Induction
• Power Transfer: V‐Belt Drive
• Bearings: Shielded & Permanently Lubricated

Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw Construction

• Table: Cast Iron
• Upper Wheel: Cast Iron
• Lower Wheel: Cast Iron
• Body: Aluminum Cast
• Base: Cast Iron
• Stand: Pre‐Formed Steel
• Wheel Cover: Pre‐Formed Steel
• Paint Type/Finish: Urethane Hammertone

Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw Product Dimensions

• Weight: 117 lbs.
• Width (side‐to‐side) x Depth (front‐to‐back) x Height: 16 x 39 x 19 in.
• Footprint (Length x Width): 13‐3/4 x 19‐3/4 in.

Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw Shipping Dimensions

• Weight: 139 lbs.
• Length x Width x Height: 39 x 13 x 15 in.

Shop Fox W1715 4-1/2″ X 6″ 3/4 HP Metal Cutting Bandsaw Warranty

• Woodstock’s 2 Years Limited Warranty
