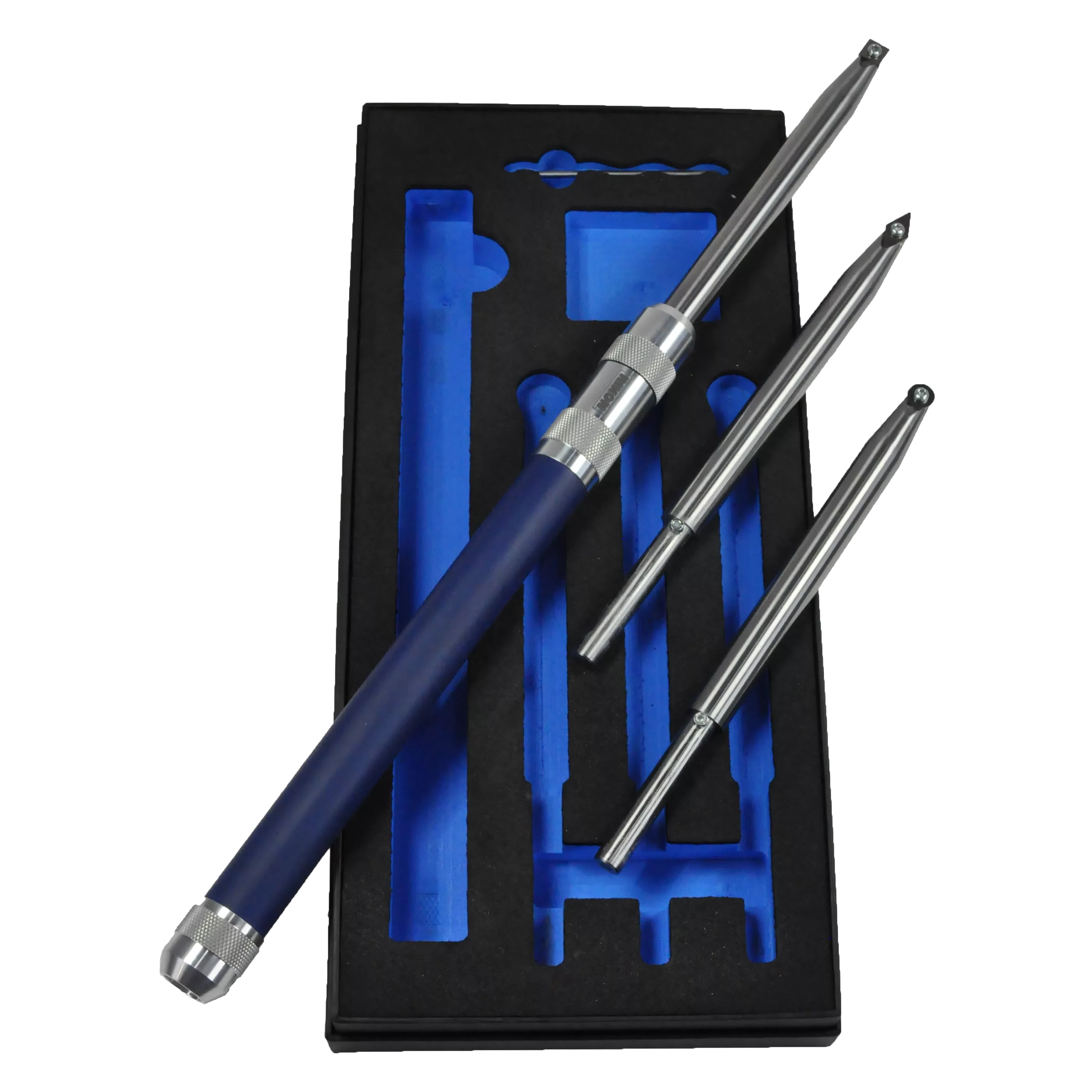

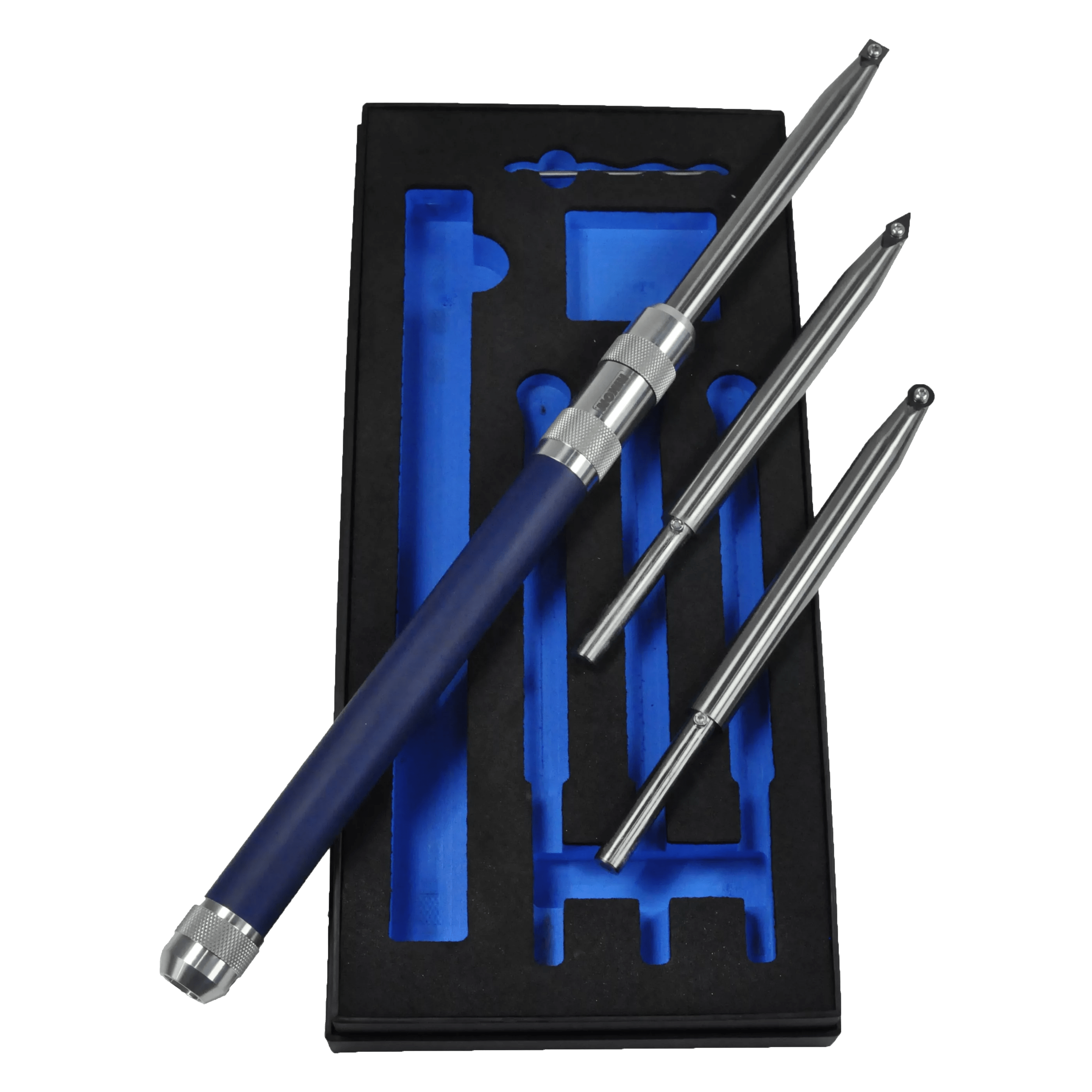

RIKON 70-800 4 Piece Woodturning System & Carbide Insert Cutters

The RIKON 70-800 woodturning system is a premium turning set that includes a 16” long, machined aluminum Handle with an anti-vibration grip that features a unique forward chucking system. The system includes three, high quality 8-3/8” steel shafts with either a Circle, Square or Diamond shaped carbide insert cutter. The carbide inserts are secured to the shaft ends with a T20 screw for ease of replacement. The finely machined shafts have bottoms that are milled with a flat, and 2 side bevels for extra stability on the tool rest when turning.

The RIKON 70-800 turning system has been specifically developed for both the experienced and novice wood turner. RIKON’s high quality turning system features tungsten carbide cutters that keep their sharp cutting edges longer than typical carbon or high-speed steel tools.  One of the 70-800 turning systems best features is the quick-change cutters. After many hours of use the cutters will become dull, simply remove the T20 screw holding the cutter in place, rotate the cutter to expose a fresh cutting edge and tighten back in place. To replace the carbide, or change the cutting edge only takes a few seconds.

RIKON 70-800 Woodturning Systems Key Features

• System includes a 16” long, machined aluminum Handle with an anti-vibration grip that features a unique forward chucking system
• Simply unscrew the knurled chuck collet to insert any of the three supplied shafts with carbide cutters, tighten the chuck collar, and you are ready to turn
• Three, 8-3/8” steel Shafts are supplied with either a Circle, Square or Diamond shaped carbide Insert Cutter secured to their end with a T20 screw
• The finely machined shafts have bottoms that are milled with a flat, and 2 side bevels for extra stability on the tool rest when turning
• The two side bevel surfaces also give the user extra support when the cutter is shifted to an angled skew position for shear cutting action

RIKON 70-800 Woodturning System Specifications

• Handle Size         16″ x 1.4″ Diameter
• Handle Weight  1 lb. 12.3 ounces
• Shaft Size             8.4″ x .83″ Width
• Shaft Weight      1 lb. 1.8 ounces
• Cutters Material               Tungsten Carbide
• Cutter Shapes    Square, Round, & Diamond
• Square Cutter Size           13mm x 13mm x 3.2mm
• Round Cutter Size            14mm Diameter x 3.2mm
• Diamond Cutter Size       31mm x 13.8mm x 3.2mm (Tip 48°)
• Mounting Hole Size         4.2mm Diameter
• Size        24-3/8″ x 1.4″ Diameter
• Net Weight         2 lbs. 14.2 Ounces
• Shipping Weight               7 lbs.
• Shipping Carton 19-3/4” x 9-1/4” x 2”

System Contents

• 16” Handle
• 3ea Shafts
• 3ea Carbide Cutters
• Mounting Screws
• Star Wrench
• Manual
• Storage Box
