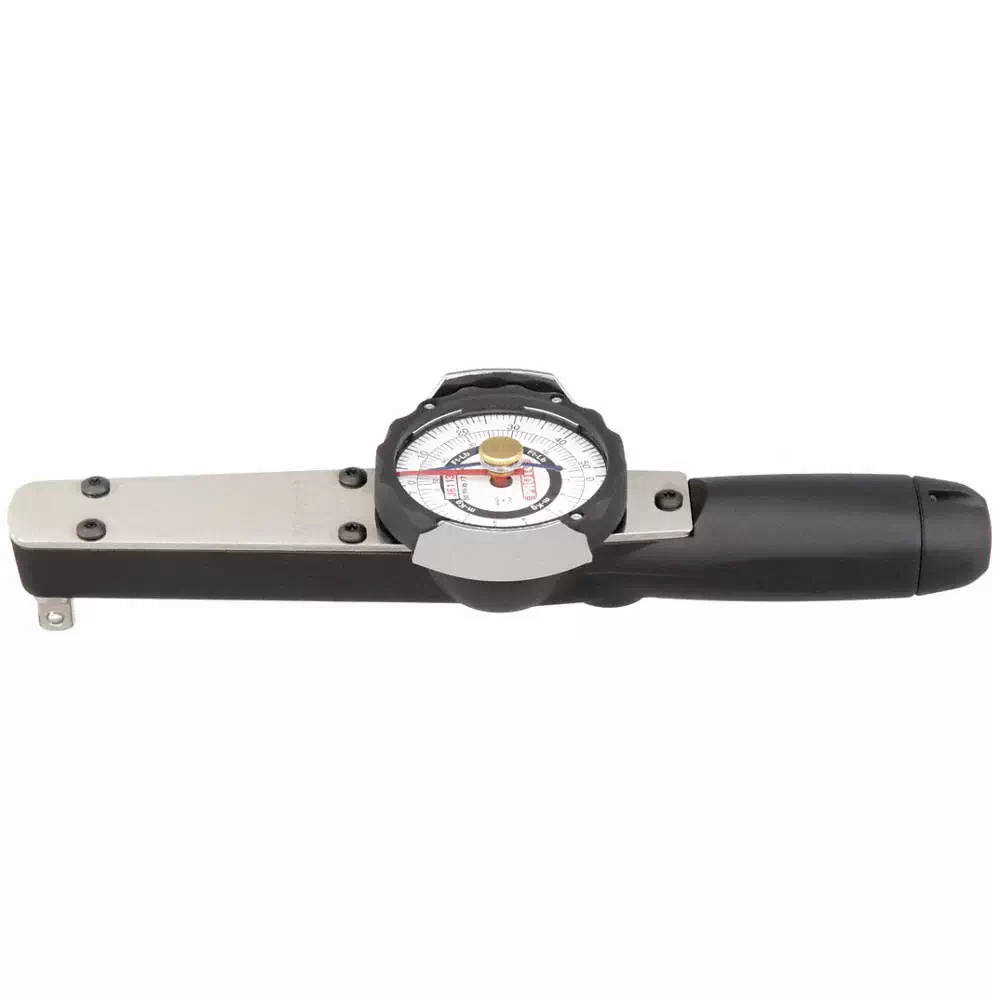

The Proto® J6168F 1/4″ Drive Dial Torque Wrench is a precision-engineered tool designed for accuracy, durability, and reliability in professional settings. This torque wrench is an essential tool for professionals in various fields, including automotive, aviation, construction, and any industry where precise torque settings are crucial. The J6168F model combines the reliability of the Proto® brand with innovative features that ensure accuracy and ease of use.
Proto J6168F 1/4″ DR Dial Torque Wrench Features
- Precision Accuracy: With a torque range of 6 to 30 inch-pounds (in-lb) and 7 to 35 centimeter-kilograms (cm-kg), this wrench delivers precise torque settings accurate to ±4% in both clockwise and counterclockwise directions, from 20% to 100% of full scale. Such precision is essential for ensuring that fasteners are tightened correctly, avoiding under or over-tightening that could lead to damage or failure.
- Durable Construction: The all-steel or aluminum torque transfer components are designed for industrial use, ensuring the wrench can withstand the rigors of heavy-duty applications. The alloy steel head and handle, along with the chrome finish, provide corrosion resistance and longevity.
- Dual Scale Convenience: Featuring a dual scale (English/metric), this tool caters to a wide range of applications, allowing for versatile use across different measurement systems. The clear dial and memory needle make it easy to record and replicate precise torque values.
- Ergonomic Design: The cushion grip handle offers comfort and control, reducing hand fatigue during extended use. The torsion drive design ensures that the accuracy of the wrench is not affected by hand position, allowing for more consistent torque application.
- Versatility: The wrench is equipped with a ratcheting head for forward and reverse rotation, making it adaptable to various tightening or loosening scenarios. It is also tether capable, allowing for safe use at heights or in environments where securing tools is necessary.
- Comprehensive Calibration: Each wrench comes with a calibration certificate, ensuring that it meets ANSI B107.14M, EN26789, and ISO 6789 standards right out of the box. The wrench undergoes extended data testing and is calibrated to NIST standards, giving professionals confidence in its accuracy and reliability.
- Protective Storage: Included with the wrench is a protective blow molded box, providing safe and convenient storage to protect the tool when not in use.
Proto J6168F 1/4″ DR Dial Torque Wrench Includes
- (1) 1/4″ DR Torque Wrench (J6168F)
- (1) Blow Molded Box
Proto J6168F 1/4″ DR Dial Torque Wrench Uses
The Proto® J6168F 1/4″ Drive Dial Torque Wrench is designed to meet the stringent requirements of various industries, offering precision, durability, and reliability. Typical industries that would use this type of tool include:
- Automotive Repair and Maintenance: For precise torque application on engine components, brake systems, and other critical automotive assemblies where specific torque settings are essential for safety and performance.
- Aviation and Aerospace: In the assembly and maintenance of aircraft, where accurate torque is crucial to ensure the integrity of fasteners in high-vibration environments and to meet strict regulatory standards.
- Manufacturing and Assembly: In production lines and factories where consistent torque application is necessary to ensure product quality and to reduce the risk of damage during assembly.
- Construction and Infrastructure: For projects requiring precise bolting in structures, especially in metal framing, bridge construction, and machinery installation, ensuring stability and safety.
- Energy Sector: Including oil and gas, renewable energy installations, and utilities where secure connections are vital for the maintenance and assembly of equipment in challenging environments.
- Electronics and Precision Engineering: For assembling and maintaining sensitive electronic equipment and components, where accurate torque prevents damage to delicate parts.
- Heavy Machinery Maintenance: In the upkeep and assembly of construction, agricultural, and mining equipment, where precise torque ensures reliability and extends the life of machinery.
- Railway Maintenance and Assembly: For the maintenance and construction of rail systems, ensuring that components are securely fastened for operational safety and reliability.
- Marine Engineering and Shipbuilding: In the assembly and maintenance of ships and marine equipment, where accurate torque application is necessary to withstand harsh marine environments.
- Research and Development Laboratories: Where precision and repeatability are critical in the development of new technologies and products, ensuring that experiments and prototypes are assembled accurately.
Proto J6168F 1/4″ DR Dial Torque Wrench Specifications At a Glance:
- Drive Size: 1/4 inch
- Torque Range: 6-30 in-lb / 7-35 cm-kg
- Increments: 0.5 in-lb / 1 cm-kg
- Accuracy: ±4%
- Length: 10 inches
- Weight: 1 pound
Proto J6168F 1/4″ DR Dial Torque Wrench Detailed Specifications
- Style: Dial Torque Wrench
- Torque Measurement Type: Inch-Pound, Centimeter-Kilogram
- Drive Size1/4 in
- Torque Range: 6 to 30 in-lb, 7 cm-kg to 35 cm-kg
- Torque Increments: 0.5 in-lb, 1 cm-kg
- Extended Data Testing: Yes, NIST
- Primary Scale Minimum Torque: 6 in-lb
- Primary Scale Maximum Torque: 30 in-lb
- Secondary Scale Minimum Torque: 7 cm-kg
- Secondary Scale Maximum Torque: 35 cm-kg
- Clockwise Accuracy: +/-4%
- Counterclockwise Accuracy: +/-4%
- Handle Type: Cushion Grip
- Memory Needle: Yes
- Torque Adjustability: Adjustable
- Measurement Type: SAE
- Corrosion Resistant: Yes
- Ratcheting: Yes
- Rotation: Forward and Reverse
- Tether Style: Tether Capable
- Head Type: Standard
- Head Material: Alloy Steel
- Handle Material: Alloy Steel
- Finish: Chrome
- Min. Number of Cycles: 5,500
- Overall Length: 10 in
- Weight: 1 lb
- Reset Type: Memory Needle
- Calibration Certificate Included: Yes
- Standards: ANSI B107.14M, EN26789, ISO 6789
