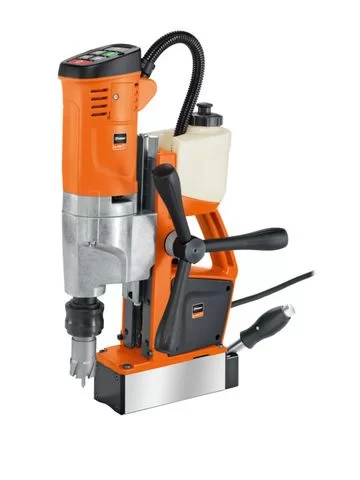

FEIN 72732362090 Compact magnetic core drill up to 1- 3/8 [36] in[mm]|JMC MAGFORCE 90

Compact magnetic core drill up to 1- 3/8 [36] in[mm]|JMC MAGFORCE 90 |Extremely small and lightweight 1-speed compact magnetic core drill with minimal dimensions for cramped spaces in the workshop and on the construction site.

FEIN 72732362090 Compact magnetic core drill up to 1- 3/8 [36] in[mm]|JMC MAGFORCE 90 Features

• Extremely small and lightweight for working in cramped and difficult-to-reach spots ? also vertically and overhead ? thanks to a height of 6-10/16 [169] in[mm], a length of 11-7/16 [290] in[mm] and a weight of 18.7 [8.5] lbs[kg].
• Extremely wear-resistant and long-lasting tool concept with play-free pinion feed for precision drilling results in tough applications in industry and trades.
• Very powerful, maintenance-free 10 A high-performance brushless motor with high speed stability for continuously excellent work progress, alongside forward/reverse running and electronic speed setting for all drilling applications such as core drilling
• High gear level for optimal view of the hole location.
• Large installation space below the drill spindle with a stroke of 1-13/16 [46] in[mm].
• Space-saving, double-sided operation via ratchet.
• Drive shaft combined 1/2 in square and 8 mm hexagonal socket.
• Intuitive and error-proof control concept in the operator’s field of view.
• Convenient magnetic holding force display.
• A tilt sensor stops the drill motor in case the tool slips or tilts.
• Integrated handle.
• “Memory function” speed storage.
• Personal safety switches.
• Slot for 5 mm Allen key directly on the tool.
• Inner cooling lubrication by means of hand pump.
• Perfectly equipped for any job. Mobile work with our L-BOXX system.

FEIN 72732362090 Compact magnetic core drill up to 1- 3/8 [36] in[mm]|JMC MAGFORCE 90 Includes

• 1-1/2 in ratchet
• 1-1/2 in socket wrench extension
• 1 coolant pump
• 1 safety strap
• 1 chip hook
• 1 centering pin 3-2/16 x 3/16 [80 x 4,75] in[mm]
• 1 centering pin 3-4/16 x 4/16 [82 x 6,35] in[mm]
• 1 chip guard
• 1 carrying handle
• 1 Allen key 13/6 [5] in[mm]
• 1 hexagonal socket key with T-grip, 5 mm
• 1 plastic carrying case (L-BOXX 238)

FEIN 72732362090 Compact magnetic core drill up to 1- 3/8 [36] in[mm]|JMC MAGFORCE 90 Specifications

• Power consumption: 1,200 W
• Power output: 660 W
• Full load speed: 130 – 610 rpm
• No load speed: 130 – 660 rpm
• Carbide cutter max. dia.: 1-3/8 [36] in[mm]
• HSS cutter max. dia.: 1-3/8 [36] in[mm]
• Cutter max. drilling depth: 1-3/8 [35] in[mm]
• Twist drill max. dia.: 9/16 [14] in[mm] in[mm]
• Tapping: M 10
• Max. countersinking dia.: 1-1/4 [32] in[mm]
• Reaming max. dia.: in[mm]
• Cutter holder: 3/4″ Weldon
• Minimum clearance: 1-9/16 [40] in[mm]
• Construction height: 6-21/32 [169] in[mm]
• Baul?nge: 11-13/32 [290] in[mm]
• Stroke: 1-13/16 [46] in[mm]
• Magnetic holding force: 2248 [10,000] lbs[N]
• Magnetic base dimensions: 6-7/8 [175] x 3-1/8 [80] in[mm]
• Cable with plug: 9.8 [3] ft[m]
• Weight: 18.74 [8.50] lbs[kg]
