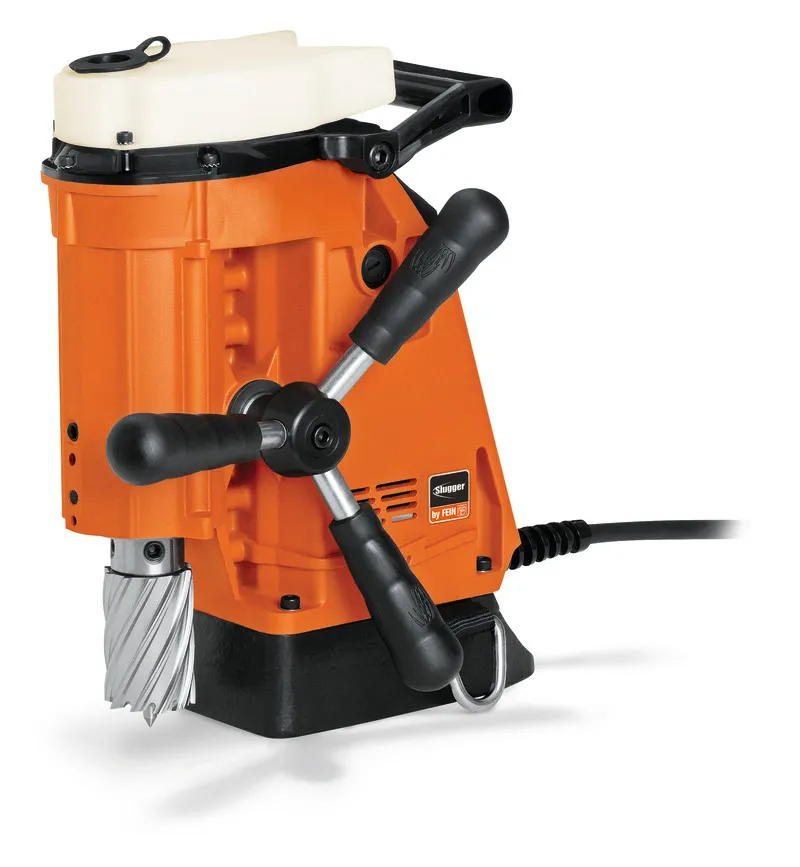

FEIN 72725361127 Mag Drill unit up to 1-5/8 [40] in[mm]|JHM Magforce

Mag Drill unit up to 1-5/8 [40] in[mm]|JHM Magforce|Compact with fixed drill motor for work in confined spaces.

FEIN 72725361127 Mag Drill unit up to 1-5/8 [40] in[mm]|JHM Magforce Features

• Extremely compact with ideal power to weight ratio for work at heights and in confined spaces.
• Hand feed wheel mounts on either side for use in special situations.
• Internal motor cable routing prevents unintended threading or hanging up on the workpiece.
• Internal cooling.
• Solid die-cast aluminum construction.
• Stationary drill motor.
• Quill feed spindle eliminates field maintenance and adjustments and provides positive (mechanical) slug ejection.

FEIN 72725361127 Mag Drill unit up to 1-5/8 [40] in[mm]|JHM Magforce Includes

• 1 case
• 1 coolant tank
• 1 safety strap
• 1 chip hook
• 4 pilot pins
• 1 allen key 5 mm
• 1 chip guard

FEIN 72725361127 Mag Drill unit up to 1-5/8 [40] in[mm]|JHM Magforce Specifications

• Power consumption: 1,100 W
• Power output: 610 W
• Full load speed: 280 rpm
• No load speed: 450 rpm
• HSS cutter max. dia.: 1-5/8 [40] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Cutter holder: 3/4″ Weldon
• Stroke: 2-9/16 [65] in[mm]
• Magnetic holding force: 2023 [9,000] lbs[N]
• Magnetic base dimensions: 6 [152] x 4 [102] in[mm]
• Cable with plug: 12.5 [3.8] ft[m]
• Weight: 28.88 [13.10] lbs[kg]
