FEIN 72710361090 Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 U

Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 U|Hand-held 2-speed metal core drilling system for annular cutters and twist bit drilling.

FEIN 72710361090 Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 U Features

• Work up to 6 times faster due to innovative drilling technology: Pilot hole drilled to a depth of 3/16 in [5 mm] at 1,600 rpm, followed by disengagement of the pilot bit and automatic speed change to 520 rpm for optimal cutting speed for carbide annular cutter. The carbide annular cutter finishes drilling the desired hole diameter with minimum effort and specially developed annular cutter cutting geometry.
• Mechanical 2-speed gearbox with speeds from 0-1,600 rpm for efficient twist drilling and forward / reverse rotation for thread tapping up to 1/2 in [M12].
• Very safe operation due to the torque slip clutch. Protects the user when overloaded by separation of the driver and driven sides.
• Reversible.
• FEIN high-performance motor with excellent speed stability.
• Electronic start.
• Variable electronic speed control.
• Speed-controlled tacho electronics.
• Torsion-free, barrel-type motor housing.
• Carbide core bits with optimized service life.
• Self-start lock.
• Wide range of accessories.
• ** Torque slip clutch.

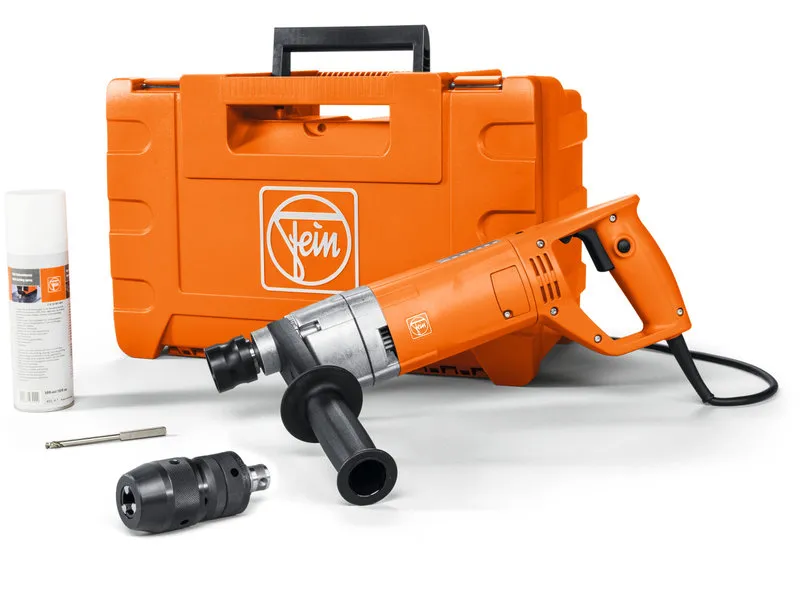

FEIN 72710361090 Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 U Includes

• 1 pilot bit
• 1 quick-action chuck 1/8 – 5/8 in dia.
• 1 carrying handle
• 1 tool case

FEIN 72710361090 Hand-held metal core-drilling system up to 1 in [25 mm]|KBH 25-2 U Specifications

• Power consumption: 1,200 W
• Power output: 680 W
• Pilot hole drilling: 0 – 1,600 rpm
• Load speed: 1st gear: 0 – 520 rpm
• Load speed: 2nd gear: 0 – 1,600 rpm
• Torque at maximum output power: 443 [50] in/lbs[Nm]
• Stall/ blocking torque: 443 [50] ** in/lbs[Nm]
• Hole-dia. steel cutter: 1 [25] in[mm]
• Hole dia. stainless steel cutter: 1 [25] in[mm]
• Hole-dia. aluminum cutter: 1-1/4 [30] in[mm]
• Cutter max. drilling depth: 3/4 [20] in[mm]
• Hole-dia, steel hole saws: 3-1/4 [80] in[mm]
• Hole saws max. drilling depth: 1/4 [4] in[mm]
• Tapping: M 12
• Hole dia. steel / stainless steel twist bit: 5/8 [16] in[mm]
• Cutter holder: QuickIN PLUS
• Minimum clearance: 1-1/16 [27] in[mm]
• Cable with plug: 13.1 [4] ft[m]
• Weight: 7.50 [3.40] lbs[kg]
