FEIN 72707361090 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 PQW

Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 PQW|Small, long-stroke, 1-speed universal magnetic core drill with forward / reverse rotation, permanent magnet and maximum functionality for safe and versatile work on the construction site.

FEIN 72707361090 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 PQW Features

• Permanent magnet for extremely safe work at heights as well as a pivoting motor cable protection sleeve and high-quality workmanship for tough use.
• Lightweight, compact tool with powerful torque for sustained high work progress thanks to the FEIN high-performance motor with tacho electronics.
• Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
• Extra narrow permanent magnet with magnetic bias.
• Motion sensor.
• Simple and error-proof control concept in the operator’s field of view.
• Convenient magnetic holding force display.
• Reversible.
• Integrated coolant tank.
• “Memory function” speed storage.
• Hand feed wheel can be mounted on either side.

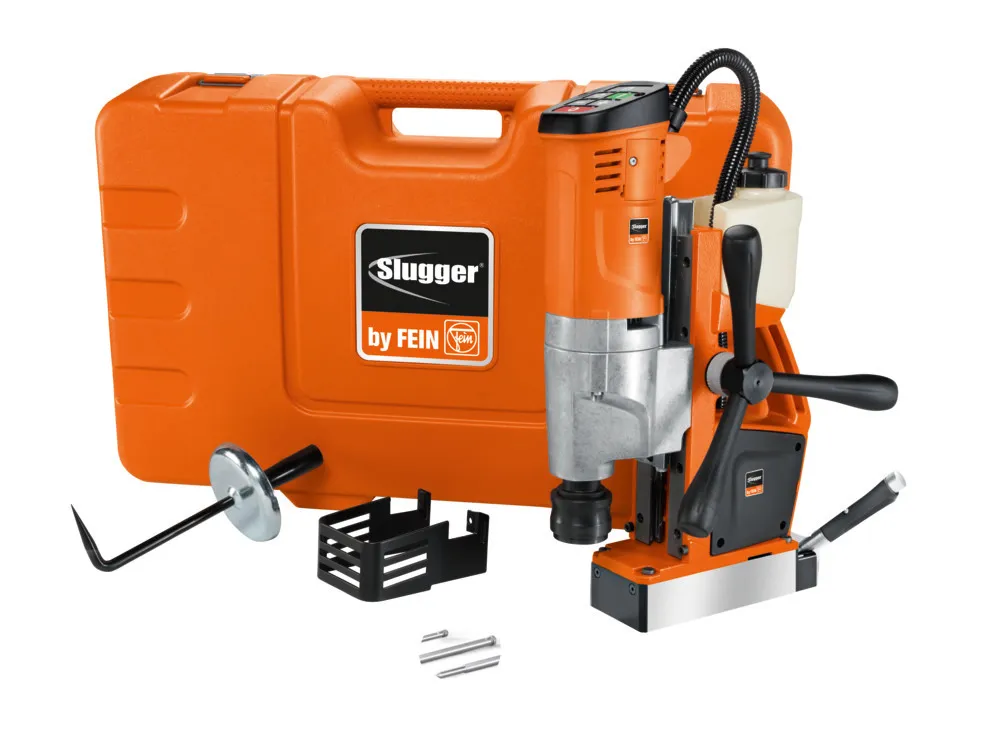

FEIN 72707361090 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 PQW Includes

• 1 coolant tank
• 1 safety strap
• 1 chip hook
• 3 pilot pins
• 1 chip guard
• 1 case

FEIN 72707361090 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 PQW Specifications

• Power consumption: 1,010 W
• Power output: 550 W
• Full load speed: 130 – 520 rpm
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Twist drill max. dia.: 5/8 [16] in[mm]
• Tapping: M 14
• Max. countersinking dia.: 1-1/4 [31] in[mm]
• Reaming max. dia.: 5/8 [16] in[mm]
• Cutter holder: 3/4″ Weldon
• Cutter change: tool-free
• Stroke: 5-5/16 [135] in[mm]
• Total stroke range: 10-1/4 [260] in[mm]
• Magnetic holding force: 2023 [9,000] lbs[N]
• Magnetic base dimensions: 7-11/16 [195] x 2-3/4 [70] in[mm]
• Cable with plug: 13.1 [4] ft[m]
• Weight: 27.56 [12.50] lbs[kg]
