FEIN 72706061090 Universal magnetic core drill up to 4-5/16 [110] in[mm]|JMU 404 M

Universal magnetic core drill up to 4-5/16 [110] in[mm]|JMU 404 M|High-performance, long-stroke, 4-speed universal magnetic base drill with forward / reverse running, MT4 tool mounting and maximum functionality for heavy drilling work in the workshop.

FEIN 72706061090 Universal magnetic core drill up to 4-5/16 [110] in[mm]|JMU 404 M Features

• FEIN 1,700 W high-performance motor with high torque for heavy drilling work.
• For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve.
• Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
• Mechanical 4-speed gearbox.
• High magnetic holding force.
• Torque arm for increased magnetic holding power.
• Motion sensor.
• Torque slip clutch.
• Convenient magnetic holding force display.
• Electronic speed setting.
• Reversible.
• MT4 tool mounting.
• Integrated coolant tank.
• Personal safety switches.

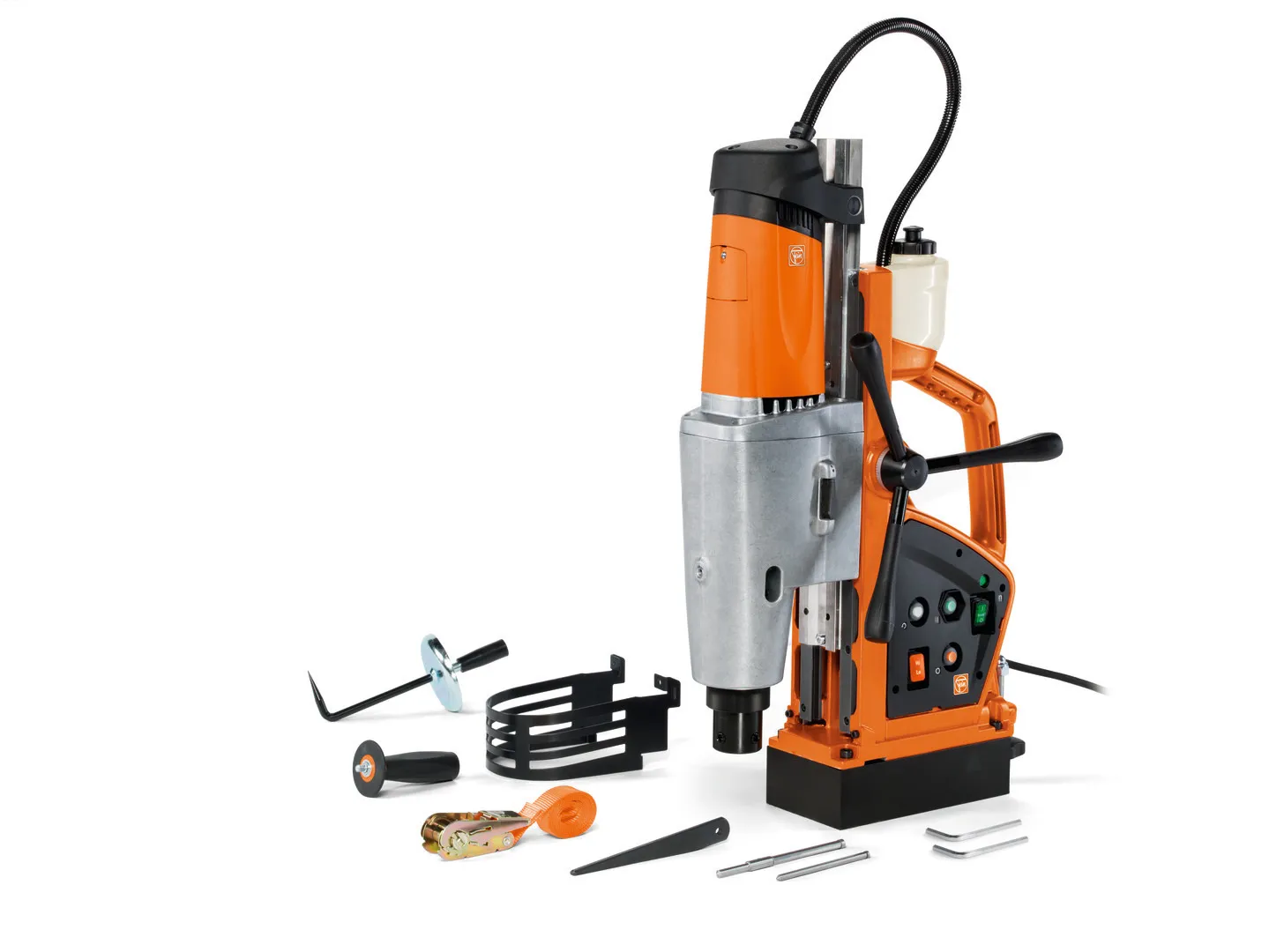

FEIN 72706061090 Universal magnetic core drill up to 4-5/16 [110] in[mm]|JMU 404 M Includes

• 1 Weldon 32 mounting shaft
• 1 adapter with Weldon 1-1/4 fitting and 3/4 output in Weldon
• 1 coolant tank
• 1 safety strap with ratchet
• 1 chip hook
• 2 pilot pins 6.35 mm dia. x 125 mm and 7.98 mm dia. x 184 mm
• 1 chip guard
• 1 drift
• 2 hexagonal socket keys, 5 and 6 mm
• 1 carrying handle
• 1 case

FEIN 72706061090 Universal magnetic core drill up to 4-5/16 [110] in[mm]|JMU 404 M Specifications

• Power consumption: 1,700 W
• Power output: 850 W
• Load speed: 1st gear: 60 / 120 rpm
• Load speed: 2nd gear: 90 / 170 rpm
• Load speed: 3rd gear: 150 / 300 rpm
• Load speed: 4th gear: 230 / 430 rpm
• No-load speed: 1st gear: 100 / 190 rpm
• No-load speed: 2nd gear: 160 / 290 rpm
• No-load speed: 3rd gear: 270 / 500 rpm
• No-load speed: 4th gear: 420 / 750 rpm
• Tool mount: MT 4
• Carbide cutter max. dia.: 4 [101] in[mm]
• HSS cutter max. dia.: 3 [75] in[mm]
• Cutter max. drilling depth: 4 [101] in[mm]
• Twist drill max. dia.: 1-3/8 [35] in[mm]
• Tapping: M 36
• Max. countersinking dia.: 2-3/8 [60] in[mm]
• Reaming max. dia.: 1-3/8 [35] in[mm]
• Cutter holder: Weldon 32
• Stroke: 11 [280] in[mm]
• Total stroke range: 15-3/4 [400] in[mm]
• Magnetic holding force: 5171 [23,000] lbs[N]
• Magnetic base dimensions: 9-7/16 [240] x 4-3/4 [120] in[mm]
• Cable with plug: 13.1 [4] ft[m]
• Weight: 79.37 [36.00] lbs[kg]
