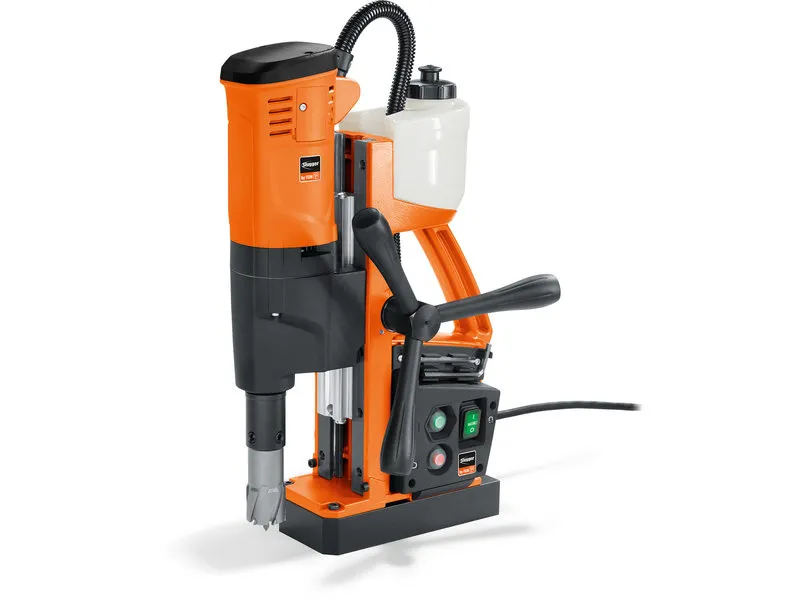

FEIN 72705961090 Endurance magnetic base drill up to 1-3/8 in [35 mm]|JME Holemaker III

Endurance magnetic base drill up to 1-3/8 in [35 mm]|JME Holemaker III|The optimal drilling solution with high powered German motor designed for use with Carbide and HSS cutters for toughest jobs and applications.

FEIN 72705961090 Endurance magnetic base drill up to 1-3/8 in [35 mm]|JME Holemaker III Features

• Extemely wear resistant concept with durable newly designed polyurethane motorhousing for use in industry and manual trades.
• Extemely lightweight drill yet powerful enough for heaviest drilling applications.
• Cost effective drill for use with Carbide cutters which offer longer life, higher cutting rate and capable of cutting harder materials. Also running with standard HSS cutters with great results.
• Optimum power-to-weight ratio.
• Integrated coolant tank.
• Drill motor does not start for material thicknesses less than 3/16 [4] in[mm] if the magnetic holding force is too low.
• Pivoting motor cable.
• Higher RPM for optimal use with carbide cutters.
• Hand feed wheel can be mounted either side.
• Integrated hexagon socket holder.

FEIN 72705961090 Endurance magnetic base drill up to 1-3/8 in [35 mm]|JME Holemaker III Includes

• 1 coolant tank
• 1 safety strap
• 2 pilot pins
• 1 chip guard
• 2 hexagonal socket keys, 5 and 6 mm
• 1 hexagonal socket key with T-grip, 5 mm
• 1 case

FEIN 72705961090 Endurance magnetic base drill up to 1-3/8 in [35 mm]|JME Holemaker III Specifications

• Power consumption: 1,100 W
• Power output: 510 W
• Full load speed: 450 rpm
• No load speed: 590 rpm
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Twist drill max. dia.: 5/8 [16] in[mm]
• Cutter holder: 3/4″ Weldon
• Stroke: 5-11/16 [145] in[mm]
• Total stroke range: 10-1/4 [260] in[mm]
• Magnetic holding force: 2810 [12,500] lbs[N]
• Magnetic base dimensions: 7-11/16 [195] x 3-9/16 [90] in[mm]
• Cable with plug: 8.9 [2.7] ft[m]
• Weight: 25.79 [11.70] lbs[kg]
