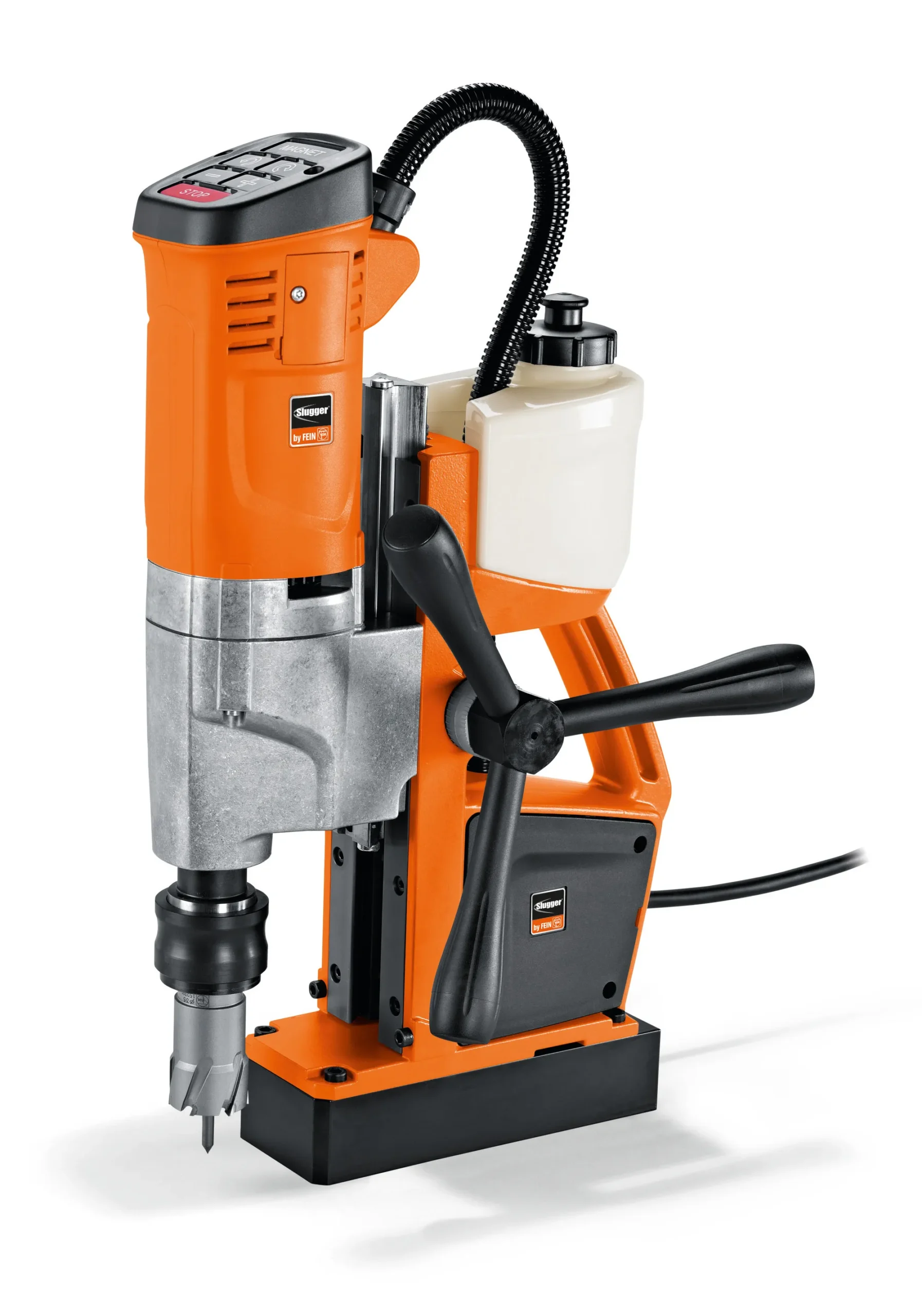

FEIN 72705861120 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137-2 QW

Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137-2 QW|Small, long-stroke, 2-speed universal magnetic core drill with forward / reverse rotation and high-speed for efficient twist drilling on the construction site.

FEIN 72705861120 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137-2 QW Features

• Extremely resilient design due to solid machine construction with pivoting motor cable protection sleeve. Designed for heavy use in trade and industry.
• Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
• Universal use, such as mag base drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 10-1/4 in [260 mm] stroke.
• Small, with mechanic 2-gearbox for twist drilling.
• Simple and error-proof control concept in the operator’s field of view.
• Convenient magnetic holding force display.
• High magnetic holding force.
• Motion sensor.
• Additional magnet switch in the drill stand.
• Integrated coolant tank.
• Hand feed wheel can be mounted on either side.
• “Memory function” speed storage.

FEIN 72705861120 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137-2 QW Includes

• 1 coolant tank
• 1 safety strap
• 1 chip hook
• 1 pilot pin
• 1 chip guard
• 1 case

FEIN 72705861120 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137-2 QW Specifications

• Power consumption: 1,100 W
• Power output: 550 W
• Load speed: 1st gear: 130 – 520 rpm
• Load speed: 2nd gear: 400 – 1,600 rpm
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Twist drill max. dia.: 5/8 [16] in[mm]
• Tapping: M 14
• Max. countersinking dia.: 1-1/4 [31] in[mm]
• Reaming max. dia.: 5/8 [16] in[mm]
• Cutter holder: 3/4″ Weldon
• Cutter change: tool-free
• Stroke: 5-5/16 [135] in[mm]
• Total stroke range: 10-1/4 [260] in[mm]
• Magnetic holding force: 2136 [9,500] lbs[N]
• Magnetic base dimensions: 7-5/16 [186] x 2-3/4 [70] in[mm]
• Cable with plug: 13.1 [4] ft[m]
• Weight: 24.47 [11.10] lbs[kg]
