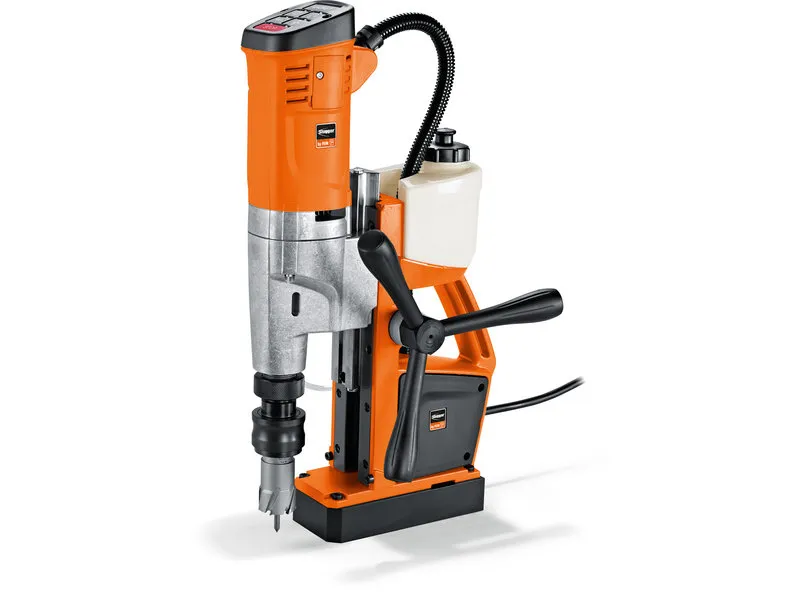

FEIN 72705661120 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 MQW

Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 MQW|Small, long-stroke, single-speed universal magnetic core drill with forward / reverse rotation, MT2 tool mount and maximum functionality for flexible work on the construction site.

FEIN 72705661120 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 MQW Features

• Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
• Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
• Universal use, such as mag base drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 10-1/4 in [260 mm] stroke.
• Small, with MT2 tool mount.
• Simple and error-proof control concept in the operator’s field of view.
• Convenient magnetic holding force display.
• High magnetic holding force.
• Motion sensor.
• Additional magnet switch in the drill stand.
• Integrated coolant tank.
• Hand feed wheel can be mounted on either side.
• “Memory function” speed storage.
• * optional using accessory.

FEIN 72705661120 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 MQW Includes

• 1 coolant tank
• 1 safety strap
• 1 chip hook
• 1 pilot pin
• 1 chip guard
• 1 case

FEIN 72705661120 Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 MQW Specifications

• Power consumption: 1,100 W
• Power output: 550 W
• Full load speed: 130 – 520 rpm
• Tool mount: MT 2
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 2 [50] (3 [75] )* in[mm]
• Twist drill max. dia.: 3/4 [18] in[mm]
• Tapping: M 14
• Max. countersinking dia.: 1-1/4 [31] in[mm]
• Reaming max. dia.: 3/4 [18] in[mm]
• Cutter holder: 3/4″ Weldon
• Cutter change: tool-free
• Stroke: 5-5/16 [135] in[mm]
• Total stroke range: 10-1/4 [260] in[mm]
• Magnetic holding force: 2248 [10,000] lbs[N]
• Magnetic base dimensions: 6-7/8 [175] x 3-1/8 [80] in[mm]
• Cable with plug: 13.1 [4] ft[m]
• Weight: 23.59 [10.70] lbs[kg]
