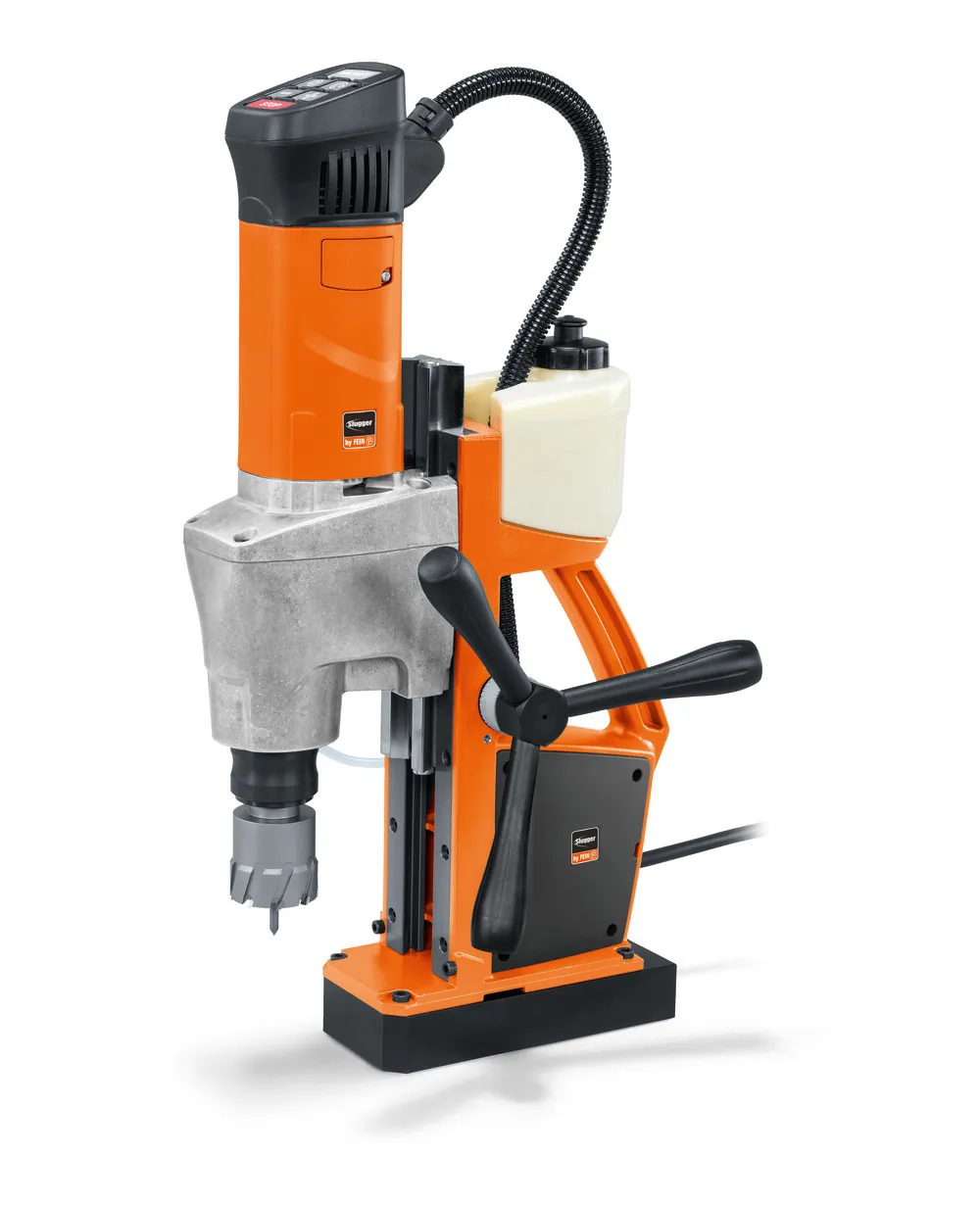

FEIN 72704561120 Mag Drill unit up to 2 [50] in[mm]|JCM 200 QX

Mag Drill unit up to 2 [50] in[mm]|JCM 200 QX|Lightweight with 2-speed gearbox and easy operation for efficient drilling in the workshop and on the construction site.

FEIN 72704561120 Mag Drill unit up to 2 [50] in[mm]|JCM 200 QX Features

• Compact with high functionality for universal use on the construction site and in the workshop.
• Simple and error-proof control concept in the operator’s field of view.
• Double drill motor guides enable use of the longest annular cutters.
• Reversible
• Electronic speed control.
• High-power motor with stable speed.
• High magnetic holding force.
• Convenient magnetic holding force display.
• Integrated coolant tank.
• Hand feed wheel can be mounted on either side.

FEIN 72704561120 Mag Drill unit up to 2 [50] in[mm]|JCM 200 QX Includes

• 1 coolant tank
• 1 safety strap
• 1 chip hook
• 1 pilot pin 4 1/8 in (105 mm)
• 1 chip guard
• 1 case

FEIN 72704561120 Mag Drill unit up to 2 [50] in[mm]|JCM 200 QX Specifications

• Power consumption: 1,200 W
• Power output: 640 W
• Load speed: 1st gear: 130 – 260 rpm
• Load speed: 2nd gear: 260 – 520 rpm
• Carbide cutter max. dia.: 2 [50] in[mm]
• HSS cutter max. dia.: 1-5/8 [40] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Twist drill max. dia.: 5/8 [16] in[mm]
• Tapping: M 16
• Max. countersinking dia.: 1-1/4 [31] in[mm]
• Reaming max. dia.: 5/8 [16] in[mm]
• Cutter holder: 3/4″ Weldon
• Cutter change: tool-free
• Stroke: 5-11/16 [145] in[mm]
• Total stroke range: 12-3/8 [315] in[mm]
• Magnetic holding force: 2810 [12,500] lbs[N]
• Magnetic base dimensions: 7-11/16 [195] x 3-9/16 [90] in[mm]
• Cable with plug: 13.1 [4] ft[m]
• Weight: 31.31 [14.20] lbs[kg]
