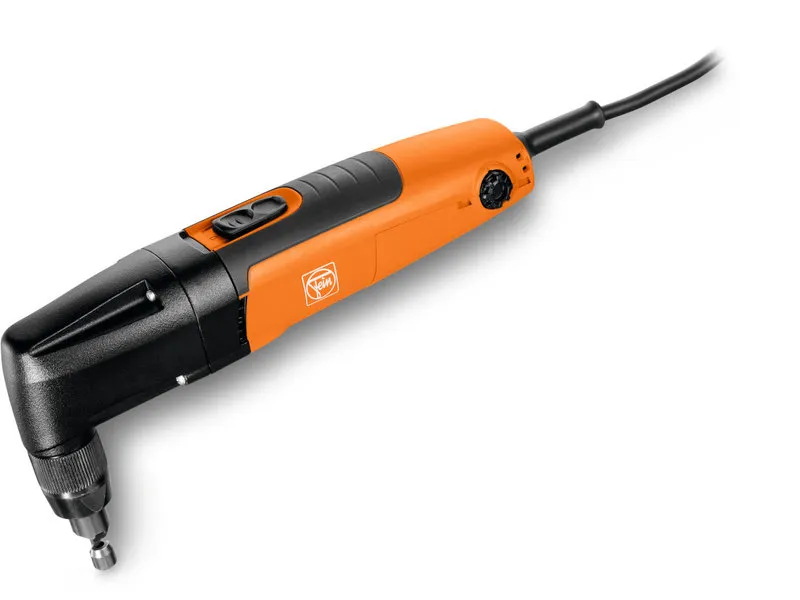

FEIN 72324260120 Nibbler up to 18 gauge|BLK 1.3 CSE

Nibbler up to 18 gauge|BLK 1.3 CSE|Compact and rapid nibbler for corrugated sheet metals.

FEIN 72324260120 Nibbler up to 18 gauge|BLK 1.3 CSE Features

• Cutting direction setting can be changed in 45? increments up to 360? using tool-free rotating cutting head.
• 7.5 ft./min [2.3 m/min] cutting speed for excellent performance.
• Optimum ergonomics, including a motor housing that is up to 20% slimmer due to an extremely narrow drive head.
• Chip protection mesh on vent slots.
• Low operating costs due to long tool life of punch and die.
• Rotating punch for up to 30% longer service life.
• QuickIN rapid change system.
• Stainless steel up to 24 gauge [0.6 mm].
• Motor with outstanding performance and durability.
• 16 ft. [5 m] cable.

FEIN 72324260120 Nibbler up to 18 gauge|BLK 1.3 CSE Includes

• 1 die for corrugated sheet metal (3 01 09 169 00 9)
• 1 punch (6 36 02 050 00 0)

FEIN 72324260120 Nibbler up to 18 gauge|BLK 1.3 CSE Specifications

• Power consumption: 350 W
• Power output: 210 W
• Strokes: 1,000 – 1,800 spm
• Cutting speed: 7.5 [2.3] ft/min[m/min]
• Steel 58,000 lbf/in?: 0.0512 [1.3] in[mm]
• Steel 87,000 lbf/in?: 0.0315 [0.8] in[mm]
• Steel 116,000 lbf/in?: 0.0236 [0.6] in[mm]
• Non-ferrous metals up to 36,000 lbf/in?: 0.0787 [2.0] in[mm]
• Cutting width: 3/16 [4] in[mm]
• Immersion ? with die: 3/4 [19] in[mm]
• Radius of smallest curve (inside/outside): 1/2 [15] / 3/4 [20] in[mm]
• Cable with plug: 16.4 [5] ft[m]
• Weight: 3.97 [1.80] lbs[kg]
