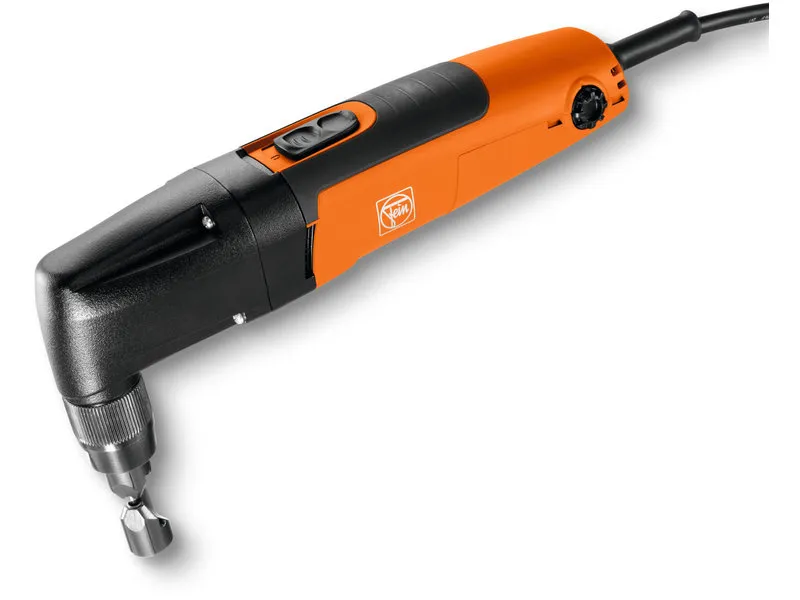

Nibbler up to 16 gauge|BLK 1.6 E|Universal nibbler for sheets, profiles, trapezoid and corrugated sheet metal.
FEIN 72323860120 Nibbler up to 16 gauge|BLK 1.6 E Features
- Virtually indestructible. Ideal for flexible and universal use with sheet thickness up to 16 gauge [1.6 mm].
- Optimum ergonomics, including a motor housing that is up to 20% slimmer due to an extremely narrow drive head.
- Cutting direction setting can be changed in 45? increments up to 360? using tool-free rotating cutting head.
- QuickIN rapid change system.
- High cutting speed.
- Rotating punch for up to 30% longer service life.
- Low operating costs due to long tool life of punch and die.
- Motor with outstanding performance and durability.
- Chip protection mesh on vent slots.
- 16 ft. [5 m] cable.
- Stainless steel up to 22 gauge [0.7 mm].
- Retrofittable trapezoid profile set up to 6-5/16 in [160 mm] deep channels.
FEIN 72323860120 Nibbler up to 16 gauge|BLK 1.6 E Includes
- 1 die (3 01 09 141 00 3)
- 1 punch (6 36 02 048 00 4)
FEIN 72323860120 Nibbler up to 16 gauge|BLK 1.6 E Specifications
- Power consumption: 350 W
- Power output: 210 W
- Strokes: 800 – 1,500 spm
- Cutting speed: 6.2 [1.9] ft/min[m/min]
- Steel 58,000 lbf/in?: 0.063 [1.6] in[mm]
- Steel 87,000 lbf/in?: 0.0394 [1.0] in[mm]
- Steel 116,000 lbf/in?: 0.0276 [0.7] in[mm]
- Non-ferrous metals up to 36,000 lbf/in?: 0.0984 [2.5] in[mm]
- Cutting width: 3/16 [5] in[mm]
- Immersion ? with die: 7/8 [22] in[mm]
- Radius of smallest curve (inside/outside): 1-1/4 [30] / 1-1/2 [35] in[mm]
- Cable with plug: 16.4 [5] ft[m]
- Weight: 3.97 [1.80] lbs[kg]
