FEIN 71700261090 Universal Cordless Mag Drill up to 1-3/8″ [35mm], AJMU 137 PMQW

FEIN 71700261090 Universal Cordless Mag Drill up to 1-3/8″ [35mm], AJMU 137 PMQW – Small, long-stroke, 1-speed universal cordless magnetic base drill with forward / reverse rotation, MT2 tool mounting, permanent magnet and maximum functionality for mobile work on the construction site.

FEIN 71700261090 Universal Cordless Mag Drill up to 1-3/8″ [35mm], AJMU 137 PMQW Features

• Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
• Small and lightweight tool for persistently high long-term work progress thanks to brushless FEIN PowerDrive motor with tacho electronics and FEIN HighPower battery with high-current-capable cells.
• Flexibility in all mobile drilling operations, such as mag base drilling, spiral drilling, tapping, sinking and reaming.
• FEIN HighPower Li-ion battery. Continuously high current output with 75% higher amperage than Li-ion batteries for high cutting speed.
• Simple and error-proof control concept in the operator’s field of view.
• Convenient magnetic holding force display.
• Motion sensor.
• Reversible.
• Electronic speed control.
• Extra long stroke.
• MT2 tool mounting.
• Extra narrow permanent magnet with magnetic bias.
• “Memory function” speed storage.
• The battery capacity can be read directly on the battery.
• FEIN SafetyCell technology. Protects the battery and the machine from overloading, overheating and deep discharge.
• * optional using accessory.
• ** Highest performance with FEIN HighPower Li-ion battery.

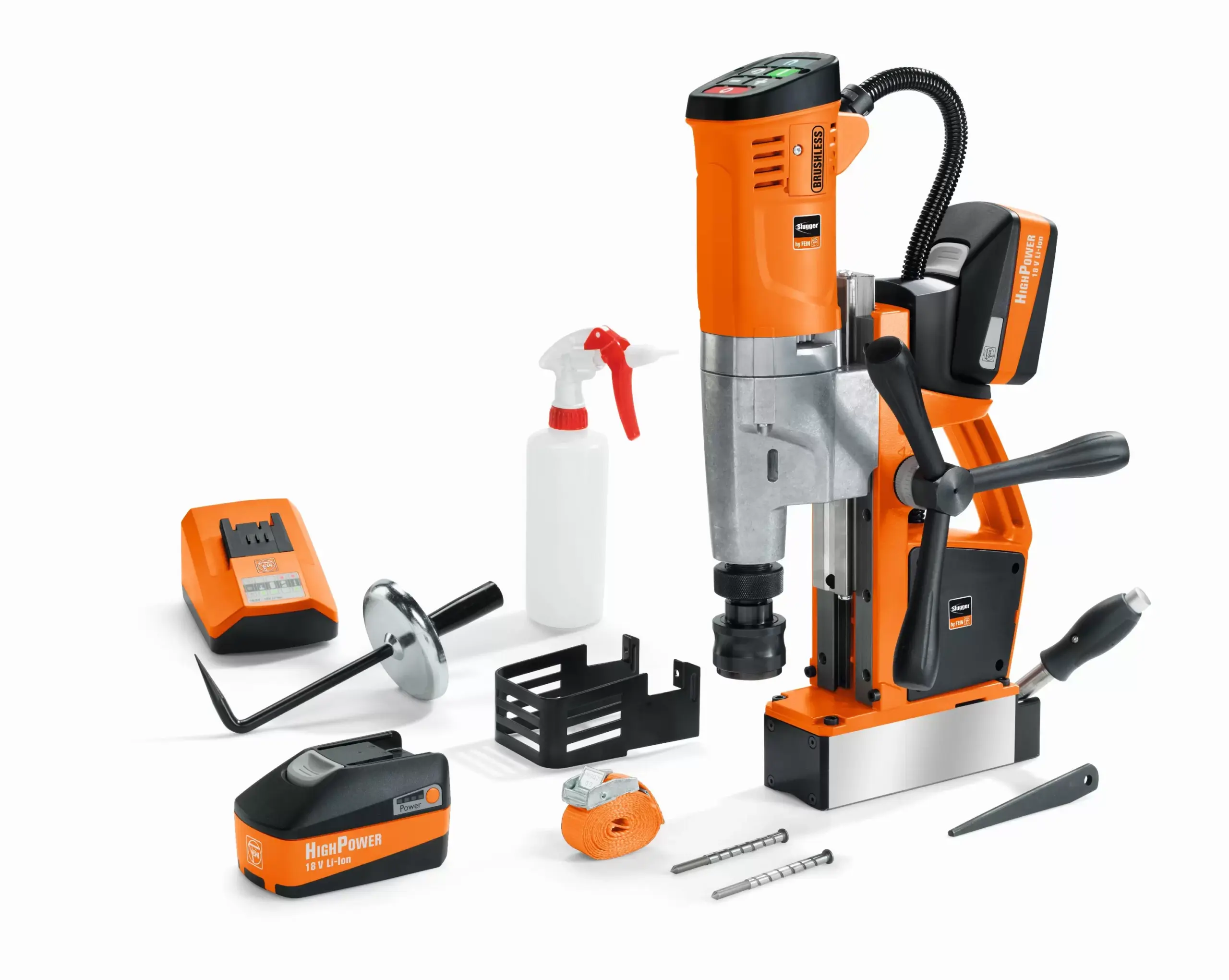

FEIN 71700261090 Universal Cordless Mag Drill up to 1-3/8″ [35mm], AJMU 137 PMQW Includes

• 2 battery packs (HighPower Li-ions)
• 1 rapid charger ALG 80
• 1 coolant pump
• 1 safety strap
• 1 chip hook
• 1 pilot pin
• 1 chip guard
• 1 drift
• 1 case

FEIN 71700261090 Universal Cordless Mag Drill up to 1-3/8″ [35mm], AJMU 137 PMQW Specifications

• Battery voltage: 18 V
• Battery capacity: 5.2 Ah
• Battery compatibility: Li-ion / HighPower Li-ions**
• Battery interface: 18 V
• Motor: brushless
• Full load speed: 130 – 520 rpm
• Tool mount: MT 2
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 2 [50] (3 [75] )* in[mm]
• Twist drill max. dia.: 3/4 [18] in[mm]
• Tapping: M 14
• Max. countersinking dia.: 1-1/4 [31] in[mm]
• Reaming max. dia.: 3/4 [18] in[mm]
• Cutter holder: 3/4″ Weldon
• Cutter change: tool-free
• Stroke: 5-5/16 [135] in[mm]
• Total stroke range: 10-1/4 [260] in[mm]
• Magnetic holding force: 2023 [9,000] lbs[N]
• Magnetic base dimensions: 7-11/16 [195] x 2-3/4 [70] in[mm]
• Weight incl. battery: 28.22 [12.80] lbs[kg]
• Weight without battery: 26.68 [12.10] lbs[kg]
