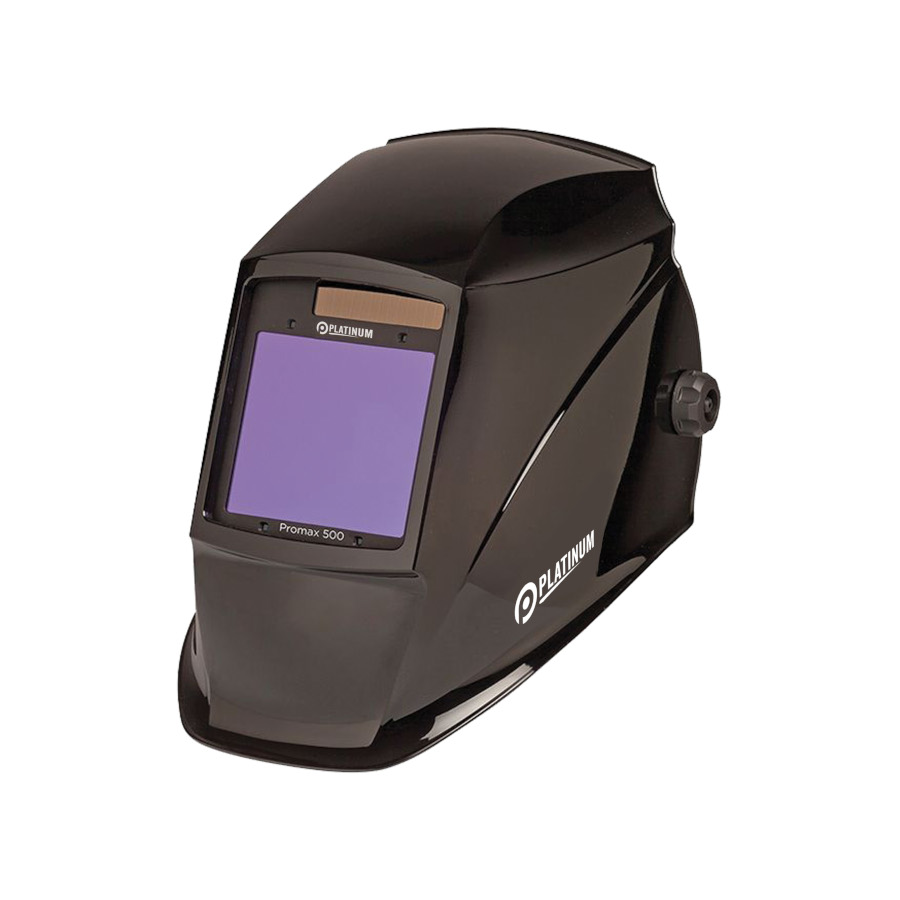

Platinum North America WC-05317 Promax 500 Auto Darkening Welding Helmet, Dual Shade 5-8 / 9-13

The Platinum WC-05317 Promax 500 Black Stealth auto-darkening welding helmet was designed for professional and industrial applications with SUPER-SIZE viewing area and more value than you can poke a MIG, TIG or Stick at! The WC-05317 Promax 500 includes some impressive features such as; massive 98x87mm viewing area, 4 sensors for reliable switching, dual shade 5-8 / 9-13, sensitivity and delay adjustments, grind-mode switch, replaceable battery, magnification lens holder and more! Comfortable, lightweight and superior optics! Ideal for MIG & Stick Welding, also suits TIG welding down to 5 amps, Fast & easy cover lens replacement, “Full Laminate” lens construction: Each layer in lens assembly is laminated for superior optical quality and reliability and Bonus helmet bag.

Platinum WC-05317 Promax 500 Auto Darkening Welding Helmet Features

• CSA Z94.3 approved
• Dual shade range 5-8/9-13 plus grind mode to cover a wide range of welding processes
• Industry-leading 2 year warranty on auto-darkening lens
• Ultra clear vision, super size 13.2 sq. in. Viewing Area
• 4 arc sensors for reliable arc detection and switching
• High impact tested and rated to AS1337.1 standard
• Hinge and lock lens retainer system for easy cover lens replacement and tight seal to prevent spatter damage to the electronic lens
• Magnification lens holder
• Fully laminated electronic lens assembly provides superior optical quality and long service life in contrast to economy lenses which are simply glued on the edge and over time are prone to contamination and failure
• Lightweight, durable and shock resistant shell
• Auto On/Auto Off hassle free operation

Platinum WC-05317 Promax 500 Auto Darkening Welding Helmet Applications

• MIG & Stick Welding
• TIG welding down to 5 amps
• Grinding
• Plasma Cutting
• Oxy Cutting & Brazing

Platinum WC-05317 Promax 500 Auto Darkening Welding Helmet Industries

• Industrial fabrication
• Part time & full-time welding
• Maintenance welding
• Automotive
• Marine

Platinum WC-05317 Promax 500 Auto Darkening Welding Helmet Specifications

• Suitable Welding Processes: MIG, MMA/Stick & TIG (≥5 amps), Grinding, Plasma Cutting, Oxy Cutting and Brazing
• Suitable Applications: Industrial fabrication, Part time & full-time welding, maintenance welding, etc
• Switching Speed: Conforms to & exceeds requirements of AS/NZS 1338.1 Standard
• Arc Sensing: 4 Sensors
• TIG Optimised: Yes. Suitable for low-amp TIG down to 5 amps
• Power Supply: 1 x CR2450 replaceable battery & Solar assist
• On / Off: Ready to use at any time, no switching required
• Inactive Shade (Grind/Off): Shade 4
• Active Shade (Weld): Dual range 5-8 / 9-13
• Sensitivity: Low – High
• Delay: 0.1 – 1.0 seconds
• Grind Mode: Switchable On/Off
• Weight: 560g
• Viewing Area: 13.2 sq. in.
• Cover Lens – Inner: 115 x 92mm – Part No. WC-05322 (pkt 5)
• Cover Lens – Outer: 137 x 117mm- Part No. WC-05324 (pkt 10)
• Magnification Lens Holder: Takes standard 108 x 51mm Magnification Lenses
• Standards Compliance Lens: AS1338.1, EN379, ANSI Z87.1, CSA Z94.3
• Standards Compliance Shell: AS/NZS1337.1 High Impact EN 175 B, ANSI Z87.1, CSA Z94.3
• Optical Rating: 1/1/1/2 (Optical quality / Diffusion of light / Variation in luminous transmittance / Angle dependency)
• Warranty: 2 years (on auto darkening lens)
• Temperature Range: Operating -5ºC to +55ªC / Storage -10ºC to +65ºC

Platinum WC-05317 Promax 500 Auto Darkening Welding Helmet Warranty

• Platinum’s 2 Year Limited Warranty
