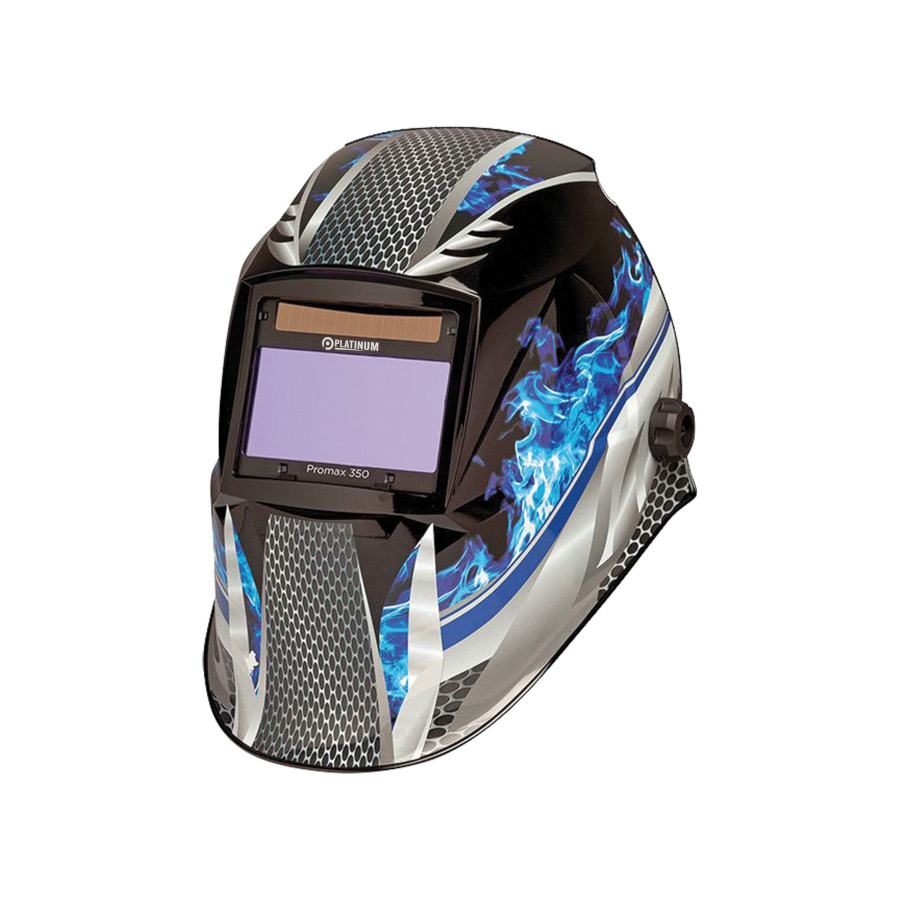

The Platinum WC-05314 Promax Auto Darkening Welding Helmet is one of our most popular and best-selling products! The Promax 350 electronic welding helmet is suitable for MIG, Stick and TIG welding. The features that stand out on the WC-05314 Promax helmet; 4 sensors for reliable switching, generous viewing area larger than many other helmets in this class, variable shade 9-13, sensitivity and delay adjustments, grind-mode switch, replaceable battery, magnification lens holder and more! Comfortable, very lightweight and superior optics.
Platinum WC-05314 Promax Auto Darkening Fire Metal Welding Helmet Features
- CSA Z94.3 approved
- Variable shade 9-13, sensitivity and delay adjustments, grind-mode switch locks the lens in light shade
- Industry-leading 2 year warranty on auto-darkening lens
- Ultra clear vision, 8.2 sq. in. Viewing Area
- 4 arc sensors for reliable arc detection and switching
- High impact tested and rated to AS1337.1 standard
- Hinge and lock lens retainer system for easy cover lens replacement and tight seal to prevent spatter damage to the electronic lens
- Magnification lens holder
- Fully laminated electronic lens assembly provides superior optical quality and long service life in contrast to economy lenses which are simply glued on the edge and over time are prone to contamination and failure
- Lightweight, durable and shock resistant shell
- Auto On/Auto Off hassle free operation
- Ideal for MIG & Stick Welding, also suits TIG welding down to 30 amps
- Fast & easy cover lens replacement
- Bonus helmet bag
Platinum WC-05314 Promax Auto Darkening Fire Metal Welding Helmet Specifications
- Suitable Welding Processes: MIG, MMA/Stick & TIG (≥5 amps), Grinding
- Suitable Applications: Light industrial & maintenance, rural, etc
- Switching Speed: Conforms to & exceeds requirements of AS/NZS 1338.1 Standard
- Arc Sensing: 4 Sensors
- TIG Optimized: Yes. Suitable for low-amp TIG down to 30 amps
- Power Supply: 1 x CR2032 replaceable battery & Solar assist
- On / Off: Ready to use at any time, no switching required
- Inactive Shade (Grind/Off): Shade 4
- Active Shade (Weld): 9-13
- Sensitivity: Low – High
- Delay: 0.1 – 1.0 seconds
- Grind Mode: Switchable On/Off
- Weight: 480g
- Viewing Area: 8.2 sq. in.
- Cover Lens – Inner: 116 x 95mm – Part No. WC-05321 (pkt 5)
- Cover Lens – Outer: 115 x 104mm – Part no. WC-05323 (pkt 10)
- Magnification Lens Holder: Takes standard 108 x 51mm Magnification Lenses
- Lens: Standards Compliance AS/NZS1338.1, EN379, ANSI Z87.1, CSA Z94.3
- Shell: Standards Compliance AS/NZS1337.1 High Impact EN 175 B, ANSI Z87.1, CSA Z94.3
- Optical Rating: 1/1/1/2 (Optical quality / Diffusion of light / Variation in luminous transmittance / Angle dependency)
- Warranty: 2 years (on auto darkening lens)
- Temperature Range: Operating -5ºC to +55ªC / Storage -10ºC to +65ºC
Platinum WC-05314 Promax Auto Darkening Fire Metal Welding Helmet Warranty
Platinum North America’s 2 Year Limited Warranty
