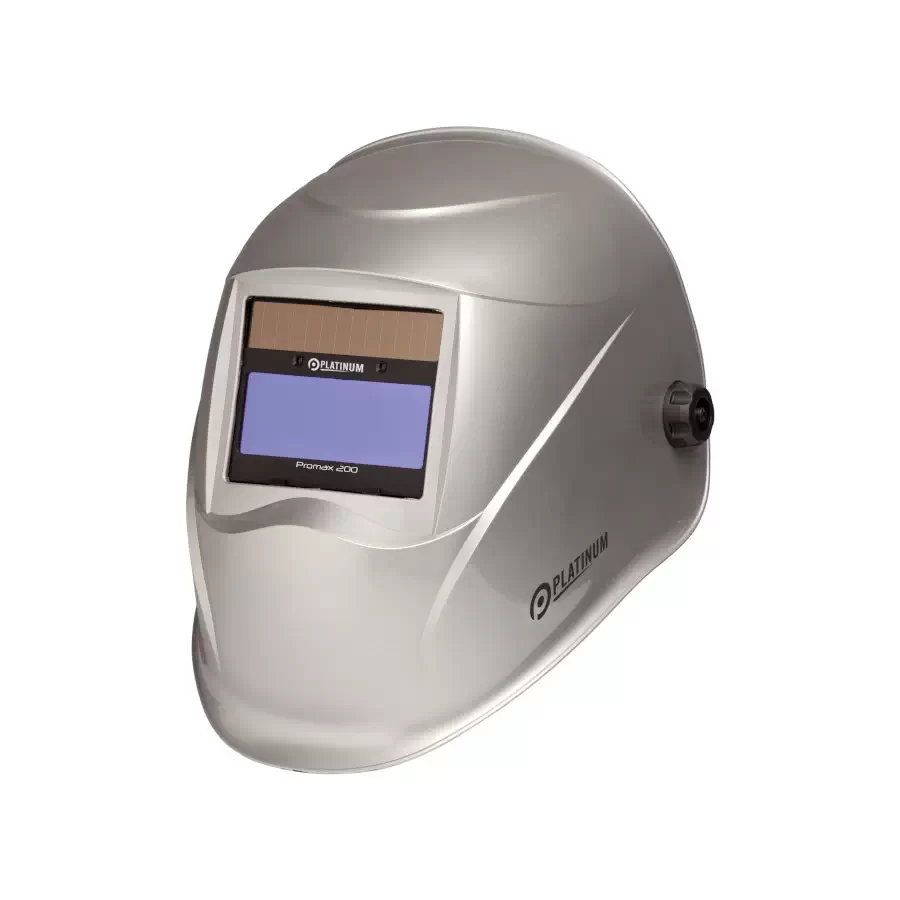

Platinum NA WC-05311 Promax 200 Auto Darkening Welding Helmet, Variable Shade 9-13

The Platinum North America WC-05311 Promax 200 Silver Auto Darkening Welding Helmet is affordable, reliable and great value! The Promax 200 WC-05311 electronic welding helmet is designed for light-medium duty fabrication and occasional MIG and Stick Welding. Controls include Variable Shade 9-13, sensitivity and delay adjustments plus a grind-mode switch. Includes features typically found on higher cost professional models. Comfortable, very lightweight and superior optics. The Platinum NA WC-05311 Promax 200 Auto Darkening Welding Helmet is ideal for MIG, MMA/Stick, Grinding.  The WC-05311 silver welding helmet features a fully laminated electronic lens assembly provides superior optical quality and long service life in contrast to economy lenses which are simply glued on the edge and over time are prone to contamination and failure.

Platinum North America WC-WC-05311 Promax 200 Auto Darkening Welding Helmet Features

• CSA Z94.3 approved
• Colour: Silver
• Variable shade 9-13, sensitivity and delay adjustments, grind-mode switch locks the lens in light shade
• Ultra clear vision, optical rating 1/1/1/2
• 5.8 sq. in. Viewing Area
• Hinge and lock lens retainer system for easy cover lens replacement and tight seal to prevent spatter damage to the electronic lens
• Magnification lens holder
• Fully laminated electronic lens assembly provides superior optical quality and long service life in contrast to economy lenses which are simply glued on the edge and over time are prone to contamination and failure
• Lightweight, durable and shock resistant shell
• 1 year warranty on auto-darkening lens
• Auto On/Auto Off hassle free operation

Platinum North America WC-WC-05311 Promax 200 Auto Darkening Welding Helmet Specifications

• Suitable Welding Processes: MIG, MMA/Stick, Grinding
• Suitable Applications: Occasional welding
• Switching Speed: Conforms to & exceeds requirements of EN379 Standard
• Arc Sensing: 2 Sensors
• TIG Optimized: Not recommended for TIG
• Power Supply: Solar – Rechargeable, non-replaceable battery
• On / Off: Ready to use at any time, no switching required
• Inactive Shade (Grind/Off): Shade 4
• Active Shade (Weld): 9-13
• Sensitivity: Low – High
• Delay: 0.1 – 1.0 seconds
• Weight: 460g
• Viewing Area: 5.8 sq. in.
• Cover Lens – Inner: 102 x 42mm – Part no. WC-05320 (pkt 5)
• Cover Lens – Outer: 115 x 104mm – Part no. WC-05323 (pkt 10)
• Magnification Lens Holder: Takes standard 108 x 51mm Magnification Lenses
• Standards Compliance Lens: EN379
• Standards Compliance Shell: EN175
• Optical Rating: 1/1/1/2 (Optical quality / Diffusion of light / Variation in luminous transmittance / Angle dependency)
• Warranty 1 years (on auto darkening lens)
• Temperature Range Operating: -5ºC to +55ªC
• Temperature Range Storage: -10ºC to +65ºC

Platinum North America WC-WC-05311 Promax 200 Auto Darkening Welding Helmet Warranty

• Platinum North America’s 1 Year Limited Warranty
