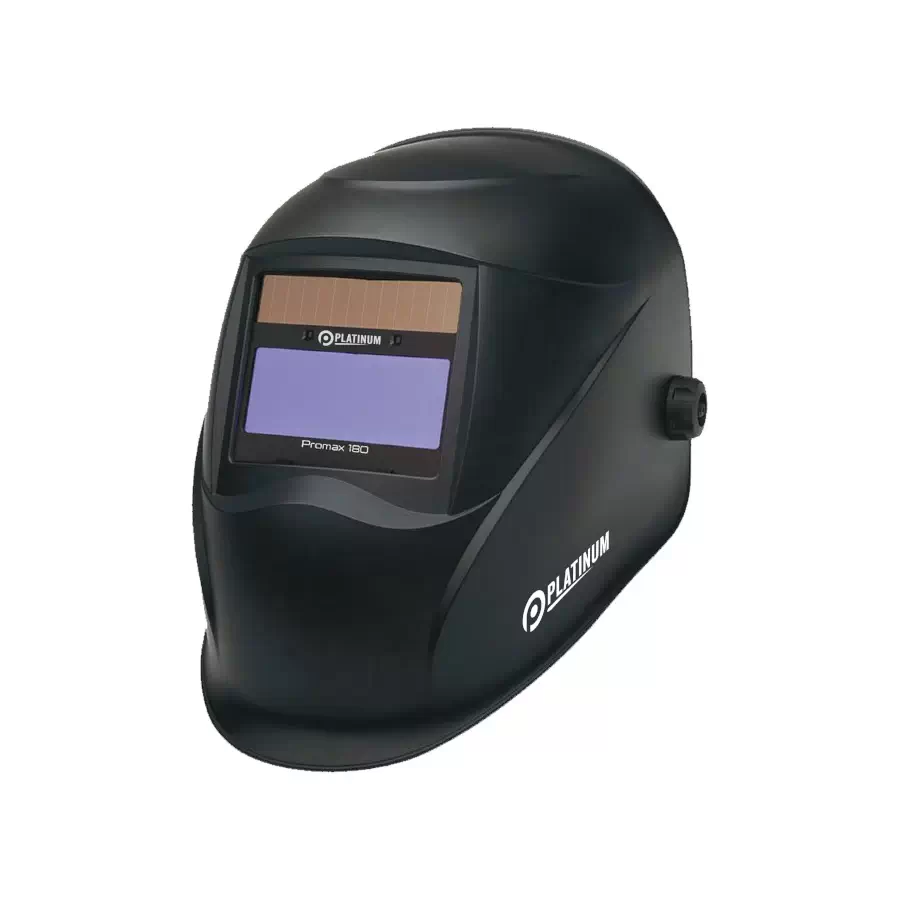

The Platinum North America WC-05164 Promax 180 Black Auto Darkening Welding Helmet is an exceptional value, with no quality shortcuts! The PROMAX 180 electronic welding helmet is designed for occasional MIG, TIG and Stick welding. Controls include variable shade 9-13, sensitivity and delay adjustments. Designed and built to meet the demanding PROMAX series standard. Comfortable, very lightweight and superior optics. The lens has Shade 9-13, Sensitivity & Delay Adjustments and Precise & easy-to-use controls. The Platinum North America WC-05164 Promax 180 Auto Darkening Welding Helmet is ideal for MIG & Stick Welding with fast & easy cover lens replacement. The “Full Laminate” lens construction where each layer in lens assembly is laminated for superior optical quality and reliability.
Platinum North America WC-05164 Promax 180 Auto Darkening Welding Helmet Features
- CSA Z94.3 approved
- Colour: Black
- Variable shade 9-13, sensitivity and delay adjustments
- Ultra clear vision, optical rating 1/1/1/2
- 5.8 sq. in. Viewing Area
- Hinge and lock lens retainer system for easy cover lens replacement and tight seal to prevent spatter damage to the electronic lens
- Magnification lens holder
- Fully laminated electronic lens assembly provides superior optical quality and long service life in contrast to economy lenses which are simply glued on the edge and over time are prone to contamination and failure
- Lightweight, durable and shock resistant shell
- 1 year warranty on auto-darkening lens
- Auto On/Auto Off hassle free operation
Platinum North America WC-05164 Promax 180 Auto Darkening Welding Helmet Specifications
- Suitable Welding Processes: MIG, MMA/Stick, Grinding
- Suitable Applications: Occasional welding
- Switching Speed: Conforms to & exceeds requirements of EN379 Standard
- Arc Sensing: 2 Sensors
- TIG Optimized: Not recommended for TIG
- Power Supply: Solar – Rechargeable, non-replaceable battery
- On / Off: Ready to use at any time, no switching required
- Inactive Shade (Grind/Off): Shade 4
- Active Shade (Weld): 9-13
- Sensitivity: Low – High
- Delay: 0.1 – 1.0 seconds
- Weight: 460g
- Viewing Area: 5.8 sq. in.
- Cover Lens – Inner: 102 x 42mm – Part no. WC-05320 (pkt 5)
- Cover Lens – Outer: 115 x 104mm – Part no. WC-05323 (pkt 10)
- Magnification Lens Holder: Takes standard 108 x 51mm Magnification Lenses
- Standards Compliance Lens: EN379
- Standards Compliance Shell: EN175
- Optical Rating: 1/1/1/2 (Optical quality / Diffusion of light / Variation in luminous transmittance / Angle dependency)
- Warranty 1 years (on auto darkening lens)
- Temperature Range Operating: -5ºC to +55ªC
- Temperature Range Storage: -10ºC to +65ºC
Platinum North America WC-05164 Promax 180 Auto Darkening Welding Helmet Warranty
- Platinum North America’s 1 Year Limited Warranty
