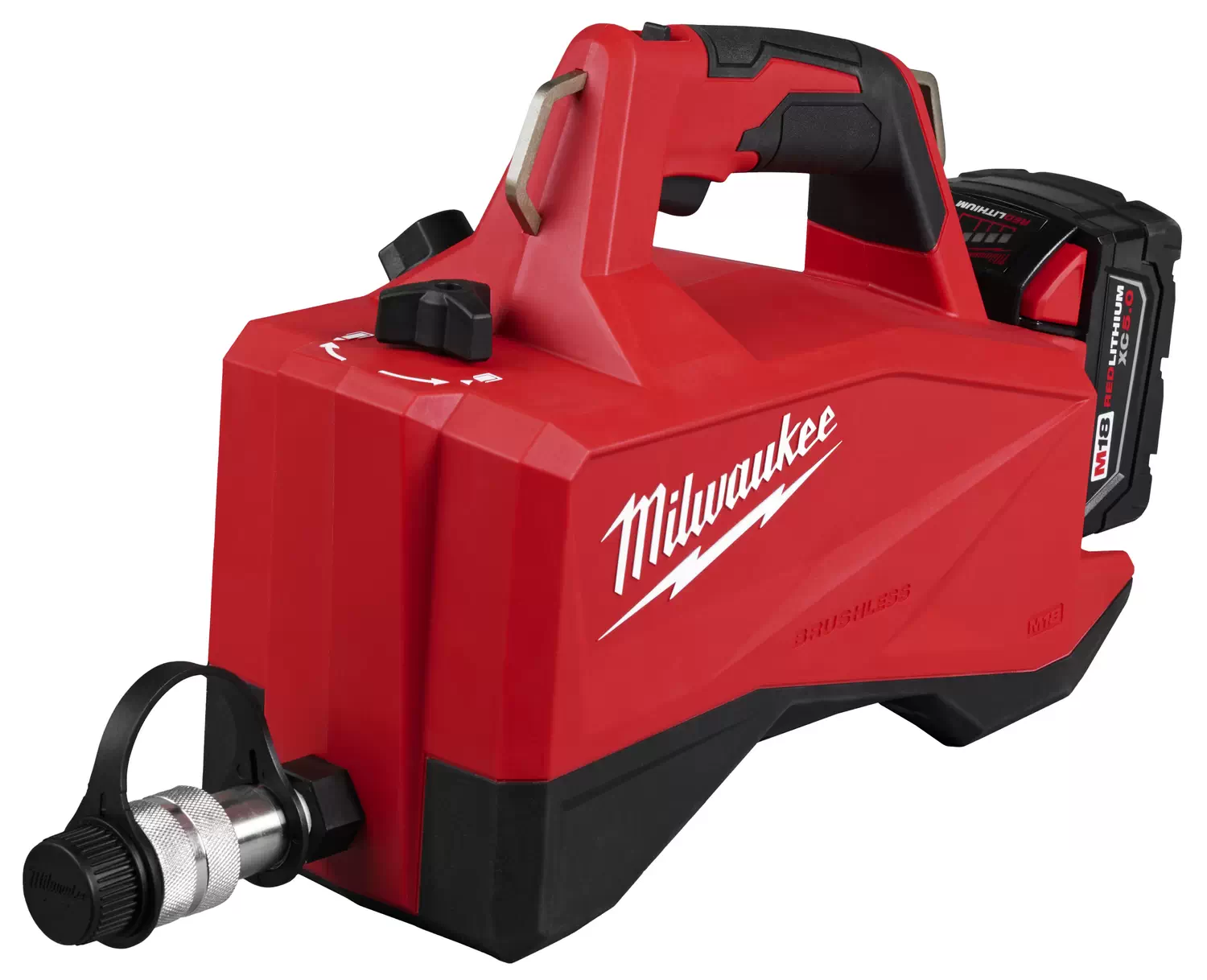

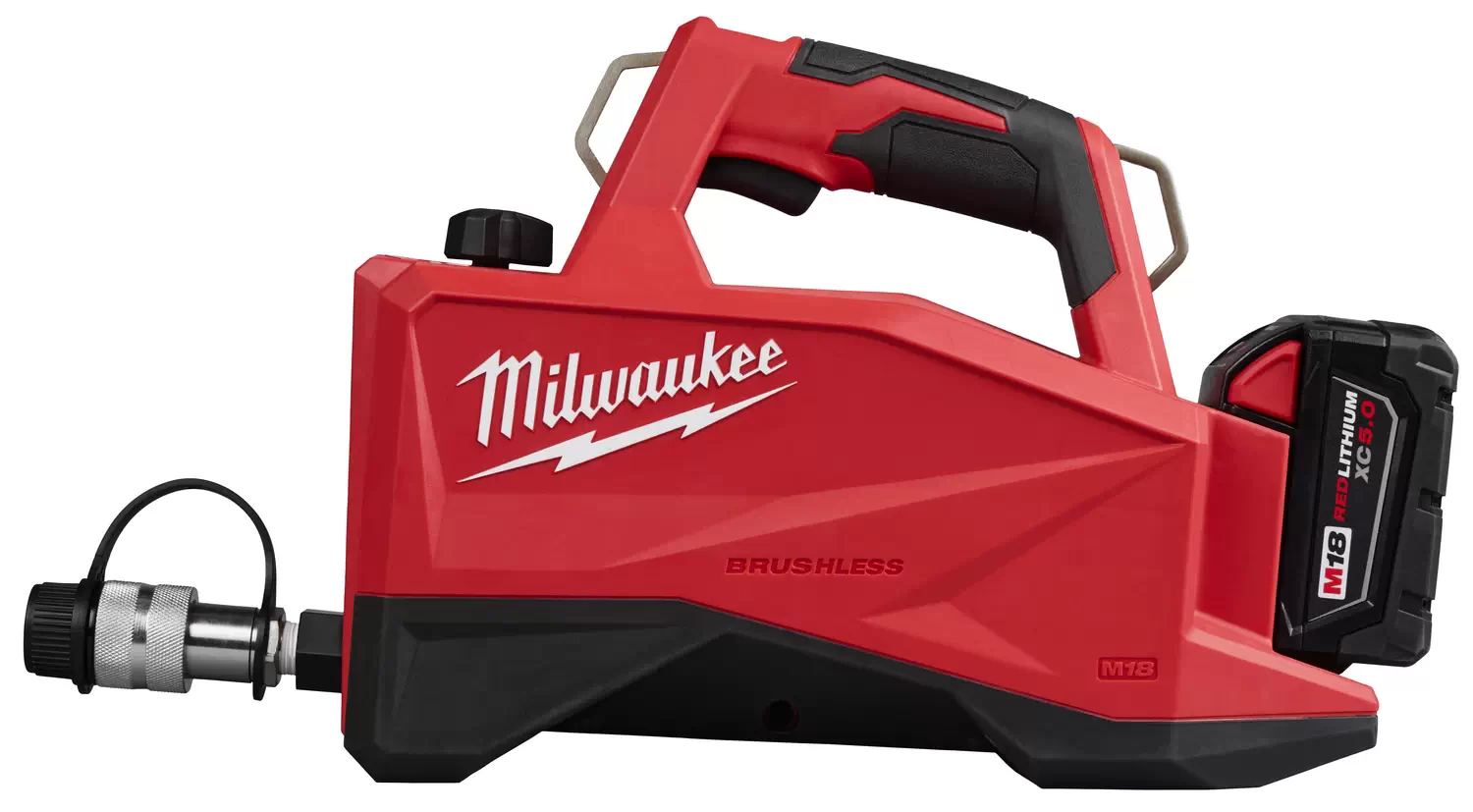

Milwaukee 3120-21 M18 18V Brushless Single Acting 60in3 10,000psi Hydraulic Pump

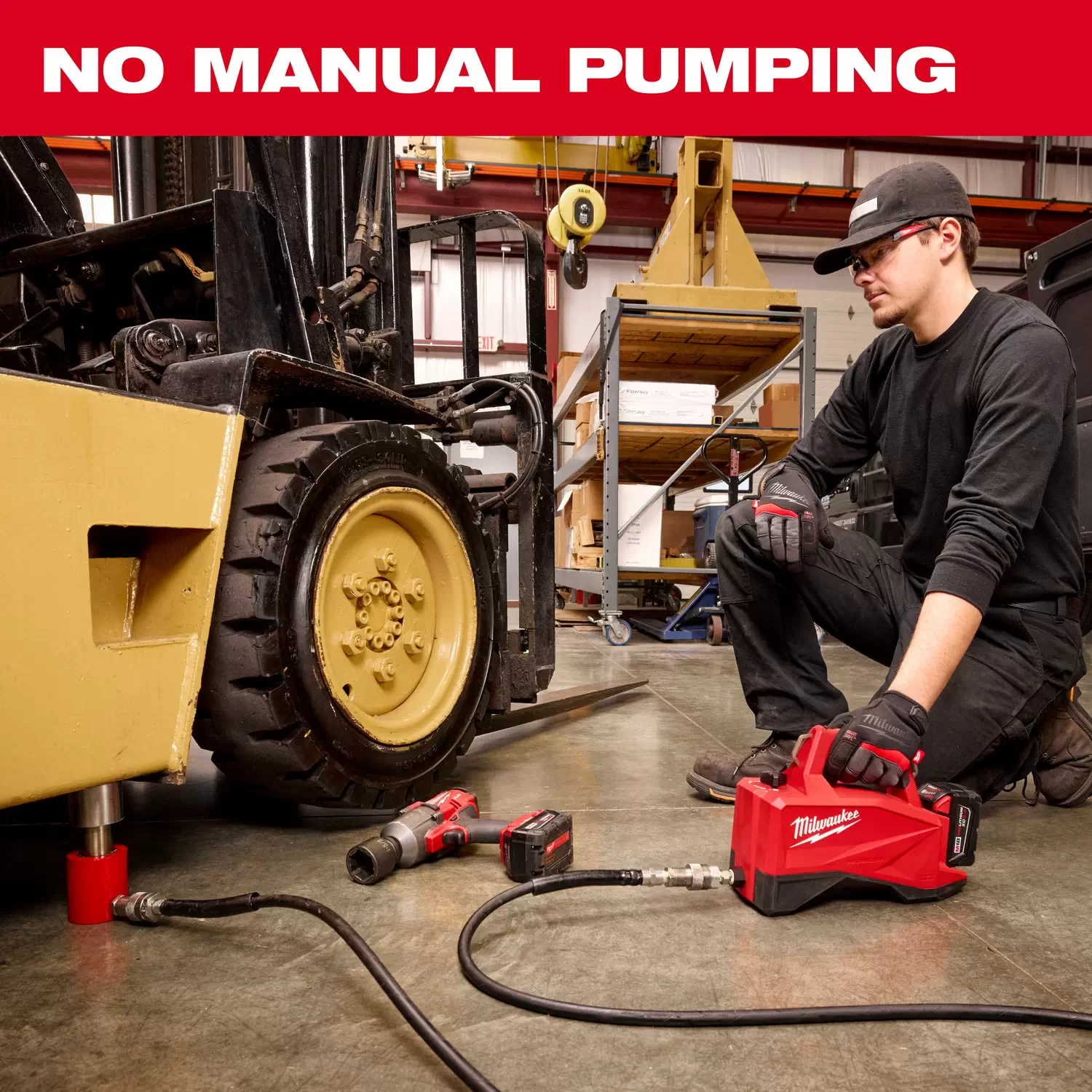

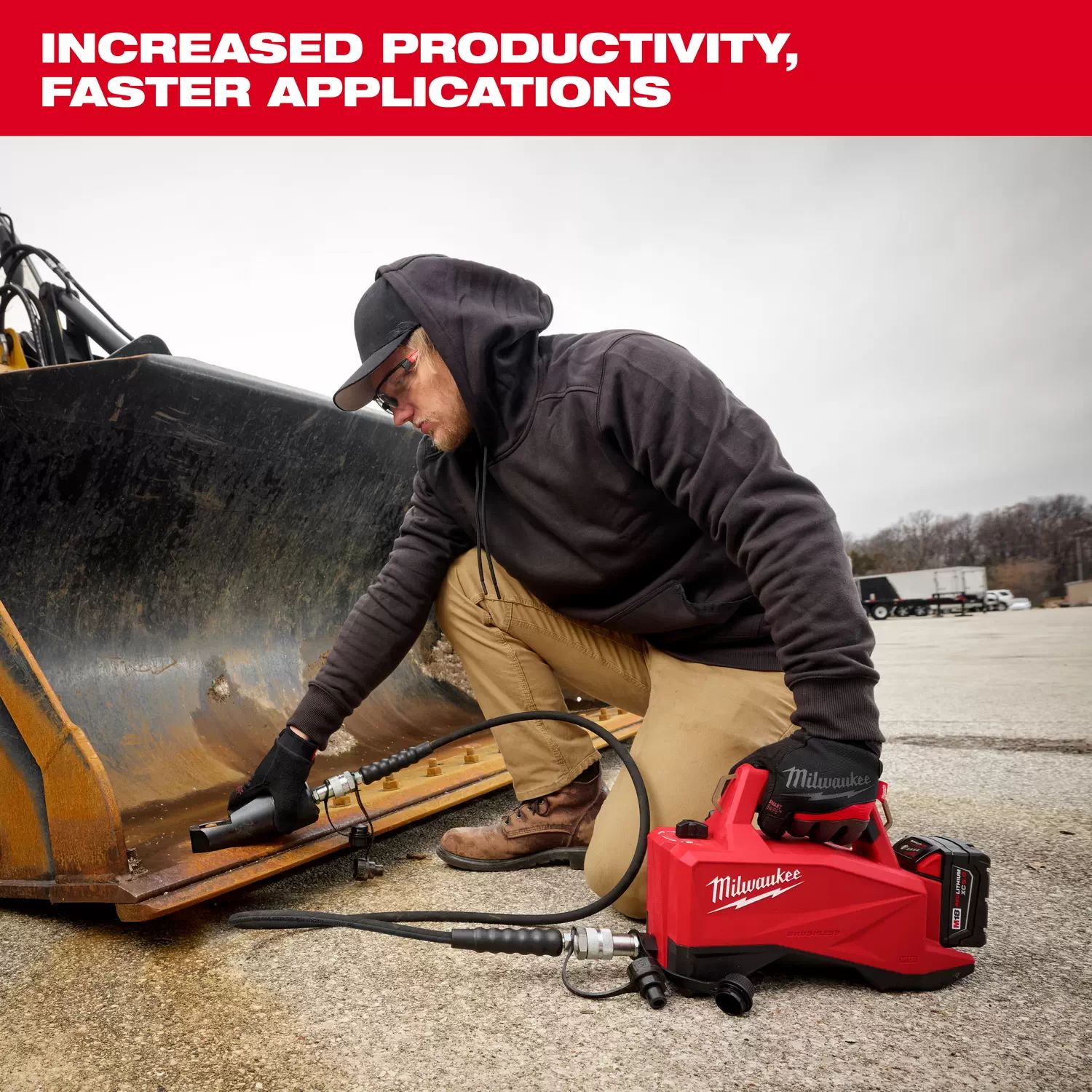

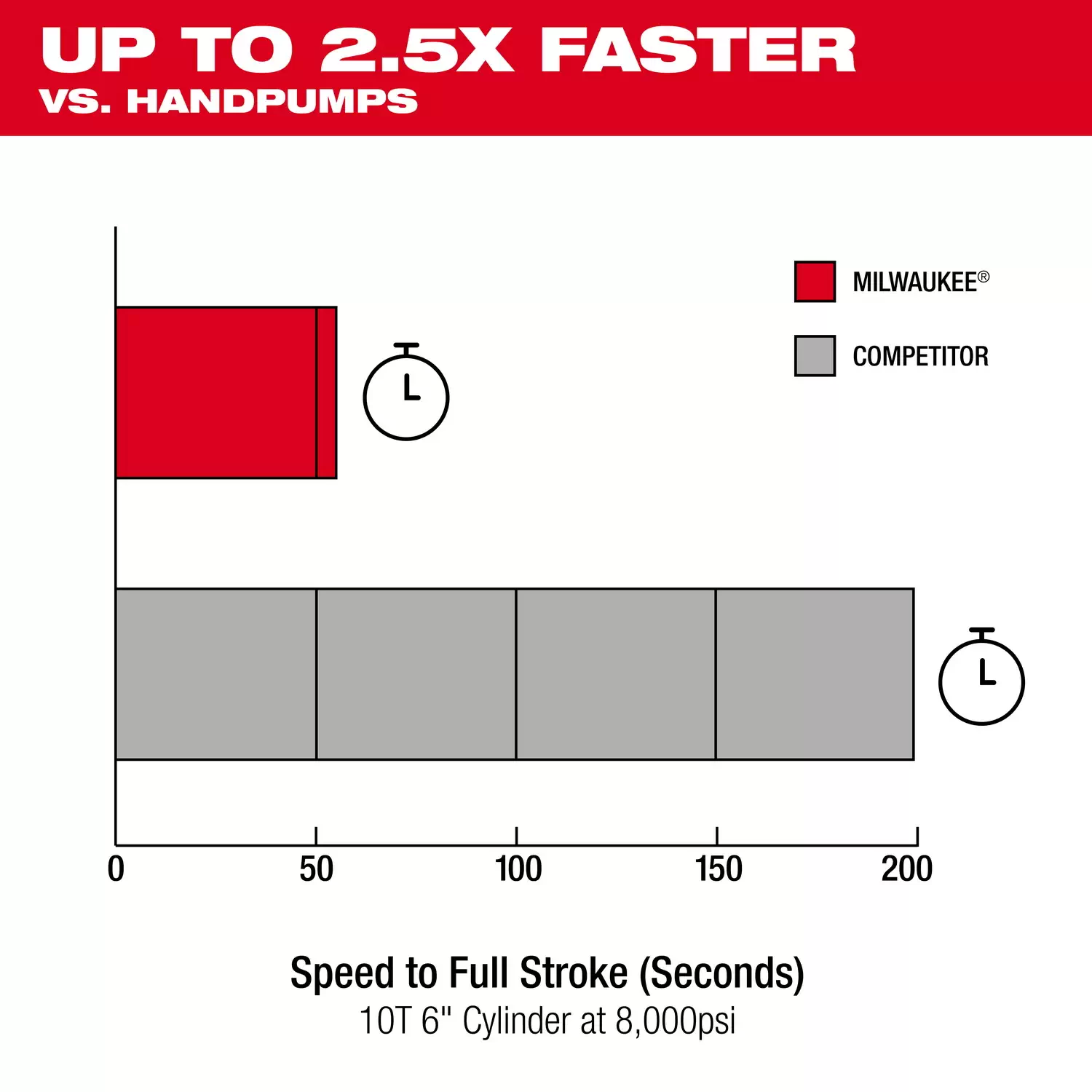

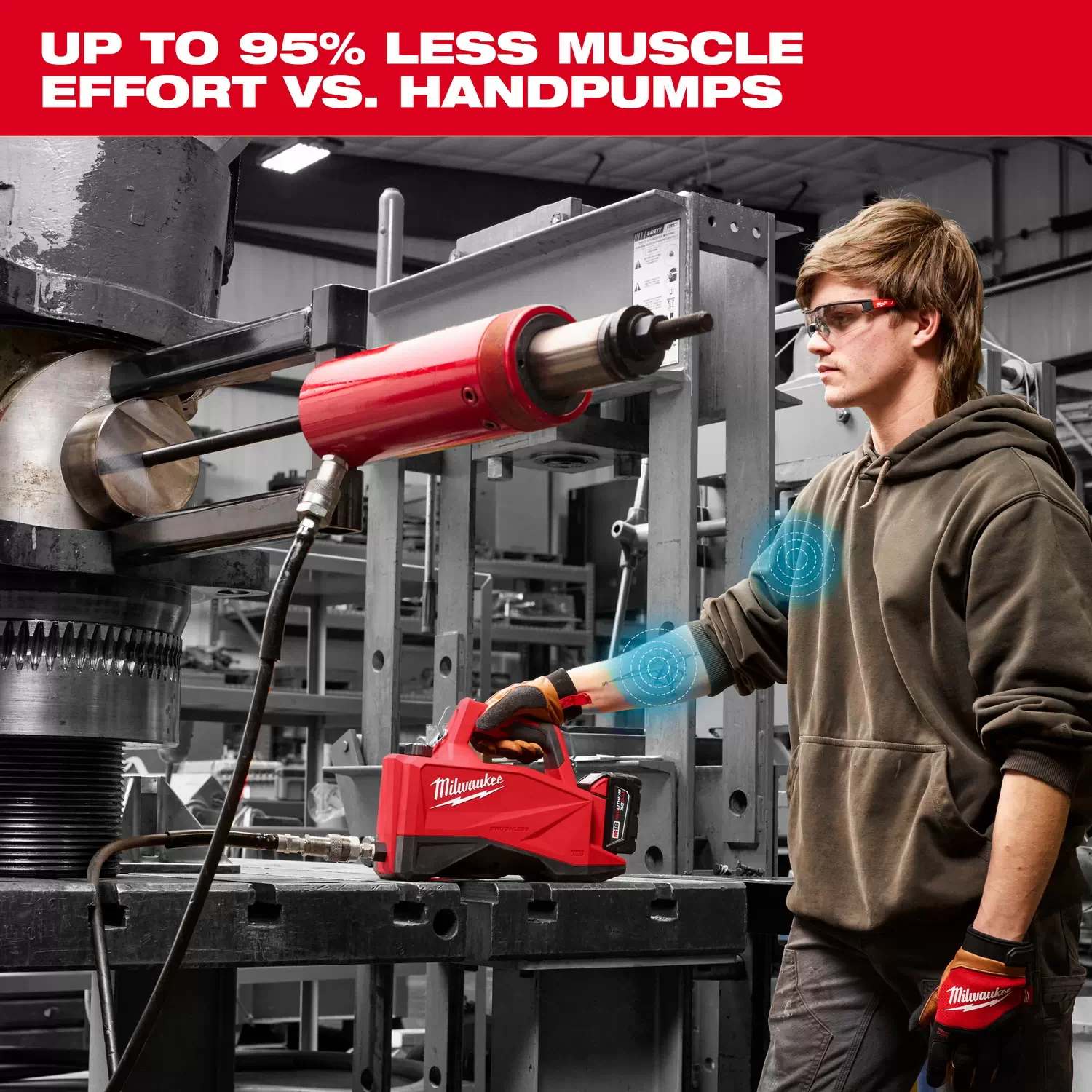

The MILWAUKEE 3120-21 M18 18V Brushless Single Acting 60in 3 10,000psi Hydraulic Pump eliminates manual pumping, delivering up to 2.5X faster application speeds. By eliminating the need to manually pump, this solution vastly reduces fatigue, with up to 95% less muscle effort vs. hand pumps, delivering increased productivity and faster applications. The single-acting pump features 60in3 of usable oil to fully extend a wide variety of small tools and cylinders to full stroke. The single-acting hydraulic pump is designed to be fully compatible with all existing 10,000psi single-acting rated hydraulic hoses and cylinders. A manual valve allows precise control over return flow, while a bladder window allows you to quickly gauge fluid levels. At 12.6lbs, this compact pump is highly portable and allows easy transport to your application. A trigger lock-out helps prevent unwanted tool activation in transport, set up, and tear down. The kit includes (1) M18™ XC 5.0 REDLITHIUM™ Battery, an M18™ and M12™ Multi-Voltage Charger, a Shoulder Strap, and a 3/8” NPTF Female Quick Connect Cone Poppet Coupler (installed on the tool).

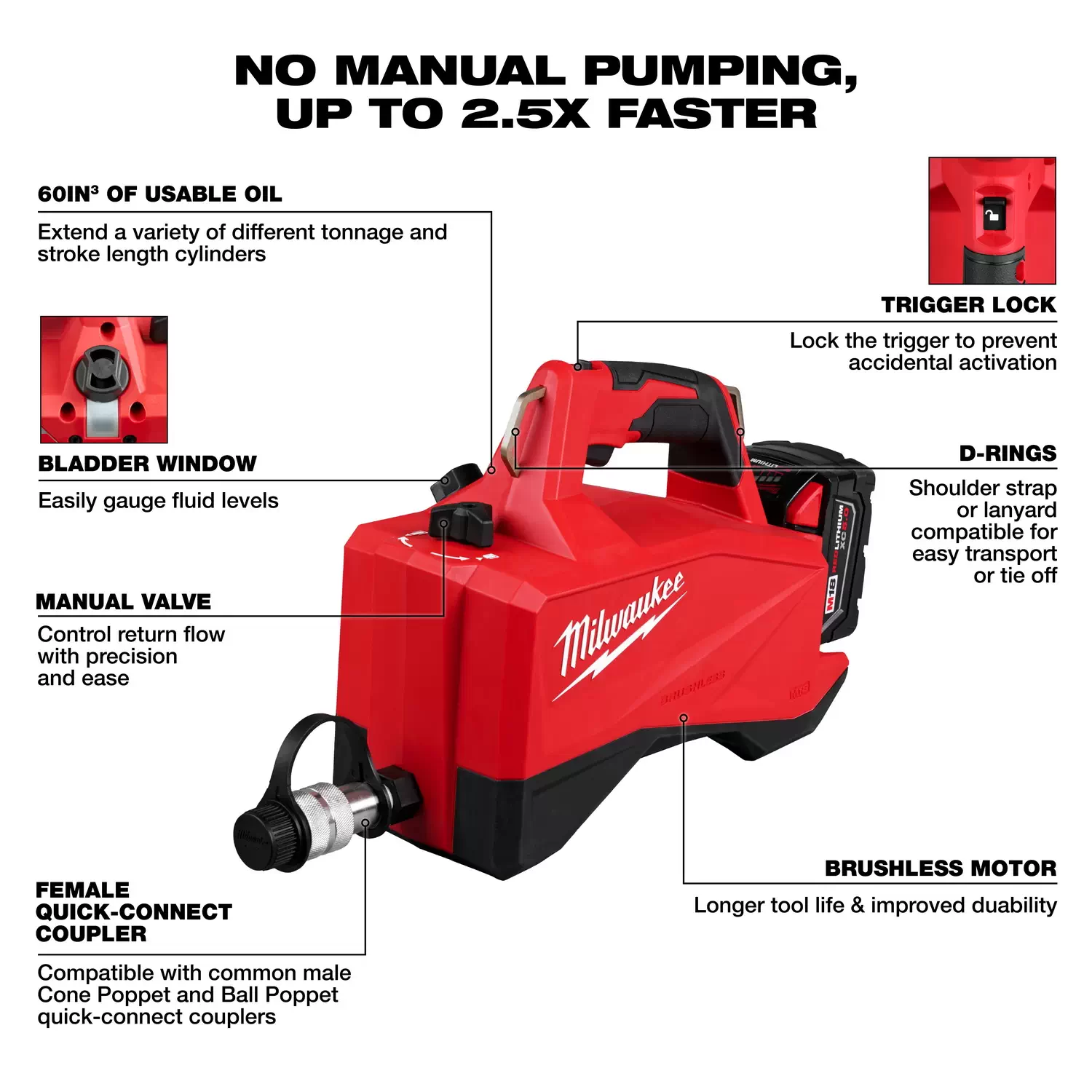

Milwaukee 3120-21 M18 18V Brushless Single Acting 60in3 10,000psi Hydraulic Pump Features

• Compatible with all 10,000psi rated single acting hydraulic hoses, cylinders, and tools

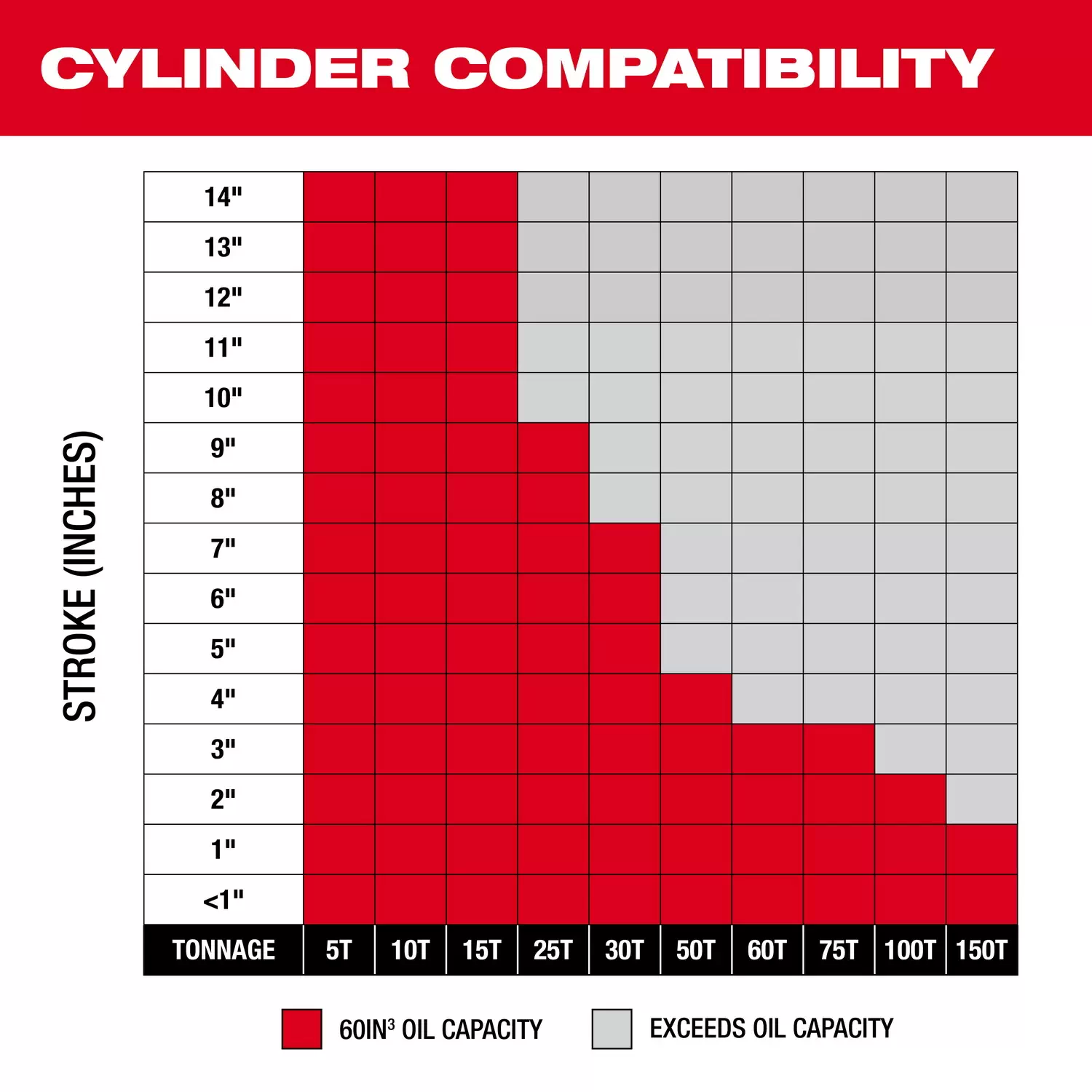

• 60in3 of usable oil allows you to fully extend a wide variety of small cylinders and tools to full stroke

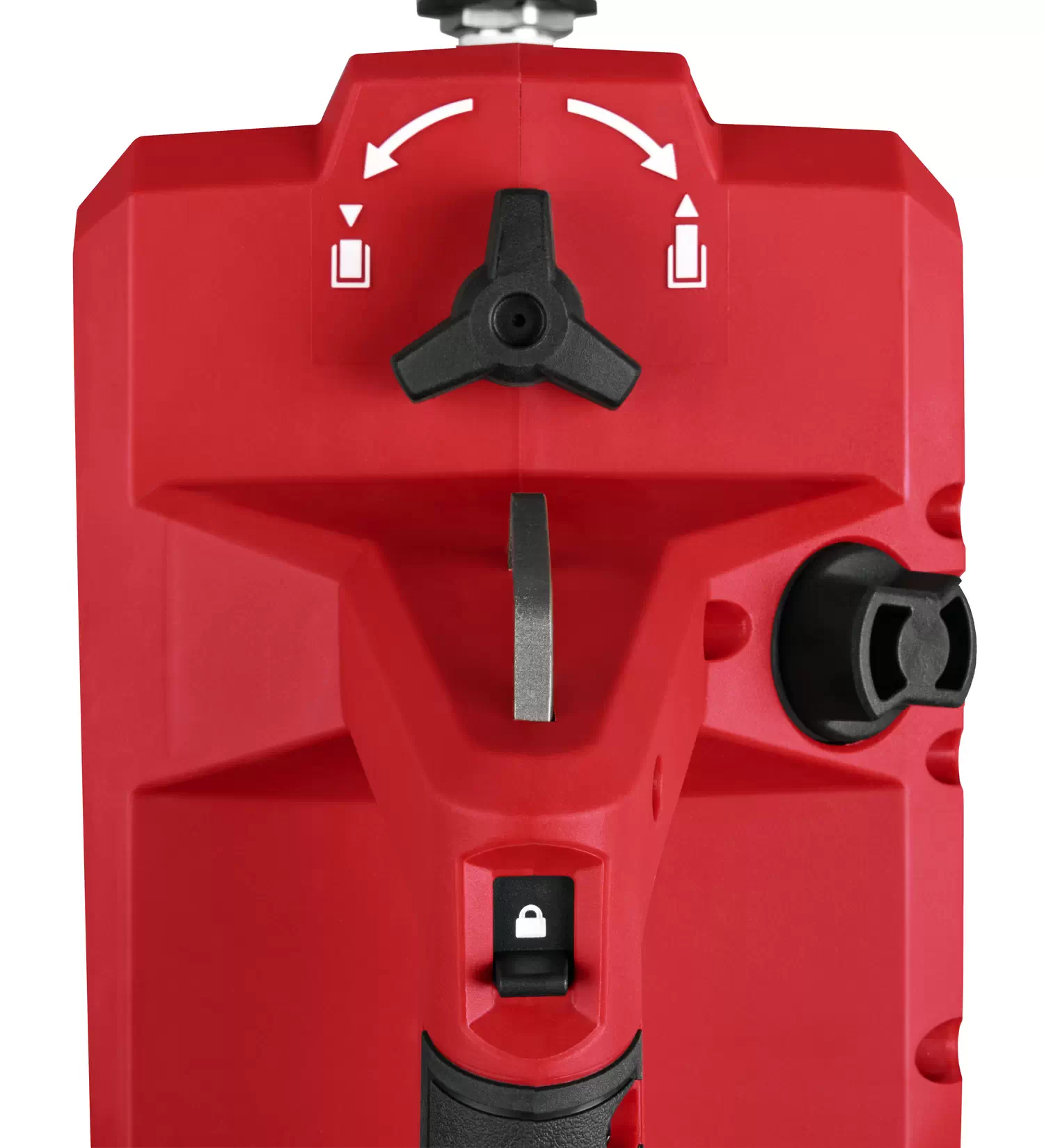

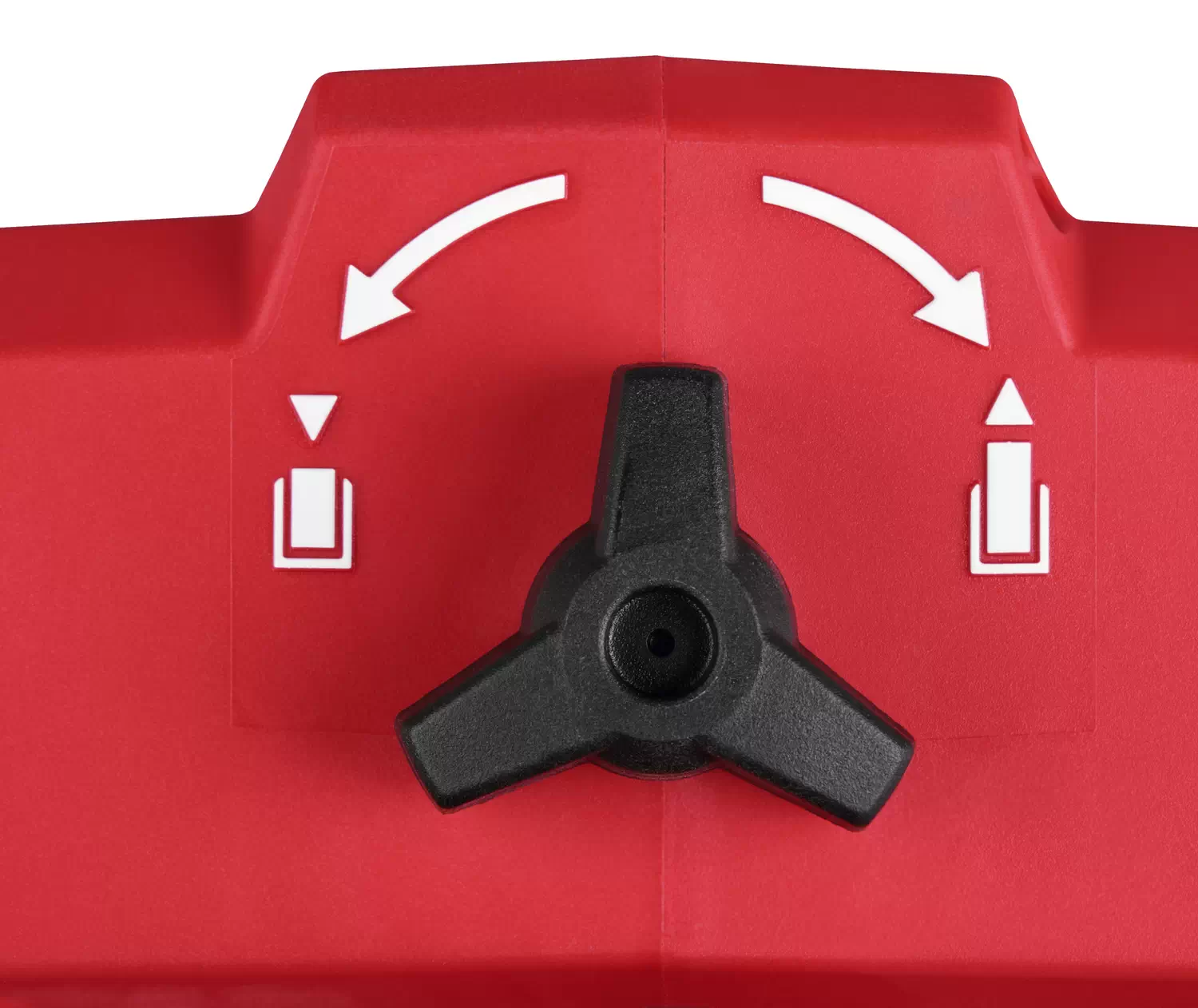

• Manual Valve – Control return flow with precision and ease

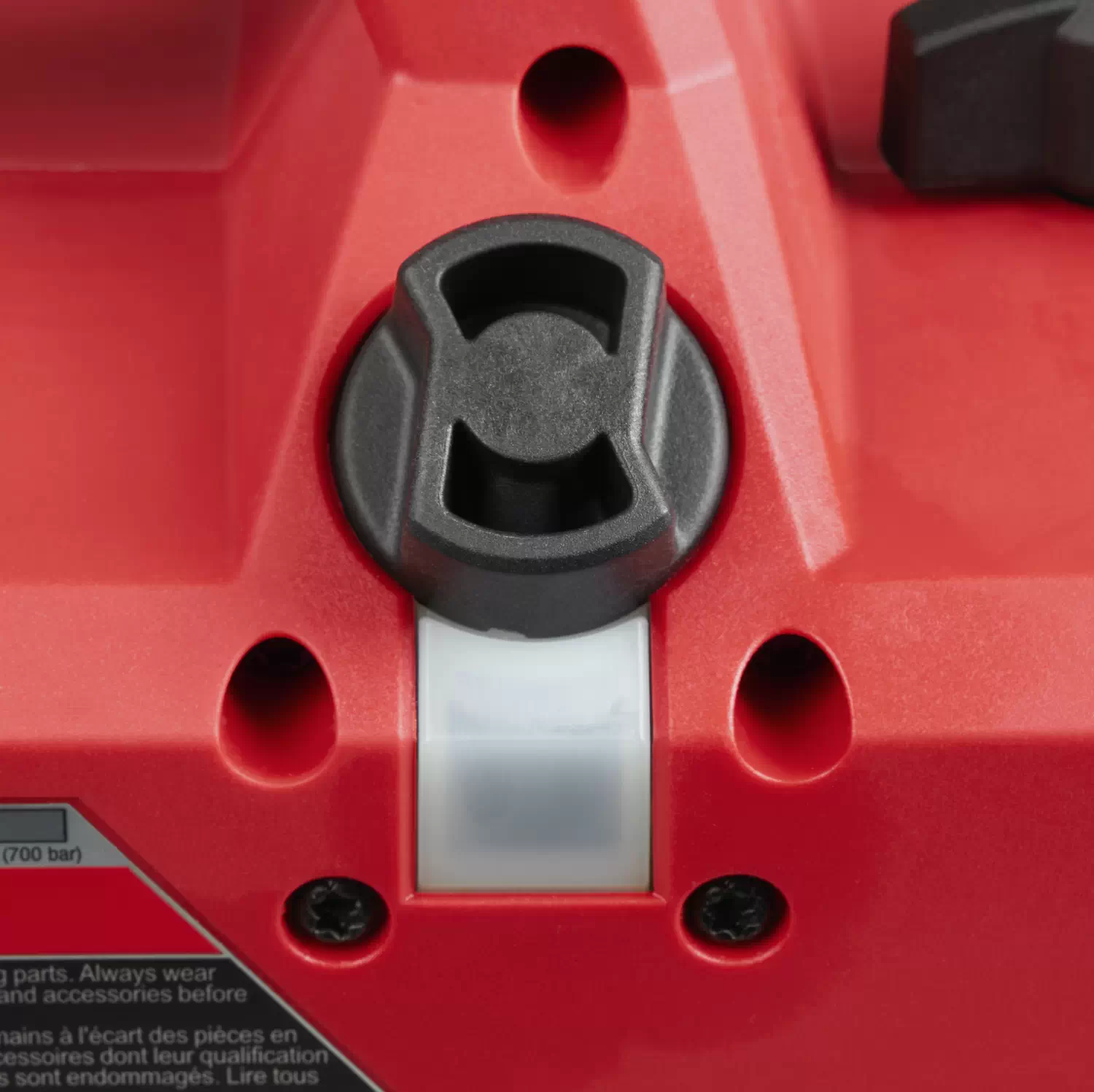

• Bladder Window – Quickly gauge fluid levels

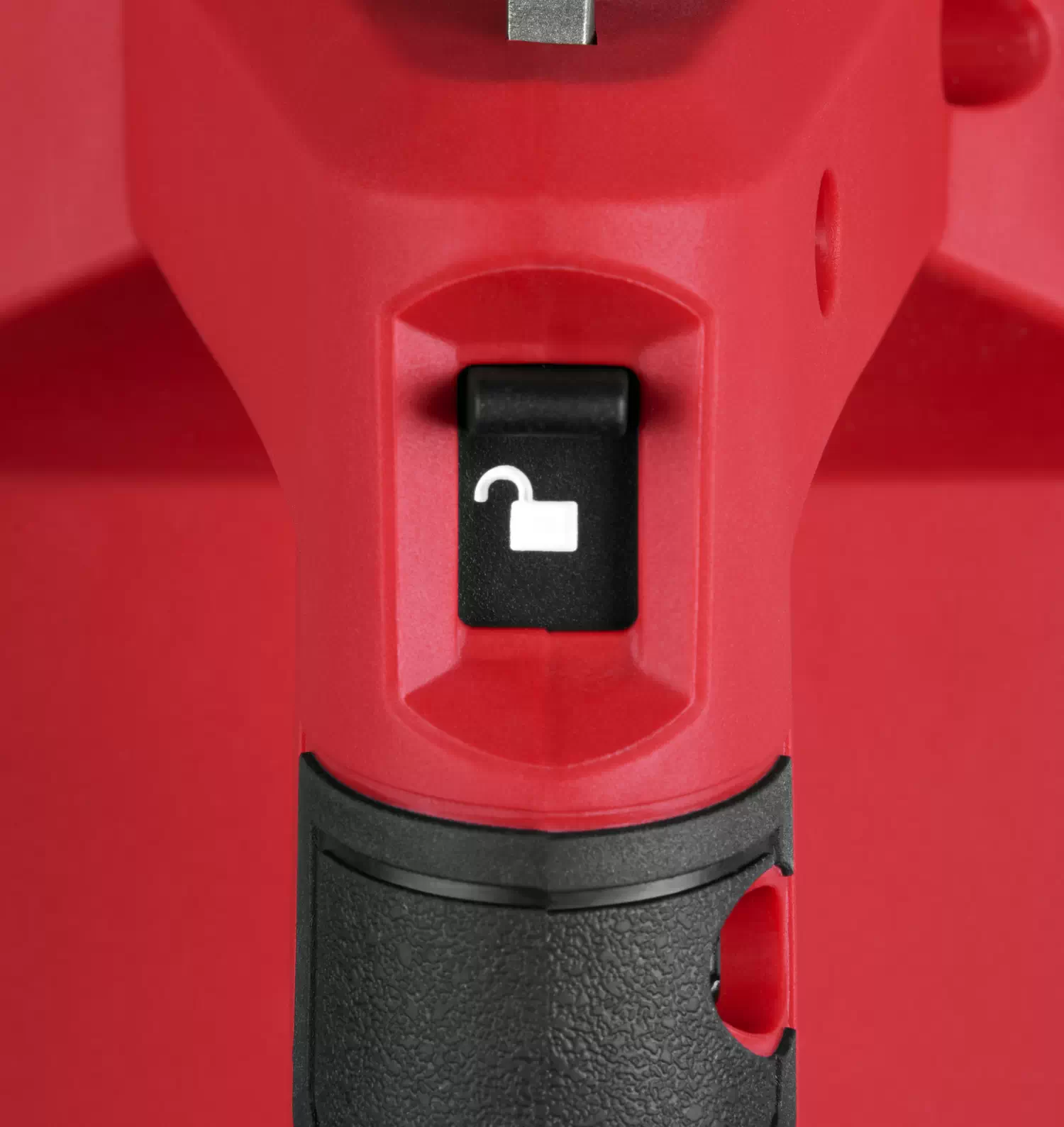

• Trigger Lock Out – Prevent unwanted tool activation in transport, set up, and tear down

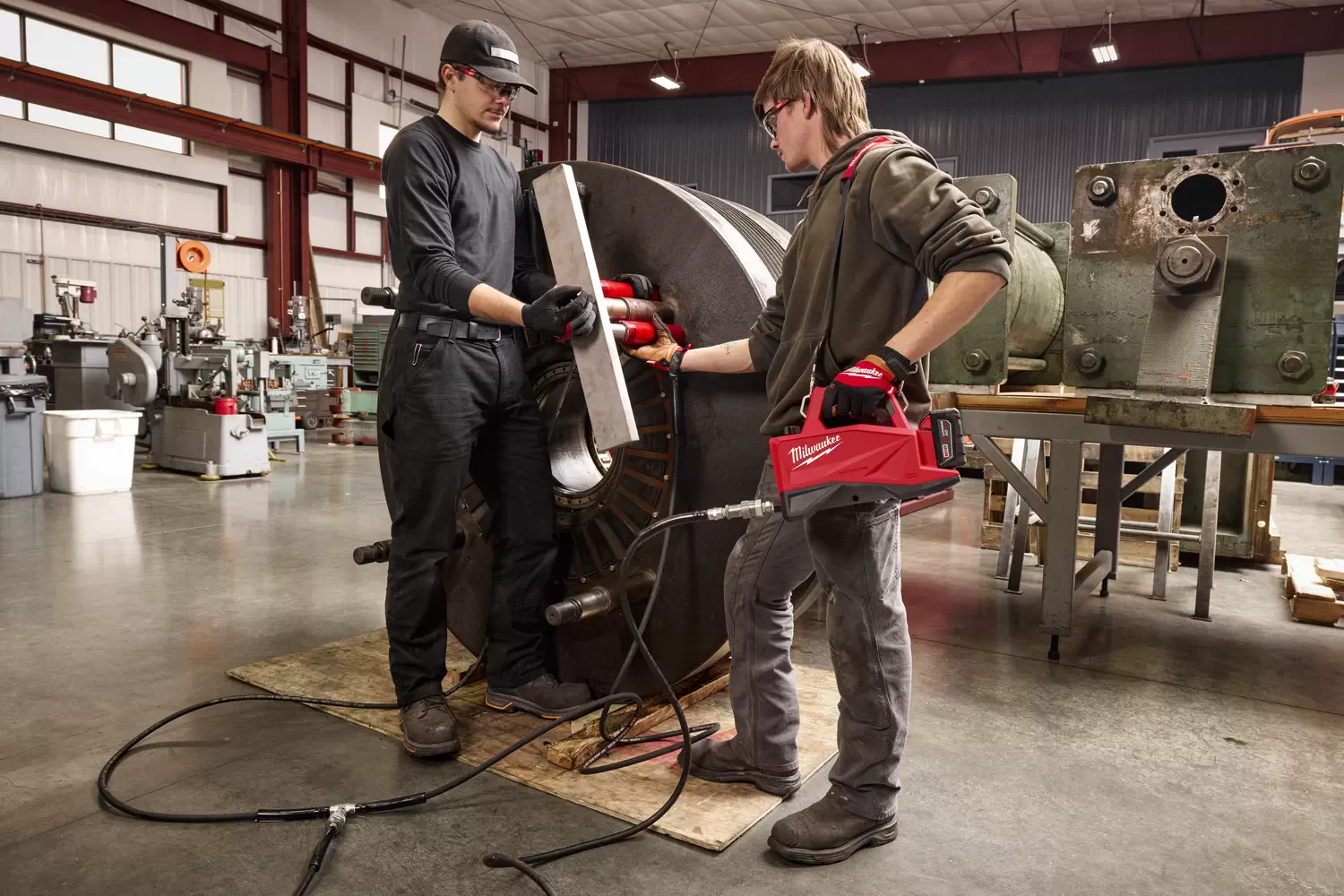

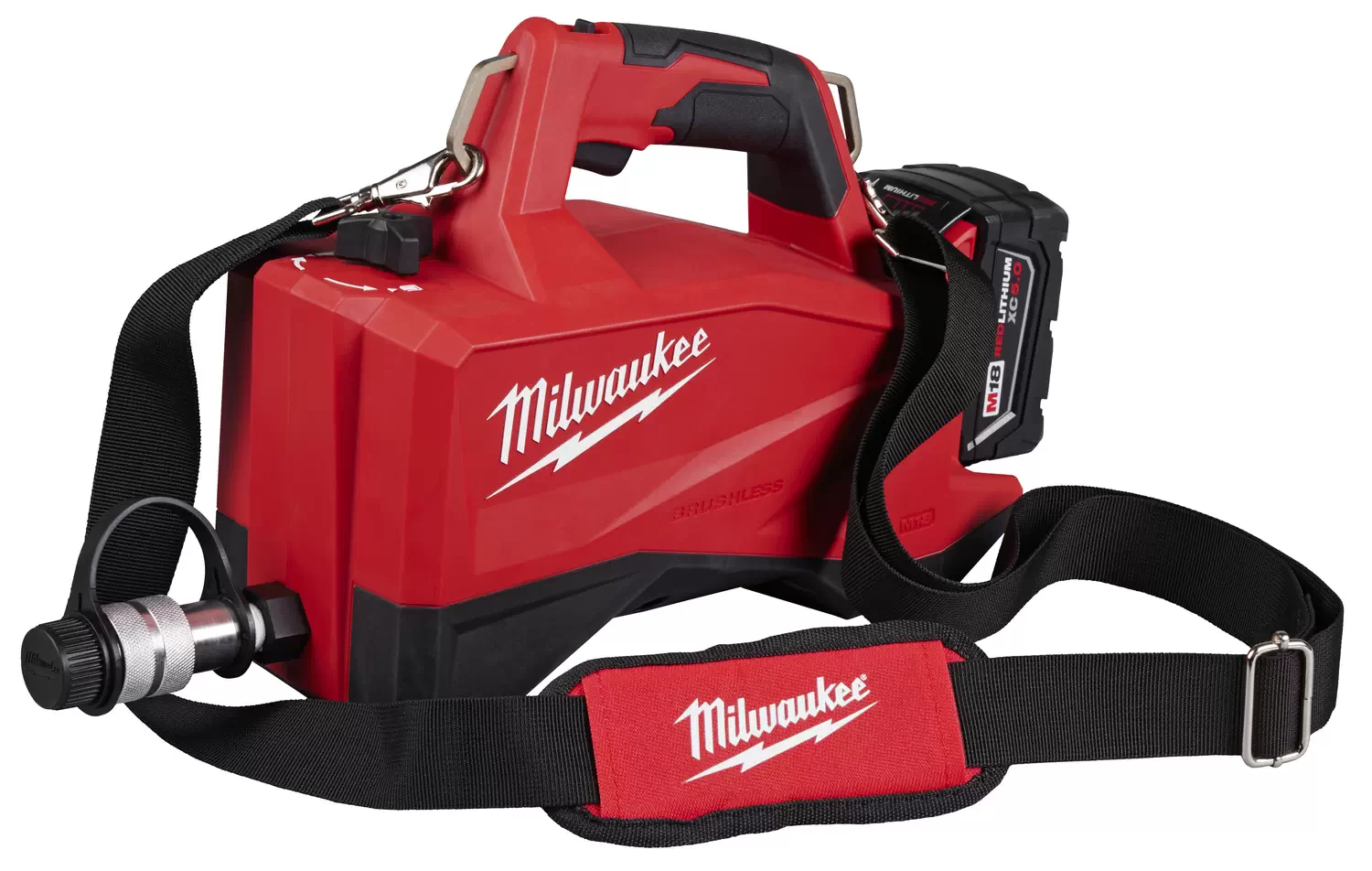

• Integrated D-Rings to easily tie-off with a lanyard at height; leverage the included shoulder strap for easier transport, and to keep the pump close for those hard-to-reach applications
• Compact and light weight design at only 12.6 lbs (with M18™ XC 5.0)

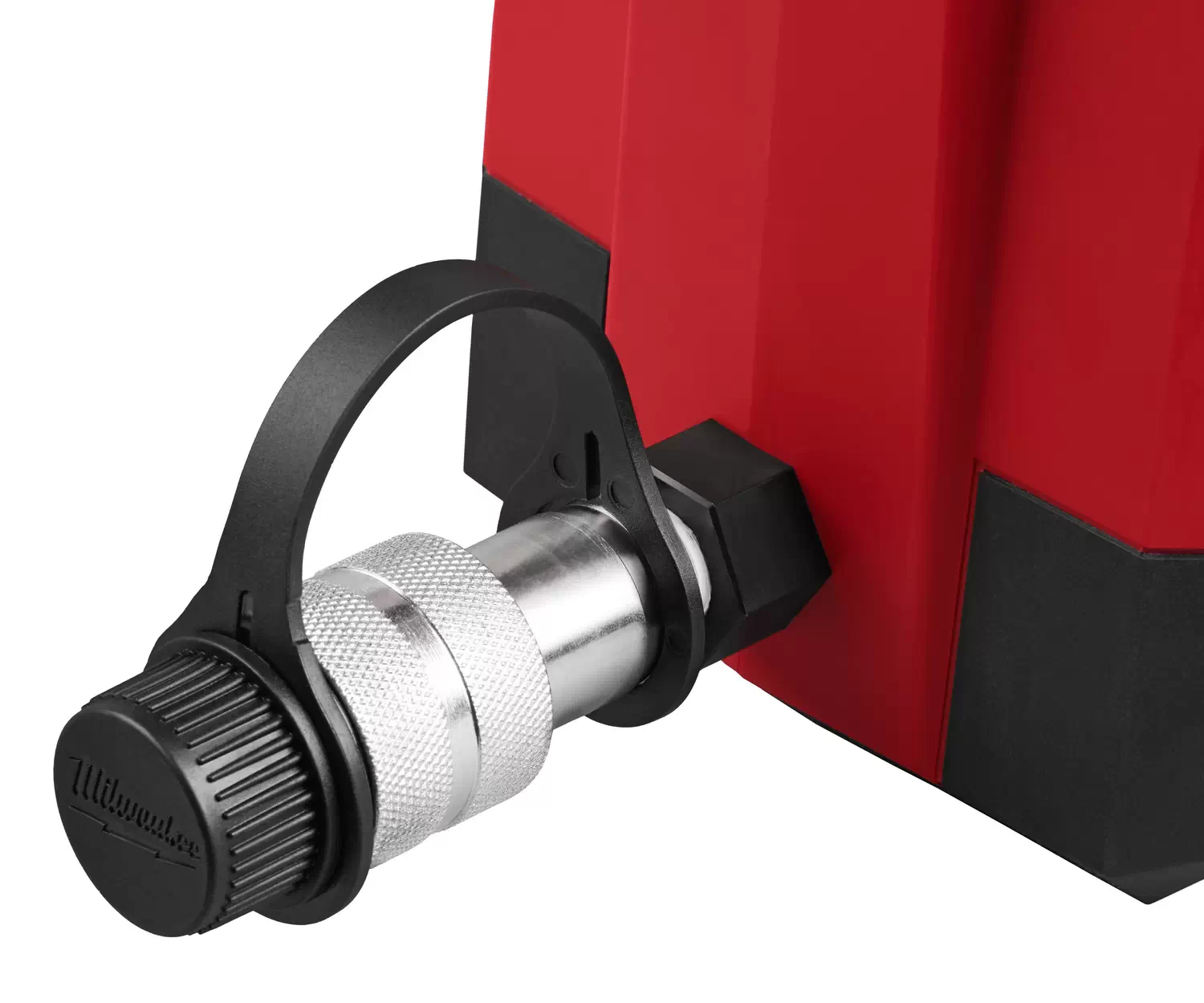

• Female Quick Connect Cone Poppet Coupler – Compatible with common cone poppet and ball poppet male quick-connect couplers
• Brushless Motor provides improved durability
• Compatible with all M18™ batteries and chargers

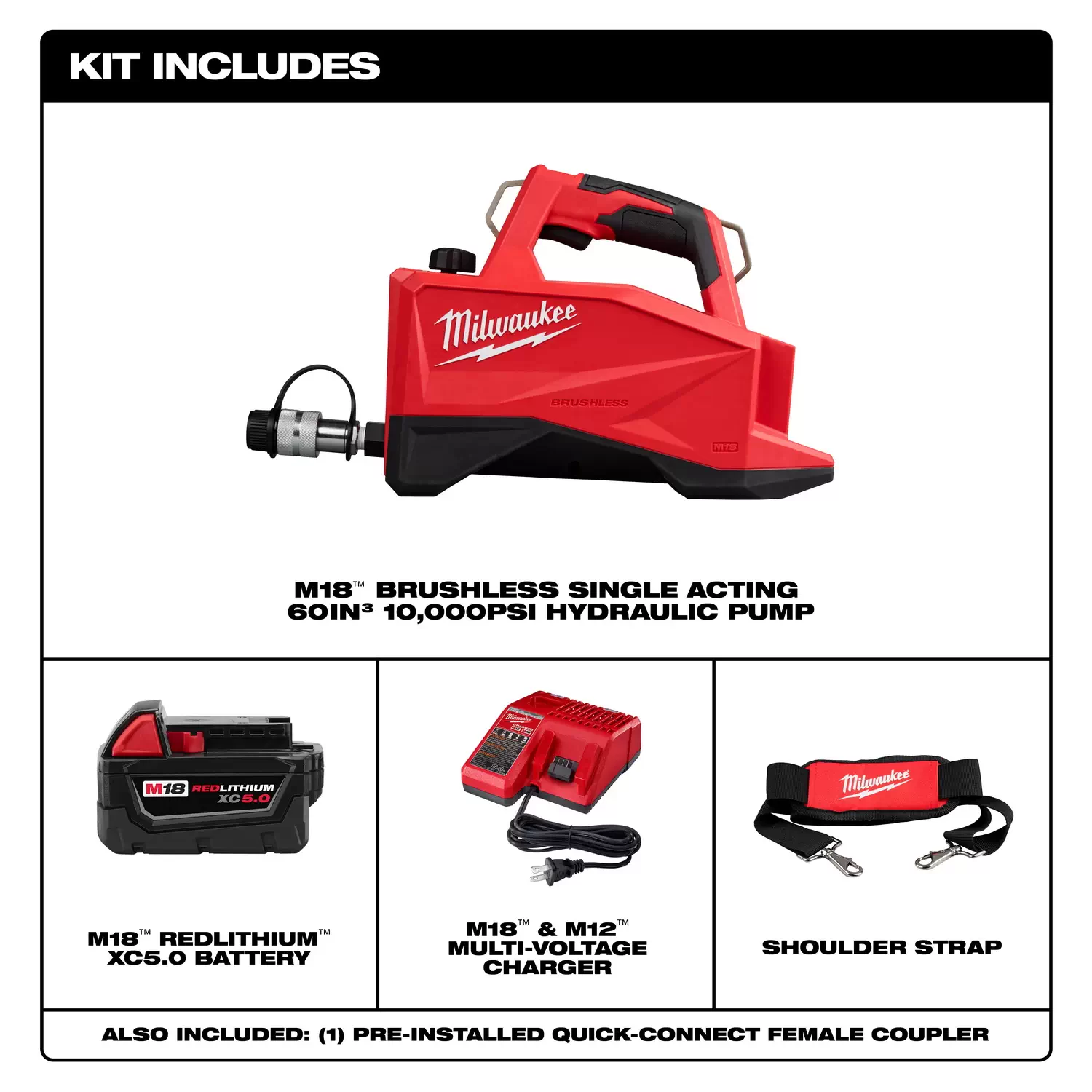

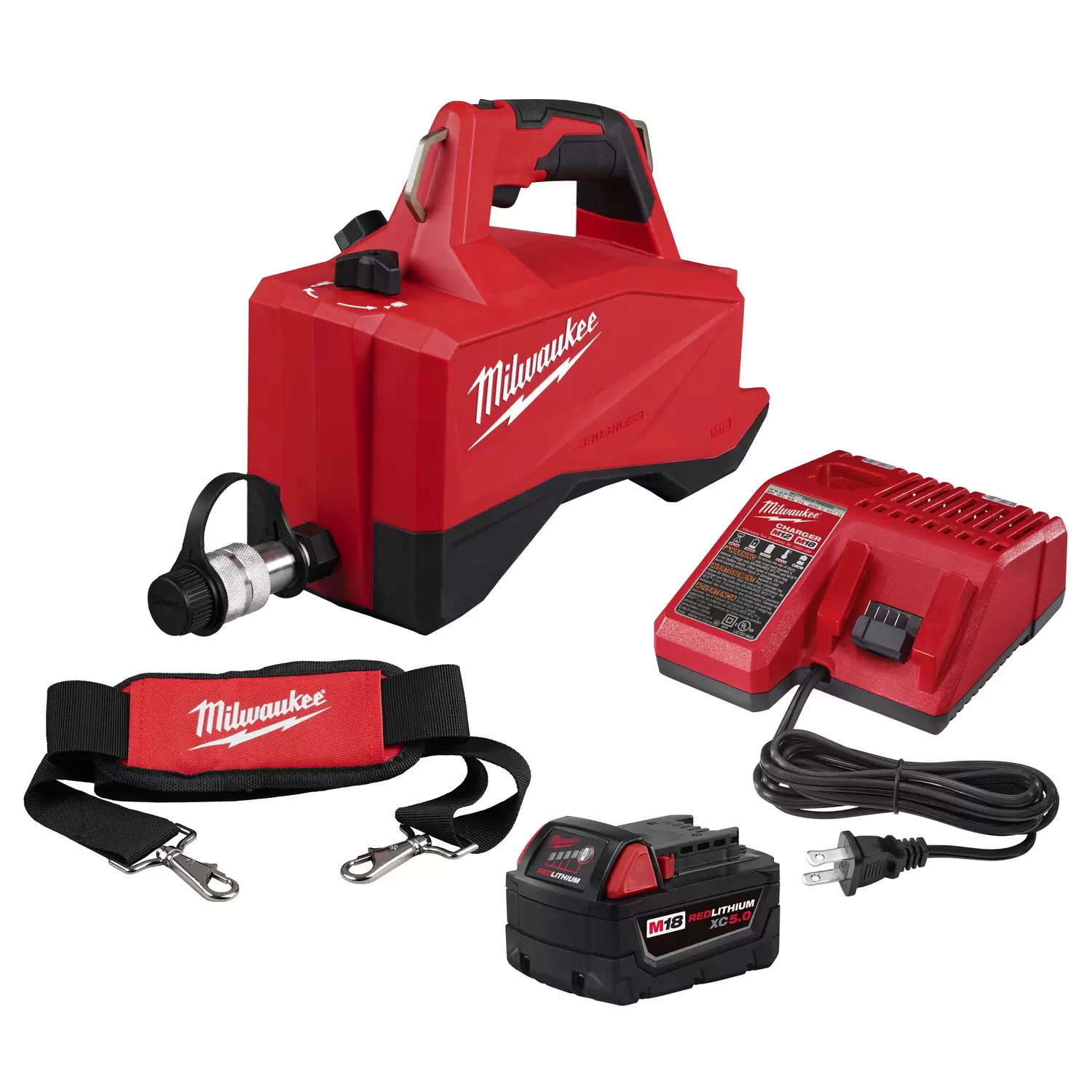

Milwaukee 3120-21 M18 18V Brushless Single Acting 60in3 10,000psi Hydraulic Pump Includes

• (1) M18™ Brushless Single Acting 60in3 10,000psi Hydraulic Pump (3120-21)
• (1) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack (48-11-1850)
• (1) M18™ & M12™ Multi-Voltage Charger (48-59-1812)

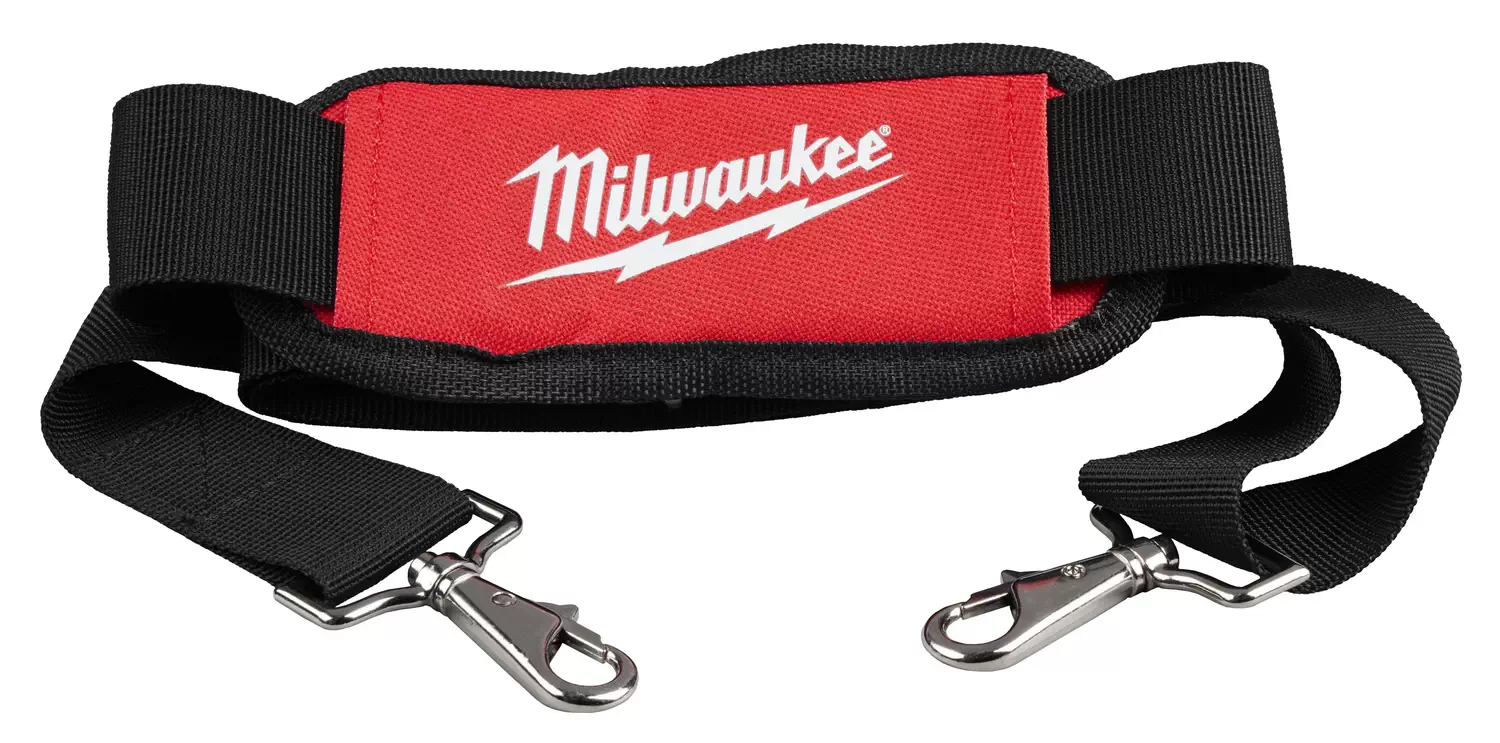

• (1) Shoulder Strap
• (1) Pre-Installed Female Coupler

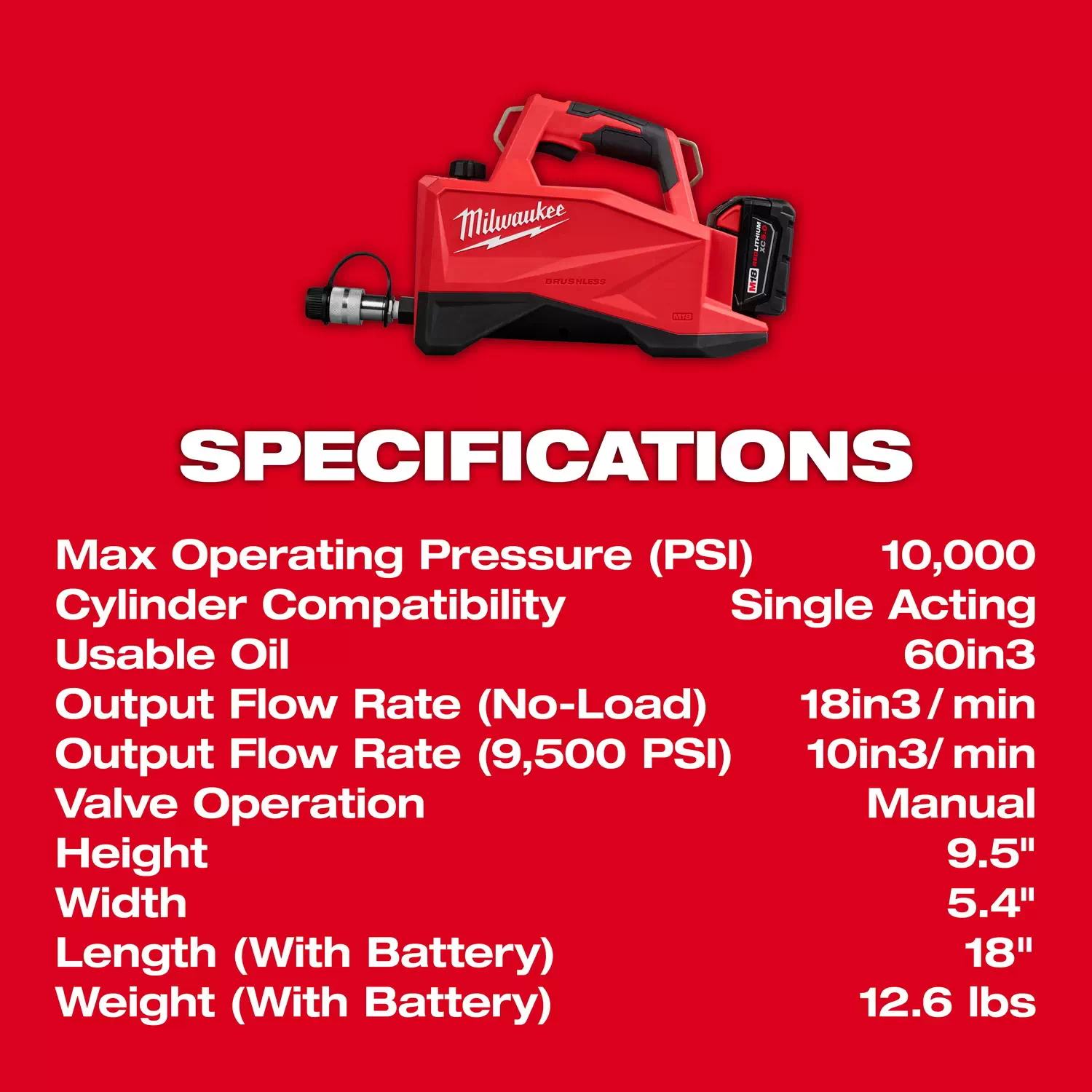

Milwaukee 3120-21 M18 18V Brushless Single Acting 60in3 10,000psi Hydraulic Pump Specifications

• GTIN 00045242295517
• MFG Part # (OEM) 3120-21
• Powered Tool Power Source Electric – Cordless
• Brushless Yes
• Cordless / Corded Cordless
• Battery Voltage (V) 18V
• Battery Type 18 Volt Lithium Ion
• Maximum Operating Pressure 10,000 PSI
• Hydraulic Fluid Capacity (gal) 0.25
• Flow Control Settings Fully Adjustable
• Output Flow Rate – No-Load 18in3/min
• Output Flow-Rate – 9500 10in3/min
• Oil Type Hydraulic Oil
• Valve Operation Manual
• Cylinder Compatibility Single Acting
• Number of Batteries Included 1
• Number of Batteries Required 1
• Charger Included Yes
• Length (in) 18.0
• Width (in) 5.4
• Height (in) 9.5
• Overall Weight (lbs) 12.6
• Package Height (In.) 11.61
• Package Width (In.) 8.07
• Package Depth (In.) 19.00
• Package Weight (Lb.) 18.60

Milwaukee 3120-21 M18 18V Brushless Single Acting 60in3 10,000psi Hydraulic Pump Warranty

• 3 Years (Tool), 3 Years (Battery)
