Milescraft 1220 HingeMate350 Complete Hinge Installation Kit, Doors, Jambs, Latches and Strike Plates

Hang doors like a professional with the Milescraft 1220 HingeMate350 complete door installation kit. Whether you are installing new doors, or replacing or repairing existing doors, the Milescraft 1220 HingeMate350 kit comes with all the templates and hardware required to route doors and jambs for hinge, strike, and latch plates. The HingeMate350 is compatible with 1-3/8in. and 1-3/4in. doors, and hinges that are 2-1/2in., 3in., 3-1/2in., 4in., and 4-1/2in. An extra included self-centering hinge bit makes drilling pilot holes and mounting your hinges quick and easy. Increase security and privacy in your home by replacing doors without damaging the door or jamb with the HingeMate350. By routing matching mortises for hinges, strike plates, and latch plates into the door and jamb, you won’t have to tear a hole in the wall just to hang a better wooden door.

Milescraft 1220 HingeMate350 Complete Hinge Installation Kit Steel Template Frame

• Durable steel frame with adjustable cams allow for 1-3/4” and 1-3/8” door settings
• Can be mounted to both the door and jamb

Milescraft 1220 HingeMate350 Complete Hinge Installation Kit 1/2″ Router Bit Included

• Tip made of durable tungsten carbide
• Router bit with ball bearing eliminates the need for a bushing

Milescraft 1220 HingeMate350 Complete Hinge Installation Kit Corner Chisel Included

• Hardened steel, self-aligning chisel required to mortise 90° hinges, strikes and latches

Milescraft 1220 HingeMate350 Complete Hinge Installation Kit Hinge Bit Included

• Pre-drill perfectly centered holes for proper alignment of hinges with this spring-loaded, self-centering drill bit

Milescraft 1220 HingeMate350 Complete Hinge Installation Kit Templates

• Contains templates needed to rout hinge, strike plate, and latch plate mortises
• Rotate template to achieve 5/8” radius or 1/4″ radius

* Please Note: Use A Corner Chisel To Achieve Square Corners

Milescraft 1220 HingeMate350 Complete Hinge Installation Kit Specifications

• Template Frame Material: Steel
• Template Material: ABS Plastic
• Hinge Template Sizes: 2-1/2″, 3″, 3-1/2″, 4″, and 4-1/2″
• Strike Plate Template Sizes: 1-1/8″ x 2-3/4″, and 1-1/2″ x 2-1/4″
• Latch Plate Template Sizes: 1″ x 2-1/4″, 1-1/8″ x 2 1/4″, and 1-1/8″ x 2-3/4″
• Router Bit Set Screw (Hex Size): 1.5mm
• Screw Size: #6 Phillip Pan Head Screw

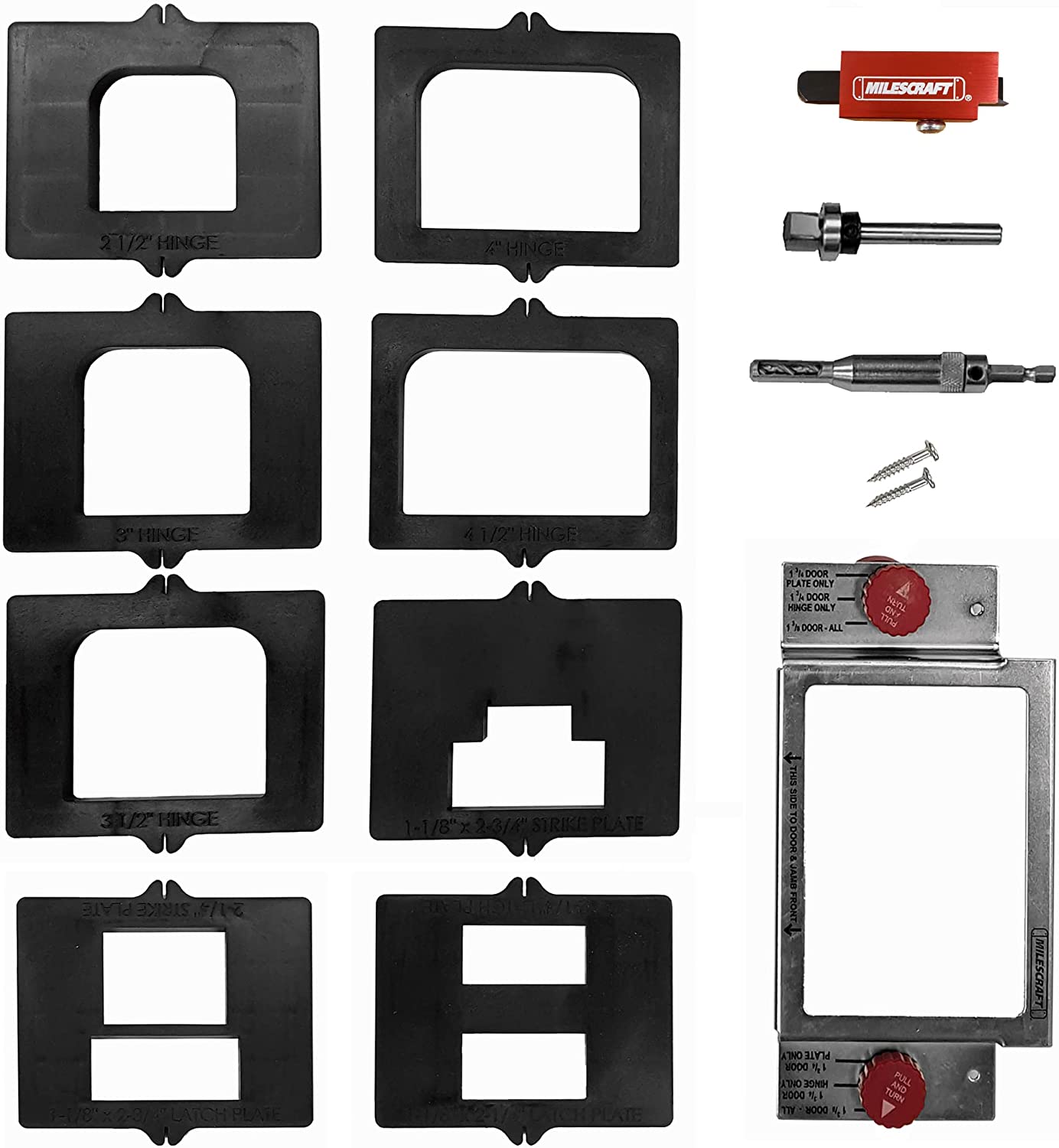

Milescraft 1220 HingeMate350 Complete Hinge Installation Kit Includes

• Corner Chisel
• Hinge Bit
• 1/2″ Router Bit
