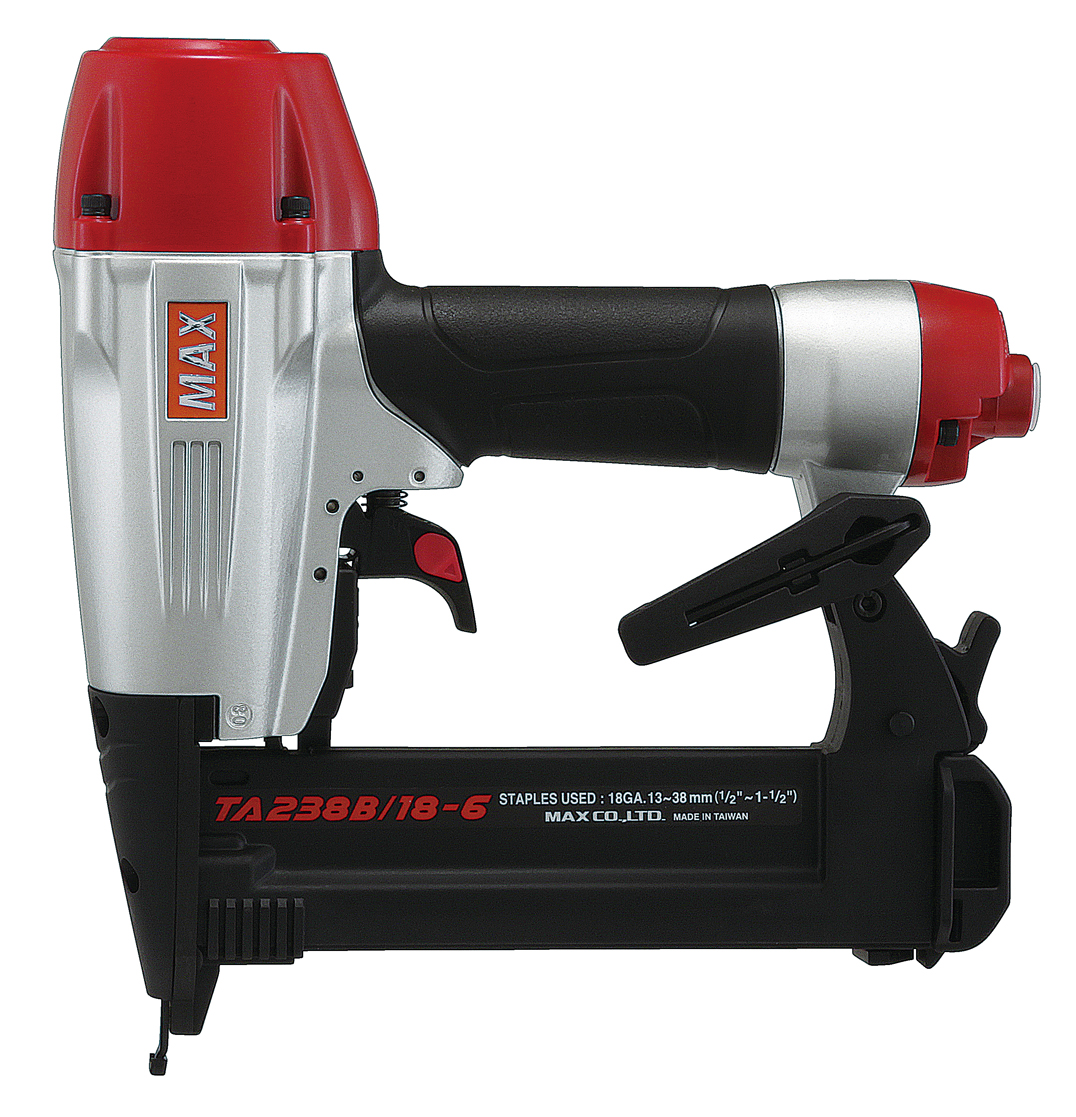

MAX TA238B/18-6 SuperStapler 1-1/2″ Air 18ga Narrow Crown Stapler

The safety equipped MAX TA238B/18-6 is an extremely lightweight professional grade pneumatic narrow crown stapler. The TA238B/18-6 can be used for installing door and window casings, panel assembly and moldings, sub flooring, cabinet assembly, plywood decorative boards and other interior finish work, furniture assembly, case back fastening, and blind pinning. A depth adjustment dial allows contractors to select the appropriate depth of drive to achieve an accurate embedment depth. MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can carry out safe operations.

MAX TA238B/18-6 SuperStapler 1-1/2″ Air 18ga Narrow Crown Stapler Applications

• Furniture manufacturing & assembly
• Cabinet assembly and installs
• Door/ window casing
• Subflooring
• Panel assembly

MAX TA238B/18-6 SuperStapler 1-1/2″ Air 18ga Narrow Crown Stapler Features

• DURABLE THREADED STYLE DRIVER BLADE Unlike competitors, MAX finish nailer has a threaded-in driver blade which makes the tool last 4 times longer than pin style driver blade.
• LIGHTWEIGHT AND COMPACT At 2.7lbs this ultra slim tool allows the contractor to easily reach into tight spots with minimal effort. Engineered to reduce strain on the body.
• DUAL FIRING MODES A switchable fire mechanism allow the tool to be used in either contact or single fire mode. Switch between the two options with the simple switch of a lever.
• LOW NAIL INDICATOR A nail indicator on the magazine alerts you on when it’s time to reload nails.
• NO PUNCTURE MARKS A no-mar contact tip allows contractors to complete a project with a clean and finished look. The rubber tip protects the tool from making dings and punctures on the materials.
• STURDY BELT HOOK You can count on this integrated belt hook for safe placement or hanging of tool when it’s not in use.

MAX TA238B/18-6 SuperStapler 1-1/2″ Air 18ga Narrow Crown Stapler Specifications

• WEIGHT: 2.7 lbs
• DIMENSIONS: 9 1/2″(H) x 2 1/2″(W) x 9 1/8″(L)
• MINIMUM OPERATION PRESSURE: 70 PSI
• MAXIMUM OPERATION PRESSURE: 120 psi
• AIR INLET SIZE: 1/4″
• MAGAZINE CAPACITY: 109
• DEPTH CONTROL: Yes
• JAM CLEARING: No
• TRIGGER TYPE: Switchable Fire Trigger
• AIR CONSUMPTION(FT3/CYCLE): 0.022
• ACCESSORIES: Carry Case

MAX TA238B/18-6 SuperStapler 1-1/2″ Air 18ga Narrow Crown Stapler Accessories

• (1) MAX TA238B/18-6 SuperStapler Narrow Crown Stapler
• (1) Allen key
• (1) Carry case

MAX TA238B/18-6 SuperStapler 1-1/2″ Air 18ga Narrow Crown Stapler Fasteners

• COLLATION TYPE: Glue
• NAIL GUN ANGLE: Straight
• STRIP OR COIL: Strip
• STAPLE CROWN SIZE: cs1
• COMPATIBLE FASTENER TYPES: Narrow crown staple
• MINIMUM FASTENER SIZE: 1/2″
• MAXIMUM FASTENER SIZE: 1-1/2″

MAX TA238B/18-6 SuperStapler 1-1/2″ Air 18ga Narrow Crown Stapler Warranty

• 5 Year Limited Warranty
