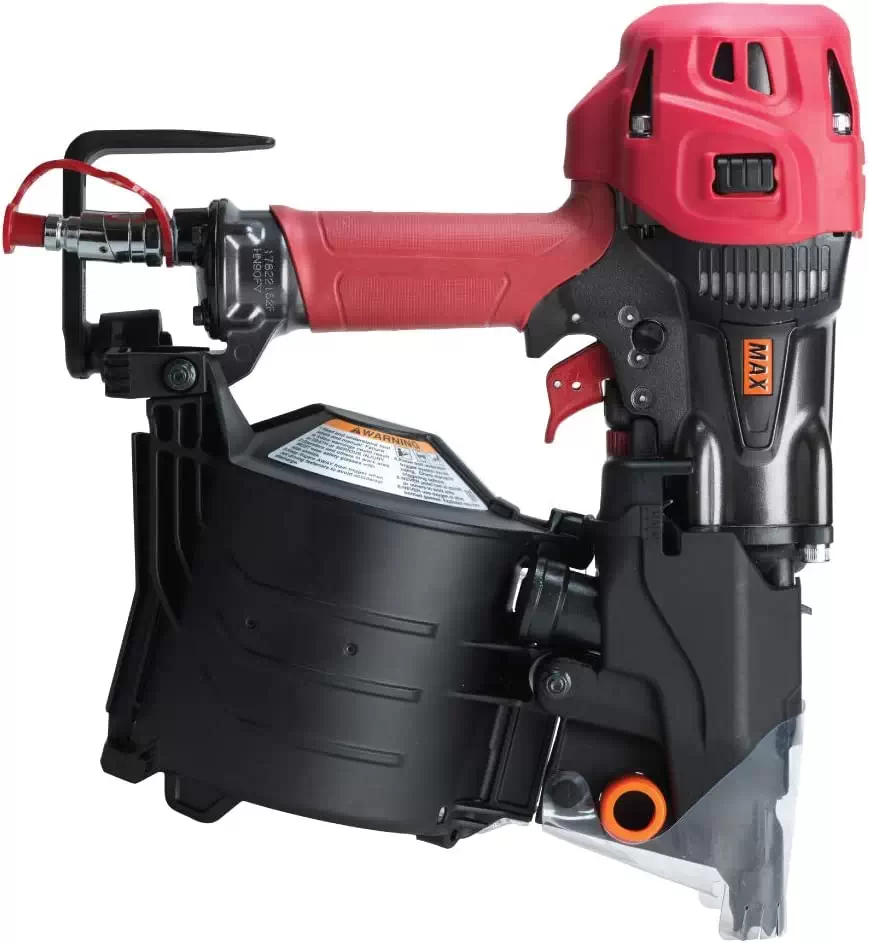

MAX HN90F PowerLite 3-1/2″ High Pressure Framing Coil Nailer

The MAX HN90F PowerLite 3-1/2″ High Pressure Framing Coil Nailer is the perfect addition to your pneumatic construction tool kit where contractors are working on framing, Sheathing, Decking, Furring, Siding, subflooring, and crate and box assembly. Lightweight at only 5.7 lbs., the safety equipped MAX HN90F framing coil nailer from the Powerlite® series has dual is approximately 40% lighter than most competitor’s tools without sacrificing driving power and can reduce user fatigue. The HN90F can be used for framing, sheathing, decking, furring, siding, subflooring, and crate and box assembly. Backed by the power of a 500 PSI Powerlite® compressor the HN90F can easily drive nails through the toughest wood. MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can carry out safe operations. Only use with a High Pressure compressor like the MAX-AKHL1260E or MAX-AKHL1260EX.

MAX HN90F PowerLite 3-1/2″ High Pressure Framing Coil Nailer Applications

• Framing
• Sheathing
• Decking
• Subflooring
• Furring

MAX HN90F PowerLite 3-1/2″ High Pressure Framing Coil Nailer Features

• LIGHTWEIGHT FOR EASY OPERATION – Lightweight – only 5.7 lbs. Approx. 40% lighter than most competitor’s tools without sacrificing power or placing unnecessary strain on the body.

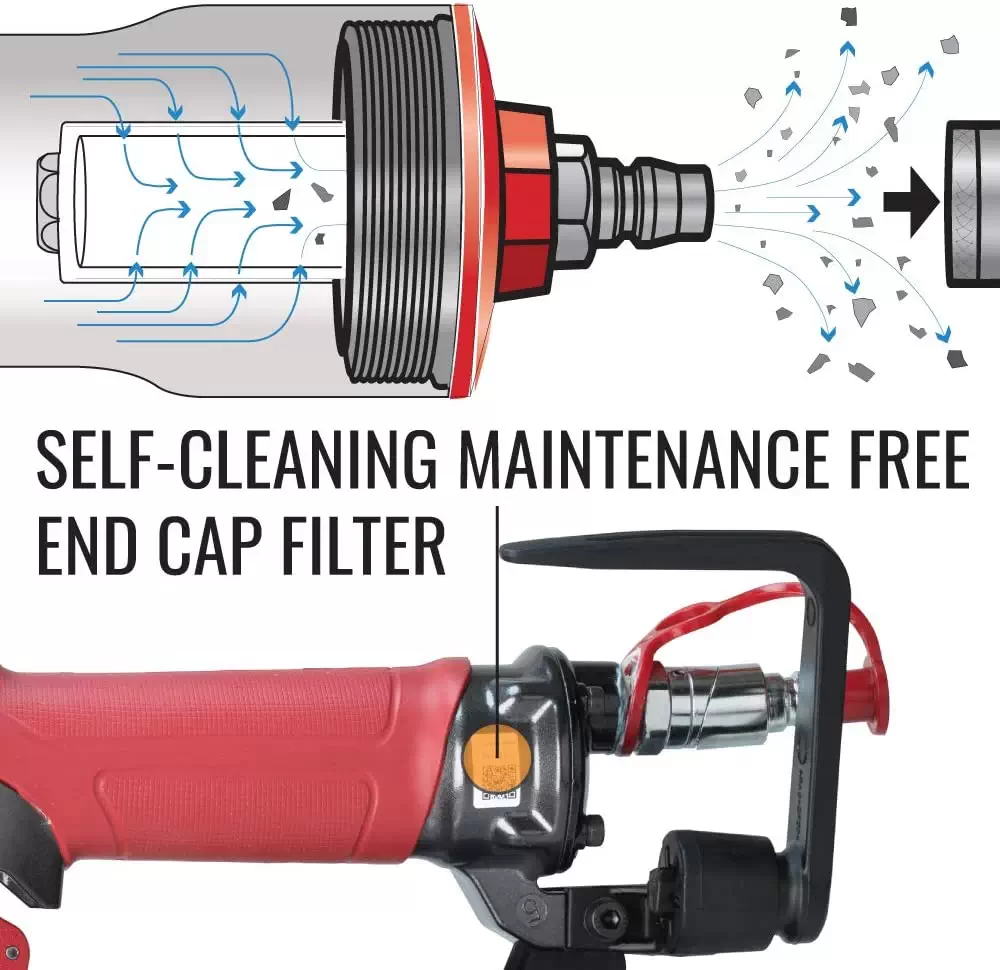

• SELF-CLEANING FILTER FOR RELIABLE OPERATIONS – The patented, self-cleaning maintenance free end cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected.
• AVOID TRIP HAZARDS – Tangle free swivel plug to alleviate the tangling of the air hose no matter what angle the tool is being held.
• ADVANCED MANEUVERABILITY – Compact. Tool height is less than 13″; 12% shorter than conventional coil framing tools for easier handling.

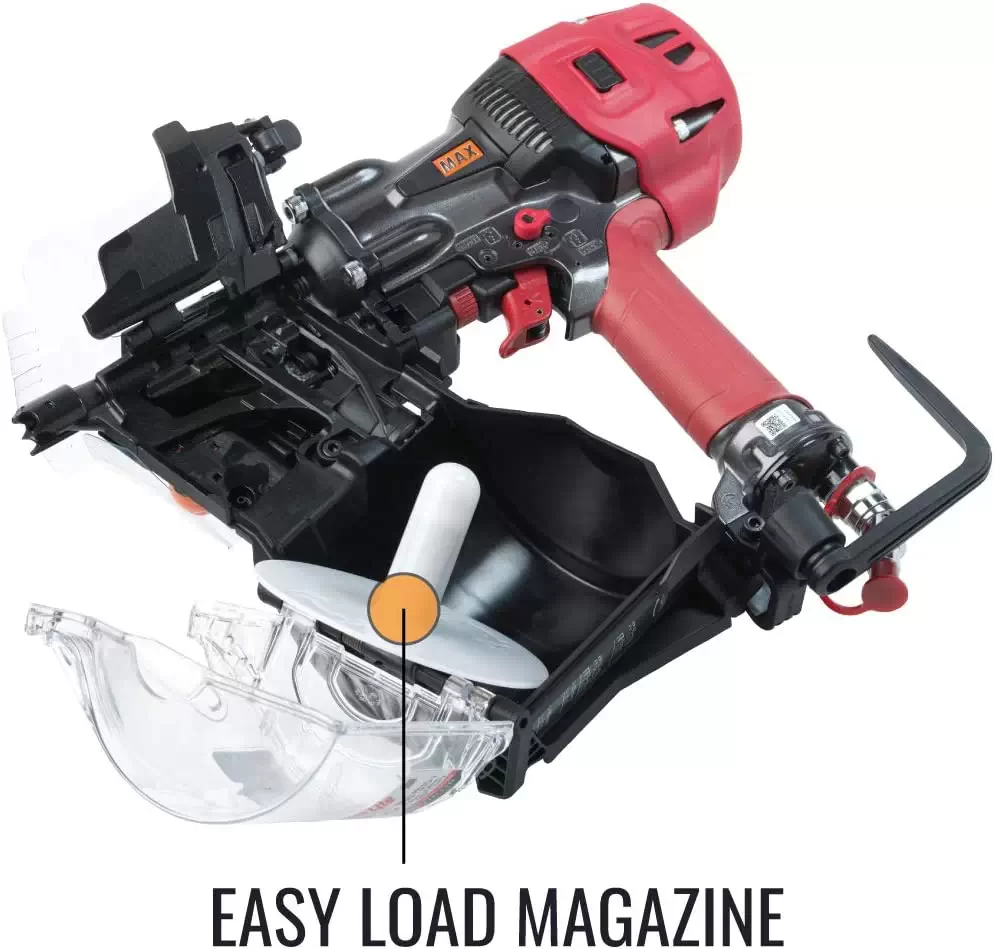

• LARGE MAGAZINE CAPACITY – Holds up to 300 nails in a magazine means elimination of constant reloading and reduce fatigue while operating tool. Shoots up to a 3 1/2″ x .148″ nail.
• EXTREMELY POWERFUL – Has enough power to drive nails through LSL.

MAX HN90F PowerLite 3-1/2″ High Pressure Framing Coil Nailer Specifications

• WEIGHT: 5.7 lbs
• DIMENSIONS: 13″(H) x 5″(W) x 11-3/4″(L)
• MINIMUM OPERATION PRESSURE: 170 PSI
• MAXIMUM OPERATION PRESSURE: 320 psi
• AIR INLET SIZE: 7/16″
• MAGAZINE CAPACITY: 150 TO 300
• DEPTH CONTROL: Yes
• JAM CLEARING: No

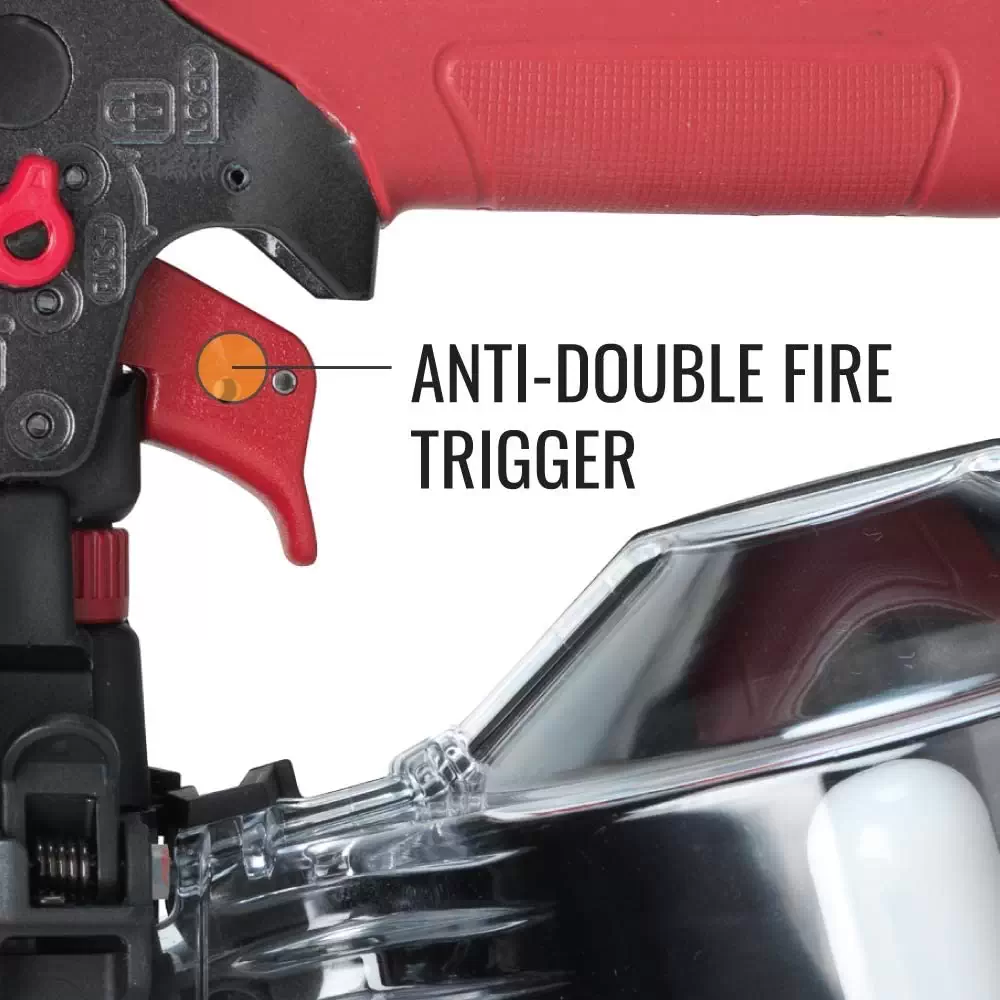

• TRIGGER TYPE: Anti-Double Fire Trigger
• AIR CONSUMPTION (FT3/CYCLE): 0.12
• Accessories: Safety glasses, Carry case

MAX HN90F PowerLite 3-1/2″ High Pressure Framing Coil Nailer Fasteners

• COLLATION TYPE: Wire, Plastic
• NAIL GUN ANGLE:  15
• STRIP OR COIL: Coil
• COMPATIBLE FASTENER TYPES: 15 degree wire welded nails and plastic sheet collated nails
• MINIMUM FASTENER SIZE: 1-3/4″
• MAXIMUM FASTENER SIZE: 3-1/2″
• MINIMUM NAIL DIAMETER: .099″
• MAXIMUM NAIL DIAMETER: .148″

MAX HN90F PowerLite 3-1/2″ High Pressure Framing Coil Nailer Warranty

• Max USA’s 5 Year Limited Warranty
