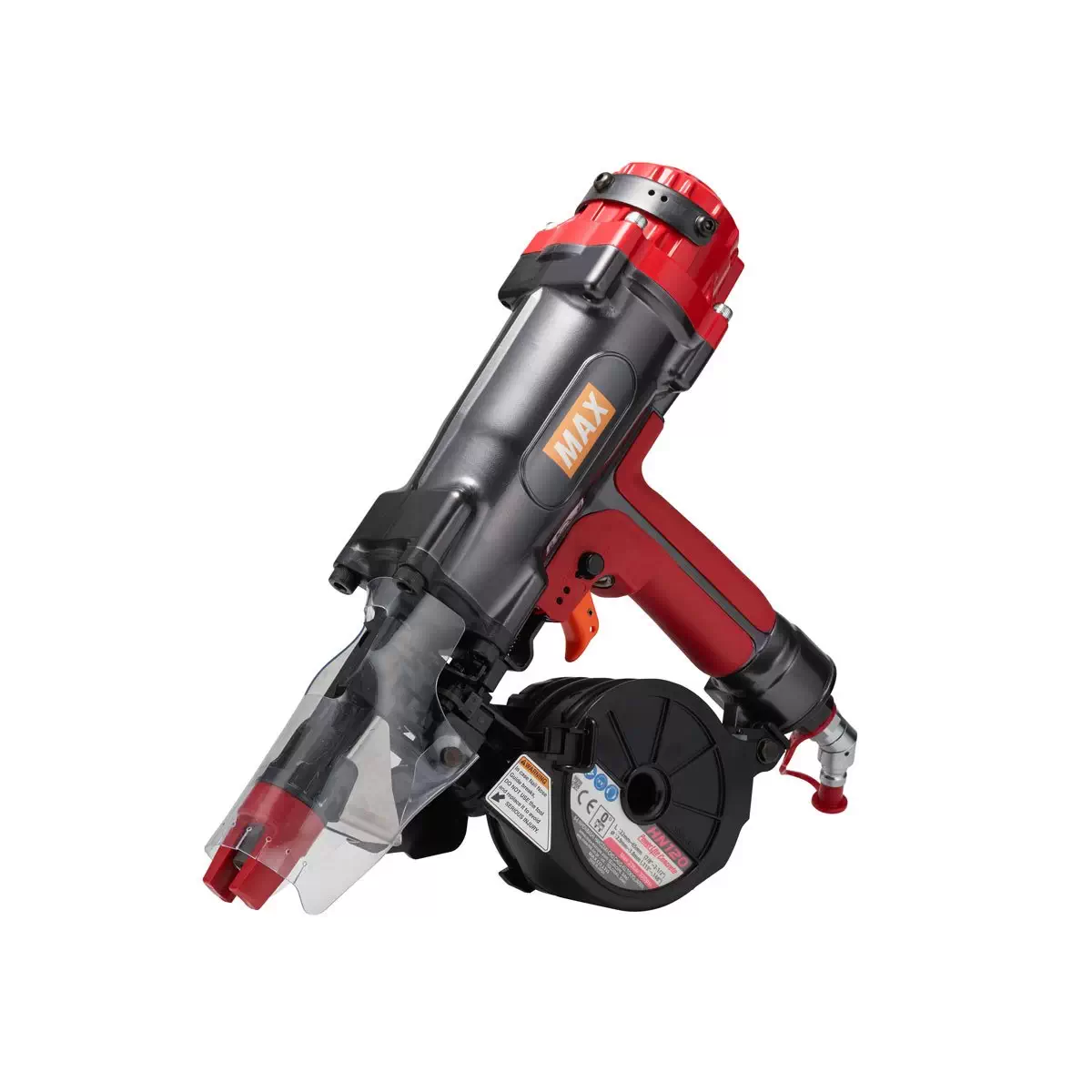

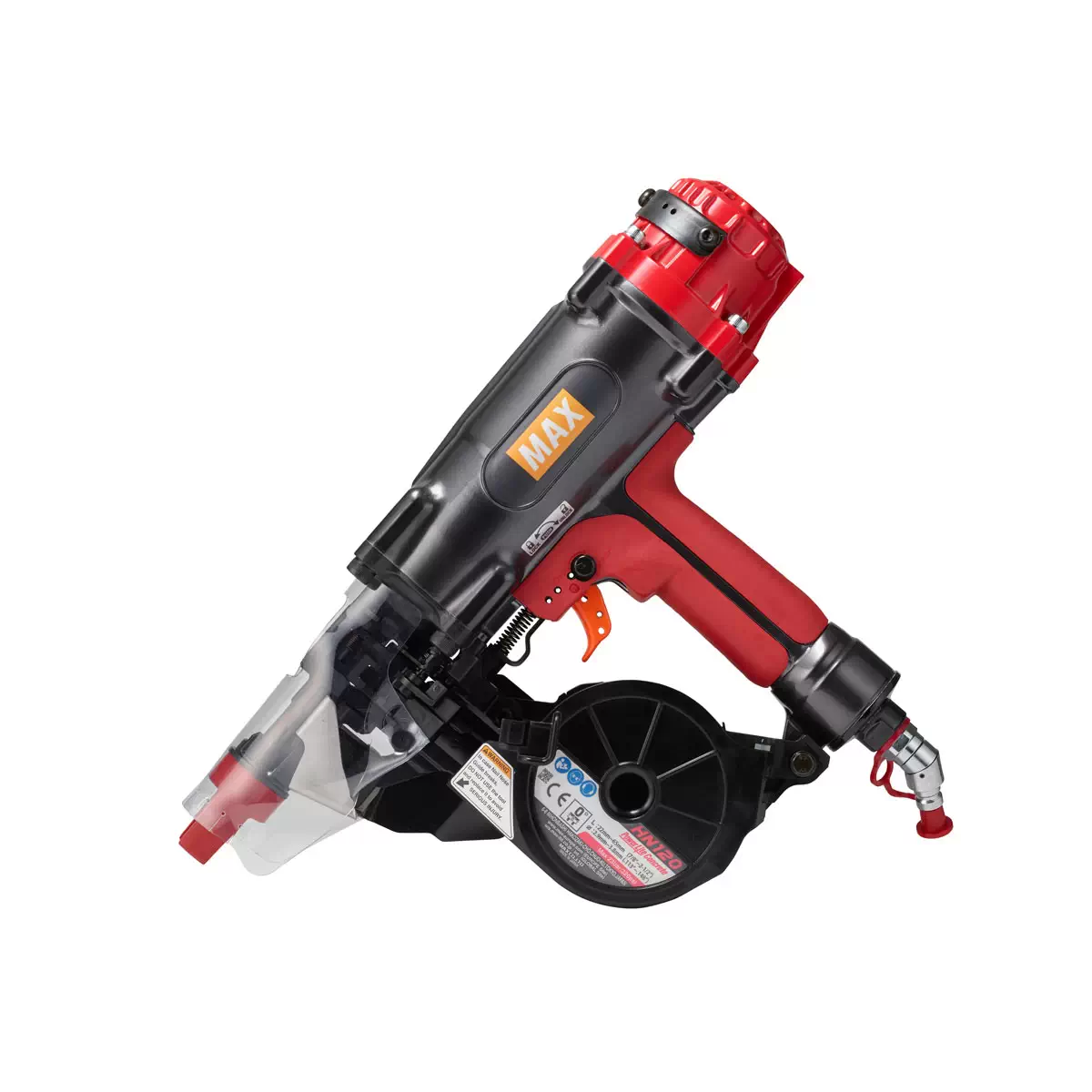

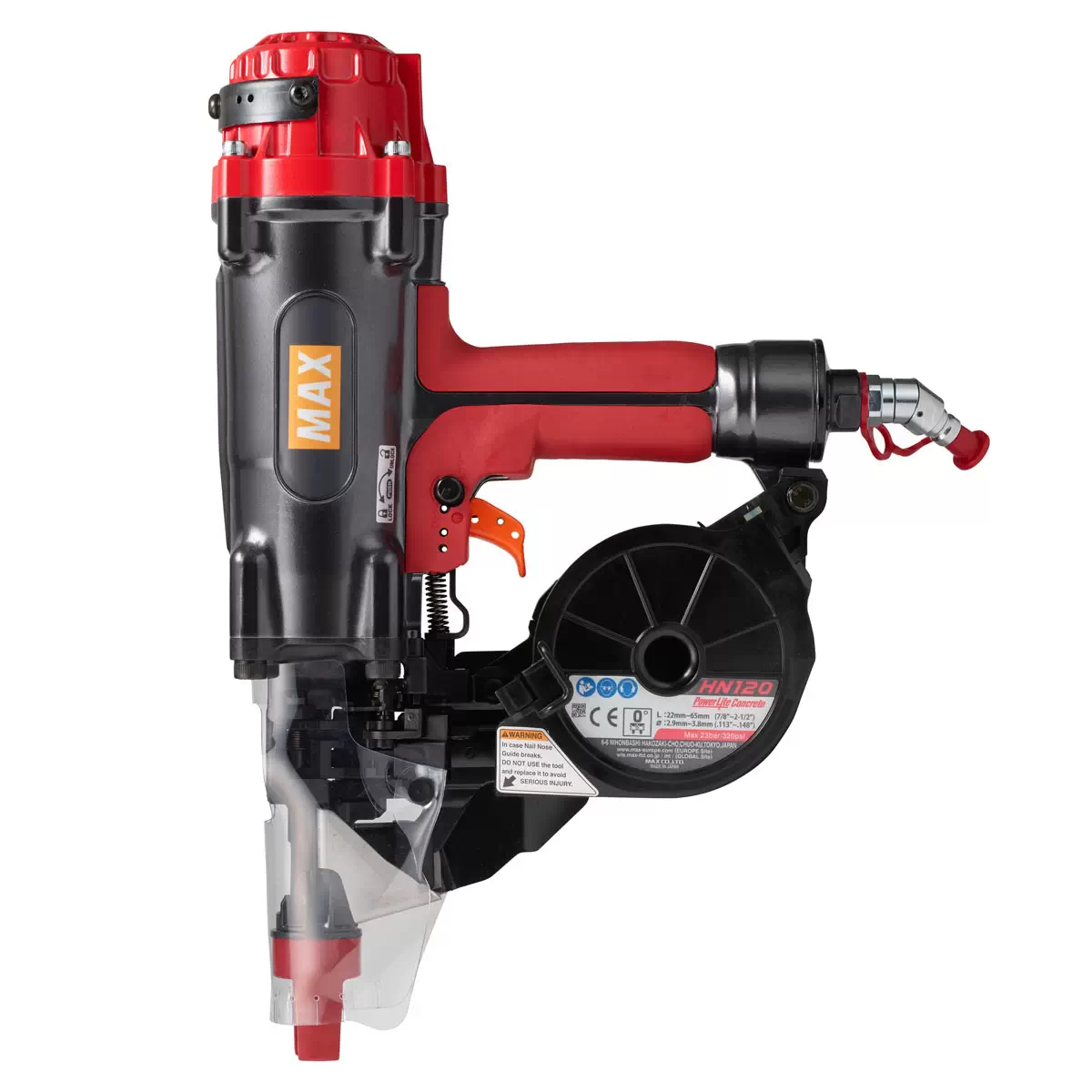

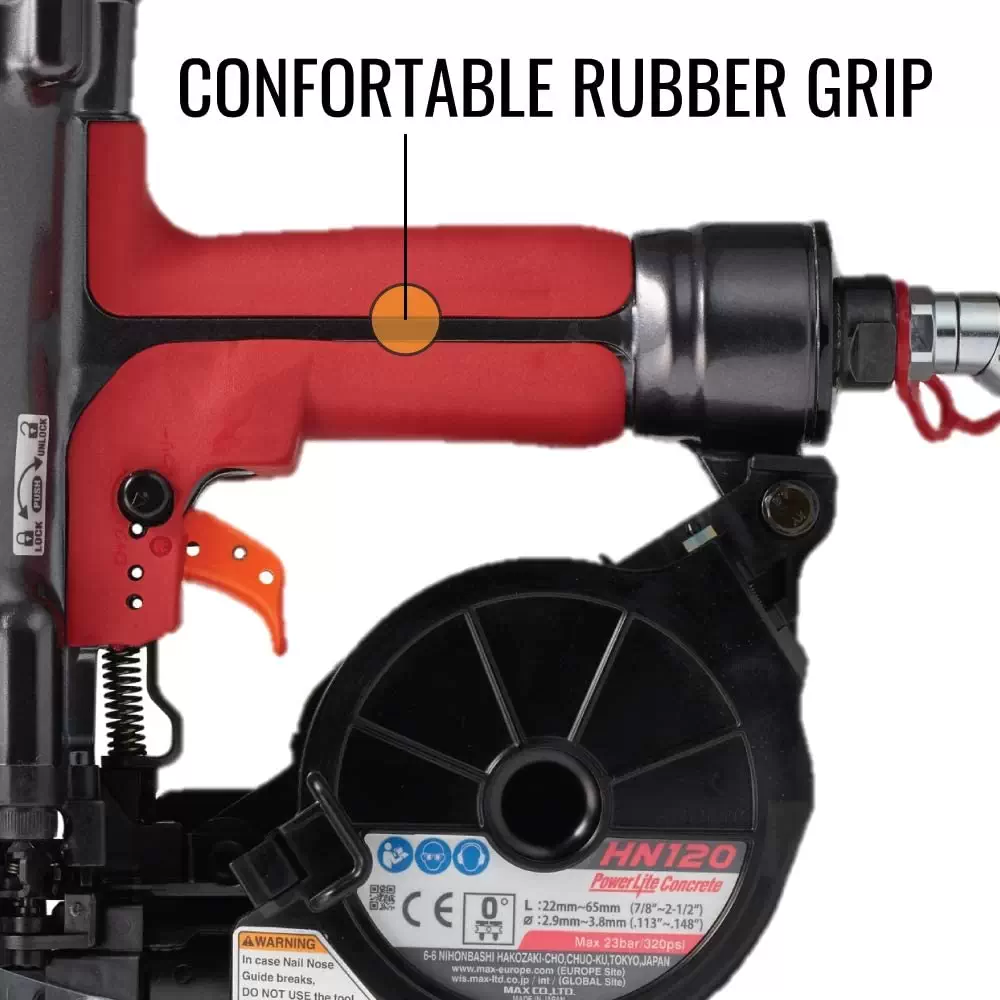

MAX HN120 PowerLite 2-1/2″ High Pressure Concrete Nailer

The MAX HN120 PowerLite 2-1/2″ High Pressure Concrete Nailer is the perfect addition to your pneumatic construction tool kit by replacing your powder actuated systems for driving fasteners through wood into concrete or steel. At only 6.4 lbs., the safety equipped and lightweight Powerlite® HN120 concrete pinner is lighter than most competitor’s tools without sacrificing driving power. Unlike powder actuated tools, this tool is faster, more efficient and doesn’t require a license or powder loads to operate. Backed by the power of a 500 PSI Powerlite® compressor the HN120 can easily drive pins, through a multitude of materials including metal, steel, concrete and wood, with minimal recoil. The MAX HN120 will shoot plastic collated pins from 1″ to 2-1/2″.  The HN120 is ideal for applications such as wood to concrete, wood to steel I beam, drywall track to concrete, drywall track to steel I beam, all without using powder actuated tools! MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can carry out safe operations. Only use with a High Pressure compressor like the MAX-AKHL1260E or MAX-AKHL1260EX.

MAX HN120 PowerLite 2-1/2″ High Pressure Concrete Nailer Applications

• Metal track to concrete
• Metal track to steel
• Wood to concrete
• Wood to steel I beam

MAX HN120 PowerLite 2-1/2″ High Pressure Concrete Nailer Features

• SAFER THAN CONVENTIONAL CONCRETE PINNERS – The HN120 is a faster, safer and a more cost effective alternative to powder actuated tools, and doesn’t require a license to operate.

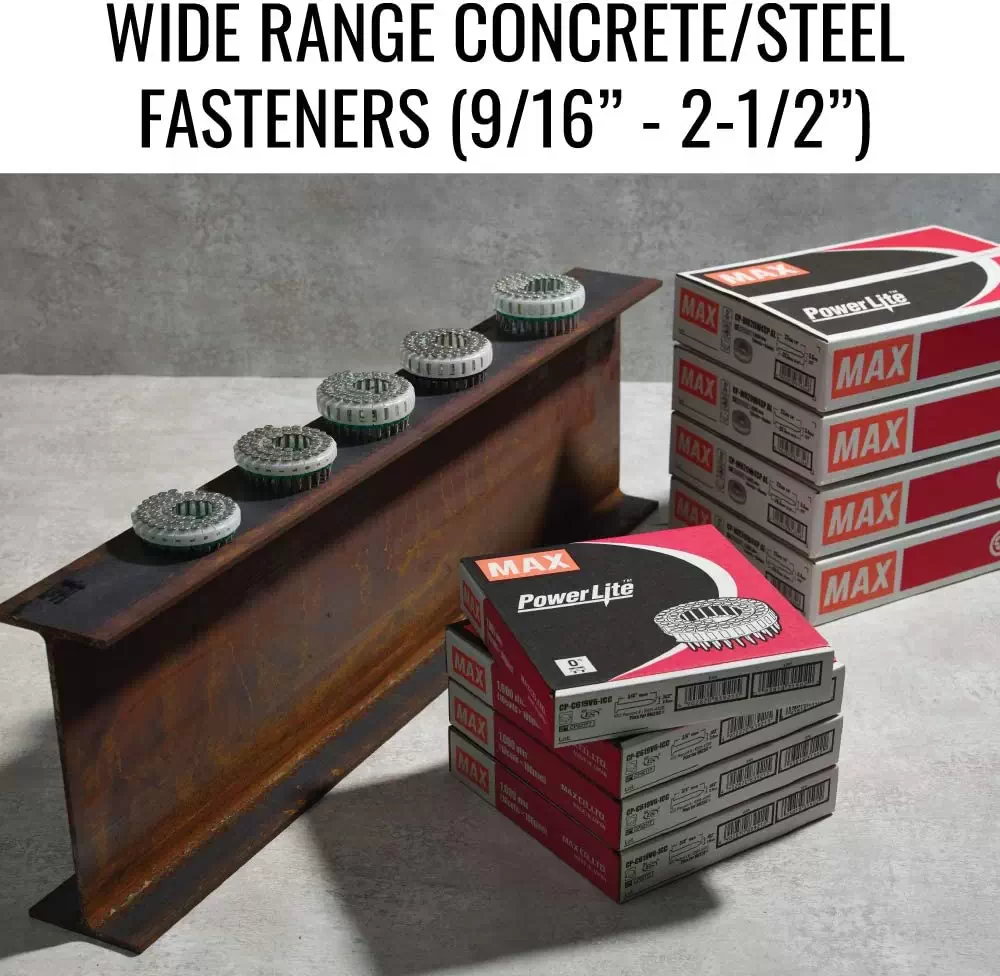

• WIDE RANGE OF FASTENERS AVAILABLE – The MAX HN120 can shoot a variety of fasteners into wood, steel, or concrete including the AccuEmbed .157″ Pins.

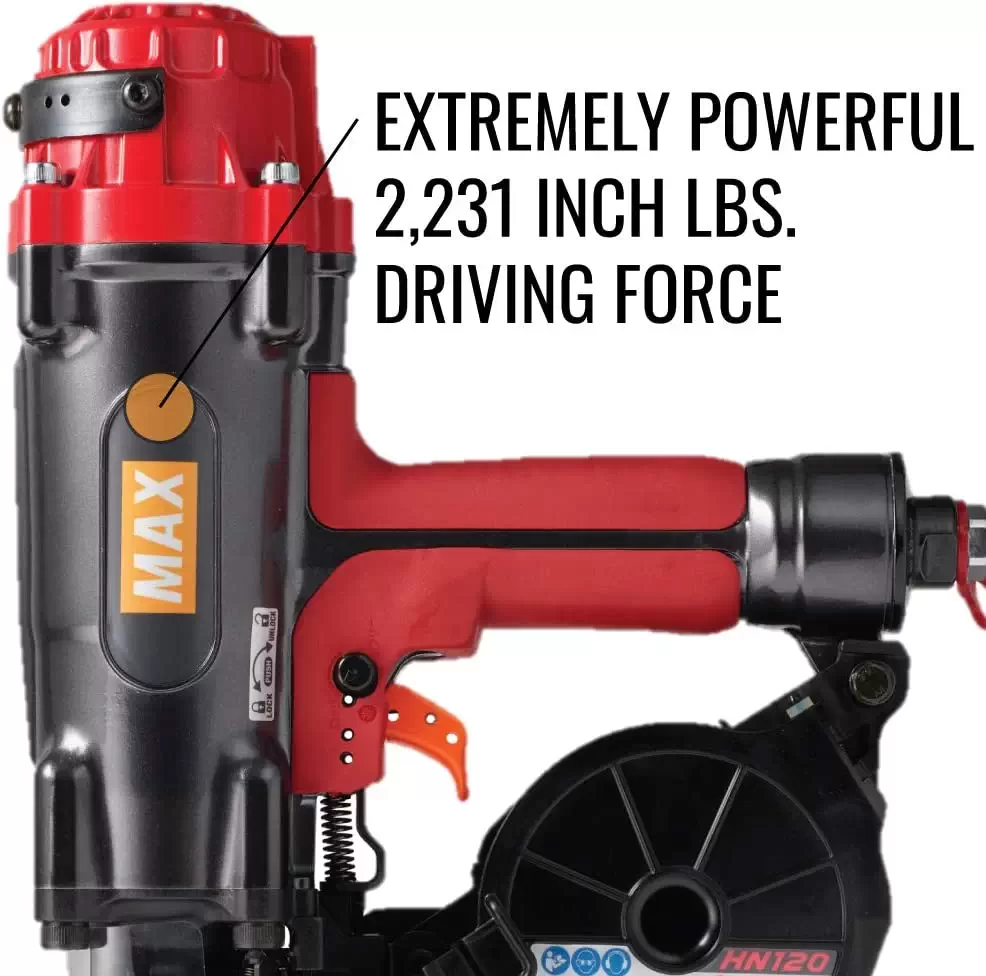

• VERY POWERFUL – Drives .307″ head pins into concrete or steel with 2,231 inch lbs. driving force.
• LIGHTWEIGHT WITH LESS RECOIL – At at only 6.4lbs, this lightweight tool has less recoil than P.A.T tools.

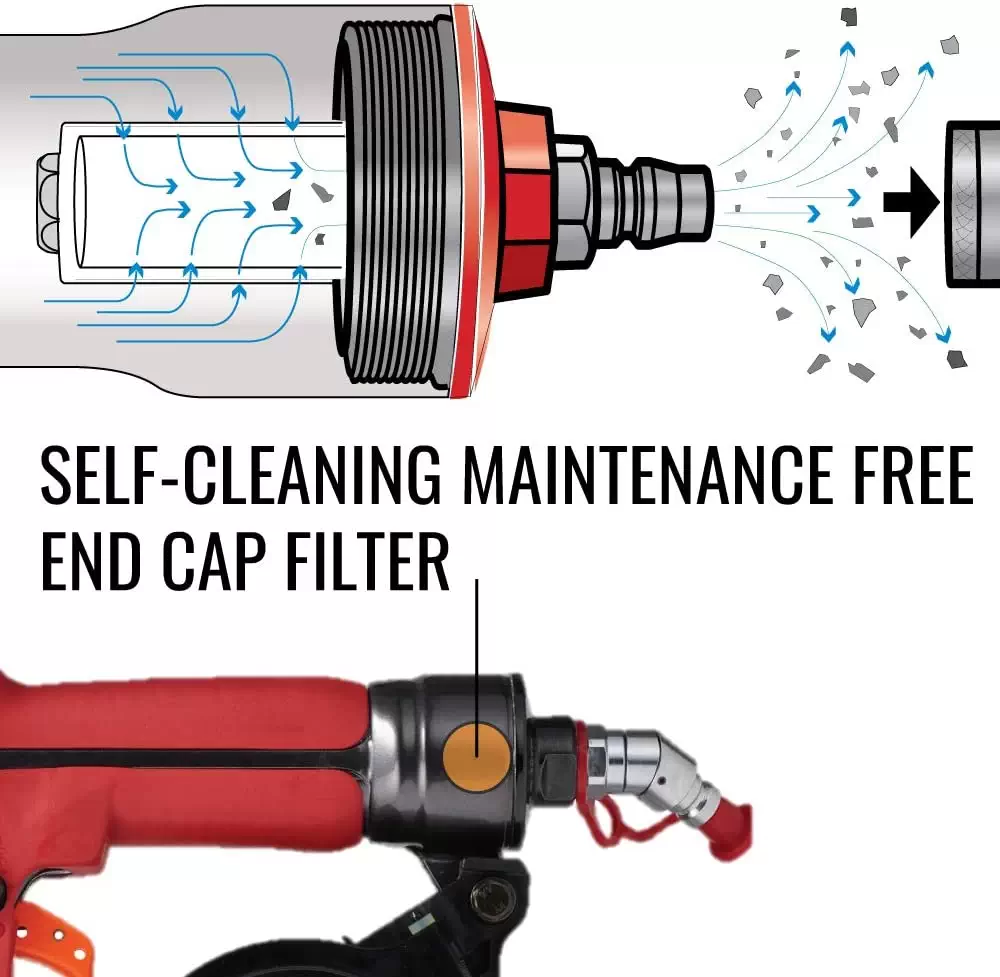

• LESS MAINTENANCE TOOL – The patented, self-cleaning maintenance free end cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected.
• SELF-CLEANING FILTER FOR RELIABLE OPERATIONS – The patented, self-cleaning maintenance free end cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected.

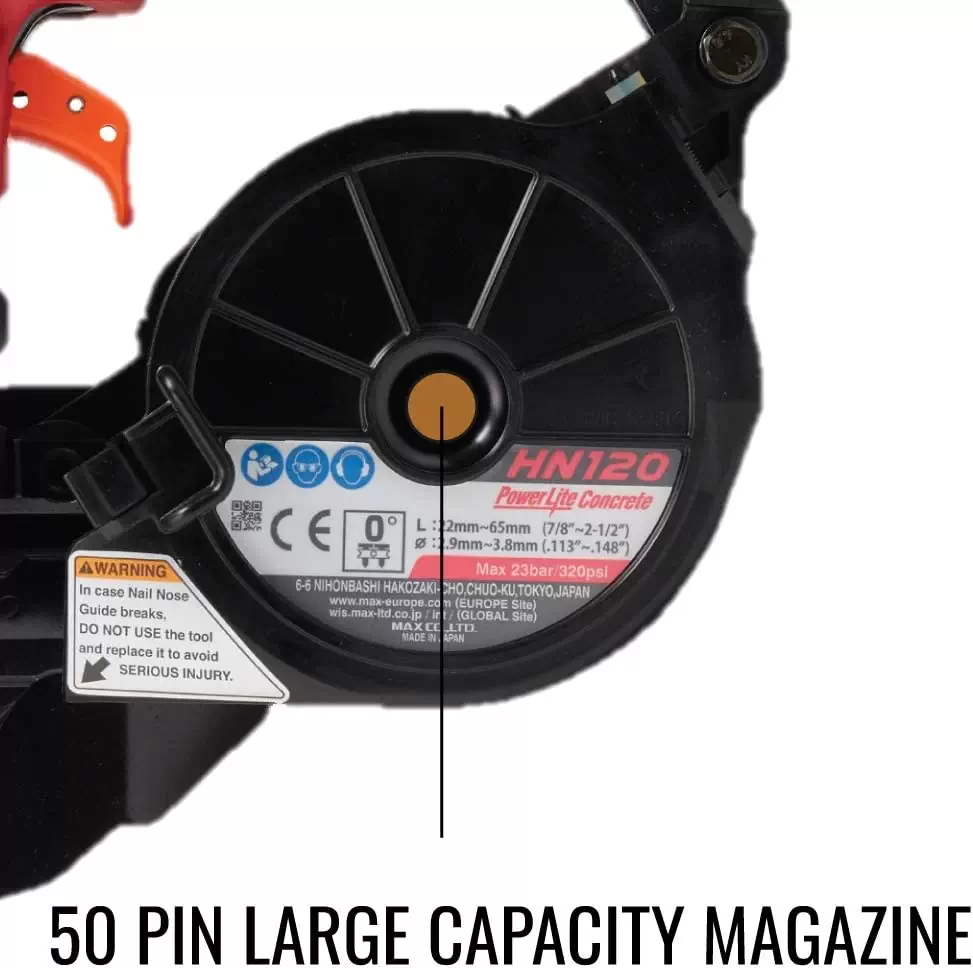

• LARGE CAPACITY MAGAZINE – The HN120 holds 50 pins and saves reloading time and operating cost.

MAX HN120 PowerLite 2-1/2″ High Pressure Concrete Nailer Specifications

• WEIGHT: 6.4 lbs
• DIMENSIONS: 15 3/4″(H) x 3 3/8″(W) x 12 3/8″(L)
• MINIMUM OPERATION PRESSURE: 210 PSI
• MAXIMUM OPERATION PRESSURE: 320 psi

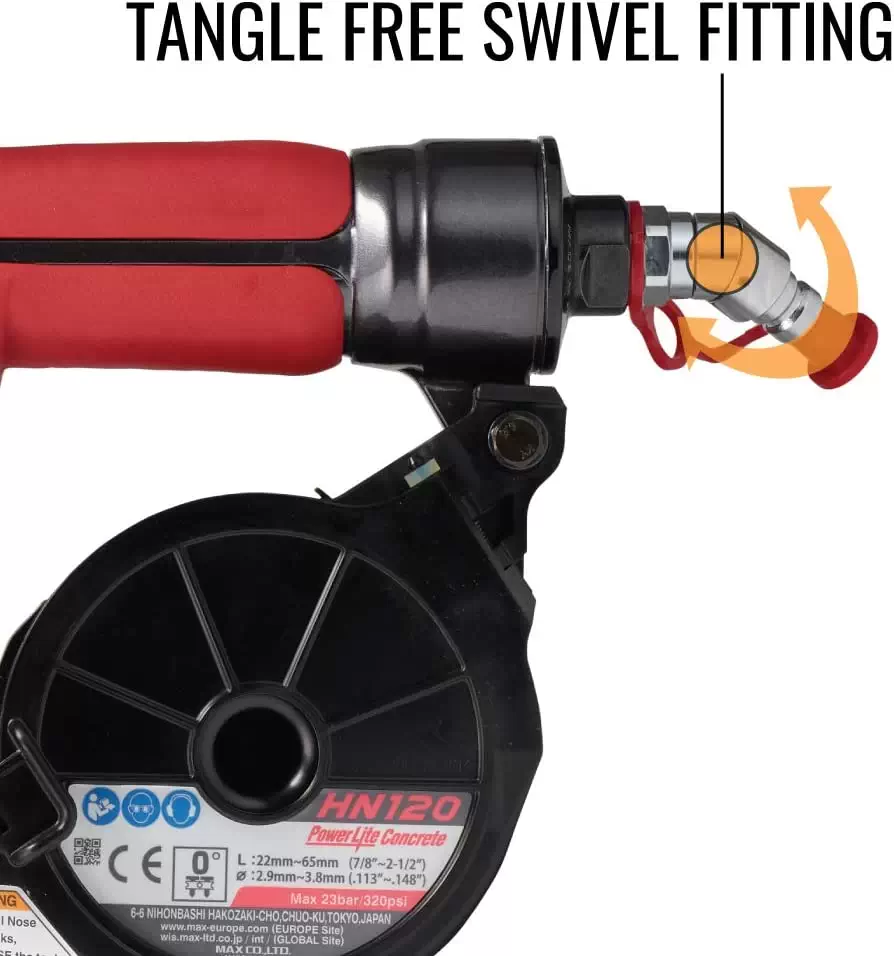

• AIR INLET SIZE: 7/16″
• MAGAZINE CAPACITY: 50
• DEPTH CONTROL: No
• JAM CLEARING: No
• TRIGGER TYPE: Sequential Fire Trigger
• AIR CONSUMPTION (FT3/CYCLE): 0.166
• Accessories: Safety glasses, Nose attachments, Carry case

MAX HN120 PowerLite 2-1/2″ High Pressure Concrete Nailer Fasteners

• Concrete Exterior Metal Track CP-C821X0SP-ICC 3/4″+.079″ .157″ 50 1000 ESR-4320
• Concrete Exterior Metal Track CP-C828X0SP-ICC 1″+.079″ .157″ 50 1000 ESR-4320
• Concrete Exterior Metal Track CP-C834X0SP-ICC 1-1/4″+.079″ .157″ 50 1000 ESR-4320
• Concrete Exterior Metal Track CP-C840X0SP-ICC 1-1/2″+.079″ .157″ 50 1000 ESR-4320
• Concrete Metal Track CP-C819W7-ICC 3/4″ .145″ 50 1000 ESR-4320
• Concrete Metal Track CP-C825W7-ICC 1″ .145″ 50 1000 ESR-4320
• Concrete Metal Track CP-C832W7-ICC 1-1/4″ .145″ 50 1000 ESR-2024
• Concrete Wood (1/2”) CP-C832W7-ICC 1-1/4″ .145″ 50 1000 ESR-4320
• Concrete Wood (3/4”) CP-C838W7-ICC 1-1/2″ .145″ 50 1000 ESR-4320
• Concrete Wood (1”) CP-C851W7-ICC 2″ .145″ 50 1000 ESR-4320
• Concrete Wood (1-1/2”) CP-C864W7-ICC 2-1/2″ .145″ 50 1000 ESR-4320
• Concrete Subfloor/Fiber cement siding (1/2″) CP-C832W7-SF (w/o washer) 1-1/4″ .140″ 50 1000
• Concrete Subfloor/Fiber cement siding (3/4″) CP-C838W7-SF (w/o washer) 1-1/2″ .140″ 50 1000
• I-beam (3/16″-1/4″) Wood (1/2”) CP-W823W4SP 7/8″ .133″/.122″ 50 1000 ESR-4320
• I-beam (3/16″-1/4″) Wood (3/4”) CP-W833W4SP 1-1/4″ .133″/.122″ 50 1000 ESR-4320
• I-beam (3/16″-3/8″) Wood (1”) CP-W838W4SP 1-1/2″ .133″/.122″ 50 1000 ESR-4320
• I-beam (3/16″-3/8″) Wood (1-1/2”) CP-W850W4SP 2″ .133″/.122″ 50 1000 ESR-4320
• I-beam (1/4″-1/2″) Metal track or Clip CP-W814W4SP-AL (Top Hat) 9/16″ .133″/.122″ 50 1000 ESR-4320
• I-beam (1/4″-1/2″) Metal track or Clip CP-W816W4SP-AL (Top Hat) 5/8″ .133″/.122″ 50 1000 ESR-4320
• I-beam (1/4″-1/2″) Metal track or Clip CP-W820W4SP-AL (Top Hat) 13/16″ .133″/.122″ 50 1000 ESR-4320
• I-beam (3/16″-1/4″) Metal track or Clip CP-W823W4SP-AL (Top Hat) 7/8″ .133″/.122″ 50 1000 ESR-4320
• Steel (18-12Ga.) Plywood/Exteria drywall (1/2”) CAP32W4-H 1-1/4″ .133″ Knurl 50 2000 Yes
• Steel (18-12Ga.) Plywood/Exteria drywall (3/4”or1″) CAP38W4-H 1-1/2″ .133″ Knurl 50 2000 Yes
• Steel (18-12Ga.) Wood (1-1/2”) CAP50W4-H 2″ .133″ Knurl 50 2000 Yes
• Steel (18-12Ga.) Wood (1-1/2”) CAP65W4-H 2-1/2″ .133″ Knurl 50 2000 Yes

MAX HN120 PowerLite 2-1/2″ High Pressure Concrete Nailer Warranty

• Max USA’s 5 Year Limited Warranty
