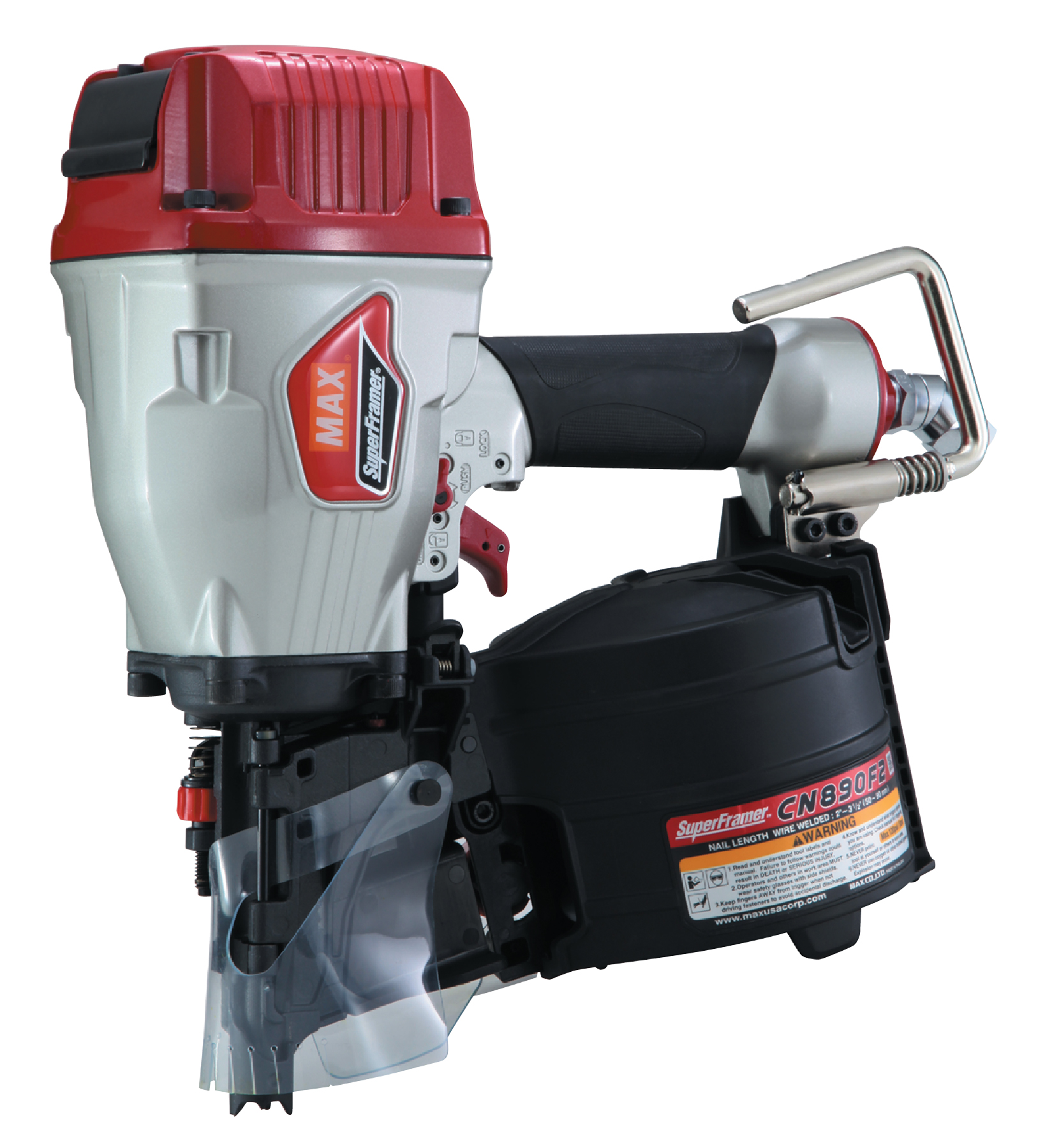

MAX CN890F2 SuperFramer 3-1/2″ 15° Coil Framing Nailer

The MAX CN890F2 SuperFramer 3-1/2″ Coil Framing Nailer is amongst the most safety equipped, lightweight and compact coil nailers in its class, The SuperFramer® is only 7.7 lbs which helps to prevent arm fatigue during continuous use. Designed with an anti-double fire trigger, aids in minimizing accidental injury of 2nd shots to end users. The CN890F2 SuperFramer®, pneumatic nailer, drives 15-degree wire collated coil nails from 2″ to 3-1/2″ in length, making it a versatile and safe tool for jobs such as framing, sheathing, decking, subflooring, and others of its kind. MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can carry out safe operations.

Applications for MAX CN890F2 SuperFramer 3-1/2″ Coil Framing Nailer

• Framing
• Sheathing
• Decking
• Subflooring
• Furring

MAX CN890F2 SuperFramer 3-1/2″ Coil Framing Nailer Features

• PROTECTION AGAINST DOUBLE FIRES Anti-double fire trigger prevents multiple nails from being fired in one shot. To move between bump fire and single fire mode no adjustment to the tool is necessary.
• AVOID POTENTIAL TRIPPING HAZARDS A unique tangle-free swivel fitting allows users to conduct work in any angle freely, without having to worry about potential trips from tangled air hoses.
• SAFE AND EASY TOE NAILING Designed with pointy teeth on the contact arm allows users to get a firm grip when toe-nailing, and also avoiding any rapid jerks or slipping during operation.
• COMPACT FRAMER EASILY FITS IN BETWEEN STUDS At 13.2″ the CN890F2 is 30% shorter than conventional tools. This design feature allows the user to easily fit the tool in between studs.
• SELF-CLEANING FILTER FOR RELIABLE OPERATIONS The patented, self-cleaning maintenance free end cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected.
• DEPENDABLE RAFTER HOOK A heavy-duty rafter hook gives carpenters the convenience of hanging tool on rafters as they move around the jobsite.
• QUICKLY LOAD NAILS Rapidly load a coil of nails with the easy load magazine design. (Capacity 300 nails up to 3 ½” x .131″)
• MAX HAS YOU COVERED: 5 Year Manufacturer Warranty

MAX CN890F2 SuperFramer 3-1/2″ Coil Framing Nailer Specifications

• WEIGHT: 8.4 lb
• DIMENSIONS: 13 1/2″(H) x 5″(W) x 11 3/4″(L)
• MINIMUM OPERATION PRESSURE: 70 PSI
• MAXIMUM OPERATION PRESSURE: 120 PSI
• AIR INLET SIZE: 3/8″
• MAGAZINE CAPACITY: 300
• DEPTH CONTROL: Yes
• JAM CLEARING: No
• TRIGGER TYPE: Anti-Double Fire Trigger
• AIR CONSUMPTION (FT3/CYCLE) : 0.09
• ACCESSORIES: Safety glasses

MAX CN890F2 SuperFramer 3-1/2″ Coil Framing Nailer Fasteners

• COLLATION TYPE: Wire
• NAIL GUN ANGLE: 15 Deg
• STRIP OR COIL:  Coil
• COMPATIBLE FASTENER TYPES: Wire welded Coil nails
• MINIMUM FASTENER SIZE: 2″
• MAXIMUM FASTENER SIZE: 3-1/2″
• MINIMUM NAIL DIAMETER: .099″
• MAXIMUM NAIL DIAMETER: .131″
