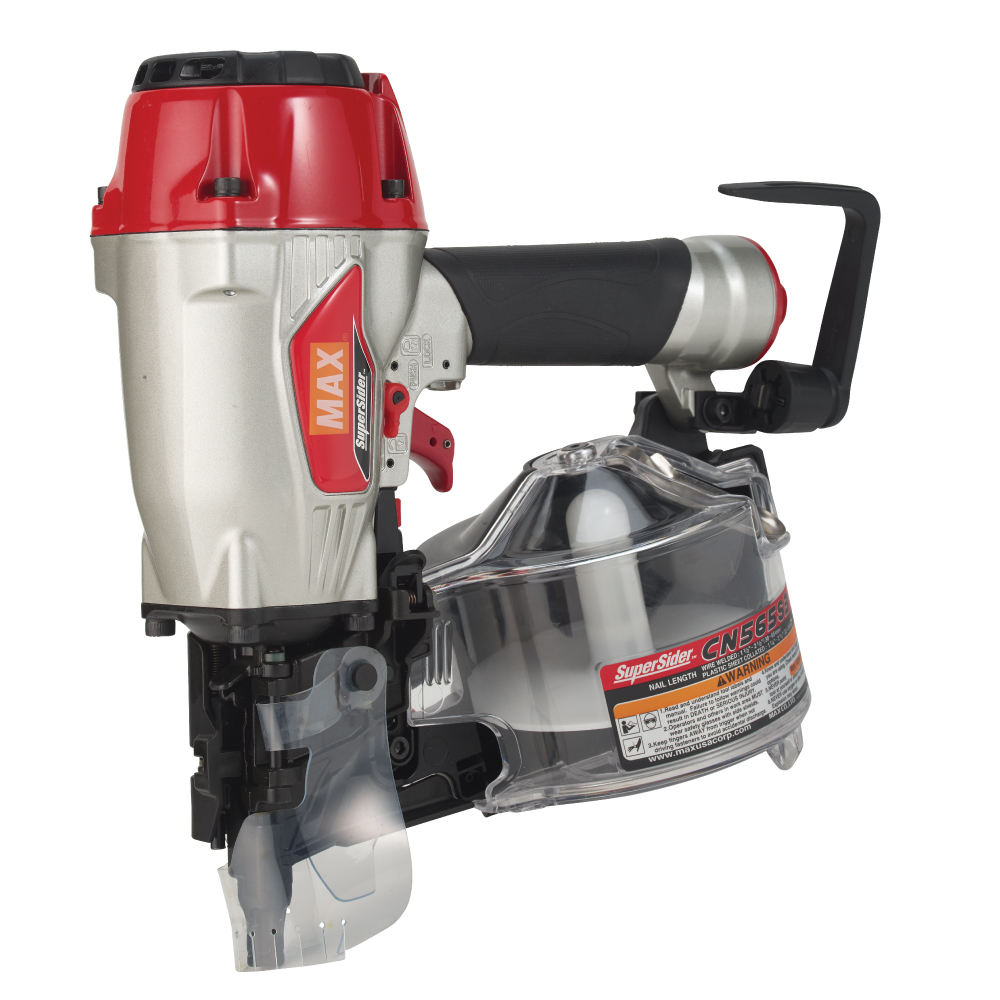

MAX CN565S3 SuperSider 2-1/2″ 15° Coil Siding Nailer

The MAX CN565S3 SuperSider 2-1/2″ Coil Siding Nailer is a well-balanced, safety equipped and easy-to-use.  Many of our contractors tell us that the SuperSider CN565S3 is the best solution for flawless siding installation. The CN565S3 was designed with a slim contact arm helps to the tool to drive each nail straight and flush into the material, and the contact nose allows for precise placement of every nail, even in hard-to-reach places. MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can carry out safe operations. With safety features like the anti-double fire trigger and a easy twist deflector cap make the MAX CN565S3 the perfect choice for your siding project. MAX understand that the quality of finish is important, so consistent and accurate nail shots is a must, but not leaving driver marks in your material is even more important to a quality fit and finish.

Applications for MAX CN565S3 SuperSider 2-1/2″ Coil Siding Nailer

• Siding
• Exterior trim
• Furring
• Strapping
• Sheathing
• Fencing

MAX CN565S3 SuperSider 2-1/2″ Coil Siding Nailer Features

• SAFETY TRIGGER: Anti-double fire trigger prevents multiple nails from being fired in one spot. To move between bump fire and single fire mode there is no adjustments to the tool needed.
• ELIMINATE DRIVER MARKS: Slim contact arm guides the nail to reduce misfiring and the no mar contact tip reduces the appearance of driver marks around the nail head and on materials.
• SELF-CLEANING FILTER FOR RELIABLE OPERATIONS: The patented, self-cleaning maintenance free end cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected.
• PROTECT YOURSELF FROM TOOL EXHAUST: An easy twist air deflector cap rotates 360 degrees to divert exhaust air and fumes away from their face.
• CONSISTENTLY AND ACCURATELY SHOOTS NAILS: The depth adjustment dial allows operators to effortlessly drive nails into hard materials, and also control depth of drive when fastening soft materials, for a consistently polished finish.
• NEW IMPROVED REMOVABLE CONTACT NOSE: Upgraded contact nose that is removable and designed with a larger inside diameter to accommodate larger nail heads,for easy jam clearance and to prevent accidental detachment.
• SLIM GUIDE CONTACT ARM PREVENTS WIRE SCRAPS FROM FLYING: There is no space between nose and contact arm and slim guide contact arm can guide the nail to the end which prevents wire ejecting from the gun.
• QUICKLY LOAD NAILS: Rapidly load a coil of nails with the easy load magazine design.
• EASILY HANG YOUR TOOL FROM A RAFTER: A heavy duty rafter hook gives carpenters the convenience of hanging the CN565S3 SuperSider on rafters as they work around the jobsite.
• MAX HAS YOU COVERED: 5 Year Manufacturer Warranty

MAX CN565S3 SuperSider 2-1/2″ Coil Siding Nailer Specifications

• WEIGHT: 5.2 lb
• DIMENSIONS: 11 7/8″(H) x 5″(W) x 10 7/8″(L)
• MINIMUM OPERATION PRESSURE: 70 PSI
• MAXIMUM OPERATION PRESSURE: 120 PSI
• AIR INLET SIZE: 1/4″
• MAGAZINE CAPACITY” 400
• DEPTH CONTROL: Yes
• JAM CLEARING: No
• TRIGGER TYPE: Anti-Double Fire Trigger
• AIR CONSUMPTION (FT3/CYCLE) : 0.05
• ACCESSORIES: Safety glasses, Carry case

MAX CN565S3 SuperSider 2-1/2″ Coil Siding Nailer Fasteners

• COLLATION TYPE: Wire, Plastic
• NAIL GUN ANGLE: 15 Deg
• STRIP OR COIL: Coil
• COMPATIBLE FASTENER TYPES: Wire welded or plastic sheet collated nails
• MINIMUM FASTENER SIZE: 1-1/4″
• MAXIMUM FASTENER SIZE: 2-1/2″
• MINIMUM NAIL DIAMETER: .083″
• MAXIMUM NAIL DIAMETER: .099″
