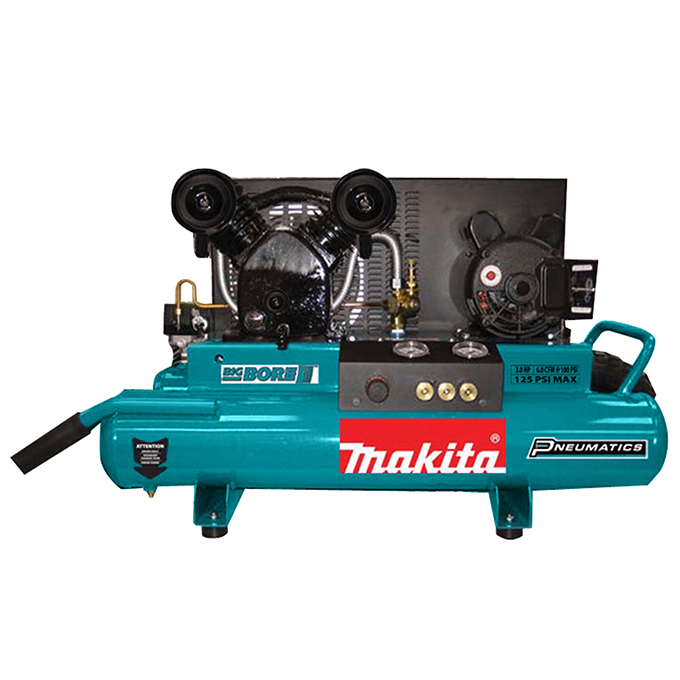

Oil lubricated for cooler operation and reduced noise
Features:
- High output V-twin cast iron pump runs cooler than inline pumps and delivers maximum performance and operational life
- Big Bore™ cylinder and piston feature high output at lower RPM with reduced heat buildup, less noise and longer operational life
- Low amperage draw reduces incidents of tripped breakers and voltage drops that cause premature motor failure
- Easy view oil gauge and large pressure gauges for quick identification
- Air pressure regulator enables easy adjustment of line pressure
- Features 3 quick connect air hose fittings
- Dual voltage toggle switch for use on 120V or 220V power sources
- Finned discharge tube promotes safe and efficient cooling
Specifications:
- Motor –3 hp
- Pump –Oil-Lubricated
- Cut In Pressure –100 PSI
- Cut Out Pressure –125 PSI
- Tank –2 x 4 Gallon
- Performance –6 CFM @ 100 PSI
- Maximum Pressure –150 PSI
- Noise Level –76 dB(A)
- Dimensions (L x W x H, with handle )–42″ x 18″ x 26″ (1,067 mm x 457 mm x 660 mm)
- Net Weight –160 lbs (72.6 kg)
