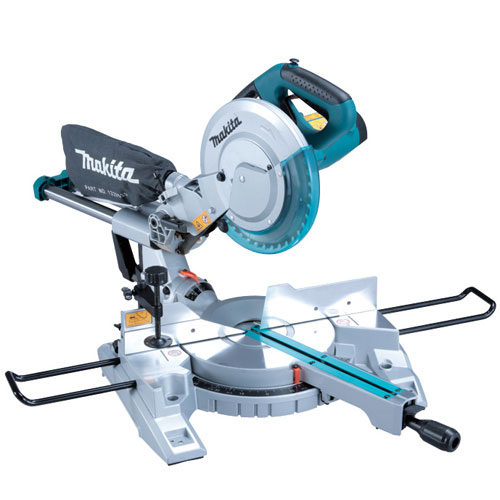

Sliding Rail Mechanism incorporating 3 Linear Ball Bearings provides increased rigidity to produce precise, adjustment free cuts right out of the box
Features:
- Sliding Fence (Left Side) can be adjusted outwards when bevel cutting or inwards for increased support of small or delicate materials
- Soft Start feature gradually increases speed to eliminate start up shock
- Battery Operated, Factory Calibrated Class II Laser enables accurate alignment of blade and cutting line
- Bevel Capacity of 45° Left or 5° Right
- Mitre Capacity of 47° Left or 60° Right with Positive Stops at 0°, 15°, 22.5°, 31.6° & 45°
- Re-Located Mitre Scale enables easier viewing during operation
- 2 Stage Safety Switch for increased operator safety
- Ergonomic Vertical Soft Rubber Grip design for vibration absorption and comfortable operation
Specifications:
- Blade Diameter –10″ (255 mm)
- Arbor –5/8″ (15.88 mm)
- No Load Speed –4,200 RPM
- AMPS (120V) –13.0 A
- Vibration Level –2.5 m/s²
- Noise Level –97 dB(A)
- Dimensions (L x W x H)–32-1/2″ x 21-1/8″ x 22-7/8″ (825 mm x 536 mm x 581 mm)
- Net Weight –42.8 lbs (19.4 kg)
