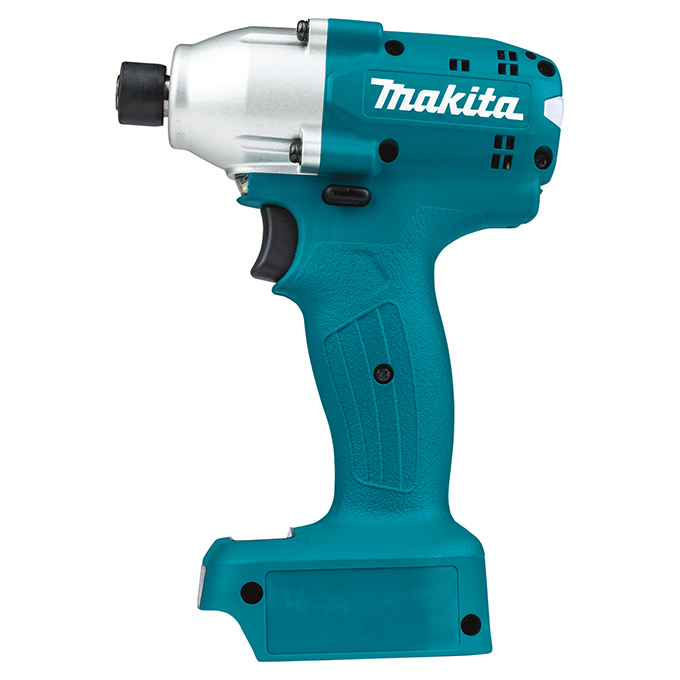

Brushless DC motor with high power to weight ratio
Features:
- Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing and production applications
- Automatic battery shut-off system warns operator visually and audibly to prevent incomplete fastening due to low remaining battery power
- Automatic impact stop system prevents over or under-tightening by stopping the motor after completing a pre-set number of impacts
- USB connectivity enables operator to adjust impact time and check rundown status
- LED display panel enables number of impacts to be easily set and quickly referenced during operation
- Torque stabilization system detects remaining battery capacity to ensure consistent delivery of speed torque versus impact time
- Impact indicator lamp provides visual indication of successful or failed fastening
- Dual ball bearings minimize bit wobbling for fastening accuracy
Specifications:
- Battery Capacities — 14.4 V Li-Ion
- Capacity (driving shank) — Hex 1/4″
- No Load Speed– 0 – 2700 RPM
- Impacts Per Minute –0 – 3300 IPM
- Fastening Torque Up to — 95 Nm. (840 in./lbs)
- Vibration Level –7.5 m/s²
- Noise Level –94 dB(A)
- Width– 2-15/16″ (74 mm)
- Height (with battery) –9-3/8″ (239 mm)
- Length –5-3/4″ (146 mm)
- Net Weight — 2.0 lbs (0.9 kg)
