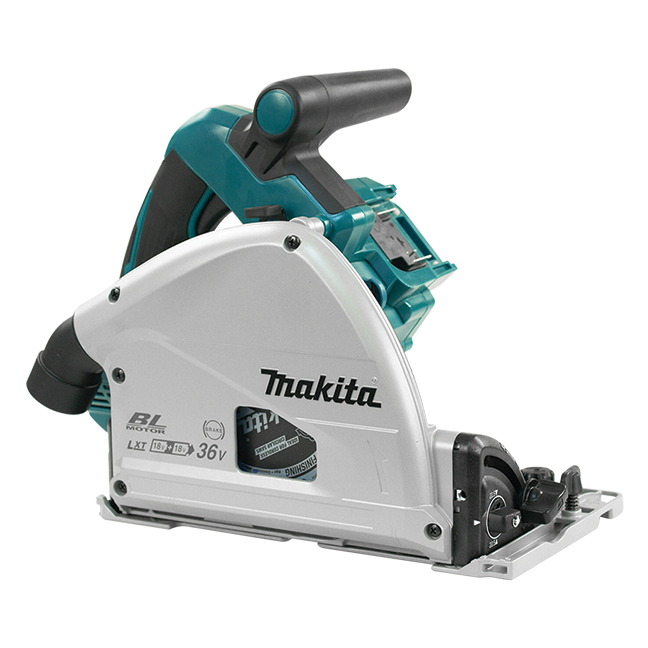

Brushless DC motor with high power to weight and size ratio
Features:
- Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
- Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
- Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
- High performance and lightweight design with magnesium diecast baseplate
- Constant speed control maintains constant speed under heavy load
- Overload protection prevents motor burnout due to current overload
- Depth stopper enables splinter free cutting
- VS dial enables operator to adjust cutting speed based on materials or application
Specifications:
- Battery Capacities — Two 18V Li-Ion
- Blade Diameter — 6-1/2″ (165 mm)
- Arbor — 13/16″ (20 mm)
- Maximum Cutting Depth:
- 0° — 2-3/16″ (56 mm)
- 45° — 1-9/16″ (40 mm)
- 48°– 1-1/2″ (38 mm)
- No Load Speed — 2,500 – 6,300 RPM
- Vibration Level — 2.5 m/s²
- Noise Level — 92 dB(A)
- Overall Length — 13-5/8″ (346 mm)
- Net Weight — 8.6 lbs (3.9 kg)
