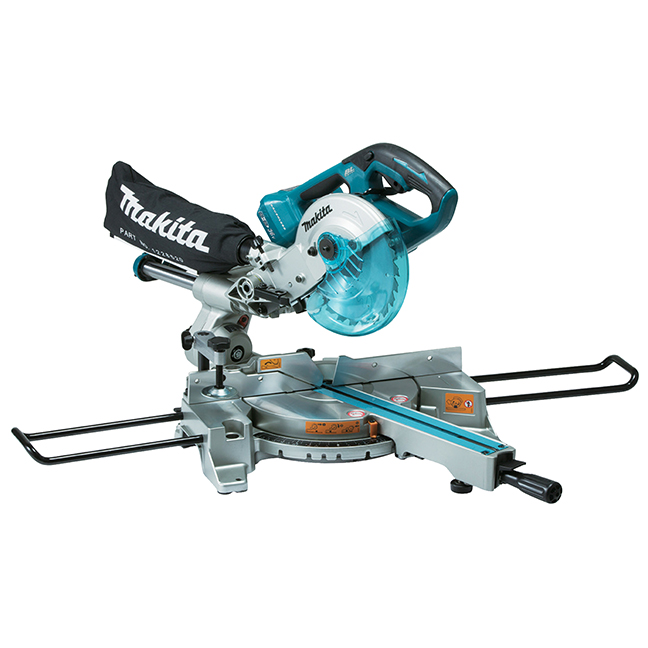

Brushless DC motor with high power to weight and size ratio
Features:
- Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
- Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
- STAR battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
- Dual sliding rail mechanism incorporating 4 linear ball bearings provides increased rigidity to produce precise, adjustment free cuts right out of the box
- Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
- Soft start feature gradually increases speed to eliminate start up shock
- 2 stage safety switch prevents accidental startup for increased operator safety
- Mitre capacity of 47° left or 57° right with positive stops at 0°, 15°, 22.5°, 30° & 45°
Specifications:
- Battery Capacities –Two 18V Li-Ion
- Blade Diameter –7-1/2″ (190 mm)
- Arbor –5/8″ (15.9 mm)
- No Load Speed –5,700 RPM
- Vibration Level –2.5 m/s²
- Noise Level –88 dB(A)
- Dimensions (L x W x H) –25-3/4″ x 17″ x 17-1/2″ (655 mm x 430 mm x 445 mm)
- Net Weight –26.3 lbs (11.9 kg)
