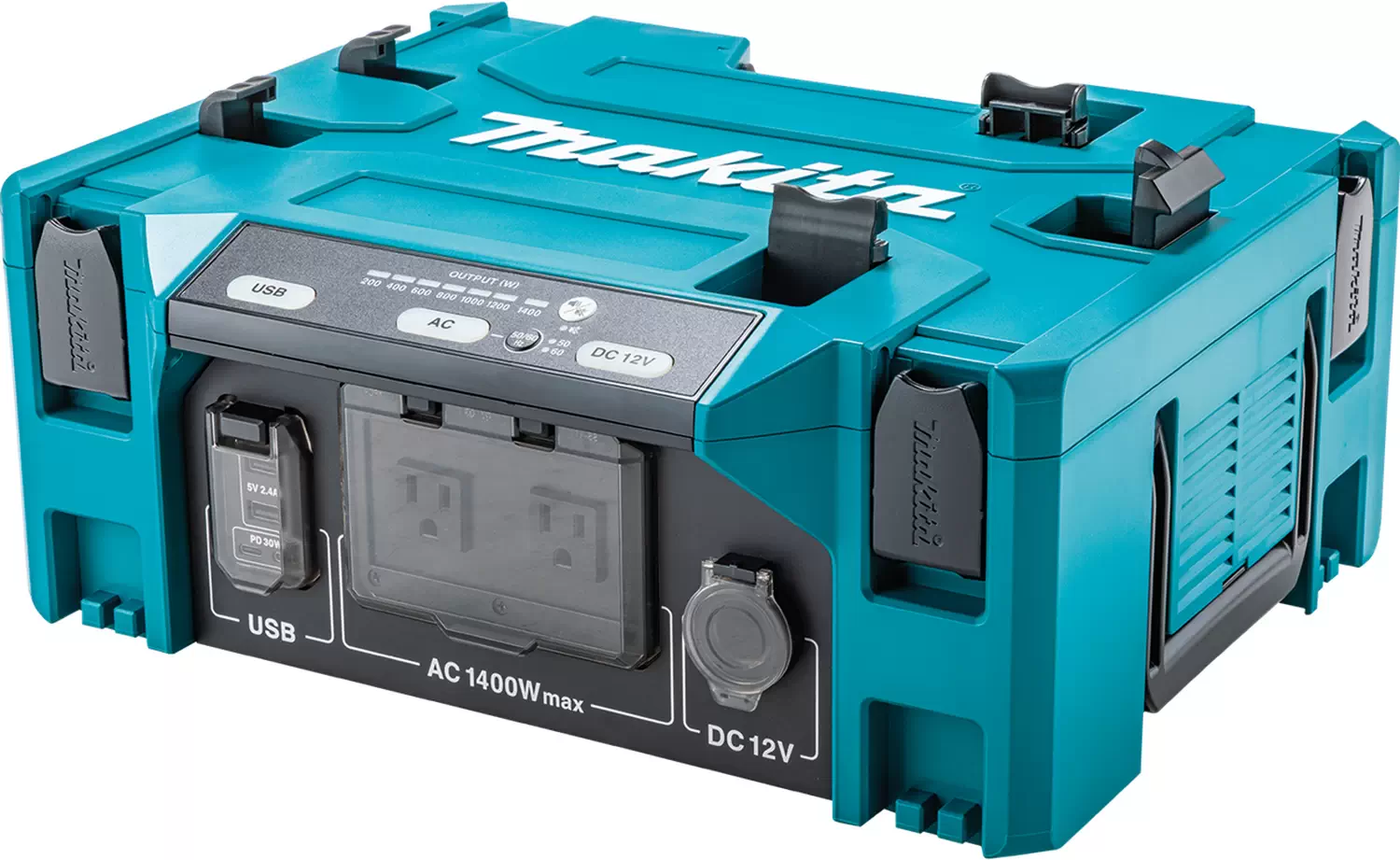

Makita BAC01 36V (18VX2) & 40Vmax ConnectX Portable Power Station

The Makita BAC01 36V (18VX2) & 40Vmax ConnectX Portable Power Station stands as a versatile and reliable solution for professionals requiring transportable AC power across various settings. Designed to convert DC to AC power, this power station is powered by either the ConnectX™ Portable Backpack Power Supply (PDC1200) or the 18V LXT® and LXT® X2 Portable Backpack Power Supply (PDC01), both sold separately. It is a crucial asset for outdoor job sites, emergency power needs, or leisure activities where traditional AC outlets are inaccessible.

Makita BAC01 36V (18VX2) & 40Vmax ConnectX Portable Power Station At a Glance

Versatile Power Source: Compatible with Makita’s PDC01 or PDC1200 portable backpack power supplies, the BAC01 seamlessly transitions DC into AC power, making it an ideal companion for powering electric tools, appliances, and for charging batteries in locations without direct AC access.
High Capacity: Offers a robust 2800W peak and 1400W continuous output, capable of charging up to 7 BL4040 batteries with the PDC1200, ensuring ample power for demanding tasks.

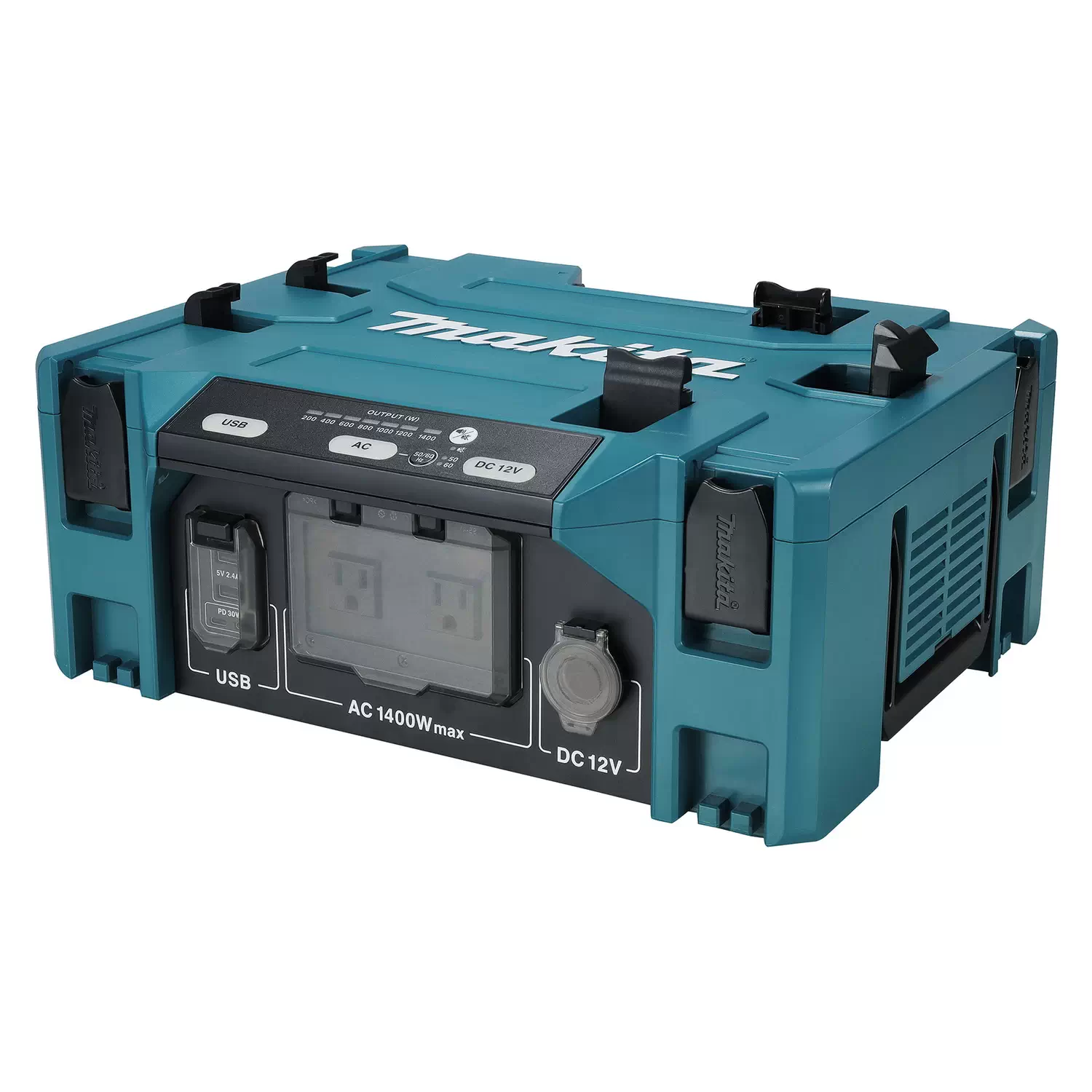

Multiple Outlets: Equipped with two AC outlets, two Type-A USB ports, two Type-C USB ports, and a 12V DC car outlet port, it caters to a wide range of power needs for tools, small appliances, and electronic devices.
Smart Monitoring: Features an onboard LED display for monitoring wattage outputs across seven stages, with additional safety alerts through an audible buzzer for overload, high temperature, and other malfunctions.
Pure Sine Wave AC Output: Ensures compatibility with sensitive electronics, providing stable power for devices such as battery chargers, home appliances, and computers.
Safety and Protection: Offers triple-layer protection including overload, overheat, and over discharge safeguards, complemented by double insulation to maintain an optimal internal temperature.

Makita BAC01 36V (18VX2) & 40Vmax ConnectX Portable Power Station Features

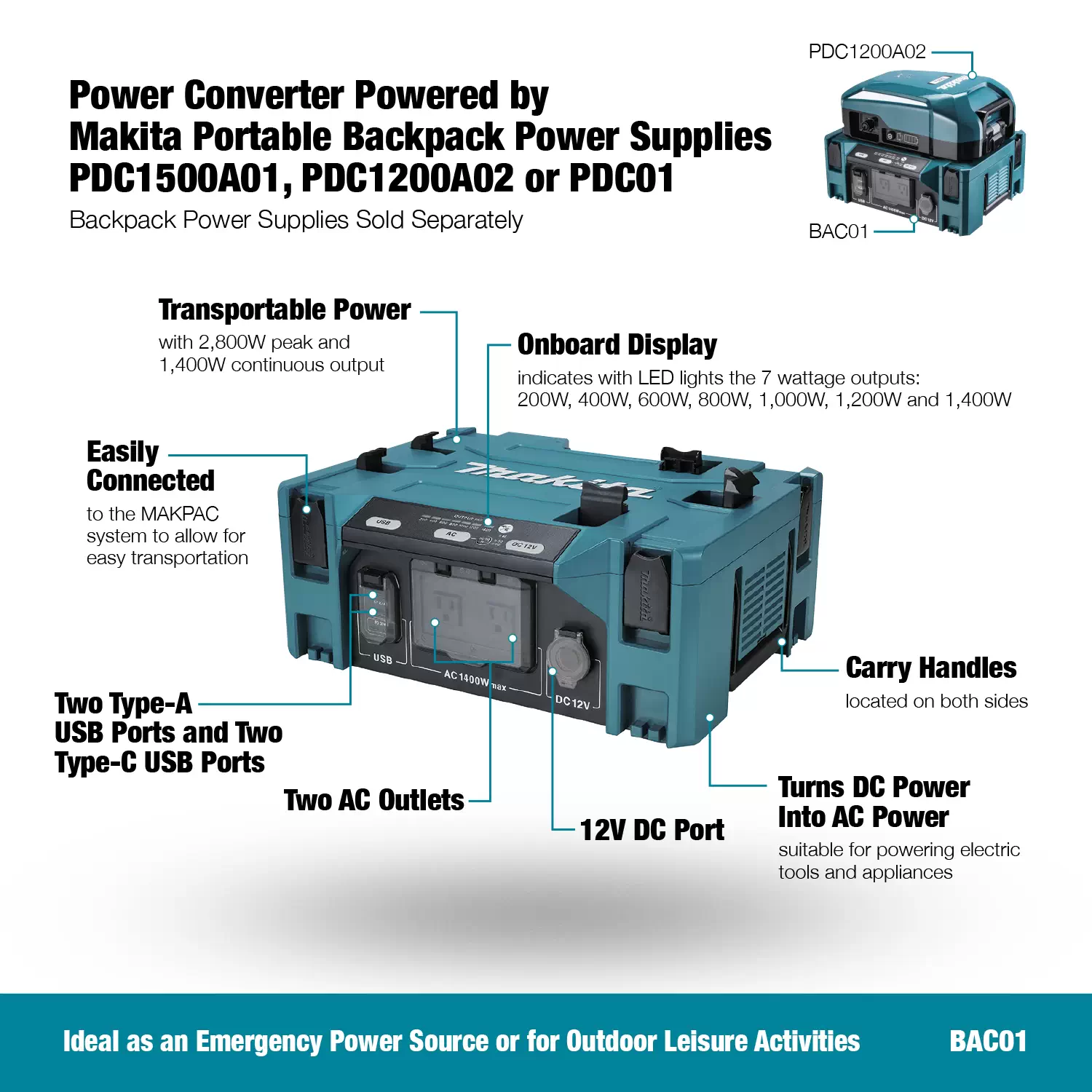

Power converter powered by Makita portable backpack power supply.
Can be used with PDC01 or PDC1200 portable backpack power supplies.
Turns DC power into AC power suitable for powering electric tools and appliances.
Ideal as an emergency power source or for outdoor leisure activities.

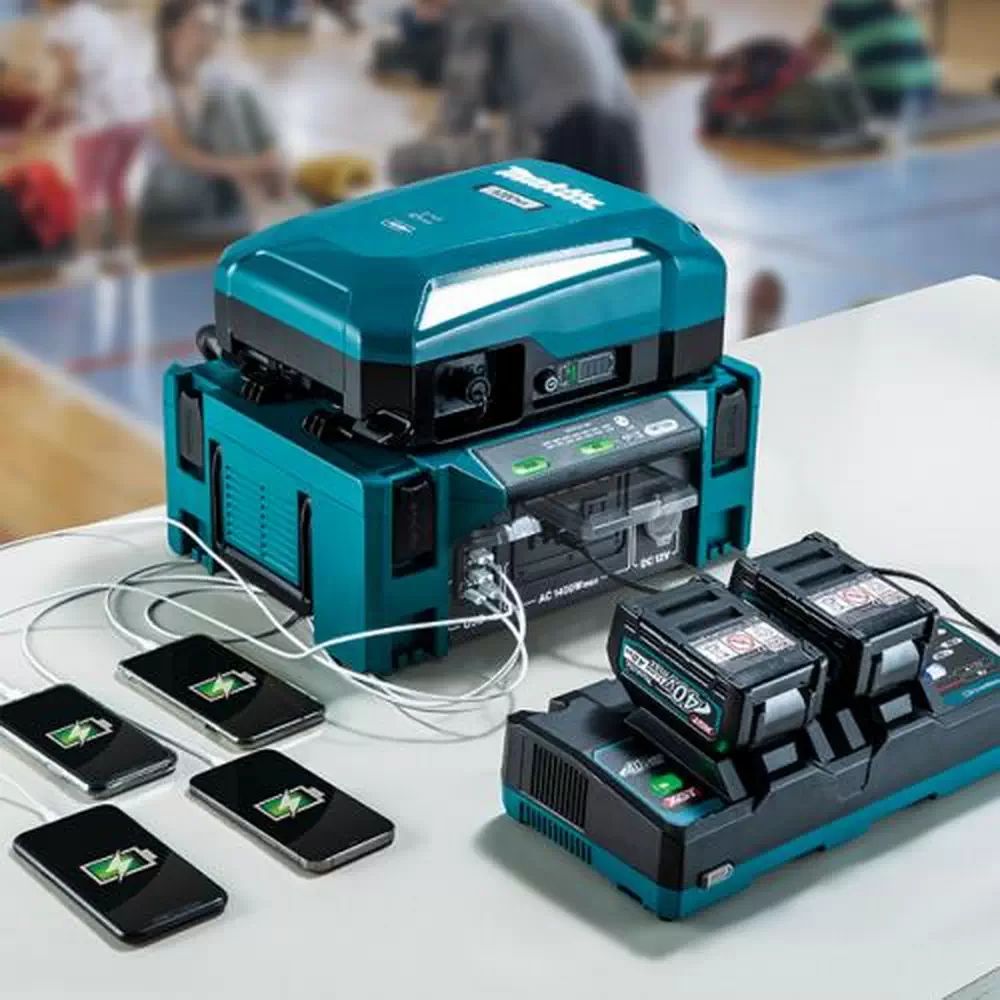

Suitable for battery charging or the use of corded tools in outdoor job sites where an AC outlet is not available
Charges 7 BL4040 using PDC1200 battery
Transportable power with 2800W peak / 1400W continuous output
Equipped with multiple outlets including two AC outlets, two Type-A USB ports, two Type-C USB ports and one 12V DC car outlet port.
Onboard display indicates with LED lights the 7 wattage outputs (200, 400, 600, 800, 1000, 1200 and 1400 watts).
The 1400W LED light will flash when AC power outlets alone reaches 1450 watts or total power output reaches 1500 watts.
A built-in audible buzzer warns the user when the unit stops supplying power output due to overload, high temperature, low battery capacity or other malfunctions.
AC power output of 1400W (continuous output) and 2800W (maximum output) – 50/60Hz (switchable frequency).
7 stage output indicator lamps light up according to the wattage being output
AC power with pure sine wave enables the use of delicate electronic devices.
AC power is compatible with battery chargers, small home appliances and electronic devices such as computers.
Double insulated to help maintain proper temperature environment inside Power Station
Equipped with 3 forms of protection including: Overload protection, Overheat protection, and Over discharge protection

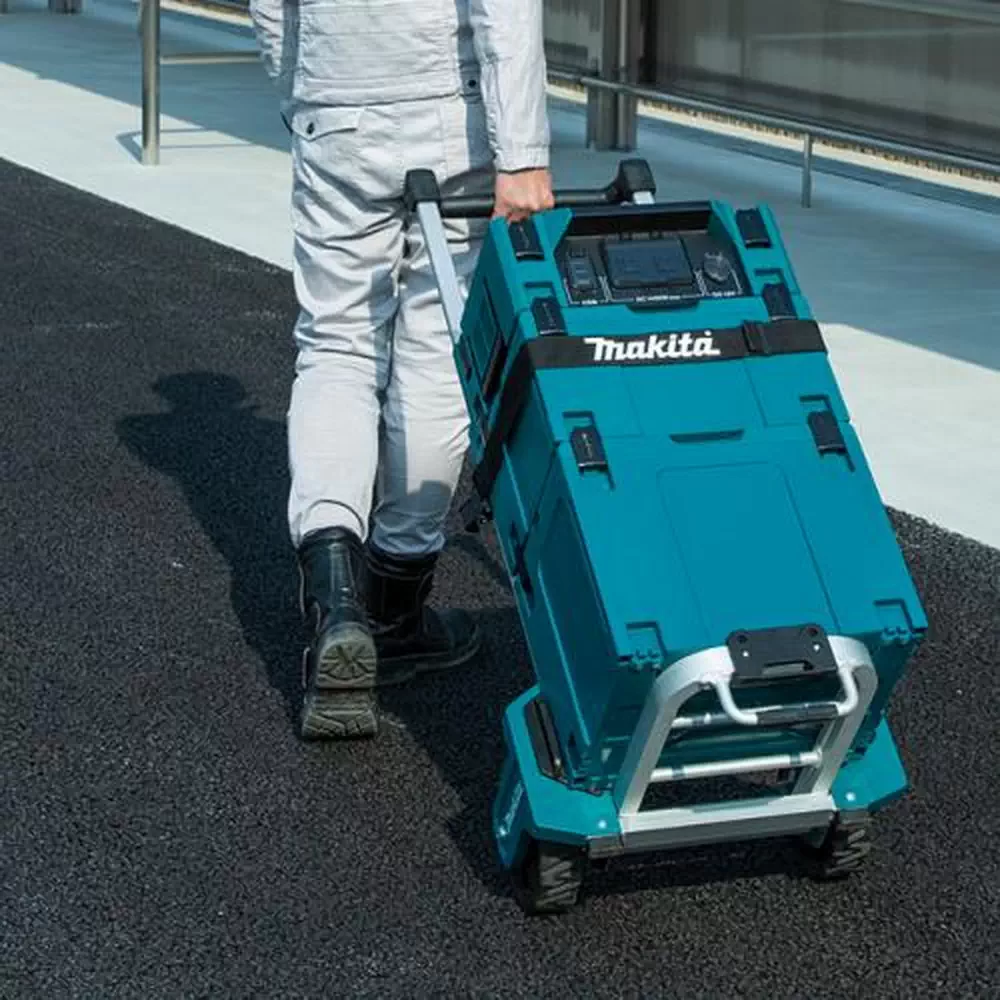

BAC01 is compatible with the Makita MAKPAC system allowing for easy transportation on the MAKPAC trolley or cart.

Makita BAC01 Ideal Use Cases

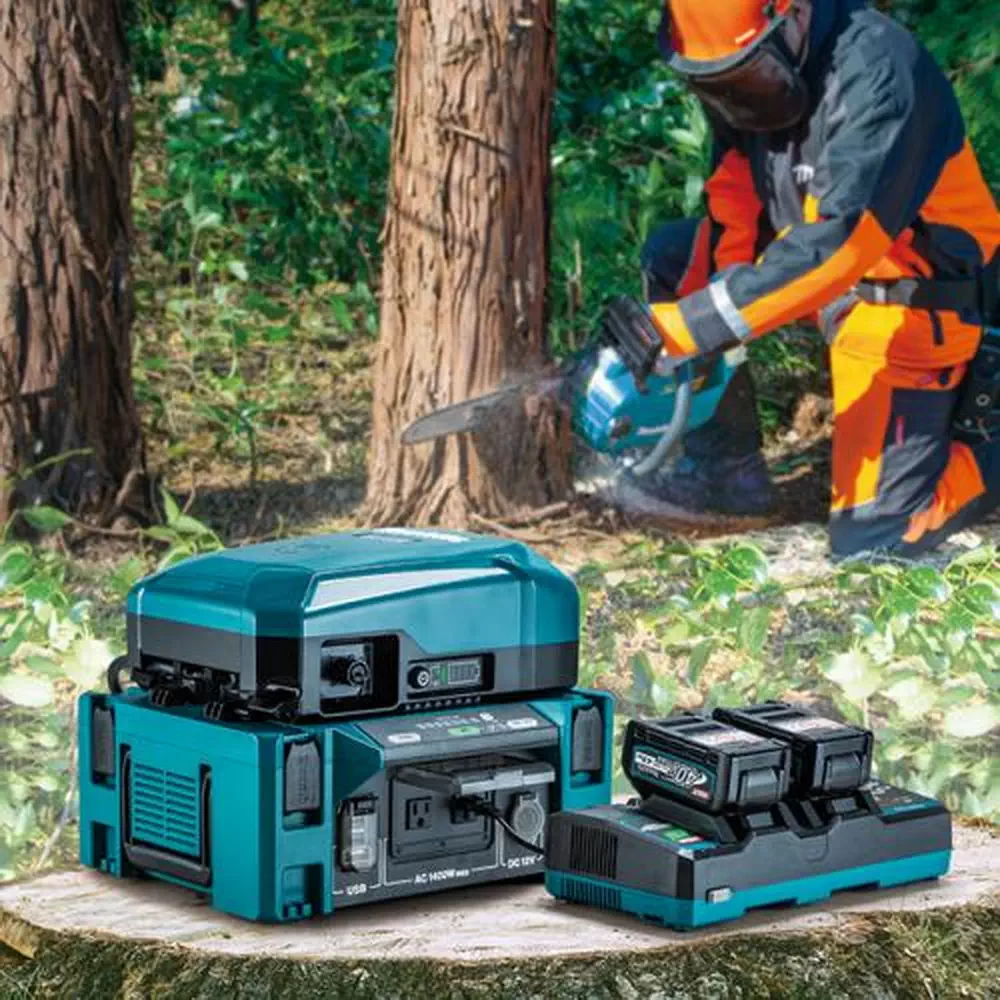

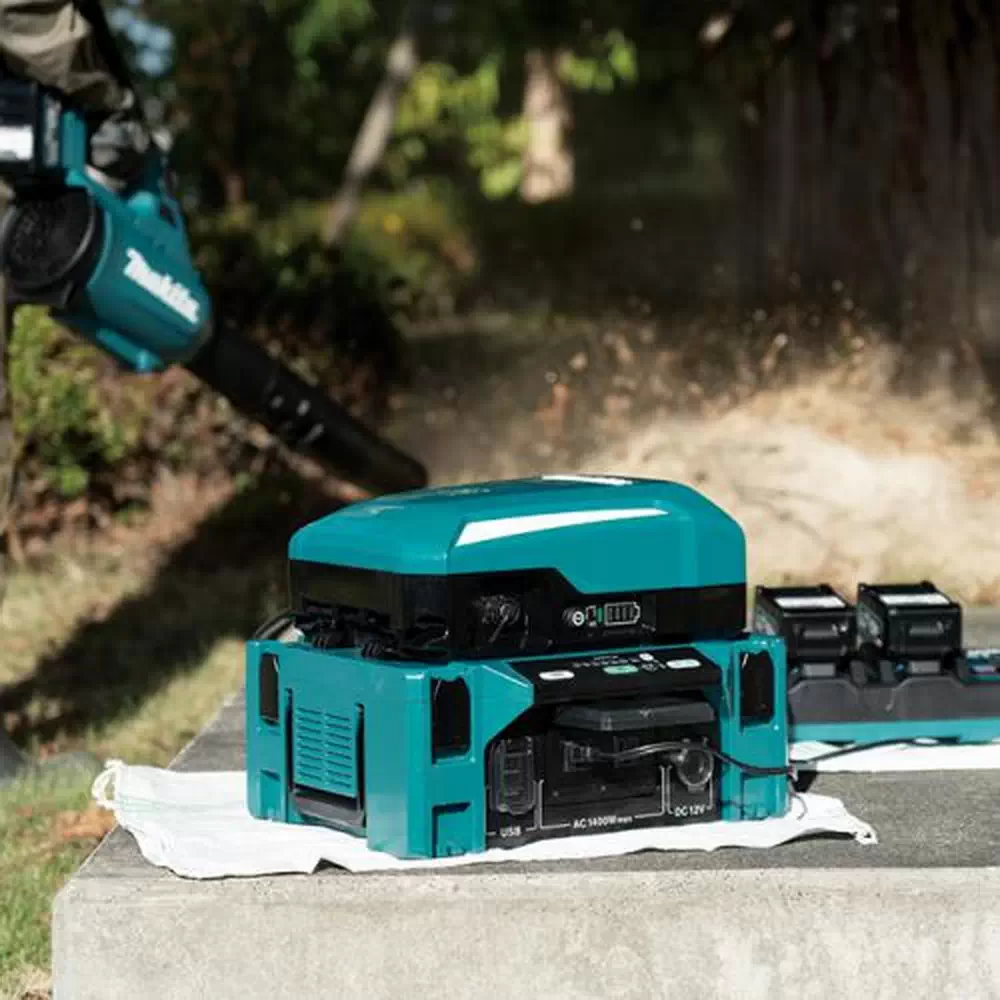

Outdoor Job Sites: For professionals in construction, landscaping, and other outdoor projects requiring the use of corded tools or battery charging capabilities where AC power is not readily available.
Emergency Power: A reliable emergency power source for small appliances and electronic devices during power outages.
Leisure Activities: Enhances outdoor leisure experiences by powering electric grills, sound systems, or charging devices in remote locations.

The Makita BAC01 is not just a power station; it’s a versatile power solution compatible with the MAKPAC system for easy transport, making it a top choice for professionals in woodworking, metalworking, construction, and outdoor projects who require reliable, portable power.

Makita BAC01 Used with (Sold Separately)

ConnectX™ Portable Backpack Power Supply (PDC1200)
18V LXT® and LXT® X2 Portable Backpack Power Supply (PDC01)

Makita BAC01 Specifications

UPC: 0 88381 78200 5
System : 40V max ConnectX™
Battery Voltage: 36V (18VX2) / 40V
Inverter Capacity W(VA): Continuous Rating Output: 1,400
Inverter Capacity W(VA): Max Output: 2,800
AC Output Voltage: 120V
AC Output: With Pure Sine Wave, Frequency: 50/60 Hz Switchable, 2 AC Outlets

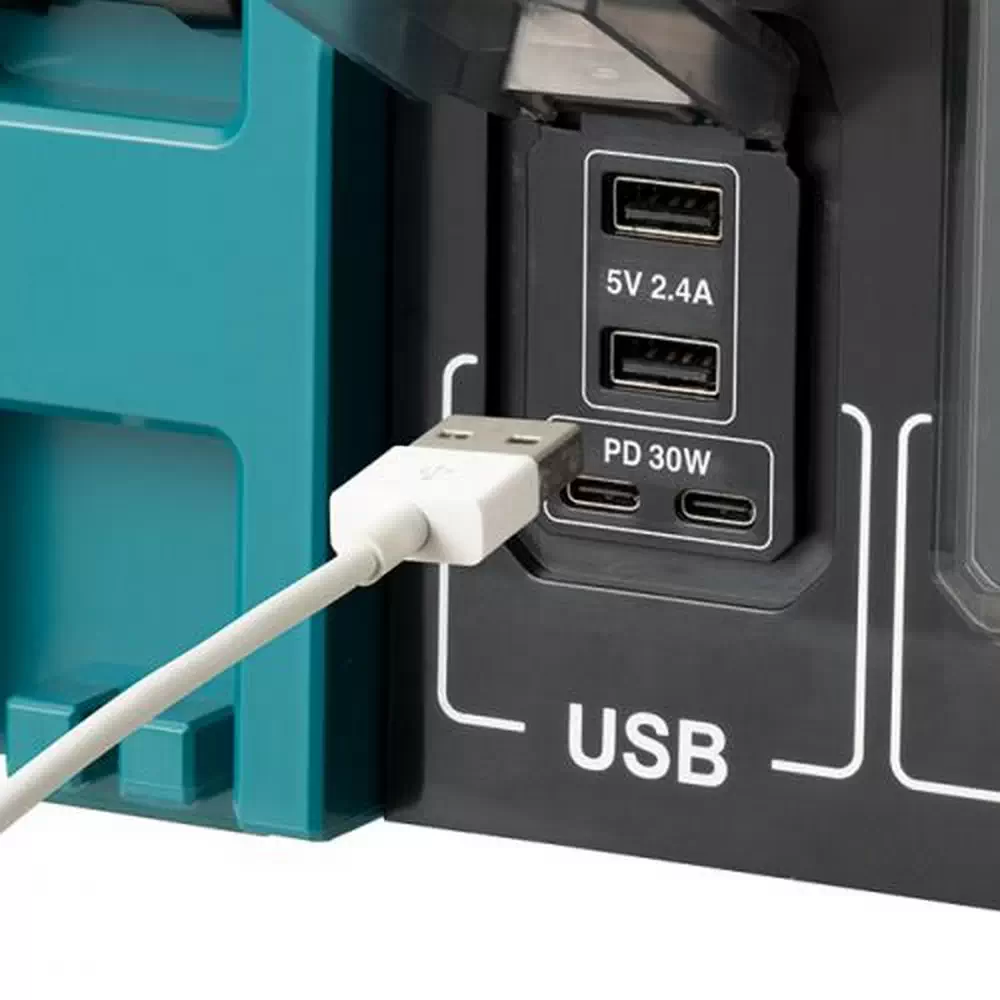

USB Outlets: 2 Type-A (5V/2.4A) USB Output Ports
USB Outlets: 2 Type-C (USB-PD 30W) USB Output Ports

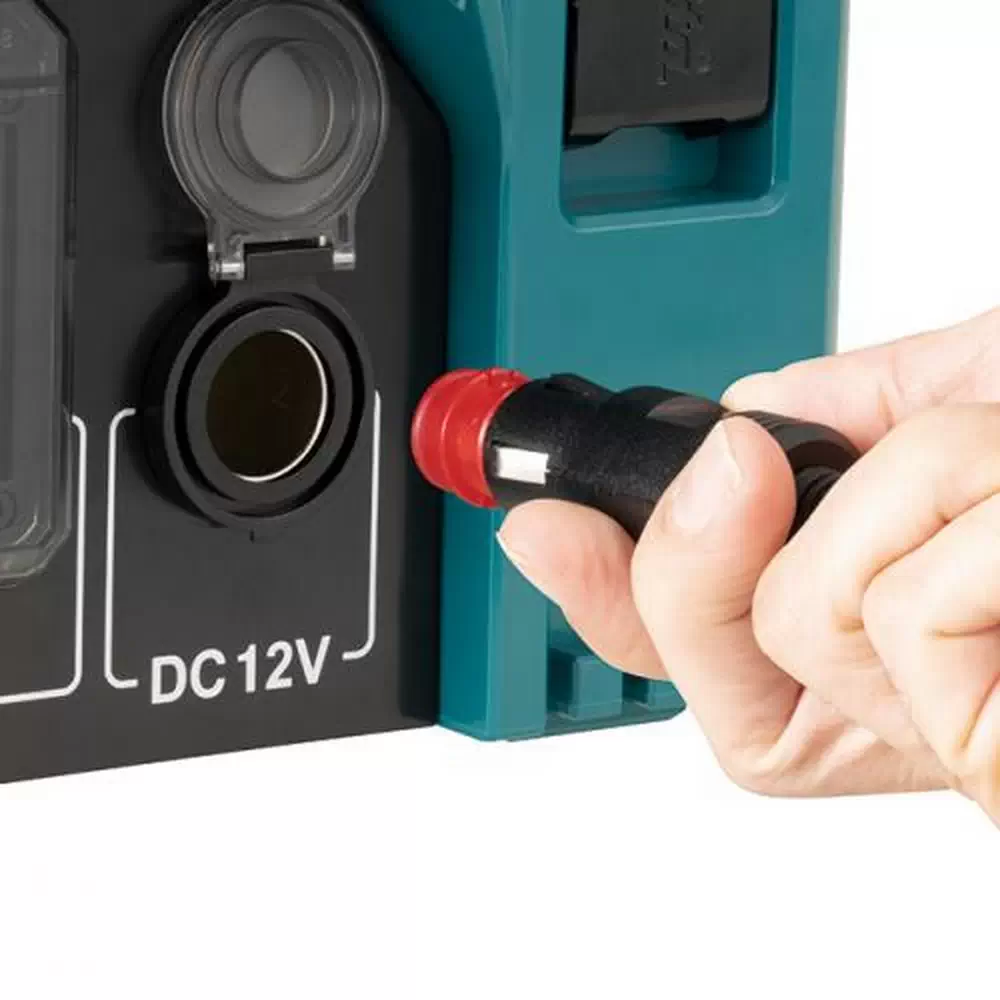

DC Output 1(one) 12V/10A Outlet Socket
Continuous Run Time (Approx.) On A Fully Charged Power Supply: 56 Minutes* With PDC1200 (*When Discharging At A Rate Of 1,000W(VA)
Continuous Run Time (Approx.) On A Fully Charged Power Supply: 20 Minutes** With PDC01 (**When Loaded With Four BL1860B Batteries And Discharging At A Rate Of 750W(VA)
Warning Buzzer: Yes (Battery Capacity/High Temperature/Overload)
Overload Protection: Yes
Protection Against Electric Shock: Double Insulation
Weight: 7.3 kg (16.1 lbs.) BAC01 Only
Weight: 12.8 kg (28.2 lbs.) With PDC01 With Four BL1860B Batteries
Weight: 16.2 kg (35.7 lbs.) With PDC1200
