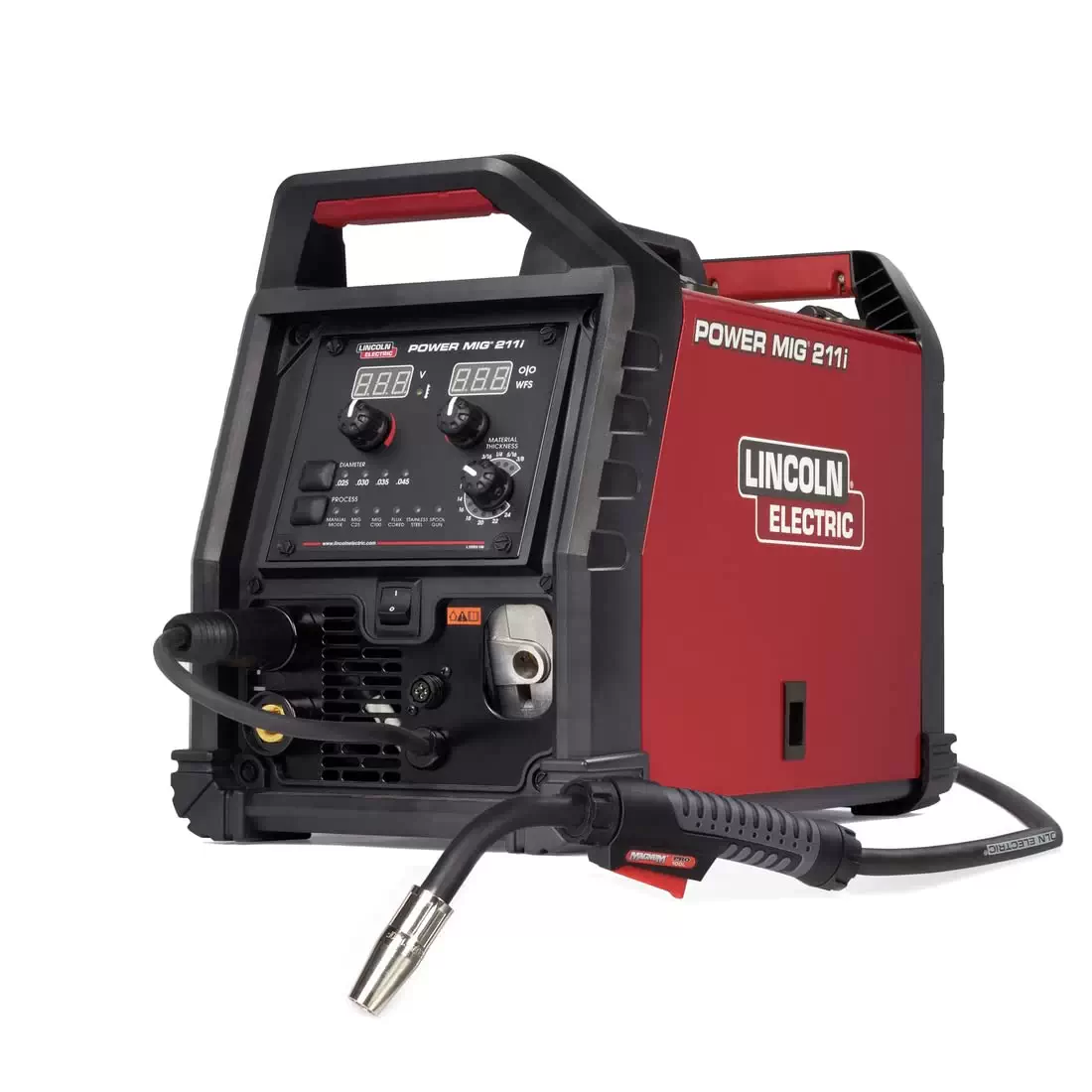

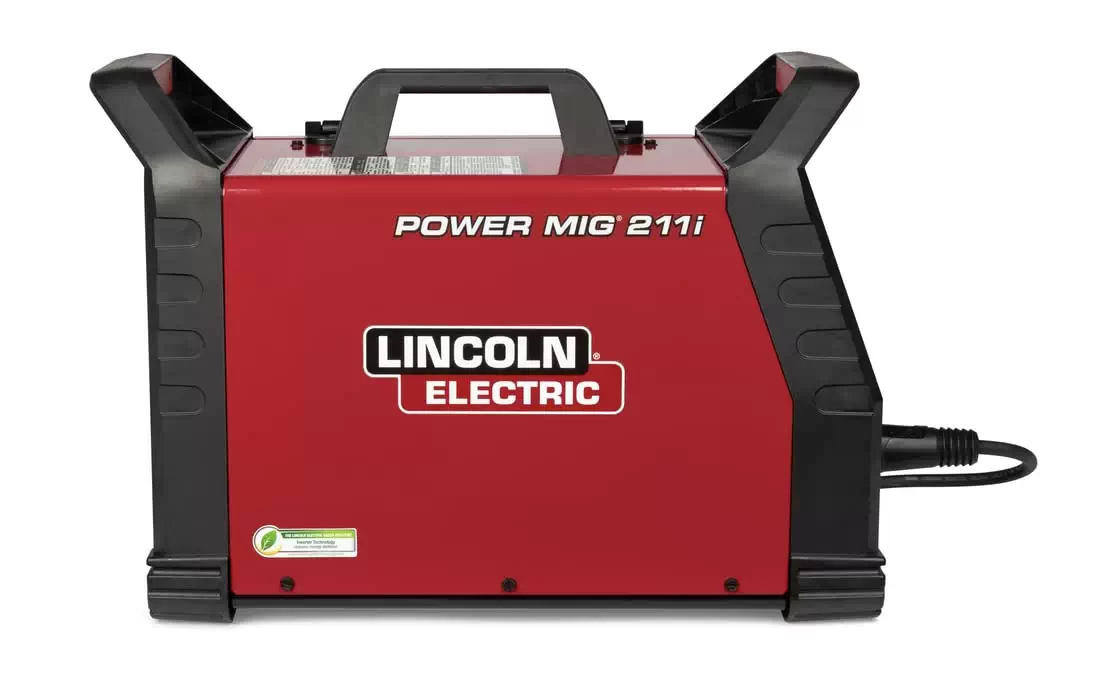

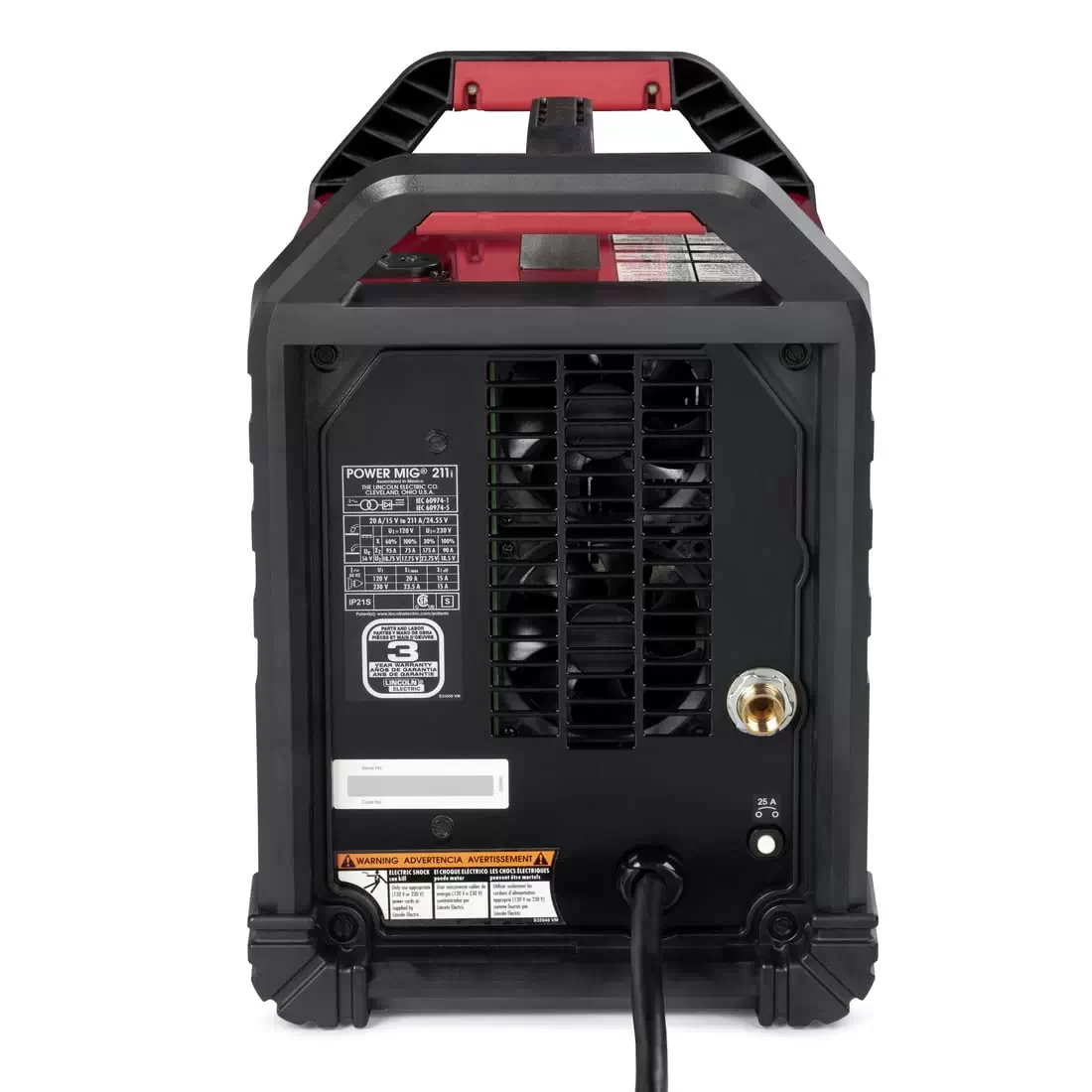

Lincoln U6080-1 (K6080-1) PowerMIG 211i MIG Welder

The Lincoln U6080-1 (K6080-1) PowerMIG 211i MIG Welder is a factory reconditioned and factory certified K6080-1 MIG welder.  The POWER MIG 211i MIG welder is a straightforward, solid and dependable machine that is ideal for MIG and Flux-Cored welding.  This reliable diehard is your best friend on the farm, in the small shop, or for maintenance and repair work. The seven-segment display with basic knob controls and a simple three-step setup process gets you welding quickly – and when it’s time to move, the sleek case with multiple lift points make it extremely portable. If you’re looking for an incredibly simple, reliable MIG welder that won’t break the bank, the POWER MIG 211i MIG welder is ready to go to work for you.

Lincoln U6080-1 (K6080-1) PowerMIG 211i MIG Welder Features

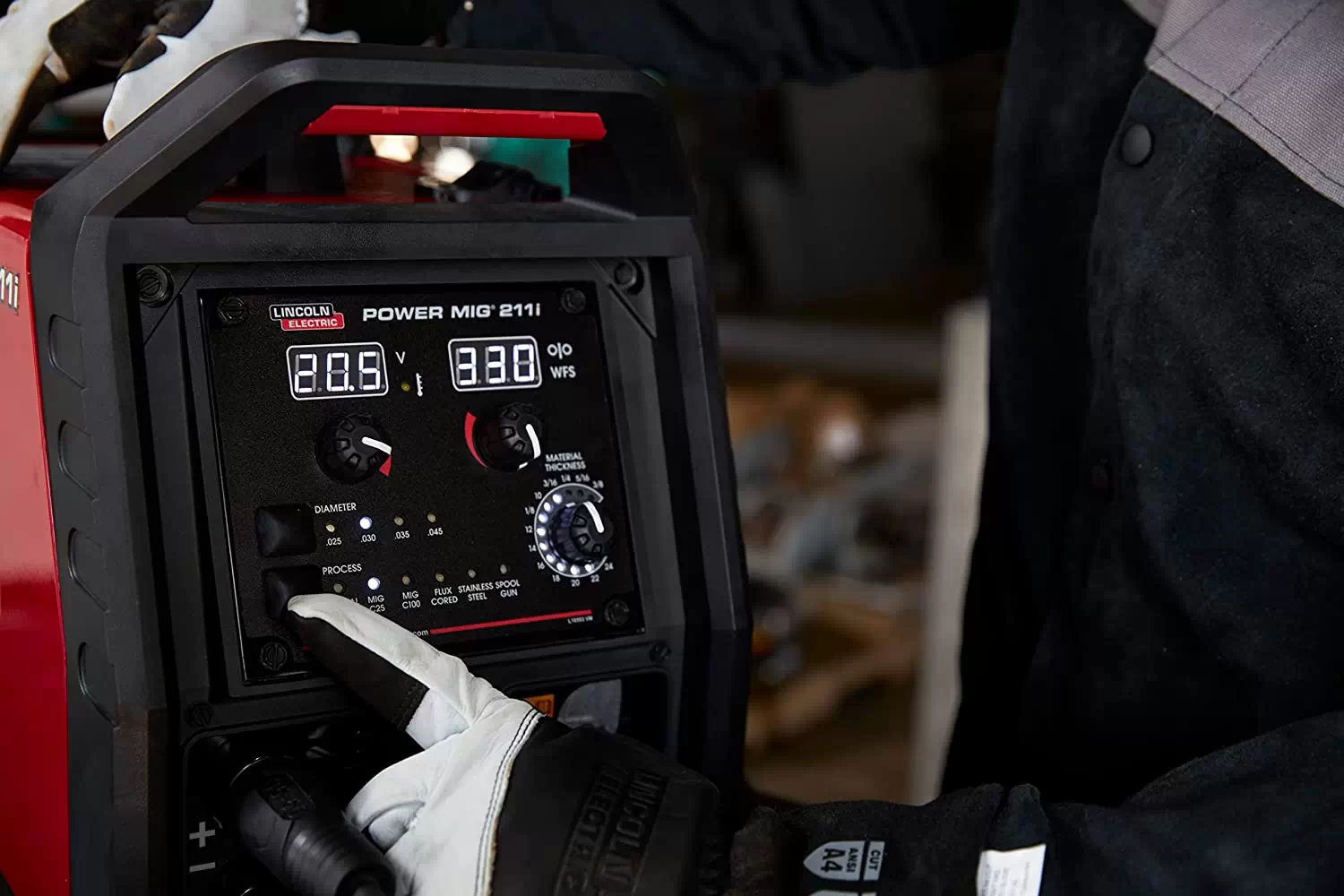

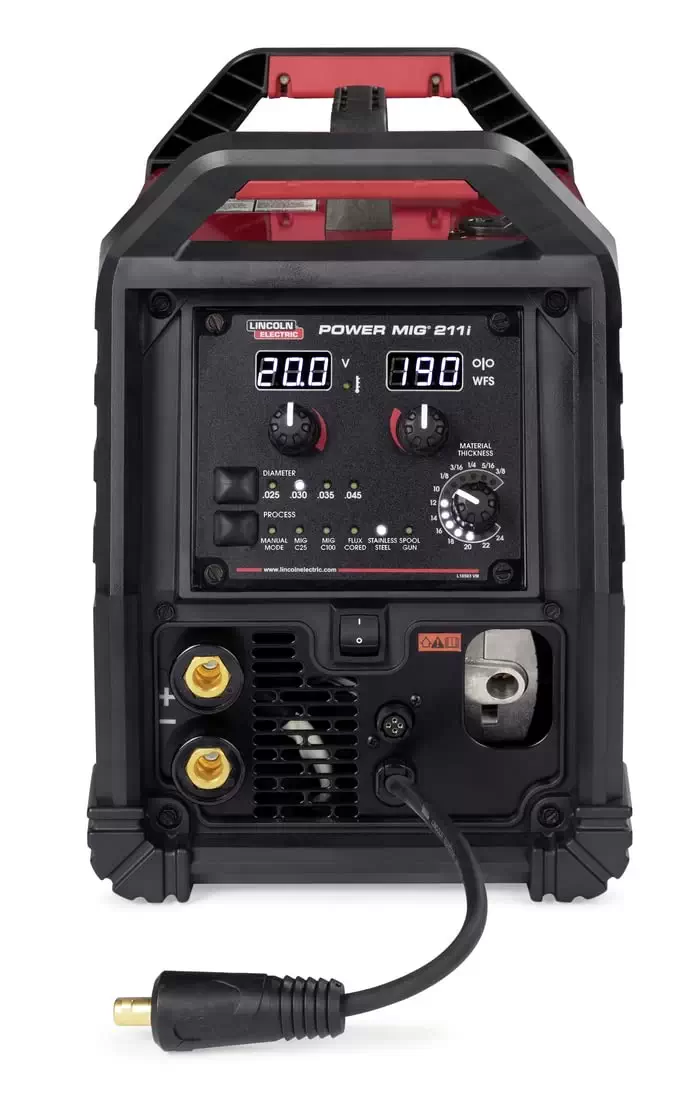

• Simple user interface – Seven segment display with basic knob controls.
• Process Capabilities – MIG, Flux-Cored and Spool Gun.
• Dual Input Voltage – 120V and 230V inputs so you can plug into any common power supply.
• Ergonomic Case – Sleek and robust case design with multiple lift points for ease of mobility around the shop.
• Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.

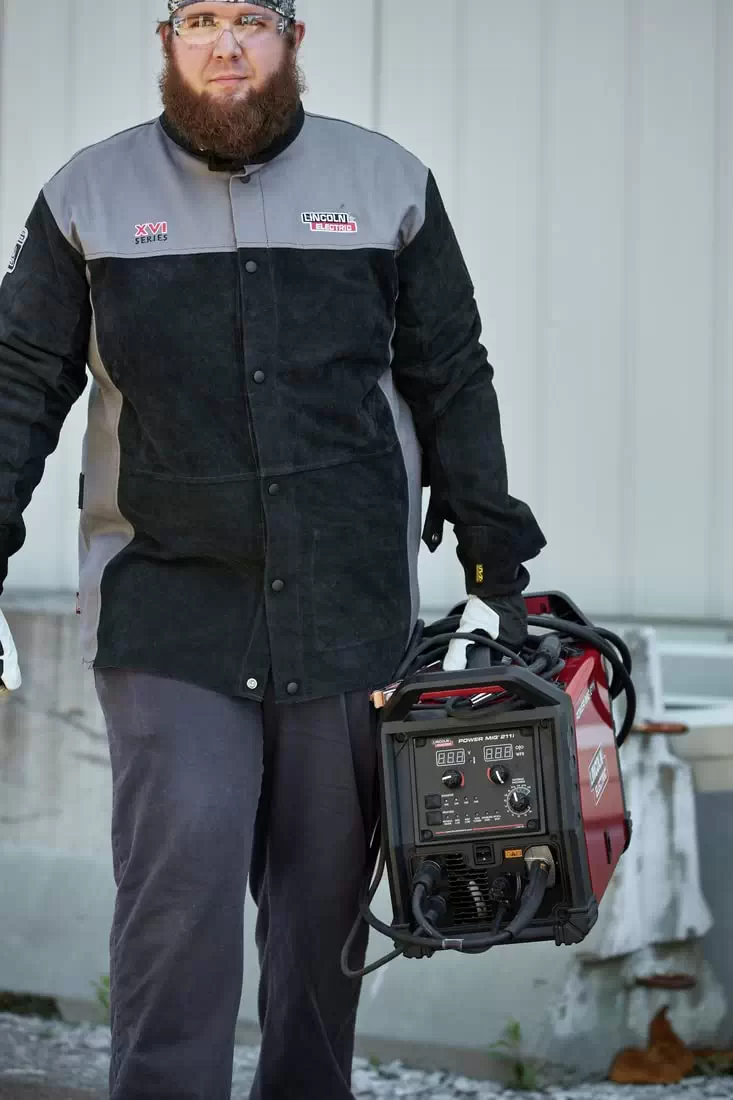

• Lightweight and Portable – Only 41 lbs

Lincoln U6080-1 (K6080-1) PowerMIG 211i MIG Welder Specifications

• Product Name: K6080-1
• Product Number: U6080-1
• Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 120/1/60
• Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) MIG 95A/18.8/60% 75A/17.8V/100%
• Phase 1: Input Current at Max Rated Ouput #1 (Current) 20A
• Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) 230/1/60
• Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) MIG 175A/22.8V/30% 90A/18.6V/100%
• Phase 1: Input Current at MAX Rated Output #2 (Current) 22.5A
• IEC Rating IP21S
• Max Rating 211A
• Output Range by Mode MIG: 20-211A
• Number of Operators per Machine 1
• Machines Communication Technology analog
• Work Lead Connector Type Dinse
• Welding Gun Cable Assembly Length Magnum PRO 100L
• Work Cable Length 10 FT
• Spool Gun Compatible (Duty) Light
• UI type Meters
• Wire Feeders Processes MIG
• Flux Cored
• Contact Tips Included Yes
• Sample MIG Wire Included Yes
• Input Voltage 120/230
• Input Current 120V: 15A, 230V: 15A
• Input Hertz 60
• Input Power 120/230/1/60
• Input Phase 1
• Mode Icon CV
• Output Range 120V: 20-140A DC 230V: 20-211A DC Max. OCV : 76V
• Polarity DC
• Rated Output 120V: 95A/18.8/60% 230V: 175A/22.8V/30%
• Dimensions (H x W x D) 15.5 in x 10.75 in x 22 in (394 mm x 273 mm x 558 mm)
• Net Weight 41 lbs (18.6 kg)

Lincoln U6080-1 (K6080-1) PowerMIG 211i MIG Welder Applications

• Construction
• General Fabrication
• Maintenance & Repair
• Autobody / Automotive
• Repair Welding

Lincoln U6080-1 (K6080-1) PowerMIG 211i MIG Welder Common Accessories

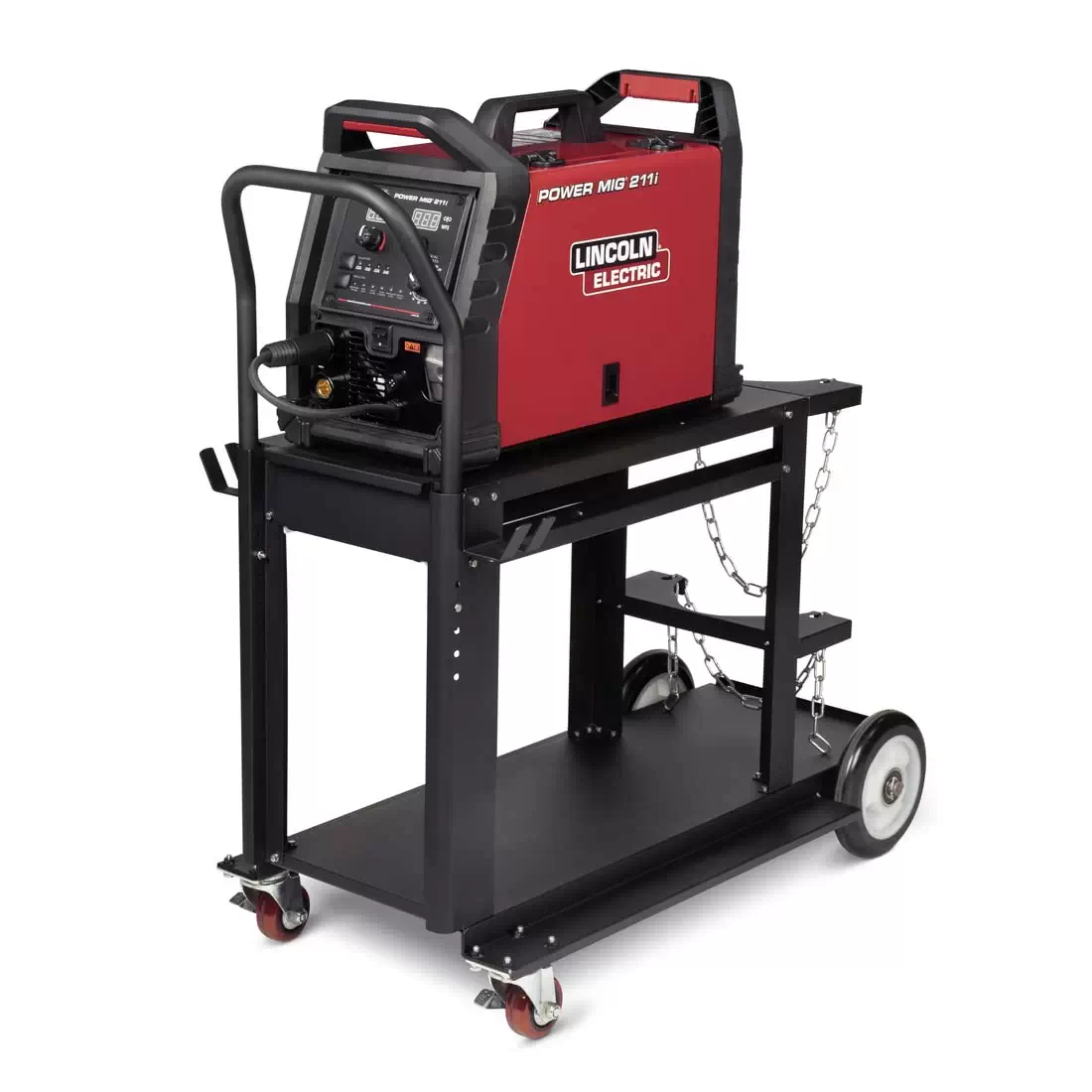

• Utility Cart (150 cu.ft bottle capacity) K520
• CanVAS™ Cover (Small) K2377-1
• Magnum® PRO 100SG Spool Gun – 4 Pin, 10ft (3.0 m) K3269-1
• Magnum® PRO 100L Welding Guns K4528-1
• Welding Fume Extractors

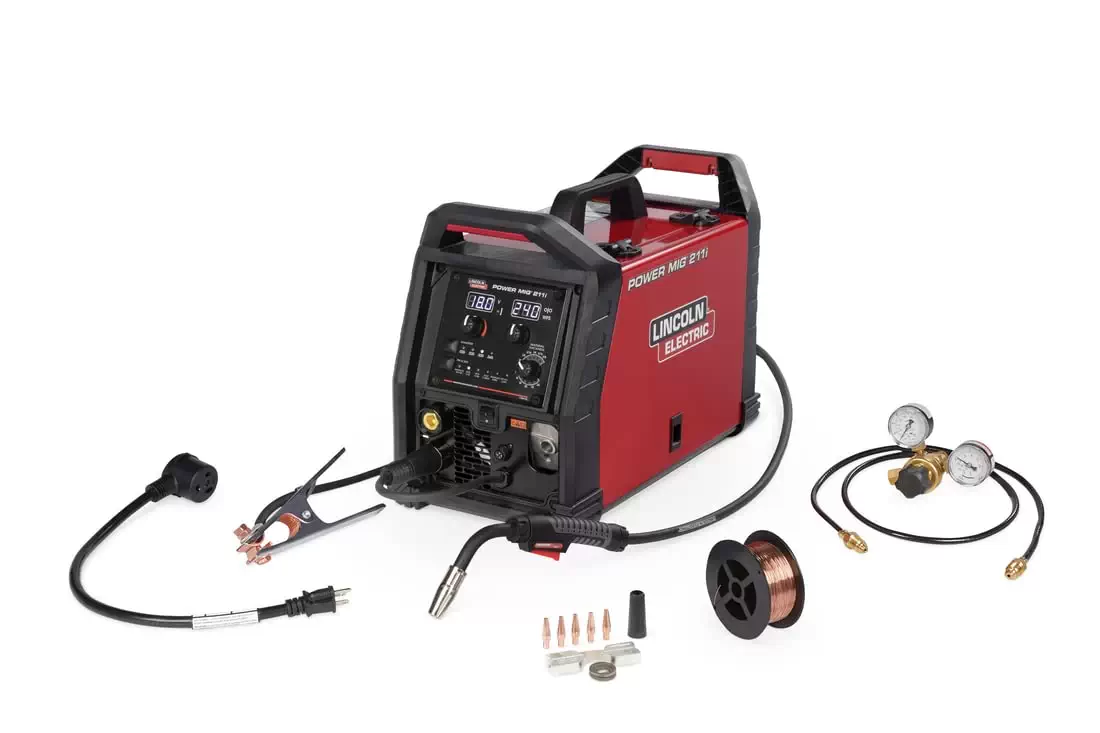

Lincoln U6080-1 (K6080-1) PowerMIG 211i MIG Welder Includes

• U6080-1 MIG Welder
• Magnum® PRO 100L Gun 10 ft. (3.0 m) (K4528-1)
• 230V to 120V power cord adapter
• Work Cable and Clamp
• Adjustable Gas Regulator and Hose
• Gas Nozzle
• Gun Cable Liner (pre-installed in gun)
• Spindle Adapter
• Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire(EDO30631)
• 0.030-0.035in. (0.8 – 0.9 mm) Drive Roll (Installed)
• 0.030 – 0.045 in. (0.8 – 1.1 mm) Knurled Drive Rolls
• and 0.025 – 0.035 in. (0.6 – 0.9 mm) Wire Guide (Installed)
