Lincoln U5126-1 (K5126-1) Square Wave TIG 200 TIG Welder

The Lincoln Electric U5126-1 (K5126-1) Square Wave TIG 200 TIG Welder is a factory reconditioned and factory certified K5126-1 Square Wave TIG 200 TIG Welder for AC/DC stick and TIG welding uses Square Wave Technology. The U5126-1 (K5126-1)  Square Wave TIG 200 is a portable TIG and stick welding machine that lets hobbyists, makers, small fabricators and craftsmen explore their creativity. It is designed to help expand your welding expertise. As your skills and confidence grow, you can take advantage of the Square Wave TIG 200’s additional functionality. No matter your skill level, you won’t be disappointed.  The Square Wave TIG 200 provides smooth and stable AC TIG welding on aluminum and DC TIG welding on steel, stainless steel and chrome-moly. A user-friendly interface enables the operators to set it, forget it and weld. The user interface makes machine setup easy. Available features, such as Pulse, which provides a drumbeat-like rhythm for filler metal deposition, make you become a better TIG welder – faster.

Lincoln U5126-1 (K5126-1) Square Wave TIG 200 TIG Welder Features

• Advanced Features Yet Easy to Use The user interface makes machine setup easy. Available features, such as Pulse, which provides a drumbeat-like rhythm for filler metal deposition, make you become a better TIG welder – faster
• A Great TIG Machine for Aluminum – For a wider or tighter welding bead, users can easily adjust AC Frequency Control. AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials.
• TIG and Stick from One Power Source – The multi-process machine can TIG weld when precision and bead appearance are important. Users also have the advantage of stick welding capability for outdoor work or thicker materials.
• Take it Everywhere, Plug in Anywhere.™ – Plug in the Square Wave TIG 200 where you need it – a standard 120V circuit or 230V for maximum output. Portable and convenient to use, only 46 lb (21 kg).
• AC Frequency 60-150 (Hz) – A lower frequency results in a wider bead. A higher frequency results in a more focused bead
• AC Balance 60-90 (%Electrode Negative) – A lower AC Balance (%EN) results in an arc with increased cleaning action. A higher AC Balance (%EN) results in an arc with higher penetration
• Pulse 0.1-20 (Pulses per second) – Lower pulse frequency helps moderate filler metal deposition. A higher pulse frequency helps manage heat input and minimize material distortion

Lincoln U5126-1 (K5126-1) Square Wave TIG 200 TIG Welder Specifications

• Product Name: K5126-1
• Product Number: U5126-1
• Input Power: Voltage/Phase/Hertz: 120/1/50/60: Rated Output: Current/Duty Cycle TIG: 125A/25%, Input Current @ Rated Output: 22A, Output Range TIG: 10-125A
• Input Power: Voltage/Phase/Hertz: 120/1/50/60: Rated Output: Current/Duty Cycle TIG: 100A/40%, Input Current @ Rated Output:17 A, Output Range TIG: 10-125A
• Input Power: Voltage/Phase/Hertz: 120/1/50/60: Rated Output: Current/Duty Cycle TIG: 85A/60%, Input Current @ Rated Output: 14A, Output Range TIG: 10-125A
• Input Power: Voltage/Phase/Hertz: 120/1/50/60: Rated Output: Current/Duty Cycle Stick: 75A/20%, Input Current @ Rated Output: 19A, Output Range Stick: 10-90A
• Input Power: Voltage/Phase/Hertz: 120/1/50/60: Rated Output: Current/Duty Cycle Stick: 65A/60%, Input Current @ Rated Output: 16A, Output Range Stick: 10-90A
• Input Power: Voltage/Phase/Hertz: 230/1/50/60: Rated Output: Current/Duty Cycle TIG: 200A/25%, Input Current @ Rated Output: 22A, Output Range TIG: 10-200A
• Input Power: Voltage/Phase/Hertz: 230/1/50/60: Rated Output: Current/Duty Cycle TIG: 160A/40%, Input Current @ Rated Output: 17A, Output Range TIG: 10-200A
• Input Power: Voltage/Phase/Hertz: 230/1/50/60: Rated Output: Current/Duty Cycle TIG: 130A/60%, Input Current @ Rated Output: 13A, Output Range TIG: 10-200A
• Input Power: Voltage/Phase/Hertz: 230/1/50/60: Rated Output: Current/Duty Cycle Stick: 170A/20%, Input Current @ Rated Output: 25A, Output Range Stick: 10-170A
• Input Power: Voltage/Phase/Hertz: 230/1/50/60: Rated Output: Current/Duty Cycle Stick: 100A/60%, Input Current @ Rated Output: 13A, Output Range Stick: 10-170A
• Max rating: 200
• Work Lead Connector Type: Dinse
• Voltage: 120/230
• Input Current: 120V TIG: 25% Duty Cycle 21A 40% Duty Cycle 17A, 60% Duty Cycle 14A, Stick: 20% Duty Cycle 19A 60% Duty Cycle 16A 230V TIG: 25% Duty Cycle 22A 40% Duty Cycle 17A 60% Duty Cycle 13A
• Input Hertz: 50/60
• Input Power: 120/230/1/50/60
• Input Phase: 1
• Mode Icon: CC
• Output Range: 120V TIG: 10-125A, Stick: 10-90A, 230V TIG: 10-200A, Stick: 10-170A
• Polarity: AC/DC
• Rated Output: 120V TIG: 125A/25%, 100A/40%, 85A/60%, 120V Stick: 75A/20%, 65A/60% 230V TIG: 200A/25%, 160A/40%, 130A/60% Stick: 170A/20%, 100A/60% 120V AC TIG: 110A/25%
• H x W x D in (mm): 14 x 10.75 x 19.25 (358 x 282 x 502)
• Net Weight: 46lb (21kg)

LLincoln U5126-1 (K5126-1) Square Wave TIG 200 TIG Welder Applications

• Automotive
• Brewery
• Distillery
• General Fabrication
• Home
• Hobby
• Shop
• Light Fabrication
• Hobby Aviation
• Maintenance & Repair
• Motorsports
• Makers
• Education

Lincoln U5126-1 (K5126-1) Square Wave TIG 200 TIG Welder Common Accessories

• K1782-14: PTA-17 TIG Torch Ready-Pak® – 150 amp air-cooled torch package with flexible head and 12.5 ft. (3.8 m) Ultra-Flex™ cable assembly with Twist-Mate™ adapter. Includes: #7 nozzle, 1/16 in. (1.6 mm) and 3/32 in. (2.4 mm) collets, collet bodies and E3® Tungsten
• K870: Foot Amptrol™ – with 25 ft. (7.6 m) cable assembly
• K520: Utility Cart – Accommodates power source, gas cylinder, tools and welding accessories. Includes: adjustable handle, front casters, and rear wheels. 30 (min.)/34 (max.) x 18 x 35 inches.
• K963-3: Hand Amptrol™ (Rotary Track Style) – Provides 25 ft. (7.6 m) of remote current control for TIG welding.
• K2377-1: Canvas Cover
• K1781-1: PTA-9 TIG Torch – 125 amp air-cooled torch with 12.5 ft. (3.5 m) one piece cable assembly
• K1782-15: PTA-17F TIG Torch – 150 amp air-cooled torch with Flex Head and Ultra-Flex 12.5 ft. (3.5 m) one piece cable assembly
• K1783-1: PTA-26 TIG Torch – 200 amp air-cooled torch with 12.5 ft. (3.5 m) one piece cable assembly
• K1622-1: Twist-Mate Adapter – Use to connect PTA-9, 125 amp and PTA-17, 150 amp air-cooled TIG torches with one piece cable assemblies
• K1622-3: Twist-Mate Adapter – Use to connect PTA-26, 200 amp air-cooled TIG torch with one piece cable assembly
• KP507: Parts Kit for PTA-9 Series TIG Torches – Contains a long back cap, 0.040 in., 1/16 in. collets, collet bodies and tungsten, and three Alumina nozzles (1/4 in., 5/16 in., 3/8 in. orifices)
• KP508: Parts Kit for PTA-17 Series TIG Torches – Contains a short back cap, 0.040 in., 1/16 in., 3/32 in. collets, collet bodies and tungsten, and three Alumina nozzles (1/4 in., 5/16 in., 3/8 in. orifices)
• KP509: Parts Kit for PTA-26 and PTA-18 Series TIG Torches – Contains a long back cap, 1/16 in., 3/32 in., 1/8 in., collets, collet bodies and tungsten, and three Alumina nozzles (5/16 in., 3/8 in., 1/2 in. orifices)

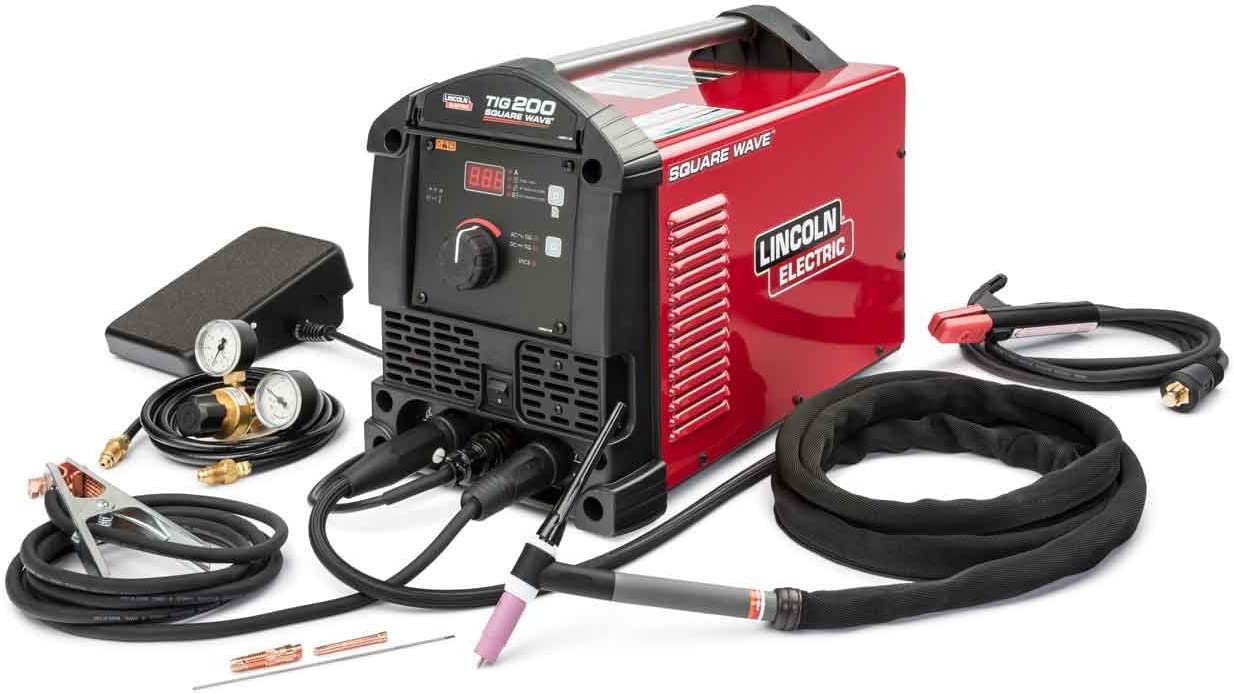

Lincoln U5126-1 (K5126-1) Square Wave TIG 200 TIG Welder Includes

• Lincoln U5126-1 (K5126-1) Tig Welder
• Gas Regulator/Flowmeter and 10 ft. (3 m)
• Gas Hose Kit 200A Stick Electrode Holder
• Ground Clamp and Cable
• 120 and 230V Input Cords
• Foot Amptrol™ – 25 ft. (7.6m) (6 pin) | K870
• PTA-17F TIG Torch Ready-Pak® (12.5 ft 1pc) | K1782-14
• Manual
