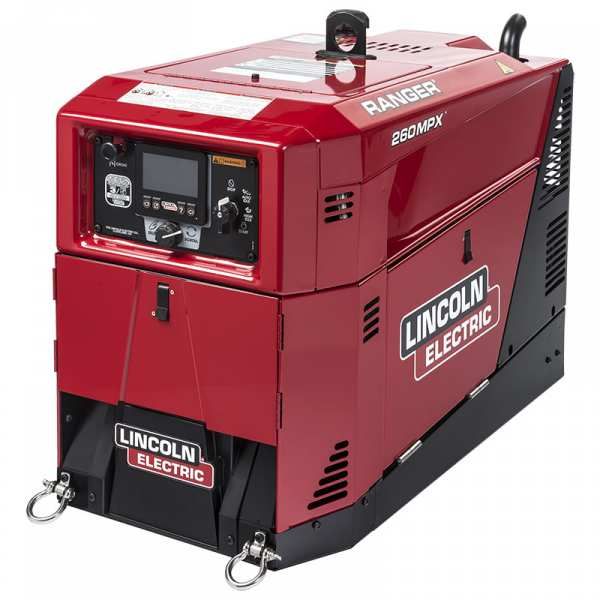

Lincoln U34581 Ranger 260MPX Engine Driven Welder Kohler Engine

Lincoln U34581 Ranger 260MPX Engine Driven Welder  features a powerful Kohler CH730 Gasoline Engine that is a factory certified, and factory reconditioned K3458-1 260MPX machine. Though the unit is factory reconditioned, the U34581 is a premium welder/generator with excellent multi-process capability for stick, TIG, MIG while providing clean AC generator output. The 260MPX has reduced noise levels help improve jobsite comfort and safety, and also make the Ranger 260MPX welder/generator an ideal option for use in low-noise work environments like schools or hospitals. The smaller size enables you to maneuver the Ranger 260MPX welder/ generator around the jobsite with ease, and allows more space for additional tools and equipment. The 260 MPX engine driven welder features an easy-to-use digital interface with simple push-and-turn controls, combined with technology designed for quick setup and improved arc control, enables you to get started in no time.

Lincoln’s Ready.Set.Weld technology simplifies setup by recommending optimal welding parameters for a given welding procedure. Just follow the 5-step process and enter the requested information to obtain recommended settings: 1 Process 2 Electrode Type 3 Electrode Diameter 4 Plate Thickness 5 Polarity

The U34581 provides you maintenance alerts keeping track of engine functions and provide real-time data and notifications when service is required. The maintenance screen clearly displays hours remaining, and settings can be customized to issue alerts at preferred intervals. CrossLinc remote technology communicates voltage controls to the welding power source through one common weld cable, reducing cable clutter and minimizing unnecessary movement around the jobsite. Chopper Technology feature provides easy starts, a smooth and consistent arc, and low spatter to help achieve optimal bead appearance

DO MORE WITH LESS
The Ranger® 260MPX™ engine driven welder/generator excels on the job. The unit’s industry-leading design makes it smaller, lighter and quieter than other machines in its class, while an intuitive user interface with advanced technology helps simplify operation and improve arc control. You can also count on a reliable source of clean generator power to run a variety of tools and sensitive equipment. Check out the features below:

Industry-Leading Design
The Ranger 260MPX welder/generator is smaller and quieter compared to other machines in its class.

• Up to 20% smaller – more space for additional tools
• Up to 25% lighter – easy maneuverability around the jobsite
• Up to 60% quieter – reduced noise level helps enhance safety and comfort

Innovative User-Interface + Advanced Technology

• Easy-to-read digital screen with simple push-and-turn controls
• Ready.Set.Weld® technology simplifies setup with recommended settings
• The Chopper Technology® feature helps improve arc control
• CrossLinc® remote technology allows for arc adjustments at the weld
• Maintenance alerts keep you informed when service is needed

Clean Generator Power – Whether powering up tools on the jobsite or running appliances at home, you can count on the Ranger 260MPX welder/generator.

• 9.5kW of clean AC generator power accommodates a variety of tools and equipment
• Operate sensitive electronics, like laptops, without concern – this unit delivers clean generator power with 5% Total Harmonic Distortion
• Run generator power and weld at the same time, without interruption

Lincoln U34581 Ranger 260MPX (K3458-1) Engine Driven Welder Kohler Engine Typical Application

• Construction
• Construction & Field Erection
• General Fabrication
• Maintenance & Repair
• Repair Welding
• Structural Fabrication
• Structural Welding

Lincoln U34581 Ranger 260MPX (K3458-1) Engine Driven Welder Kohler Engine Features

• Compact Size helps streamline operations on the jobsite
• Low Decibel Rating helps enhance comfort and safety
• Digital User Interface makes setup quicker and easier
• Advanced Technology improves arc control:– Ready.Set.Weld® – Chopper Technology®– CrossLinc®
• Clean Generator Power enables the operation of various tools
• Maintenance Alerts ensure proper service when needed
• Easy-to-Use Digital User Interface

Lincoln U34581 Ranger 260MPX (K3458-1) Engine Driven Welder Kohler Engine Machines Processes

• Stick (SMAW)
• TIG (GTAW)
• MIG (GMAW)
• Flux-Cored Self-Shielded (FCAW-S)
• Flux-Cored Gas-Shielded (FCAW-G)

Lincoln U34581 Ranger 260MPX (K3458-1) Engine Driven Welder Kohler Engine Specifications

• IEC Rating: 231A / 29.2V / 100% @ 104°F (40°C)
• Max Rating: 260A / 26V / 100% @ 104°F (40°C)
• Output Range by Mode: CC-Stick: 35 –260 Amps, Touch Start TIG: 20 – 250 Amps, CV-Wire: 14 – 28 Volts

Lincoln U34581 Ranger 260MPX (K3458-1) Engine Driven Welder Kohler Engine Engine Driven Welder

• Single Phase Auxiliary Output: 9,500 Watts Continuous, 120/240V
• Auxiliary Output Frequency: 60 Hz
• Receptacle Types: NEMA 5-20R, NEMA 6-50R, NEMA 14-50R
• Engine Brand & Model: Kohler OHV Command CH730
• Engine Description: 2 Cylinder Air-Cooled Gasoline Engine
• Engine Horsepower: 23.5 HP
• High Idle Operating Speed @ Rated Output: 3600
• Fuel Tank Size (US gal.): 11
• Fuel Tank Size (L): 41.6
• Oil Capacity (qts.): 2.0
• Oil Capacity (L): 1.9

Lincoln U34581 Ranger 260MPX (K3458-1) Engine Driven Welder Kohler Engine Machine Specifications

• Product Name Ranger: 260MPX
• Ordering Information: U34581 (K3458-1) Painted Roof, Case Sides and Engine Doors
• Description: 260 Amp DC Mulit-Process Arc Welder with Chopper Technology,  10,000 Watts Peak AC Power, 9,500 Watts Continuous AC Power
• CC Rated Output Current/Voltage/ Duty Cycle: DC Constant Current 260A/26V/100%, Touch Start TIG260A/26V/100%
• CV-Rated Output Current/Voltage/ Duty Cycle: DC Constant Voltage(1) 260A/26V/100%
• Generator AC Power (2)(3): 10,000 Watts Peak,  9,500 Watts Continuous 60 Hz Single Phase, Full KVA Receptacle 39.5 @ 240V40A @ 120V ea. Branch Circuit (4), Four 120V Receptacles 20A Total (4)
• Dimensions H x W x L inches (mm):  26 x 20 x 36 (660 x 508 x 914)
• Weight lbs. (kg): 446 (202)

Lincoln U34581 Ranger 260MPX (K3458-1) Engine Driven Welder Kohler Engine Engine Specifications

• Engine Model: Kohler OHV (5) Command CH730 Gasoline
• Description: 2 Cylinder, 4 Cycle,OHV, Air-Cooled Gasoline Engine Aluminum Alloy Block with Cast Iron Liners Electric Fuel Pump
• Horsepower & Displacement: Min. 23.5 HP (6) @ 3600 RPM 44.2 cu in(725 cc)
• Ignition: Electric Start, 12V Group 99 Battery, 410 Cold Cranking Amps, Rotary Start Switch
• Capacities Gals (Liters): Fuel 11 / (41.6), Oil .05 / (1.9)
• Operating Speeds RPM: Full Load 3,600 RPM, High Idle 3650 RPM,  Low Idle 2,400 RPM
• Fuel Consumption Gals/Hr (Liters/Hr):  1.6 / (6.1), .08 / (3.1), 0.6 / (2.1)

1. DC constant voltage capability provides convenience and added safety when welding in electrically hazardous conditions.
2. When welding, available auxiliary power will be reduced. Output voltage is within +\- 10% at all loads up to rated capacity.
3. 120V will operate either 60 Hz or 50/60 Hz power tools, lights, etc.
4. Circuits cannot be wired in parallel to operate the same device.
5. Kohler warranty is 3 years.
6. A minimum of 23.5 HP. Exact HP in your machine may vary based on availability. Consult your Ranger 260MPX manual upon purchase for exact engine specification.
