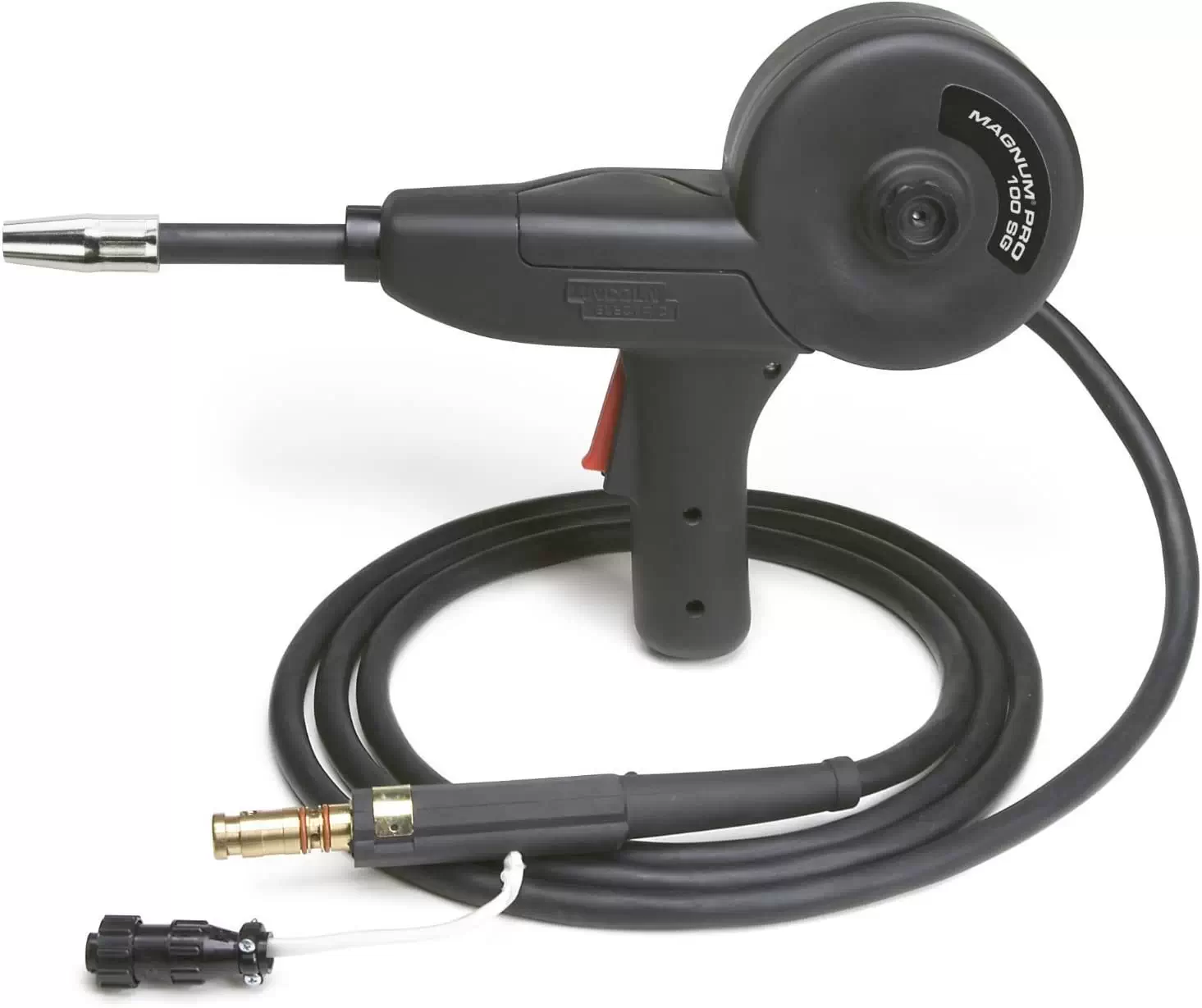

Lincoln K3269-1 Magnum PRO 100SG Spool Gun, 4-Pin, 10ft, Soft Aluminum Wire

The Lincoln K3269-1 Magnum PRO 100SG is a light, compact and reliable welding spool gun that is the lowest cost way to add reliable and precise wire feeding performance for soft aluminum wire. The Magnum PRO 100SG is easy to set up for occasional and experienced welders on Lincoln Electric compact wire feeder/welders. The Lincoln K3269-1 Magnum PRO 100SG Spool Gun was designed for all aluminum alloys using the recommended wire diameters can be fed with the same drive roll and liner assembly. The 4-pin gun connector offers fast connections to the welding machine and provides 10′ (3m) of length. The Lincoln K3269-1 Magnum PRO 100SG Spool Gun is ergonomic, well balanced and lightweight at only 3.5lbs reducing user fatigue allowing effortless all day use.

Lincoln K3269-1 Magnum PRO 100SG Spool Gun, 4-Pin, 10ft (3m) Features

• Premium Magnum® PRO Expendables – Copper Plus – contact tips and long-life diffusers with Anti-Seize™ threads.
• Lightweight – at only 3.5 lbs. (1.6 kg).
• For all aluminum alloys – Recommended wire diameters can be fed with the same drive roll and liner assembly.
• Ergonomic grip – and balanced design.
• Full travel mechanical trigger – Excellent feedback even through a welding glove.
• 10 ft. (3.0 m) gun cable – Gun connector offers fast connections to the welding machine.
• No expensive gun or bulky adapter module
• Sturdy carrying case – Protects the gun during transport and storage
• Premium Magnum® PRO expendable gun parts improve heat dissipation and extend life

Lincoln K3269-1 Magnum PRO 100SG Spool Gun, 4-Pin, 10ft (3m) Applications

• Light Fabrication
• Quick Projects
• Maintenance & Repair

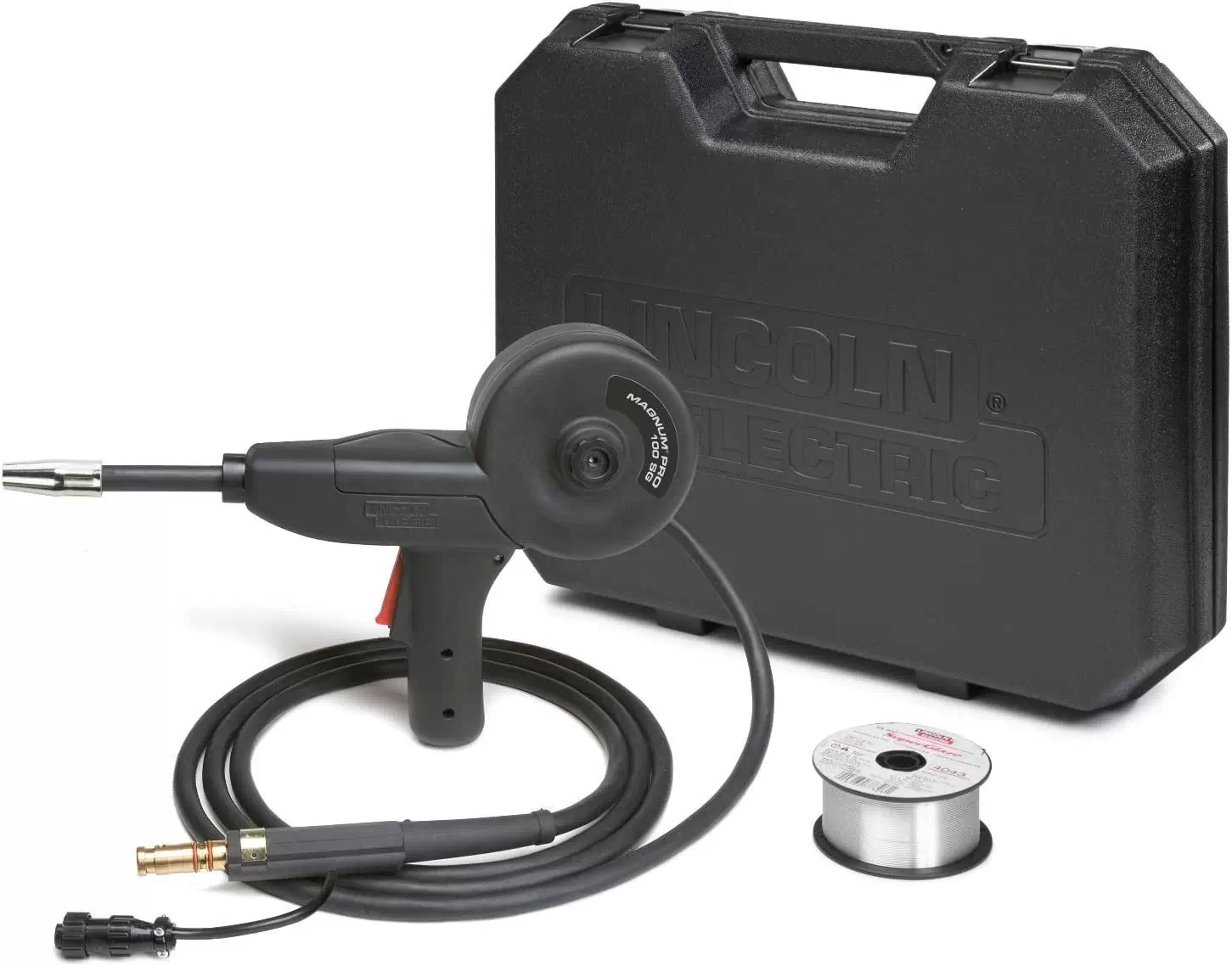

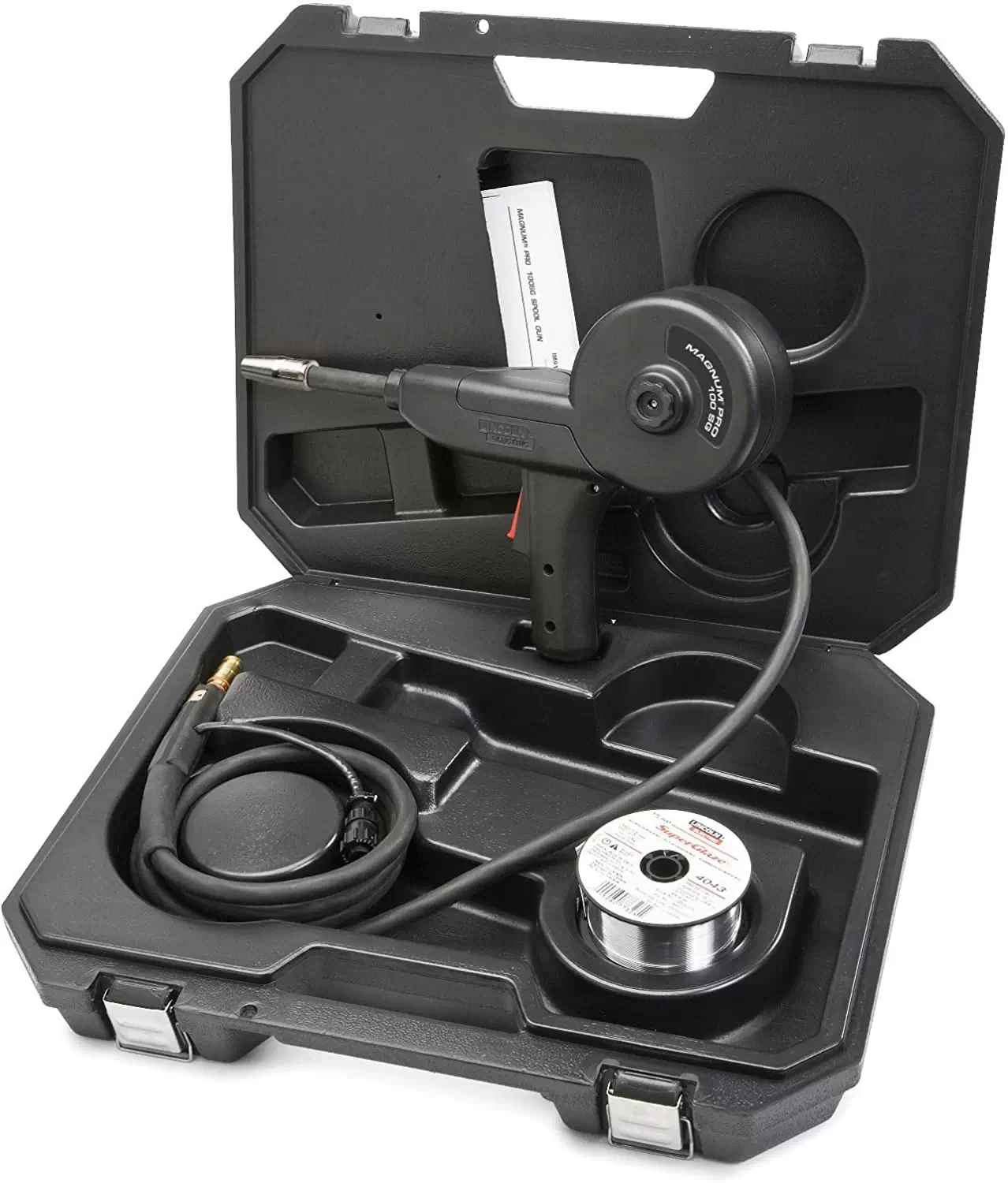

Lincoln K3269-1 Magnum PRO 100SG Spool Gun, 4-Pin, 10ft (3m) Includes

• Magnum PRO 100SG K3269-1 Spool gun with 10 ft. (3.0 m) cable
• Spool of 0.035 in. (0.9 mm) 4043 aluminum alloy wire
• 0.030-0.035 in. (0.8-0.9 mm) drive roll
• Contact tips (Qty. 3) KP2744-035T
• Sturdy carrying case

Lincoln K3269-1 Magnum PRO 100SG Spool Gun, 4-Pin, 10ft (3m) Specifications

• Process MIG
• Length (ft) 10 (M) 3
• Rated Amperage CO2 130
• Duty Cycle at Rated Amperage (CO2) 30%
• Dimensions: 15.75 x 10.50 x 4.25 (400 x 267 x 108
• Weight: 3.5 (1.6)

Lincoln K3269-1 Magnum PRO 100SG Spool Gun, 4-Pin, 10ft (3m) Compatibility

• MAGNUM PRO 100SG – 4 PIN: POWER MIG® 216 POWER MIG® 210 MP POWER MIG® 140C POWER MIG® 180C POWER MIG® 180 Dual SP-140T SP-180T
• MAGNUM PRO 100SG – 8 PIN: POWER MIG® 140MP MIG-Pak 140

Lincoln K3269-1 Magnum PRO 100SG Spool Gun, 4-Pin, 10ft (3m) Common Parts

• KP2744-030T 0.030 (0.8) Contact Tip, 10 pack
• KP2744-035T  0.035 (0.9) Contact Tip, 10 pack
• KP3076-1 Gas Diffuser
• KP3075-1-50F Gas Cone Assembly
• KP3325-1 Gun Tube Assembly
• KP2529-2 Drive Roll Assembly
• KP2632-1 Liner Assembly

Lincoln K3269-1 Magnum PRO 100SG Spool Gun, 4-Pin, 10ft (3m) Warranty

• Lincoln Electrics 90 Day Warranty
