Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder

Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder is setup for welding thin steel, stainless or aluminum sheet metal with MIG or thicker steel with flux-cored welding. Get it done with the Weld-Pak® 180HD for farm, light fabrication, auto or home projects! If you have access to 208/230 volt input power, you can weld on thicker material. Simple two knob control makes it easy to tackle thin steel, stainless or aluminum sheet metal with MIG or thicker steel with flux-cored welding. Compare the precise drive, rugged construction and full list of standard accessories. . . Lincoln Electric Weld-Pak® 180HD is an excellent choice!

Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder Features

• Heavy Duty Wire Drive – Fully adjustable drive system reduces the chance of wire tangling and crushing.
• Brass-to-brass gun connection enhances conductivity.
• Durable cast aluminum gear box delivers added drive torque and quiet operation.
• Capable Performance – Forgiving arc makes dialing in your application easy.
• Smooth arc starts with minimal spatter.

Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder Machines

• Machines Processes MIG (GMAW)
• Max Rating 180
• Welding Gun Cable Assembly Length 10FT
• Work Cable Length 10 FT

Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder Wire and TIG Feeders

• Contact Tips Included Yes
• Hand Shield Included No
• Input AC Voltage 208/230
• Instructional Media Included Yes
• Sample Flux Wire Included Yes
• Sample MIG Wire Included Yes
• Wire Feed Duty Cycle 30%

Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder Basic Specification

• Input Voltage 200/208,220/230/240
• Input Current 20A
• Input Hertz 60
• Input Power 208/230/1/60
• Input Phase 1
• Mode Icon CV
• Output Range 30-180A
• Polarity DC
• Rated Output 208: 130A/17V/30%,230: 130A/20V/30%

Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder Stick Welders

• Welding Gun Cable Assembly Length 10FT
• Ground Cable Length 10 FT

Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder Applications

• Home
• Hobby
• Metal Fabrication
• Maintenance & Repair
• Autobody / Automotive
• Farm / Agricultural
• Light Industrial

Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder Accessories

• K520 Utility Cart (150 cu.ft bottle capacity)
• K3281-1 .045 Innershield Welding Kit
• KP2948-1 Flux-Cored MIG Wire Drive Roll
• KP3285-1 Flux-Cored MIG Wire Drive Roll .035 – .045 in (0.9 – 1.1 mm)

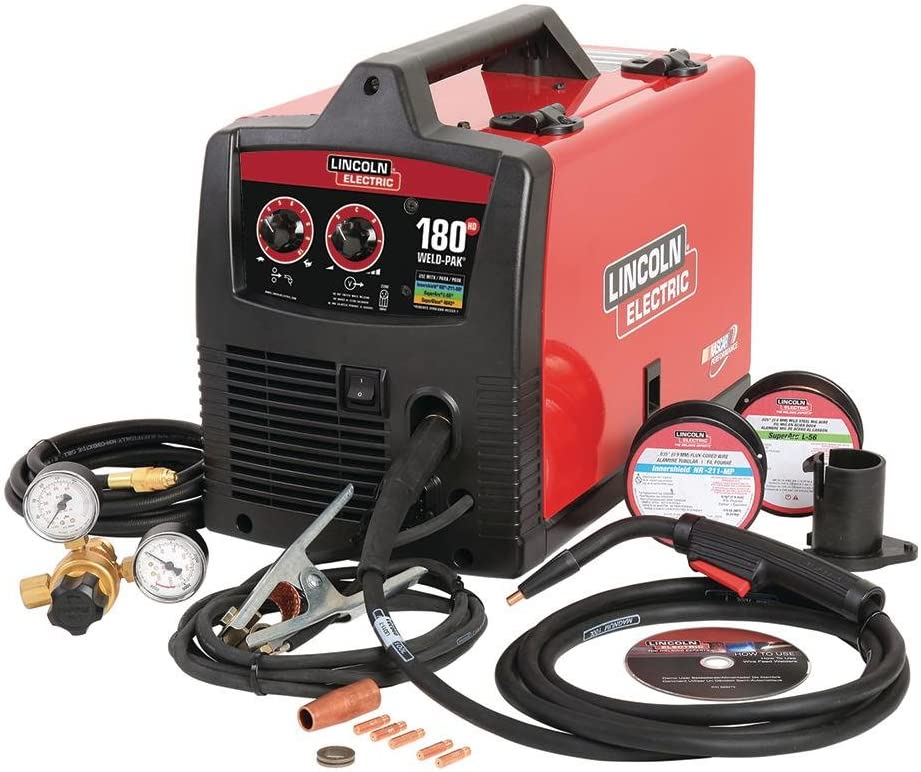

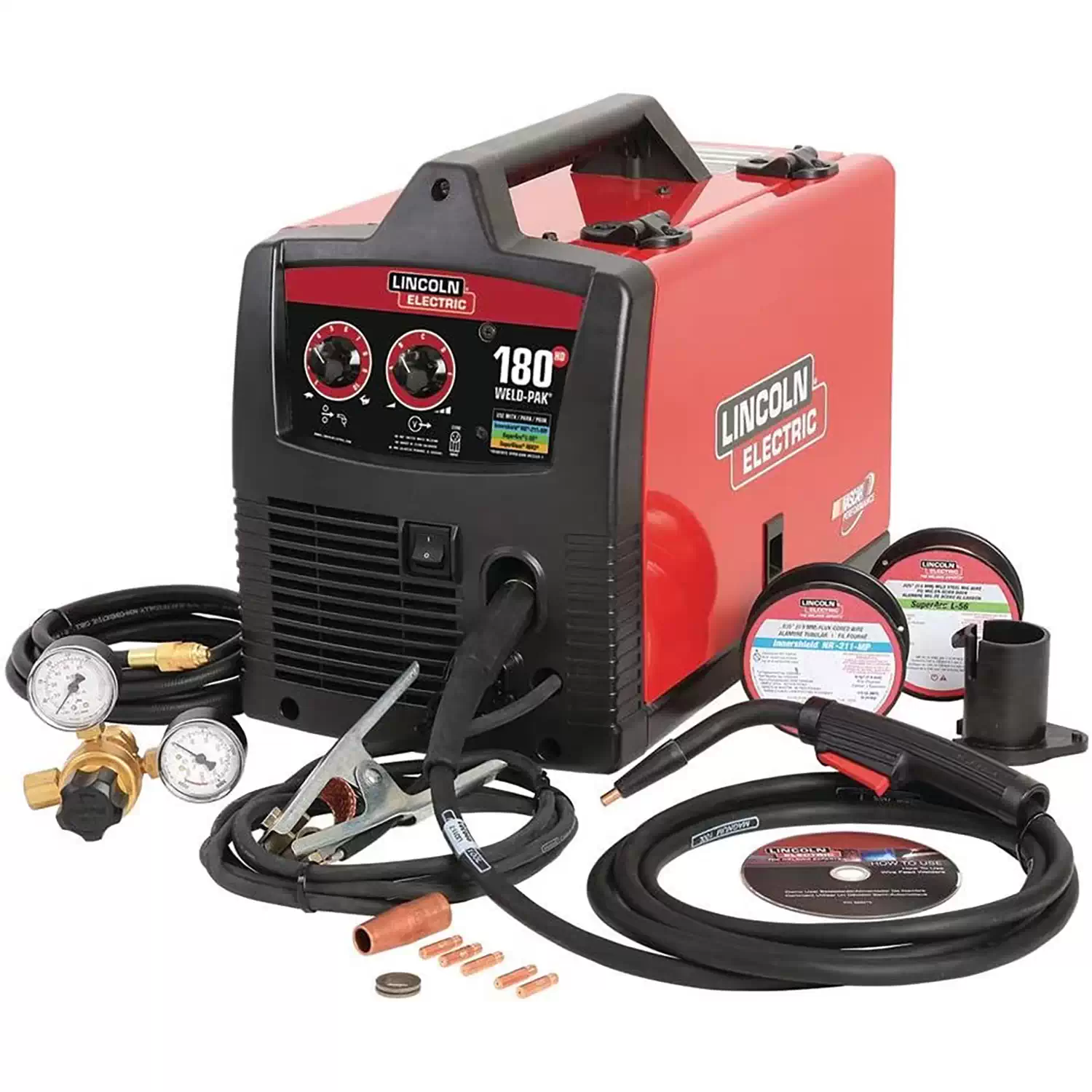

Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder Includes

• Lincoln WELD-PAK 140HD (K2514-1) Wire Feed Welder
• Gun Magnum® 100L gun
• 10 ft. (3.0 m) cable assembly with brass gun connection
• 4-pin MS-Type connection for trigger control (K530-6)
• .025 in (0.6 mm) and .035 in (0.9 mm) contact tips
• Gasless nozzle for Innershield® welding (KH726)
• Gas nozzle for MIG welding (KH725)
• Spindle adapter for 8 in. (203 mm) diameter spools (KH720)
• Shielding Gas Apparatus Harris® 3000290 Gas Regulator (S25805)
• 52 in. (1.3 m) hose (S19303) for use with Ar/CO2 or CO2 gases. For use with CO2 shielding gas
• Manual

Lincoln K2515-1 Weld-Pak 180HD MIG Wire Feed Welder Warranty

• Lincoln Electric’s 3 Year Limited Warranty
