Lincoln K2514-1 Weld-Pak 140HD Compact MIG Wire Feed Welder

The Lincoln K2514-1 Weld-Pak 140HD wire feeder welder from Lincoln Electric is setup for gas-less flux-cored welding to weld common steel. 120 Volt AC Input Compact Wire Welder Requiring common 120 volt input power, the Weld-Pak® 140HD can be used almost anywhere. With simple two knob control, the machine is easy to set up for gasless flux-cored welding for deep penetration on thicker steel or gas-shielded MIG welding on thin gauge steel, stainless or aluminum. Compare the precise drive, rugged construction and full list of standard accessories. . . the Lincoln Electric Weld-Pak® 140HD is an excellent choice!

Lincoln K2514-1 Weld-Pak 140HD Compact MIG Wire Feed Welder Features

• Fully adjustable drive system reduces the chance of wire tangling and crushing.
• Brass-to-brass gun connection enhances conductivity.
• Durable cast aluminum gear box delivers added drive torque and quiet operation.
• Forgiving arc makes dialing in your application easy.
• Smooth arc starts with minimal spatter.

Lincoln K2514-1 Weld-Pak 140HD Compact MIG Wire Feed Welder Specifications

• Product Name: WELD-PAK 140HD
• Product Number: K2514-1
• Process: MIG, Flux-Cored
• Input Power: 120/1/60
• Rated Output  Voltage/ Duty Cycle: 90A/19V/20%
• Input Current @ Rated Output: 20A
• Output Range: 30-140 Amps
• Dimensions Height X Width X Deep : 13.7 in x 10.15 in x 17.9 in (357 mm x 258 mm x 472 mm)
• Weight: 50 lbs (22.7 kg)
• Machines Processes MIG (GMAW)
• Max Rating 140
• Welding Gun Cable Assembly Length 10FT
• Work Cable Length 10 FT
• Wire and TIG Feeders
• Contact Tips Included Yes
• Hand Shield Included No
• Input AC Voltage 120
• Instructional Media Included Yes
• Sample Flux Wire Included Yes
• Sample MIG Wire Included Yes
• Wire Feed Duty Cycle 20%

Lincoln K2514-1 Weld-Pak 140HD Compact MIG Wire Feed Welder Basic Specification

• Input Voltage 110/115/120
• Input Current 20A
• Input Hertz 60
• Input Power 120/1/60
• Input Phase 1
• Mode Icon CV
• Output Range 30-140A
• Polarity DC
• Rated Output 90A/19V/20%
• Stick Welders
• Welding Gun Cable Assembly Length 10FT
• Ground Cable Length 10 FT

Lincoln K2514-1 Weld-Pak 140HD Compact MIG Wire Feed Welder Applications

• Home
• Hobby
• Metal Fabrication
• Maintenance & Repair
• Autobody / Automotive
• Farm / Agricultural
• Light Industrial

Lincoln K2514-1 Weld-Pak 140HD Compact MIG Wire Feed Welder Accessories

• K520 Utility Cart (150 cu.ft bottle capacity)
• K3269-1 Magnum PRO 100SG spool gun is low cost for precise feeding of soft aluminum wire.

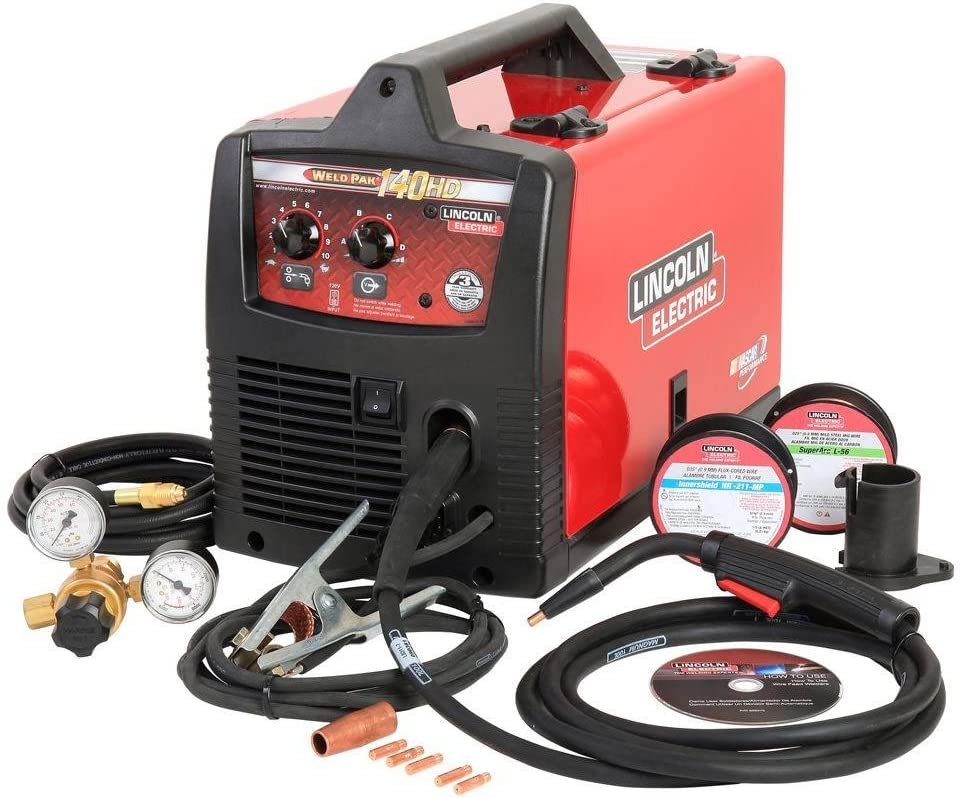

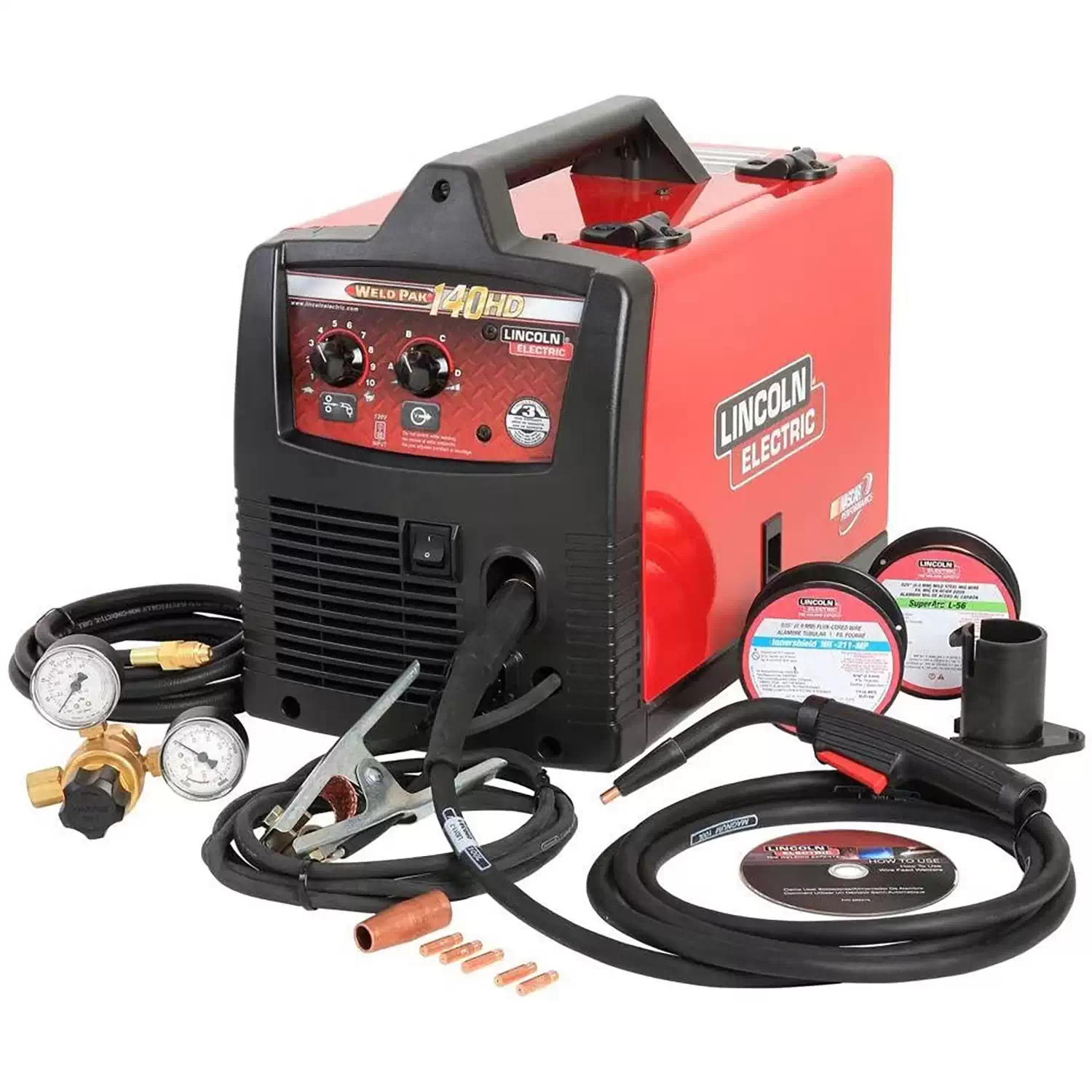

Lincoln K2514-1 Weld-Pak 140HD Compact MIG Wire Feed Welder Includes

• Lincoln WELD-PAK 140HD (K2514-1) Wire Feed Welder
• Spool gun with 10 ft. (3.0 m) cable
• Spool of 0.035 in. (0.9 mm) 4043 aluminum alloy wire
• 0.030-0.035 in. (0.8-0.9 mm) drive roll
• Contact tips (Qty. 3) KP2744-035T
• Sturdy carrying case
• Manual

Lincoln K2514-1 Weld-Pak 140HD Compact MIG Wire Feed Welder Warranty

• Lincoln Electric’s 3 Year Limited Warranty
