The Klein Tools ET450 Advanced Circuit Tracer Kit is a professional tracer for energized and non-energized breakers, fuses, and wires. When the Transmitter is connected to a circuit, the Receiver’s sensitivity can easily be adjusted to detect the transmitted signal on breakers, fuses, and wire through drywall, cement block, and underground. Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case with handle for convenient transportation and storage.
Klein ET450 Advanced Circuit Tracer Kit Features

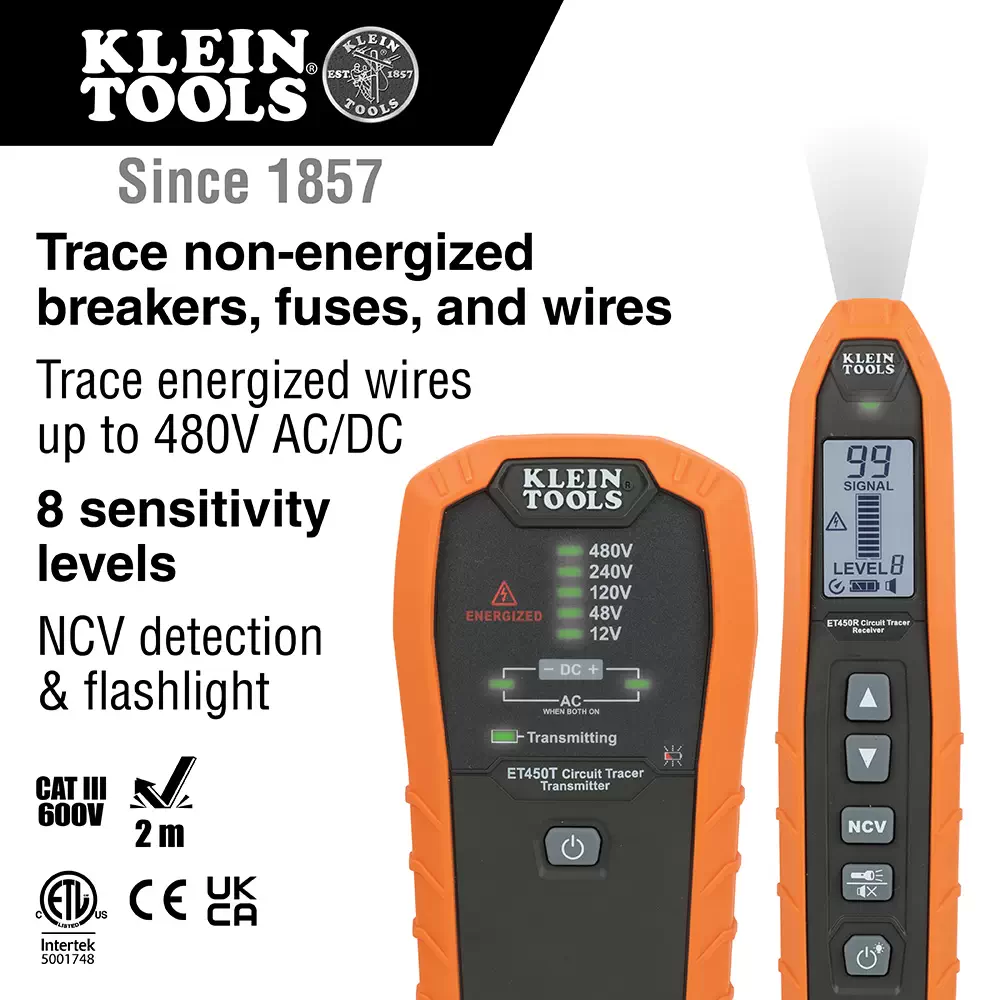

- The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires

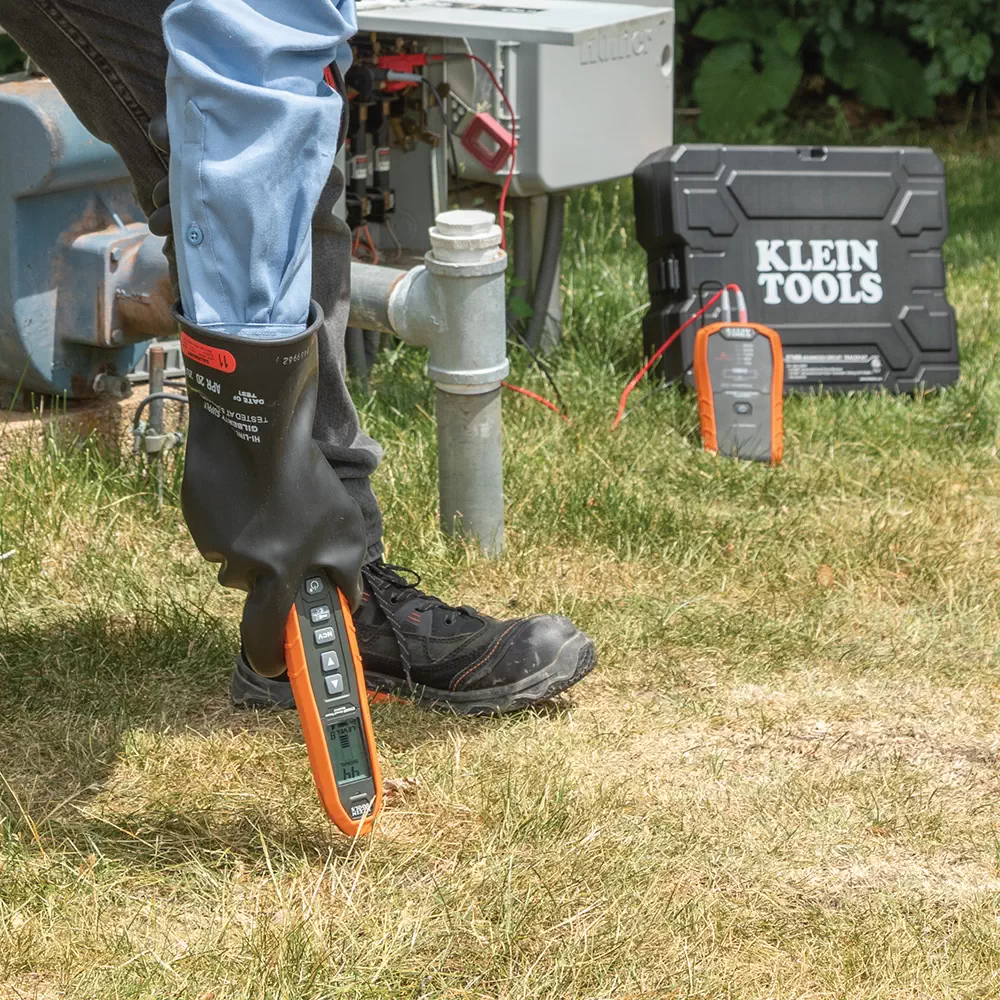

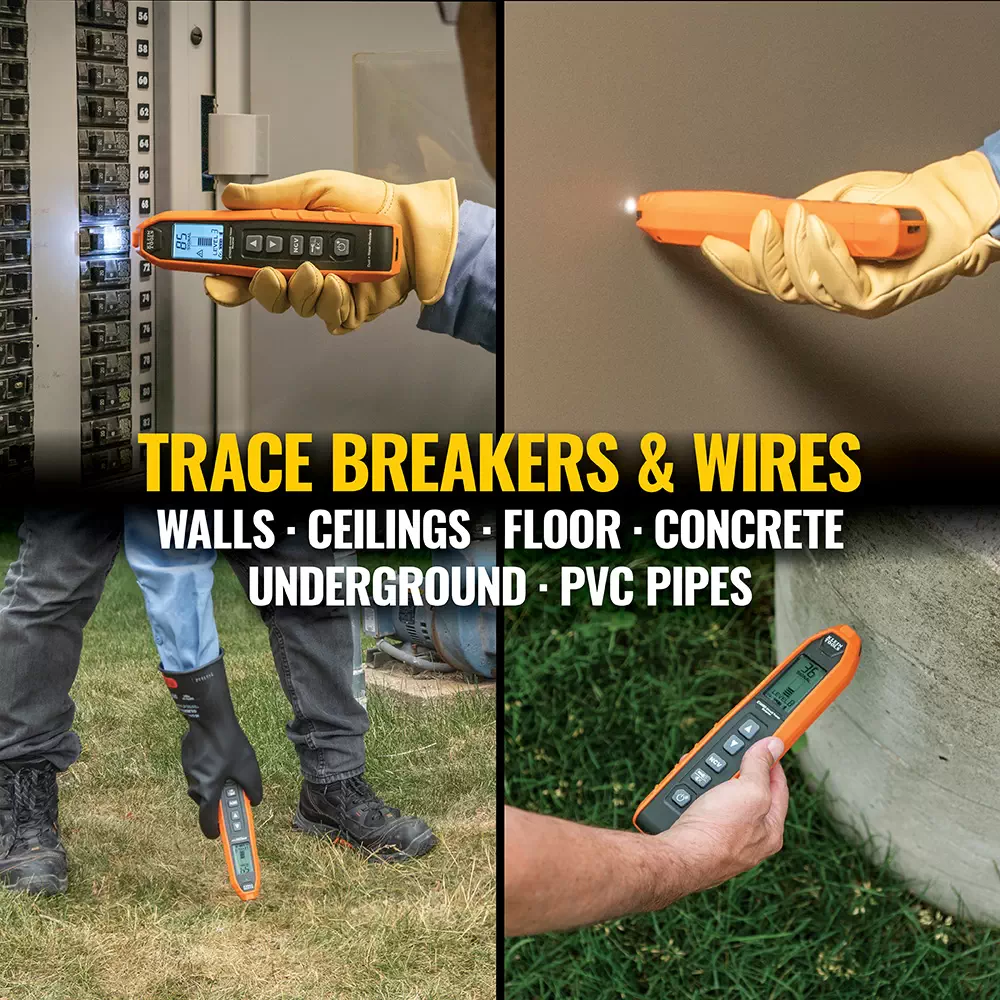

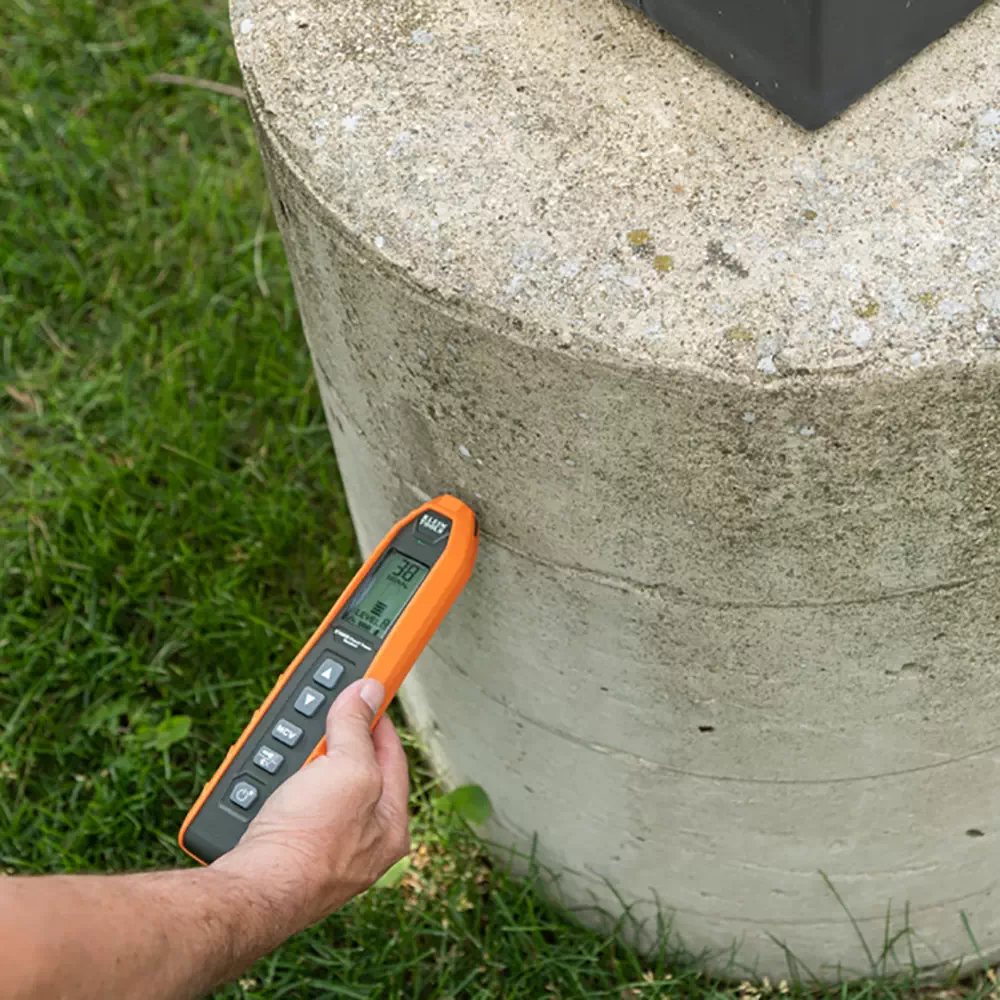

- Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
- Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
- Audible beep and visual indicators on receiver denotes signal strength

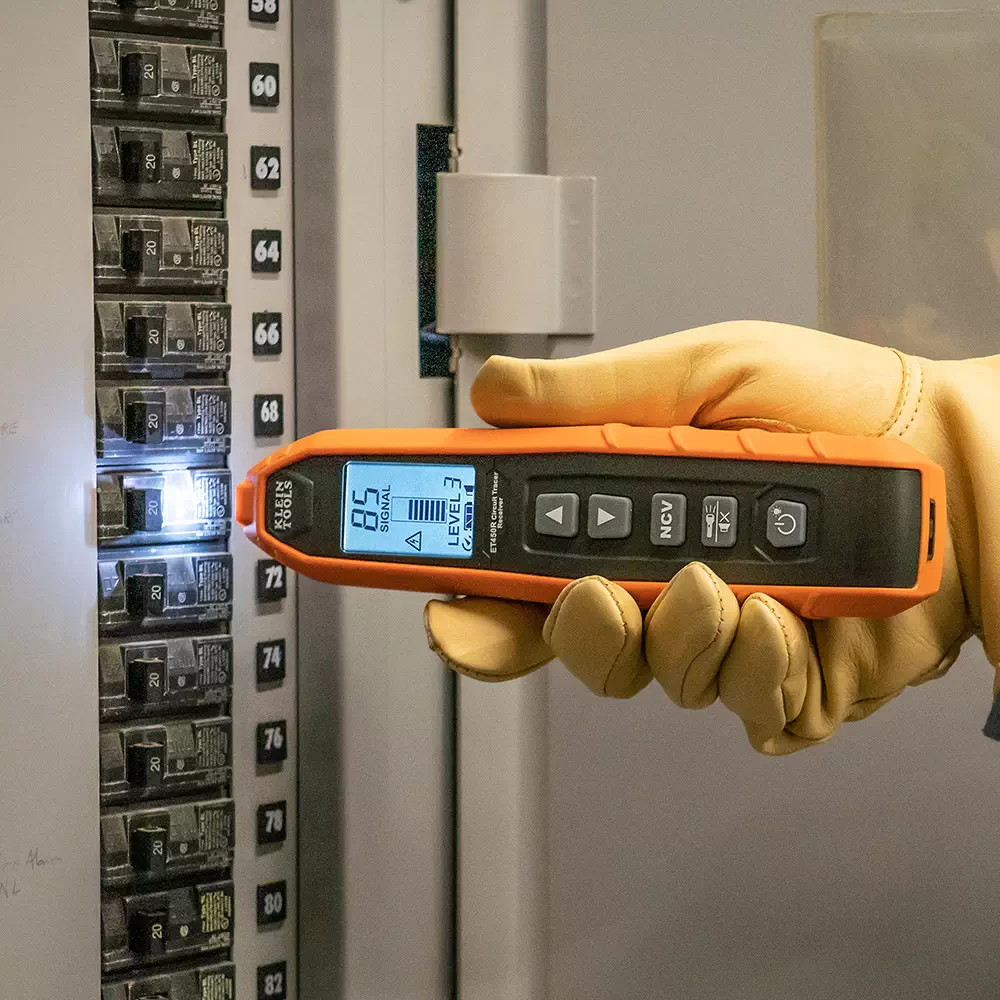

- Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized

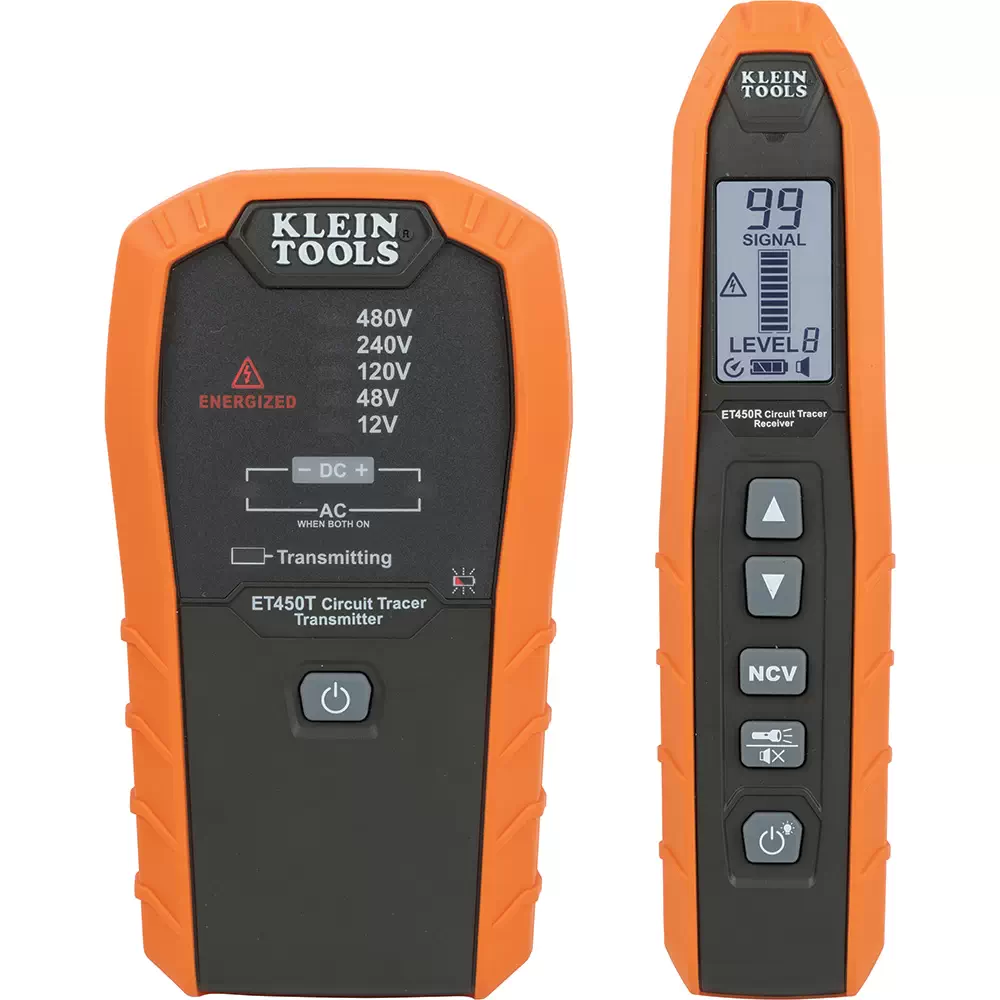

- Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V

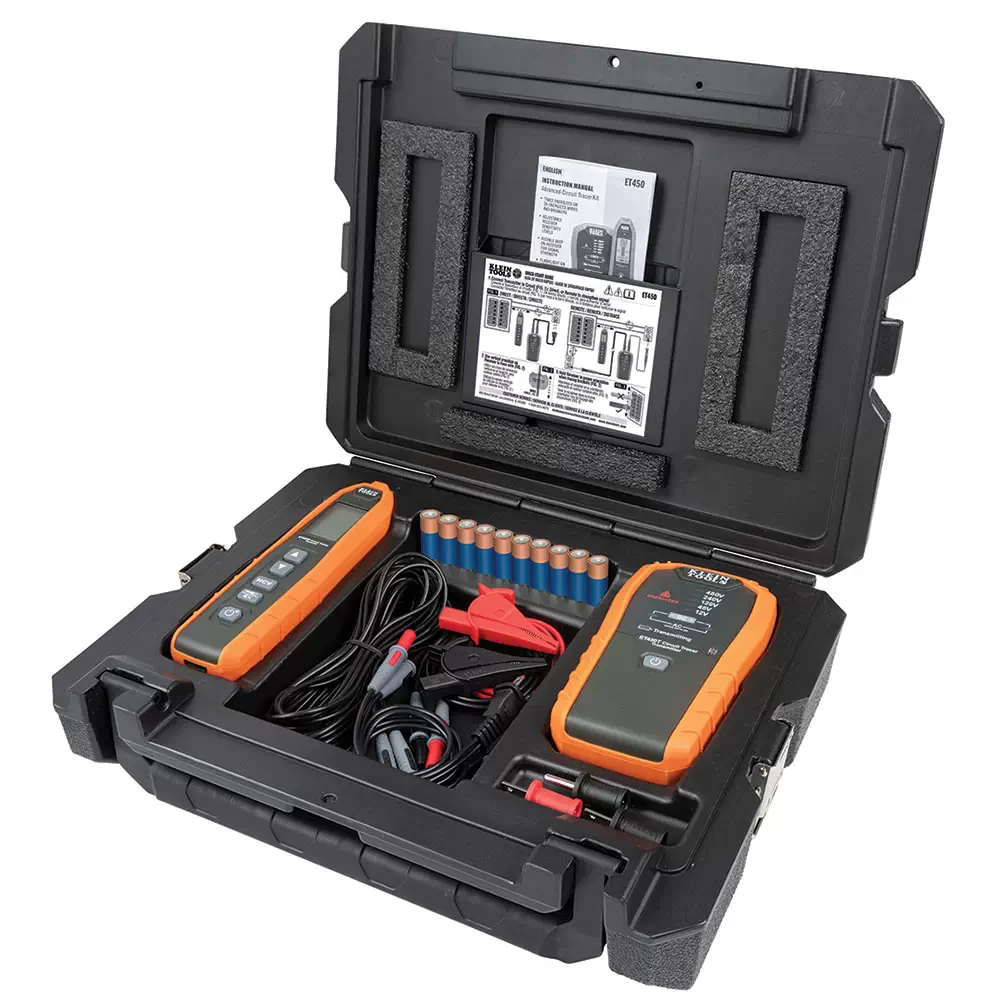

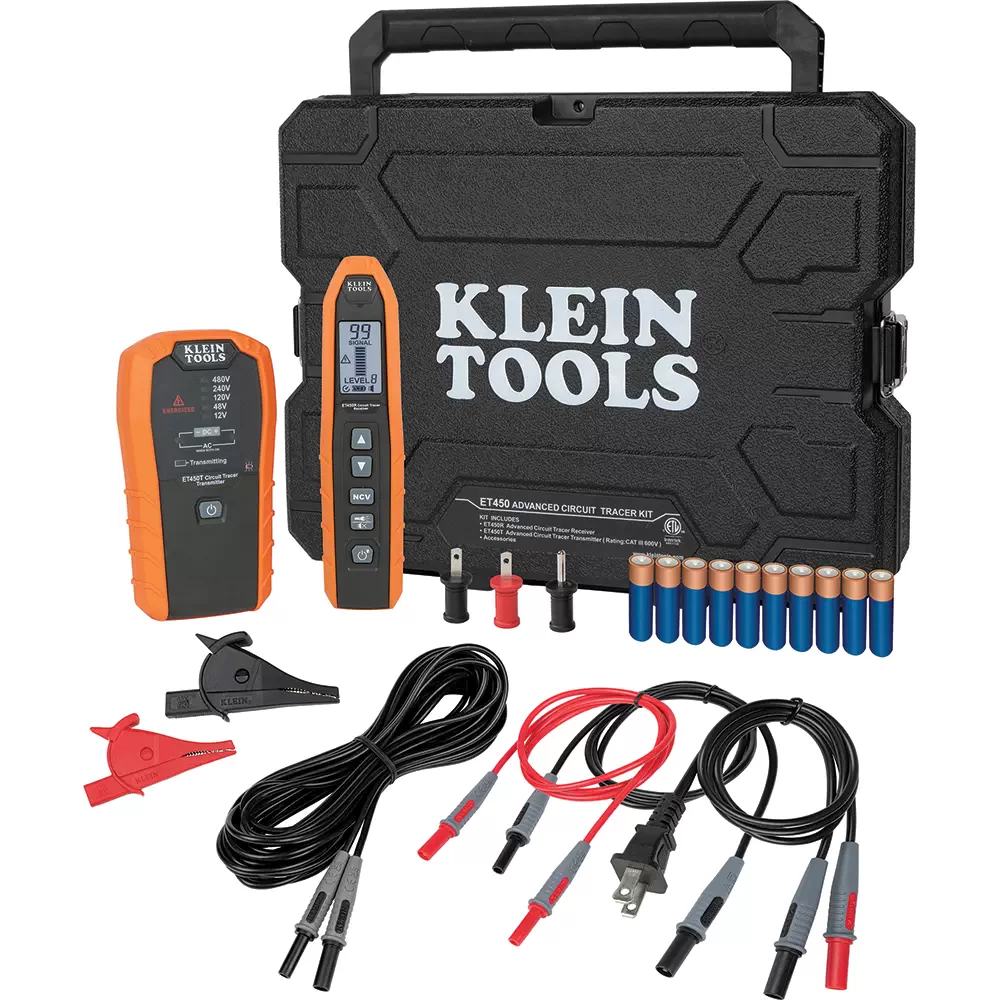

- Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case
Klein ET450 Advanced Circuit Tracer Kit Includes
- Transmitter
- Receiver
- Blade and Ground Prongs
- Alligator Clips
- 3′ and 20′ Lead Adapters
- AC Plug Leads
- Instructions
- All Required Batteries
- Hard Carrying Case
Klein ET450 Advanced Circuit Tracer Kit Specifications
- Type: Circuit Tracer
- Application: Trace Energized and Non-Energized Breakers, Fuses, and Wires
- Special Features: Flashlight and NCV Function on Receiver; Accessories, and Hard Case
- Material: ABS and Electronic Components

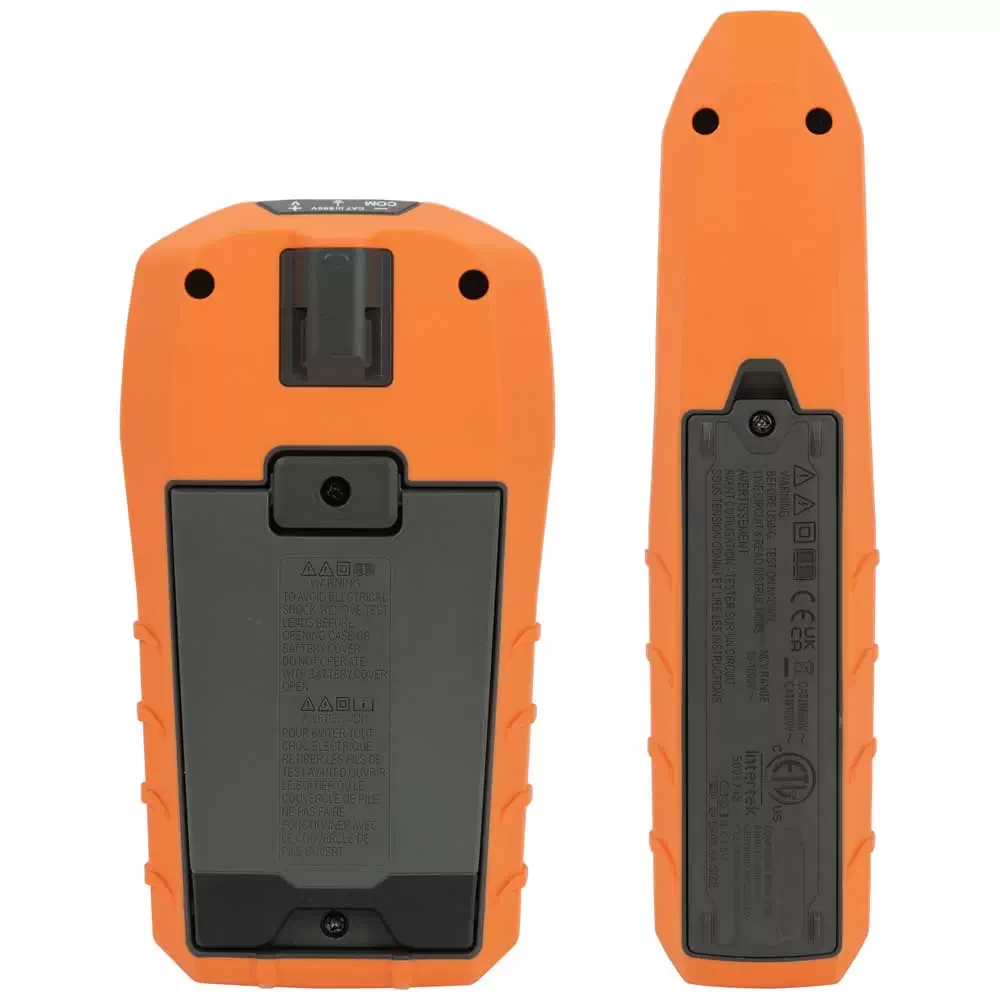

- Batteries: Transmitter: 6 × 1.5V AA Alkaline; Receiver: 4 × 1.5V AA Alkaline
- Battery Life: Up to 24 hr
- Drop Protection: 6′ (2 m)
- Display: Receiver LCD with Backlight
- Control Type: Transmitter and Receiver
- Voltage: External Indicators for 12V, 48V, 120V, 240V, and 480V
- Frequency: Transmitter: AC 45Hz to 65Hz; Receiver: 33kHz
- Ingress Protection: IP42
- Pollution Degree: 2
- Tests Continuity: No
- Integral Lead Storage: No
- Interchangeable Leads: Yes
- Lead Length: 3′ (1 m) and 20′ (6.1 m)
- Standard: CAT III 600V
- Case Included: Yes
- Included: Transmitter, Receiver, Blade and Ground Prongs, Alligator Clips, 3′ and 20′ Lead Adapters, AC Plug Leads, Instructions, All Required Batteries, and Hard Carrying Case
- Overall Length: Receiver: 7.05” (17.9 cm); Transmitter: 8.72” (22.2 cm)
- Overall Height: Receiver: 1.84” (4.5 cm); Transmitter: 1.51” (3.9 cm)
- Overall Width: Receiver: 3.90” (9.9 cm); Transmitter: 2.07” (5.3 cm)
- Weight: Transmitter: 16.5 oz (470 g); Receiver: 11 oz (312 g)
- UPC: 092644693380
Klein ET450 Advanced Circuit Tracer Kit Warnings
- Read, understand, and follow all warnings and instructions before operating testers.
- Before each use, verify tester operation by testing on a known live and correctly wired receptacle and circuit.
- DO NOT use if the tester appears damaged in any way.
- Always consult a qualified electrician to resolve wiring problems. ALWAYS adhere to local and national safety codes.
- NEVER use the tester on a circuit with voltages that exceed the category-based rating of this tester.
- Inspect the meter and test leads before use. DO NOT use if they appear damaged.
- DO NOT use testers during electrical storms or in wet weather.
- Turn off testers and disconnect test leads before attempting to replace batteries or fuses.
- Use personal protective equipment to prevent shock and arc blast injury where hazardous live connectors are exposed.
