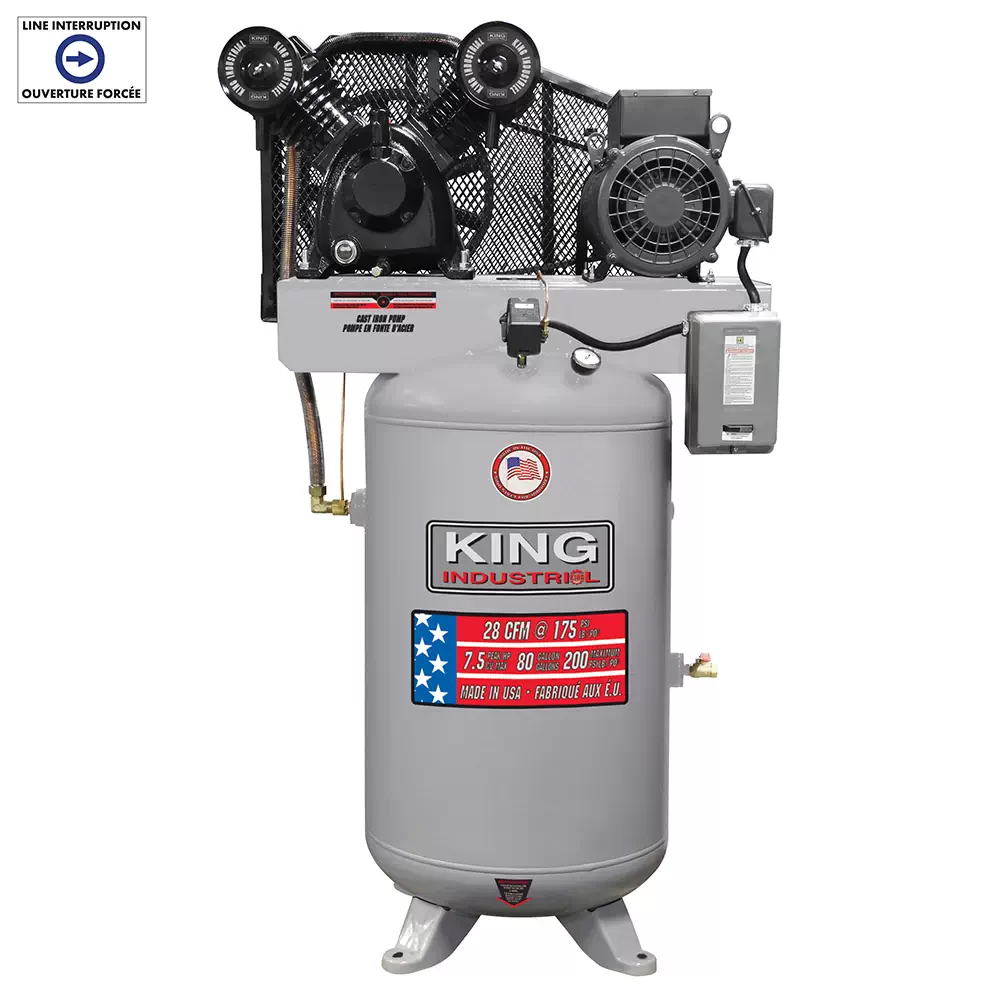

The King Industrial KC-7180V3-MS 7.5HP 80 Gallon Compressor features a 2 cylinder “V” style cast iron single stage oil lubricated pump that minimizes vibrations, improves cooling and extends compressor life. The belt drive system comes complete with a sturdy metal belt guard, ASME safety valve, large intake “Auto-drop” metal filters and high efficiency reed valves for maximum performance. The heavy-duty 1/2″ ball valve and easy to read tank pressure gauge ensure easy operation and easily visible settings. The King Industrial KC-7180V3-MS 7.5HP 80 Gallon Compressor comes with a thermally protected US Motor® 7.5 peak HP motor with reset that provides 200 PSI Max pressure for optimum tool performance and the 80 Gallon ASME registered tank provides longer run times. The King Industrial KC-7180V3-MS 7.5HP provides high air output allowing you to use it for Air Hoists, Pneumatic Clamps, Air Nailers & Staplers, Ratchets & Impact Tools, Sandblasting Equipment, and other high CFM tools and equipment.
King Industrial KC-7180V3-MS 7.5HP 80 Gallon Stationary Electric Air Compressor Features
- US Motors® 7.5 peak HP motor and magnetic starter
- 2 cylinder cast iron single stage oil lubricated pump
- 200 PSI Max pressure for optimum tool performance
- 80 Gallon ASME registered tank provides longer run times
- ASME safety valve
- Large intake “Auto-drop” aluminum filters
- Heavy-duty 1/2″ ball valve and easy to read tank pressure gauge
- Pump with “V” style design minimizes vibrations, improves cooling and extends compressor life
King Industrial KC-7180V3-MS 7.5HP 80 Gallon Stationary Electric Air Compressor Specifications
- MODEL KC-7180V3-MS
- MOTOR (PEAK) 7.5 HP
- FACTORY PRESSURE SETTING (ADJUSTABLE UP TO) 95-175 PSI
- MAXIMUM PRESSURE 200 PSI
- AIR DELIVERY @ 40 PSI 43 CFM
- AIR DELIVERY @ 175 PSI 28 CFM
- TANK SIZE 80 Gallon
- MOTOR AMPERAGE 33 Amp.
- RPM 1,800
- VOLTAGE 240V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT 39″ x 24″ x 71-1/2″ / 490 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT 40″ x 29″ x 73″ / 530 lbs
- UPC7 72995 01215 2
King Industrial KC-7180V3-MS 7.5HP 80 Gallon Stationary Electric Air Compressor Skid Size
- Dimensions LxWxH: 40″ x 29″ x 73″
- WEIGHT: 530 LBS
King Industrial KC-7180V3-MS 7.5HP 80 Gallon Stationary Electric Air Compressor Warranty
- King Industrial’s 1 YEAR LIMITED WARRANTY
