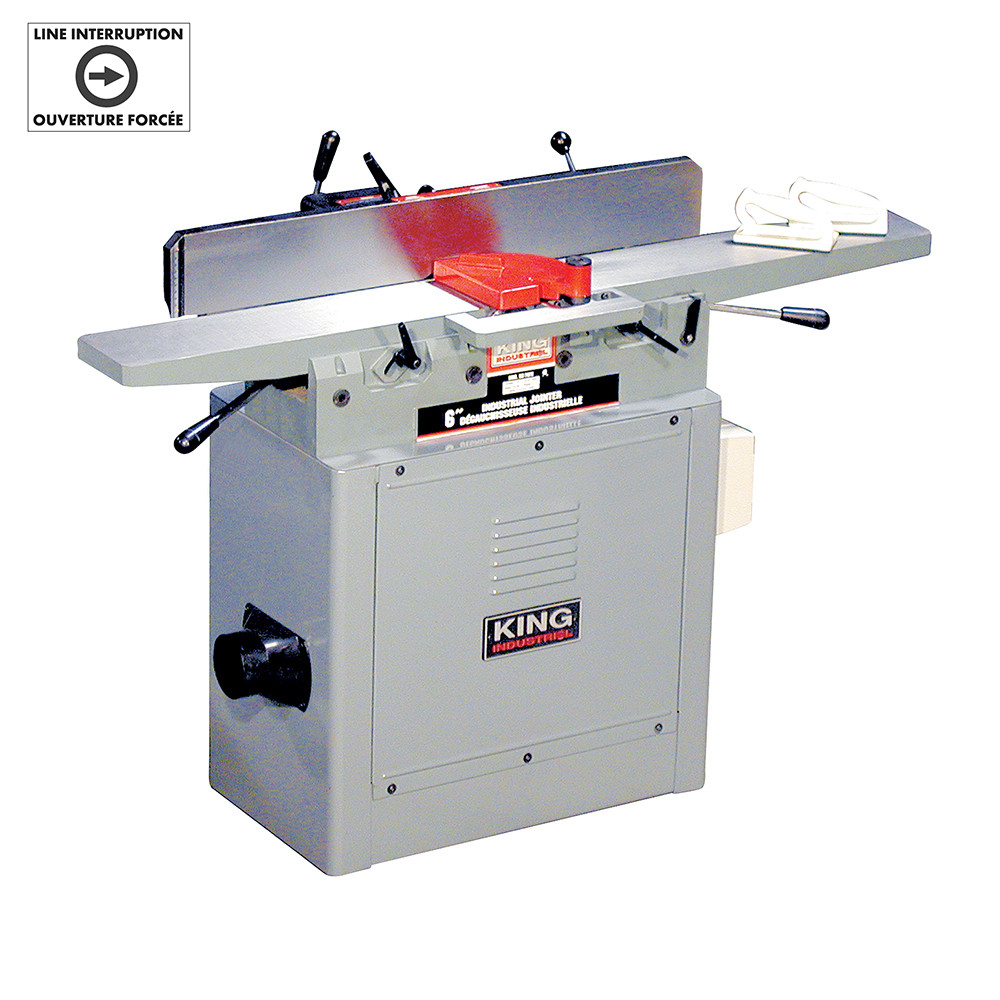

The KING INDUSTRIAL KC-70FX 2HP 6″ Parallelogram Jointer has been build to not only satisfy the home woodworking enthusiast but also works in an industrial woodworking shop as well. KING INDUSTRIAL KC-70FX Jointer features a powerful 2 HP Motor that works on a standard 110V circuit. With an upgraded jointer bed the KC-760FX uses a parallelogram precision ground cast-iron tables adjustment system. The Parallelogram bed allows you to raise and lower while it travels in an arc, keeping the edge of the table on the chipbreaker the same distance away from the blades at all times. The KC-70FX has a 3 knife cutterhead that allows rapid cutting while producing a superior finish. The knives rest on adjustable Jack Screws and a lock bar and lock screws keep knives in place making for easy secure adjustment. The quick lever actuated infeed table with lock handle makes for quick easy height adjustment which saves the woodworker a lot of time, especially during setup. The fence comes with a graduated scale providing a visual reference while you work. A sliding bar T-handle controls fence angle adjustment and locks with a single control. With safety in mind the KC-70FX jointer comes equipped with a magnetic safety switch and includes 2 safety push blocks.
KING INDUSTRIAL KC-70FX 2HP 6″ Parallelogram Jointer Features
- Powerful 2 HP Motor
- Parallelogram table adjustment system
- 3 knifes cutterhead allows rapid cutting while producing a superior finish
- Precision ground cast-iron tables
- One piece welded cabinet stand has built-in 4″ dust chute for dust collector hook-up
- Lever actuated infeed table with lock handle, for quick easy height adjustment
- Graduated scale located on fence
- Magnetic safety switch
- Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
- Sliding bar T-handle controls fence angle adjustment and locks with a single control
- Includes 2 safety push blocks
KING INDUSTRIAL KC-70FX 2HP 6″ Parallelogram Jointer Specifications
- CAPACITY: 6″
- CUTTERHEAD SPEED: 5,500 RPM
- DIAMETER OF THE CUTTERHEAD: 3-3/8″
- RABBETING CAPACITY: 1/2″ x 6″
- TABLE SIZE: 6″ x 55-1/2″
- FENCE SIZE: 36″ x 5″
- MOTOR: 15 Amp.
- VOLTAGE: 110V, 1 phase, 60 Hz
- DIMENSIONS (LXWXH) / WEIGHT: 55-1/2″ x 24″ x 32″ / 328 lbs
- UPC: 7 72995 00162 0
KING INDUSTRIAL KC-70FX 2HP 6″ Parallelogram Jointer Warranty
- King Industrial’s 2 Year Limited Warranty
