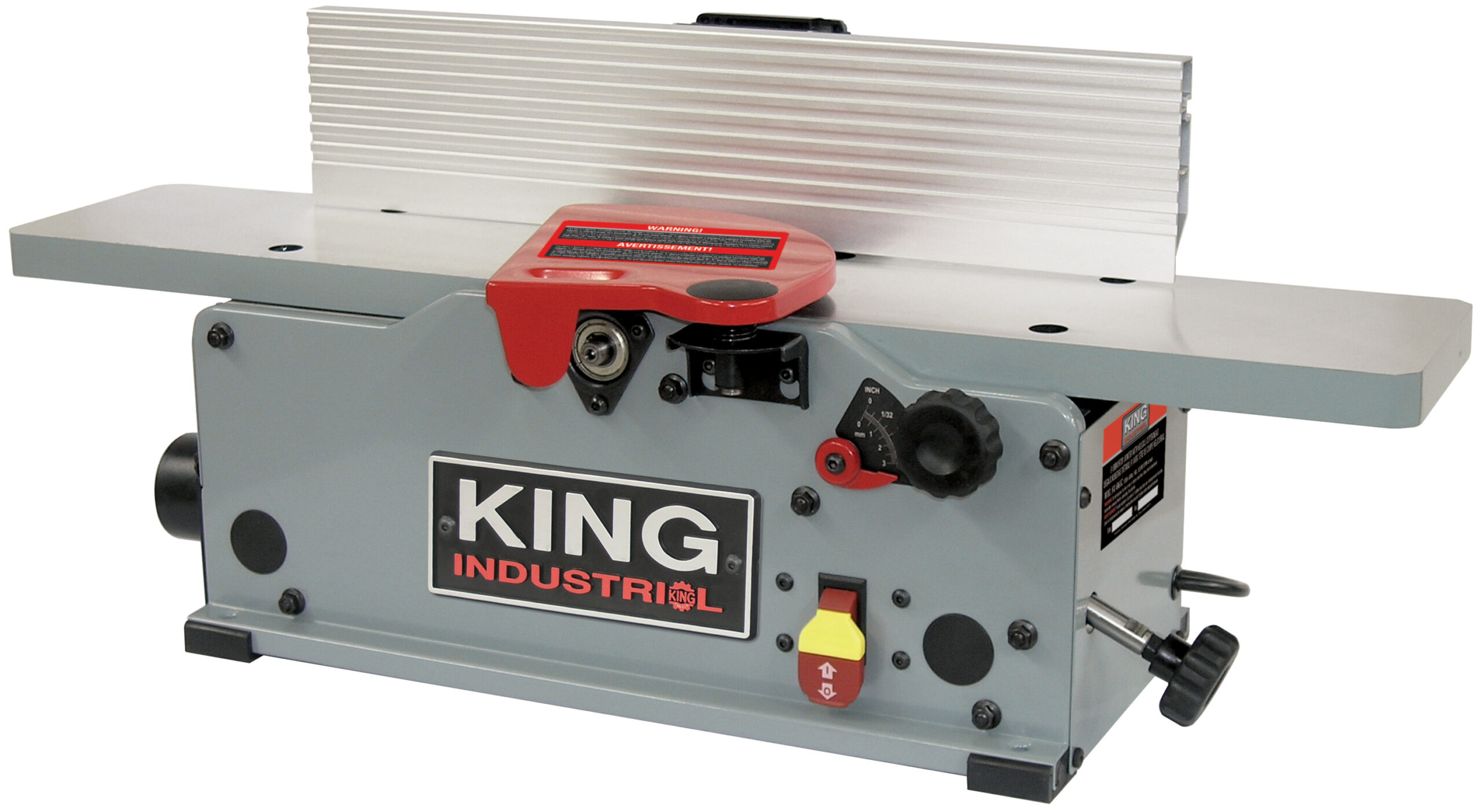

KING INDUSTRIAL KC-6HJC 6″ Bench Top Jointer with Helical Cutterhead

Home » Shop » King Canada » KING INDUSTRIAL KC-6HJC 6″ Bench Top Jointer with Helical Cutterhead
Adams SKU: KC-KC6HJC
Manufacturer Part#: King Canada KC-6HJC Categories: , ,
King Canada - Woodworking, metalworking, automotive, material handling, machinery, tools, equipment and accessories

6″ Benchtop jointer with helical cutterhead

The KING INDUSTRIAL KC-6HJC 6″ Bench Top Jointer with Helical Cutterhead delivers the same performance and precision as a stationary jointer, accurately truing stock up to 6″ wide and up to about 6 feet long all in a small compact form. If you work in a small shop where space is a premium yet you need the power and performance of a stationary machine the KC-6HJC 6″ Bench Top Jointer is the the answer.  The King Canada KC-6HJC is equipped with a 1 HP, 10 Amp motor, rated for a maximum 1/8″ depth of cut and uses a helical cutterhead that provides a superior finish. The KC-6HJC uses a ribbed drive belt, which provides efficient power transfer between the motor and cutterhead. The KC-6HJC helical cutterhead uses 12 HSS (high speed steel) inserts, with each having two cutting edges so you can reverse them as needed. KING INDUSTRIAL KC-6HJC 6″ Jointer features a parallelogram table adjustment system which offers four point adjustability for each table. The aluminum adjustable tilting fence is simple and the spring-loaded retractable safety guard automatically moves as you work. The 2-1/2″ dust chute for dust collector hook-up works exceptionally well removing sawdust and woodchips from the work area when hooked into your dust extraction system. The KING INDUSTRIAL KC-6HJC 6″ Bench Top Jointer comes ready to work with 2 safety push blocks, cutter insert adjustment Torx key and adjustment hex. keys

KING INDUSTRIAL KC-6HJC 6″ Bench Top Jointer with Helical Cutterhead Features

  • Powerful 1 HP Motor
  • Helical cutterhead for a superior finish
  • Parallelogram table adjustment system
  • Aluminum adjustable tilting fence
  • Spring-loaded retractable safety guard
  • 2-1/2″ dust chute for dust collector hook-up
  • Comes 2 safety push blocks, cutter insert adjustment Torx key and adjustment hex. keys

KING INDUSTRIAL KC-6HJC 6″ Bench Top Jointer with Helical Cutterhead Specifications

  • MODEL KC-6HJC
  • CAPACITY 6″
  • DEPTH OF CUT CAPACITY 1/8″
  • CUTTERHEAD SPEED 12,000 RPM
  • TABLE SIZE 6-1/8″ x 29-7/8″
  • TABLE HEIGHT (BASE TO TABLE TOP) 8-3/8″
  • FENCE SIZE 4-1/4″ x 19-5/8″
  • MOTOR 1 HP / 10 Amp.
  • VOLTAGE 120V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT 29-7/8″ x 16-3/4″ x 12-5/8″ / 38 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT 31-3/4″ x 12-3/8″ x 10-3/4″ / 41 lbs
  • UPC7 72995 01408 8

KING INDUSTRIAL KC-6HJC 6″ Bench Top Jointer with Helical Cutterhead Warranty

  • KING INDUSTRIAL’s 2 Year Limited Warranty

Additional information

Weight 41 lbs
Dimensions 31.75 × 12.375 × 10.75 in
