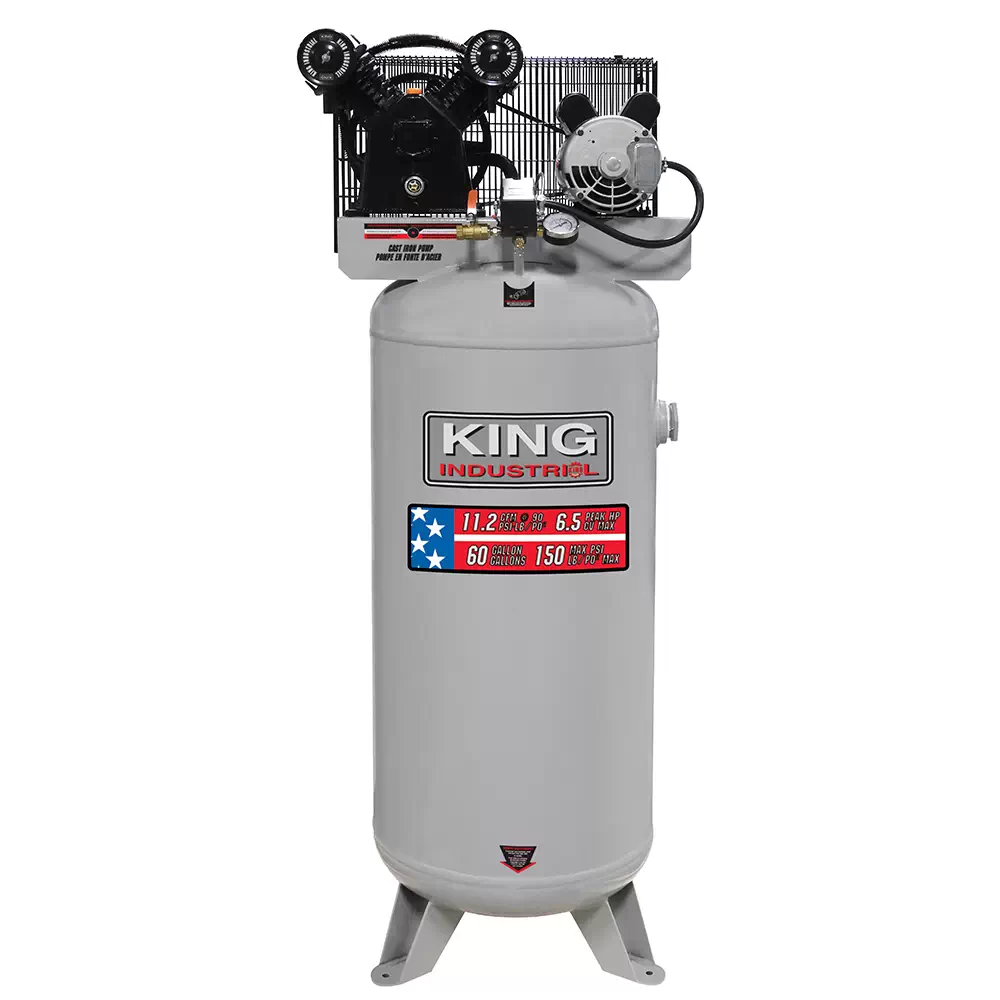

The King Industrial KC-6160V2 6.5HP 60 Gallon Compressor features a 2 cylinder “V” style cast iron single stage oil lubricated pump that minimizes vibrations, improves cooling and extends compressor life. The belt drive system comes complete with a sturdy metal belt guard, ASME safety valve, large intake “Auto-drop” metal filters and high efficiency reed valves for maximum performance. The heavy-duty 1/2″ ball valve and easy to read tank pressure gauge ensure easy operation and easily visible settings. The King Industrial KC-6160V2 6.5HP 60 Gallon Compressor comes with a thermally protected US Motor® 6.5 peak HP motor with reset that provides 150 PSI Max pressure for optimum tool performance and the 60 Gallon ASME registered tank provides longer run times
King Industrial KC-6160V2 6.5HP 60 Gallon Stationary Electric Air Compressor Features
- Thermally protected US Motor® 6.5 peak HP motor with reset
- 2 cylinder cast iron single stage oil lubricated pump
- 150 PSI Max pressure for optimum tool performance
- 60 Gallon ASME registered tank provides longer run times
- ASME safety valve
- Belt drive with sturdy metal belt guard
- Large intake “Auto-drop” metal filters
- Heavy-duty 1/2″ ball valve and easy to read tank pressure gauge
- Pump with “V” style design minimizes vibrations, improves cooling and extends compressor life
- High efficiency reed valves for maximum performance
King Industrial KC-6160V2 6.5HP 60 Gallon Stationary Electric Air Compressor Specifications
- MOTOR (PEAK): 6.5 HP
- FACTORY PRESSURE SETTING (ADJUSTABLE UP TO): 95-125 PSI (Max. 135 PSI)
- AIR DELIVERY @ 40 PSI: 13.4 CFM
- AIR DELIVERY @ 90 PSI: 11.2 CFM
- TANK SIZE: 60 Gallon
- MOTOR AMPERAGE: 15 Amp
- RPM: 3,450
- VOLTAGE: 208/240V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 25″ x 22″ x 67″ / 260 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT: 31″ x 24″ x 73″ / 270 lbs
- UPC: 7 72995 01080 6
King Industrial KC-6160V2 6.5HP 60 Gallon Stationary Electric Air Compressor Skid Size
- Dimensions LxWxH: 31″ X 24″ X 73″
- WEIGHT: 270 LBS
King Industrial KC-6160V2 6.5HP 60 Gallon Stationary Electric Air Compressor Warranty
- King Industrial’s 1 YEAR LIMITED WARRANTY
