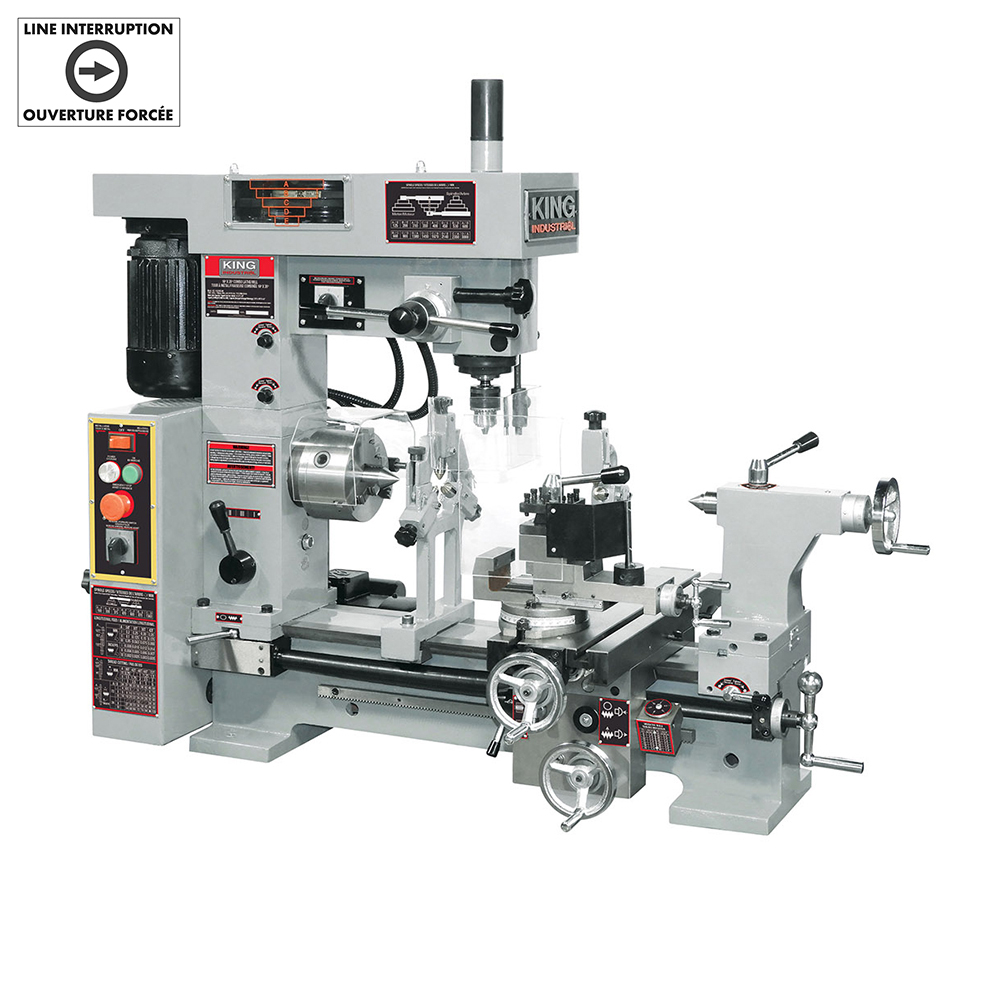

The KING INDUSTRIAL KC-1620CLM 16″ x 20″ Combo Lathe/Mill represents a pinnacle of workshop efficiency and versatility. Designed to conserve space without compromising on performance, this dual-function machine integrates the capabilities of a metal lathe and a milling machine into a single unit. This innovative design addresses the common workshop challenge of space constraints, making it an ideal solution for both hobbyists and professionals in woodworking, metalworking, and construction industries.
KING INDUSTRIAL KC-1620CLM 16″ x 20″ Combo Lathe/Mill At a Glance
- Dual Functionality: With a 16″ x 20″ metal lathe and a milling machine that offers 12″ from spindle nose to the milling table, this machine eliminates the need for separate equipment, effectively saving space and resources in any workshop.
- Powerful Performance: Equipped with two robust 3/4 HP, 110V motors, the KC-1620CLM delivers reliable and efficient operation in both lathe and mill modes. This ensures that users can confidently tackle a wide range of projects with ease.
- Enhanced Safety Features: Safety is paramount in any workshop, and the KC-1620CLM addresses this with lathe chuck and drill chuck safety guards, equipped with limit switch protection. A standard tool post safety guard further ensures user safety during operation.
- Versatile and User-Friendly: Transitioning between lathe mode and mill mode is straightforward, thanks to the machine’s intuitive design. A forward/reverse switch enhances the machine’s versatility, allowing for a broader range of applications.
- Precision Engineering: The bedways are hardened and precision ground, guaranteeing precise and consistent work on a variety of materials. This level of precision is essential for professional-quality results in both metalworking and woodworking projects.
- Warranty: King Industrial backs the KC-1620CLM with a 2-year limited warranty, providing peace of mind and assurance of the machine’s quality and durability.
KING INDUSTRIAL KC-1620CLM 16″ x 20″ Combo Lathe/Mill Features
- Two powerful 3/4 HP 110V motors
- Lathe chuck and drill chuck safety guards with limit switch protection and standard tool post safety guard
- Easily change from Lathe mode to Mill mode
- Forward/reverse switch for both operating modes
- Bedways are hardened and precision ground
- Comes with 5″- 3 jaw chuck, imperial and metric change gears, tool post, steady rest, follow rest, thread chasing dial indicator, MT#3 and MT#4 dead centres, 1/2″ drill chuck and tool box with adjusting tools
KING INDUSTRIAL KC-1620CLM 16″ x 20″ Combo Lathe/Mill Includes
- 5″- 3 jaw chuck
- Imperial and metric change gears
- Tool post
- Steady rest
- Follow rest
- Thread chasing dial indicator
- MT#3 Dead center
- MT#4 Dead center
- 1/2″ drill chuck
- Tool box with adjusting tools
KING INDUSTRIAL KC-1620CLM 16″ x 20″ Combo Lathe/Mill Specifications
- Model: KC-1620CLM
- Distance Between Centres: 20 inches, allowing for significant workpiece length.
- Swing Over Bed and Carriage: 16-1/2 inches over bed and 11-1/2 inches over carriage, accommodating larger diameter materials.
- Spindle Bore: 1-1/8 inches, enabling the use of a wide range of tooling and material sizes.
- Headstock/Tailstock Tapers: MT#4 in the headstock and MT#3 in the tailstock, ensuring compatibility with a broad selection of tooling.
- Drill Press Quill Taper: MT#3, matching the tailstock for consistency and flexibility in tooling.
- Cross Slide Travel: 8 inches, offering substantial lateral movement for milling operations.
- Lathe Spindle Speeds: 7 speeds ranging from 160 to 1,360 RPM, providing versatility for various materials and applications.
- Thread Cutting Range: 36 standard threads from 4 to 120 TPI and 22 metric threads from 0.2 to 6 mm, covering a comprehensive range of threading needs.
- Automatic Feeding Range: Offers precision from 0.002 to 0.014 inches or 0.05 to 0.35 mm, facilitating consistent material removal rates.
- Drilling/Face Mill/End Mill Capacities: 7/8 inch for drilling, 1-1/8 inches for face milling, and 3-1/8 inches for end milling, highlighting the machine’s versatile machining capabilities.
- Max. Distance Spindle Nose to Milling Table: 12 inches, providing ample clearance for various setups and workpiece sizes.
- Drilling Speeds: 16 speeds from 120 to 3,000 RPM, ensuring optimal drilling performance across different materials.
- Motors: Two 3/4 HP, 110V motors, one for the lathe and one for the mill, delivering powerful and reliable operation.
- Assembled Dimensions (LxWxH) / Weight: 43 inches x 19-1/2 inches x 38 inches / 515 lbs, indicating a compact yet sturdy machine build.
- Package Dimensions (LxWxH) / Weight: 45 inches x 23 inches x 42 inches / 615 lbs, ensuring the machine is well-protected during transport.
- UPC: 7 72995 01540 5
KING INDUSTRIAL KC-1620CLM 16″ x 20″ Combo Lathe/Mill Warranty
- King Industrials 2 Year Limited Warranty
