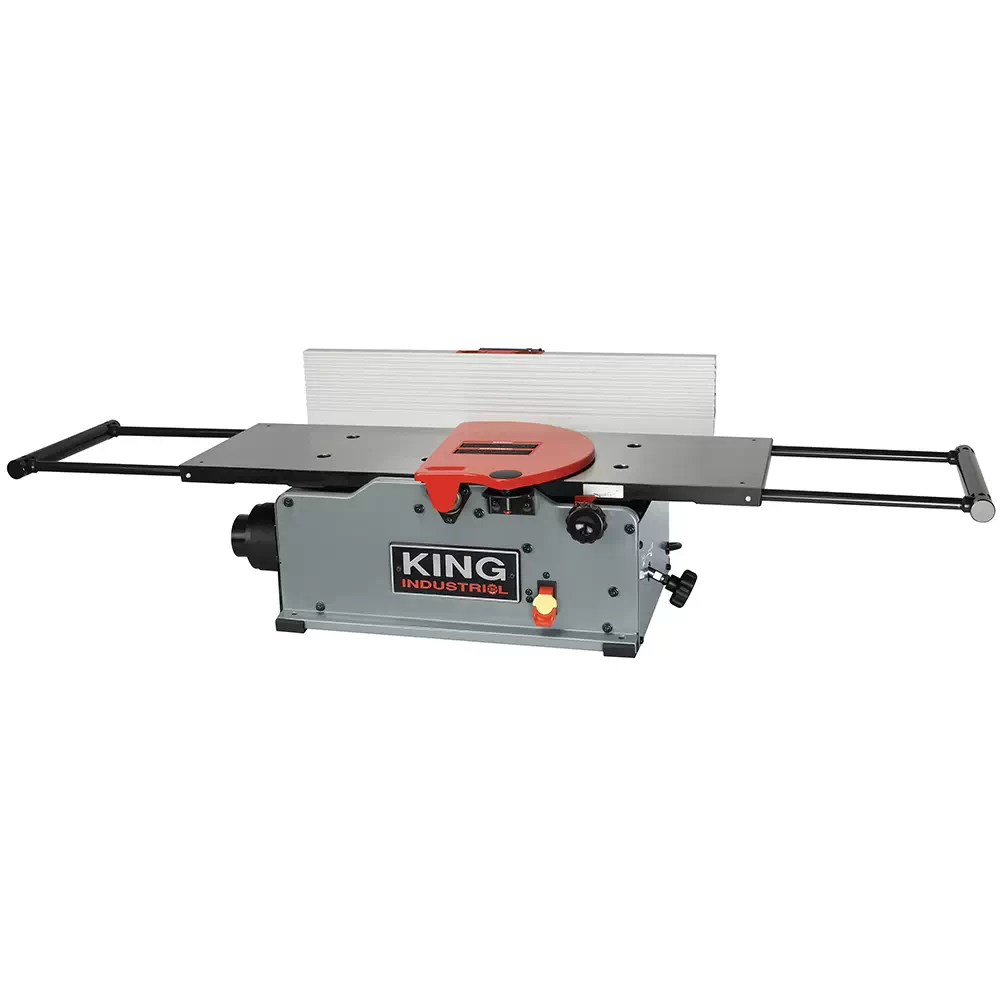

KING INDUSTRIAL KC-10HJC 10″ Benchtop Jointer with Helical Cutterhead

The KING INDUSTRIAL KC-10HJC 10″ Benchtop Jointer with Helical Cutterhead is the ideal woodworking machine for the smaller workshop. With a 10″ capacity the KC-10HJC provides all the functionality of a large jointer but in a small compact package. The King KC-10HJC uses a parallelogram table adjustment system  with heavy duty cast-iron tables with retractable extensions that provide support on even those larger pieces. The powerful 1 HP motor and the unique helical head provides the woodworker with a 1/8″ depth of cut capacity in a single pass all with a fantastic finish.

KING INDUSTRIAL KC-10HJC 10″ Benchtop Jointer with Helical Cutterhead Features

• Powerful 1 HP motor
• Helical cutterhead for a superior finish
• Parallelogram table adjustment system
• Cast-iron tables with retractable extensions
• Aluminum adjustable tilting fence
• Spring-loaded retractable safety guard
• Dual 2-1/2″ and 4″ dust chute for dust collector hook-up
• Comes 2 safety push blocks, cutter insert adjustment Torx key and adjustment hex. keys

KING INDUSTRIAL KC-10HJC 10″ Benchtop Jointer with Helical Cutterhead Specifications

• MODEL: KC-10HJC
• CAPACITY: 10″
• DEPTH OF CUT CAPACITY: 1/8″
• CUTTERHEAD SPEED: 12,000 RPM
• TABLE SIZE: 10″ x 30-1/2″
• TABLE SIZE WITH EXTENSIONS: 10″ x 53-1/2″
• TABLE HEIGHT (BASE TO TABLE TOP): 8-1/2″
• FENCE SIZE: 4-3/8″ x 24″
• MOTOR: 1 HP, 12 Amp.
• VOLTAGE: 120V, 1 phase, 60 Hz
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 53-1/2″ x 20-1/2″ x 13-1/4″ / 74 lbs
• PACKAGE DIMENSIONS (LXWXH) / WEIGHT: 36-1/2″ x 17-1/4″ x 13″ / 82 lbs

KING INDUSTRIAL KC-10HJC 10″ Benchtop Jointer with Helical Cutterhead Warranty

• King’s 2 Year Limited Warranty
