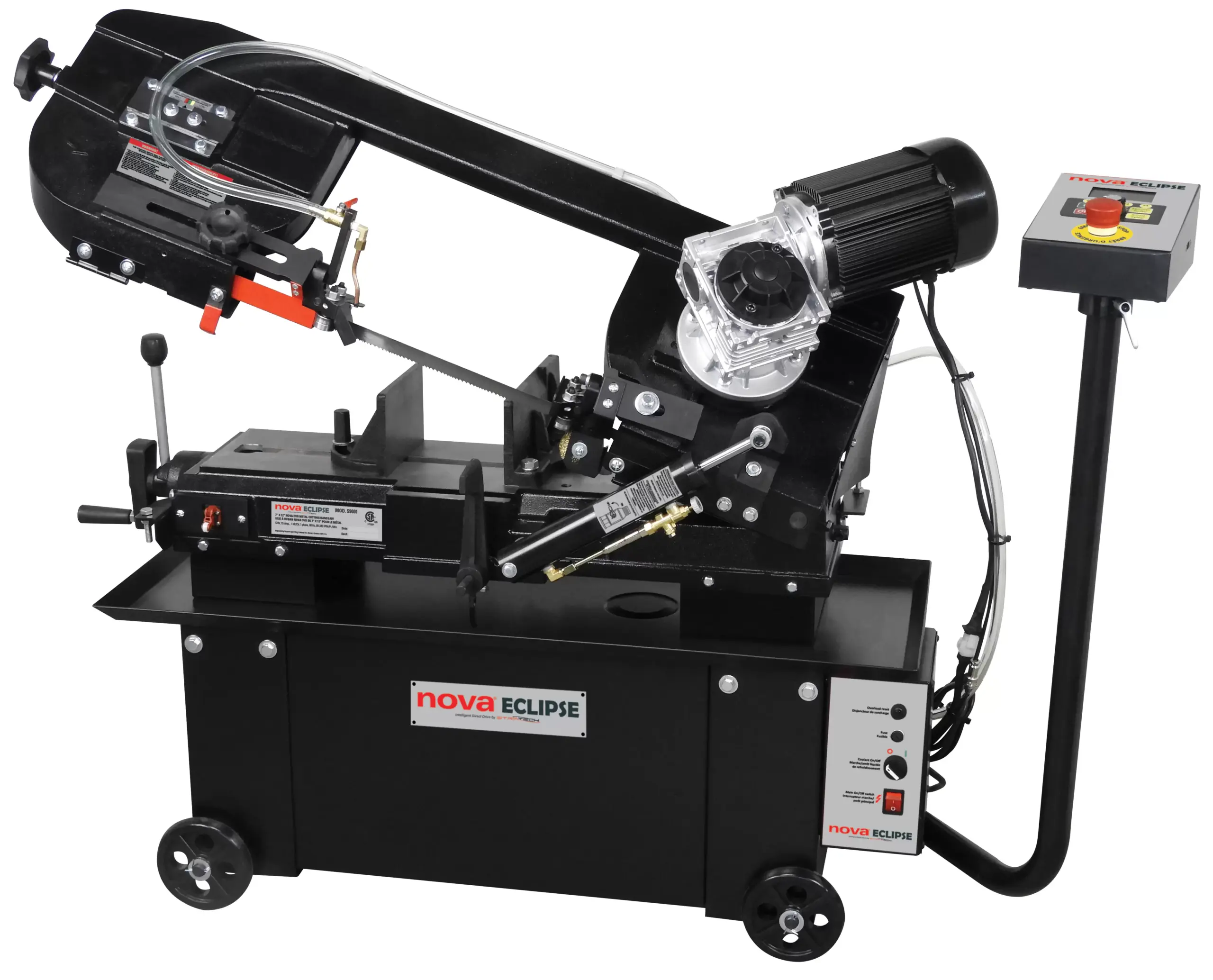

The King Canada 59001 Nova Eclipse DVR 1HP 7” x 12” Metal Cutting Bandsaw is the worlds first smart metal bandsaw which combines common bandsaw features with state of the art technology that makes it more efficient and provides enormous time savings. The King 59001 Nova Eclipse metal cutting bandsaw uses Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive ControlTM Software which works for you to produce optimum results for a superior finish. The 59001 provides a powerful direct drive 1 HP high torque brushless motor with no pulleys or belts to cause vibration which allows it to maintain a constant torque under load and electronic braking emergency stop. With the intelligent material speed selection and dial knob the King 59001 Nova Eclipse DVR’s provides a precise speed adjustment allowing for total control over your cut. The adjustable hydraulic downfeed control allows you to dial in the perfect speed of cut based on the material selection. The King 59001 comes prewired at 120V but also Includes a 240V conversion components kit.
King 59001 Nova Eclipse DVR 1HP 7” x 12” Metal Cutting Bandsaw Features
- The World’s FIRST Smart Bandsaw
- Smart metal bandsaw combines common bandsaw features with state of the art technology

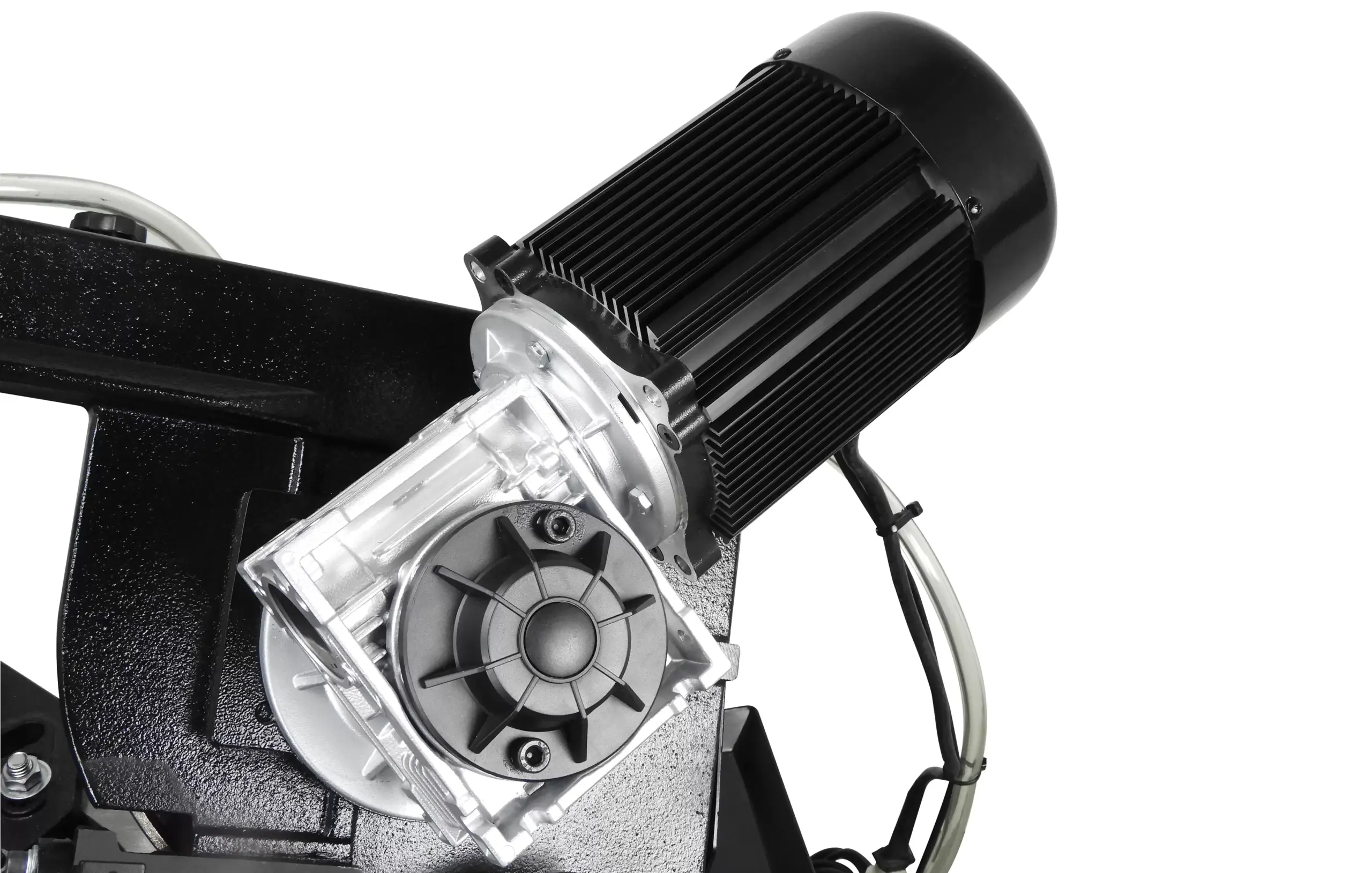

- Powerful direct drive 1 HP high torque brushless motor with no pulleys or belts to cause vibration
- Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive ControlTM Software which works for you to produce optimum results for a superior finish
- Set material to cut using DVR control panel and it will set the right speed.
- Motor is so quiet it allows user to adjust speed by the sound of the cut alone.

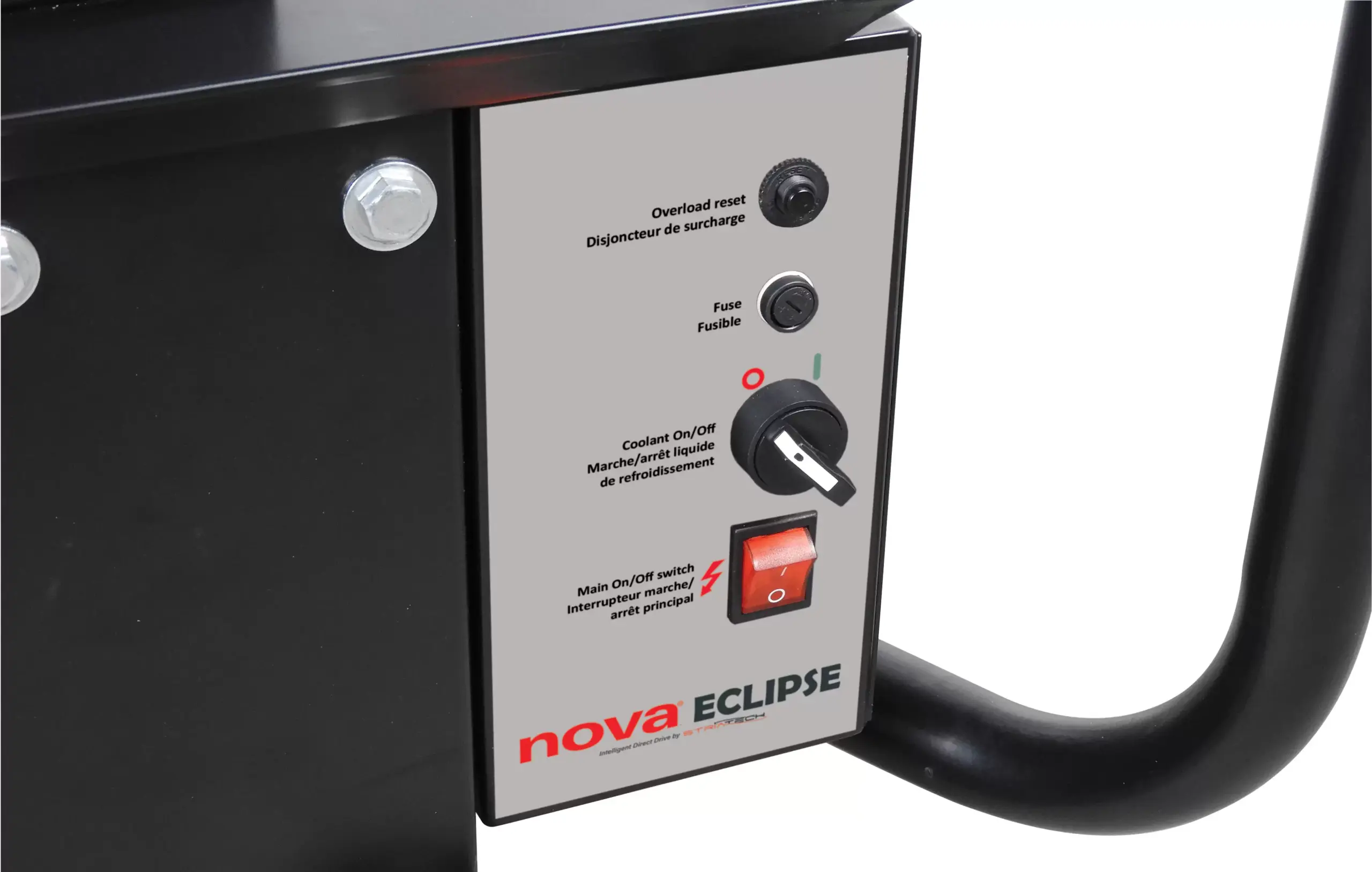

- Equipped with overload reset, fuse, coolant On/Off switch and main On/Off.

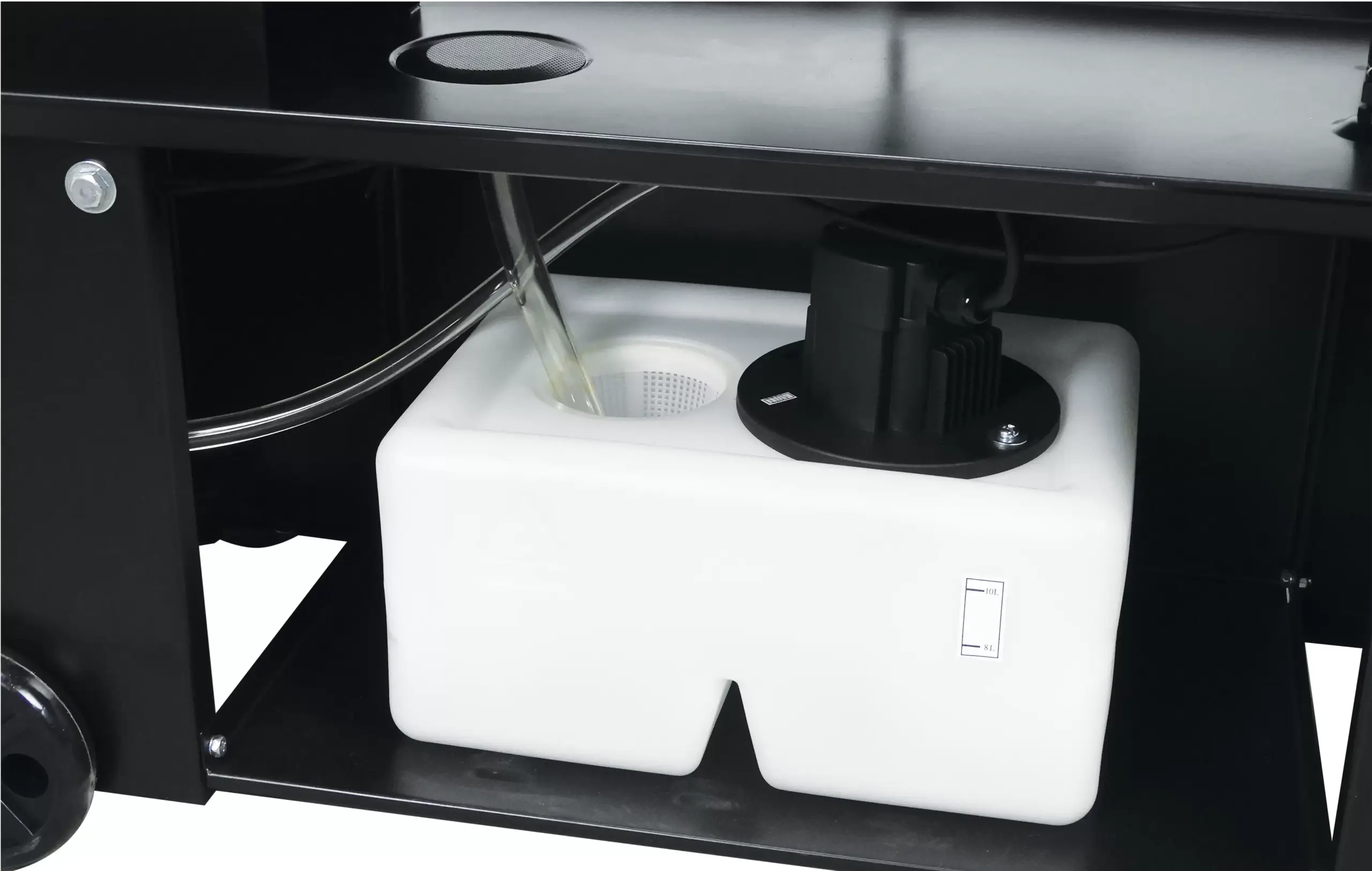

- Integrated coolant system with 10L tank and adjustable coolant nozzle.

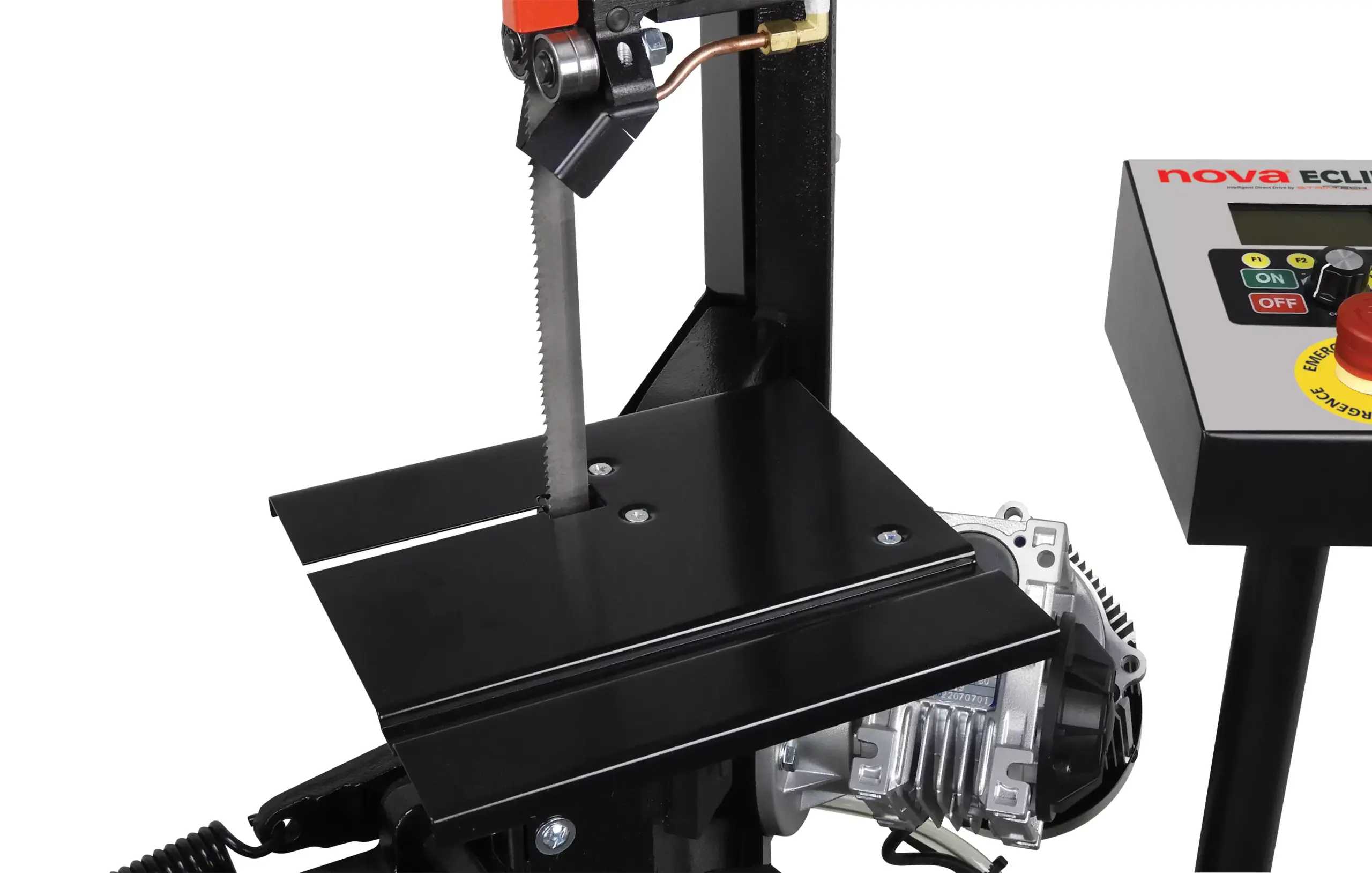

- Head pivots vertically for vertical cutting using the included vertical saw table.

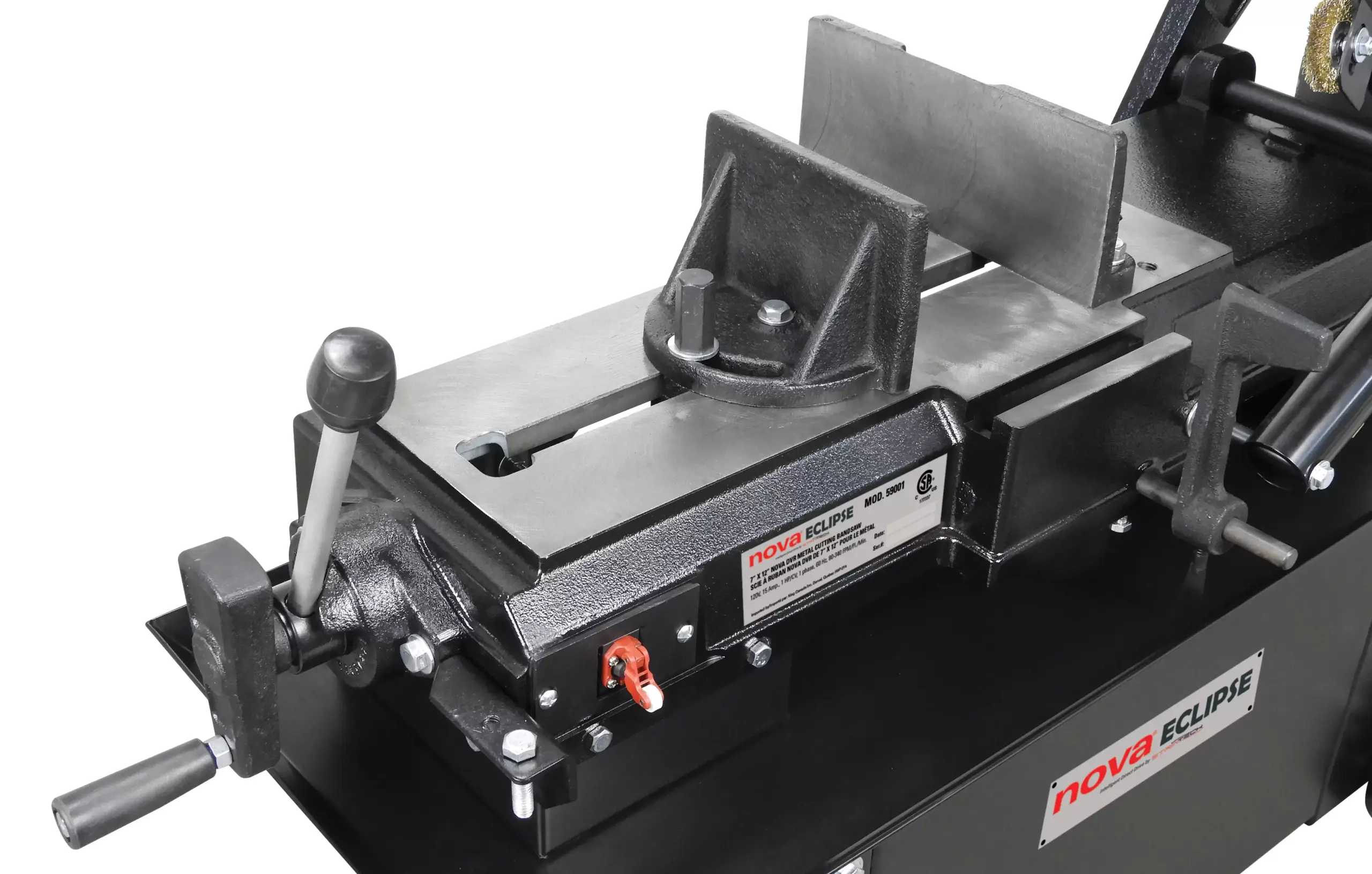

- TRU-LOCK quick locking clamping vise system secures workpiece.
- Constant torque under load and electronic braking emergency stop

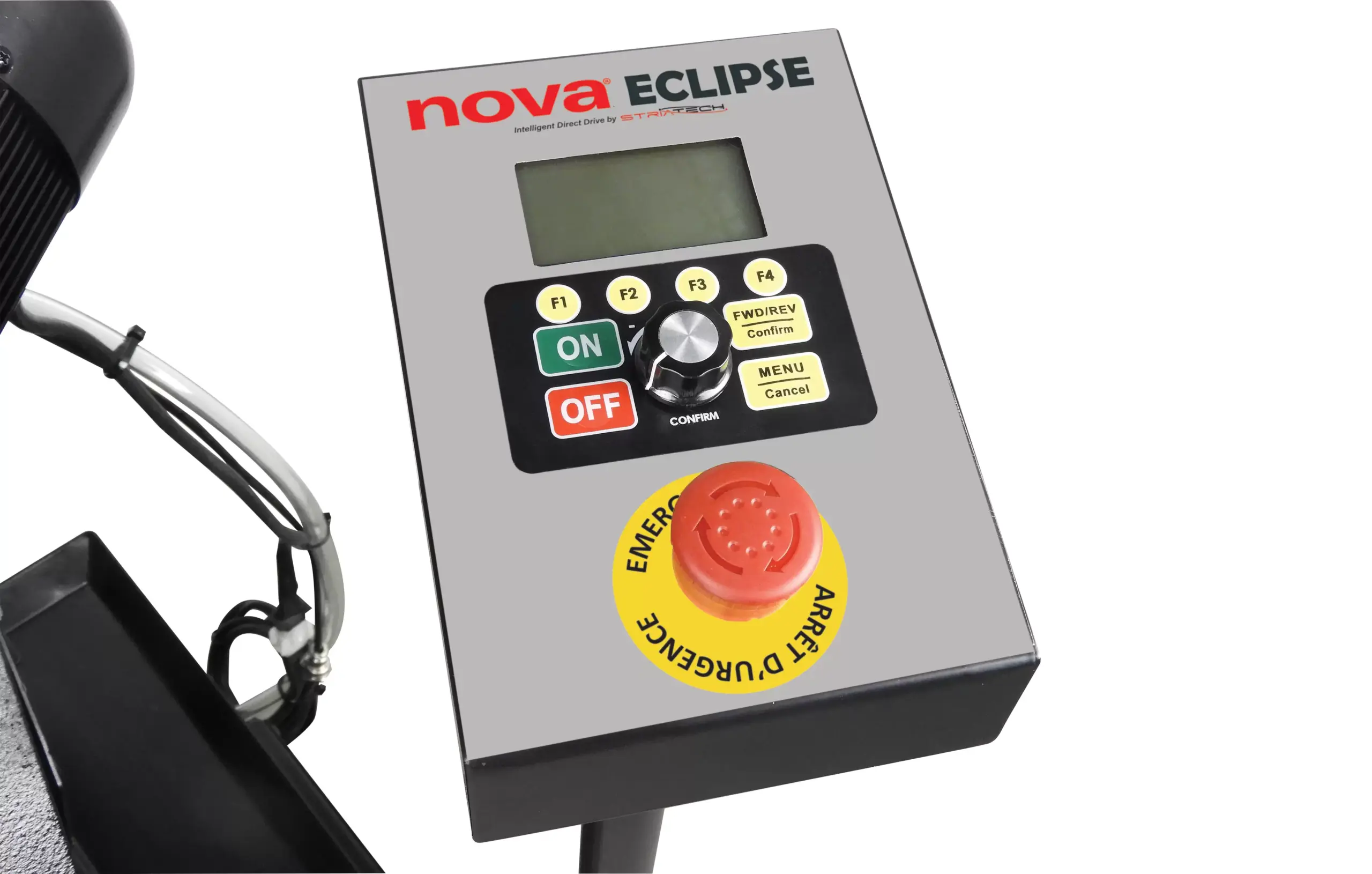

- Intelligent material speed selection and dial knob for precise speed adjustments
- Adjustable hydraulic downfeed control
- Prewired 120V- Includes a 240V conversion components kit
- Comes with blade, vertical saw table, workstop, firmware USB cable and adjustment wrenches

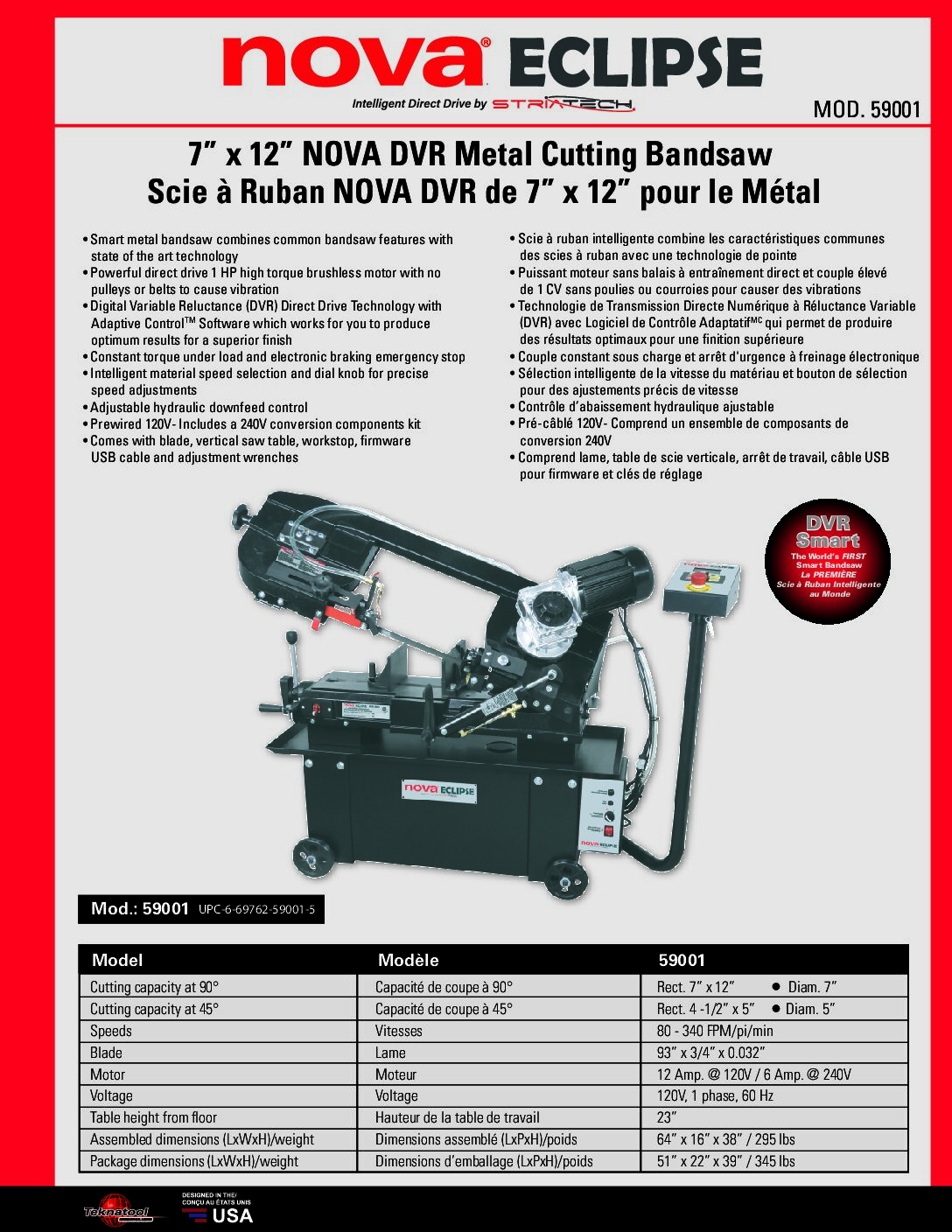

King 59001 Nova Eclipse DVR 1HP 7” x 12” Metal Cutting Bandsaw Specifications
- Model: 59001
- UPC: 6-69762-59001-5
- Cutting capacity at 90°: Rect. 7” x 12” Diam. 7”
- Cutting capacity at 45°: Rect. 4 -1/2” x 5” Diam. 5”
- Speeds: 80 – 340 FPM/pi/min
- Blade: 93” x 3/4” x 0.032”
- Motor: 12 Amp. @ 120V / 6 Amp. @ 240V
- Voltage: 120V, 1 phase, 60 Hz
- Table height from floor: 23”
- Assembled dimensions (LxWxH)/weight: 64” x 16” x 38” / 295 lbs
- Package dimensions (LxWxH)/weight: 51” x 22” x 39” / 345 lbs
King 59001 Nova Eclipse DVR 1HP 7” x 12” Metal Cutting Bandsaw Includes
- 59001 7” x 12” Metal Cutting Saw
- Blade
- Vertical saw table
- Workstop
- Firmware USB cable
- Adjustment wrenches
